Pentair Tagelus Top Mount Filter With Multiport Valve (TA100D) || EC-145240
FIBERGLASS TANK SAND FILTER WITH MULTIPORT VALVE, CLAMP STYLE
The Pentair EC-145240 Tagelus Top Mount Sand Filter with Multiport Valve (TA100D) offers exceptional filtration performance and long-lasting durability. Built with one-piece fiberglass-reinforced construction, this filter is designed to withstand the harshest weather conditions and the rigors of regular pool use. Its simple yet effective sand filtration system ensures crystal-clear water with minimal maintenance. Available at ePoolSupply, an authorized and preferred Pentair reseller, we provide authentic products backed by expert support and fast shipping.
Product Highlights
- Top-Mount Design: Space-saving top-mount configuration with a 6-position multiport valve for versatile operation.
- Superior Filtration: Sand filtration removes particles as small as 20 microns, delivering consistently clear pool water.
- Durable Construction: Fiberglass-reinforced tank ensures strength, corrosion resistance, and longevity.
- Large Capacity: Accommodates up to 600 pounds of Sand for high-flow performance and extended cleaning cycles.
- 6-Position Multiport Valve: Offers easy control for filtration, backwashing, rinsing, and more.
- One-Piece Tank Mold: The seamless design prevents leaks and structural issues for worry-free operation.
- Efficient Flow: Engineered for maximum hydraulic performance, reducing energy consumption and operational costs.
Specifications
- Model: Pentair EC-145240 Tagelus TA100D
- Type: Sand Filter with Multiport Valve (Top-Mount)
- Filter Area: 4.91 sq. ft.
- Max Flow Rate: 100 GPM (Gallons Per Minute)
- Sand Capacity: 600 lbs. of #20 silica sand
- Valve Size: 2" po" ts

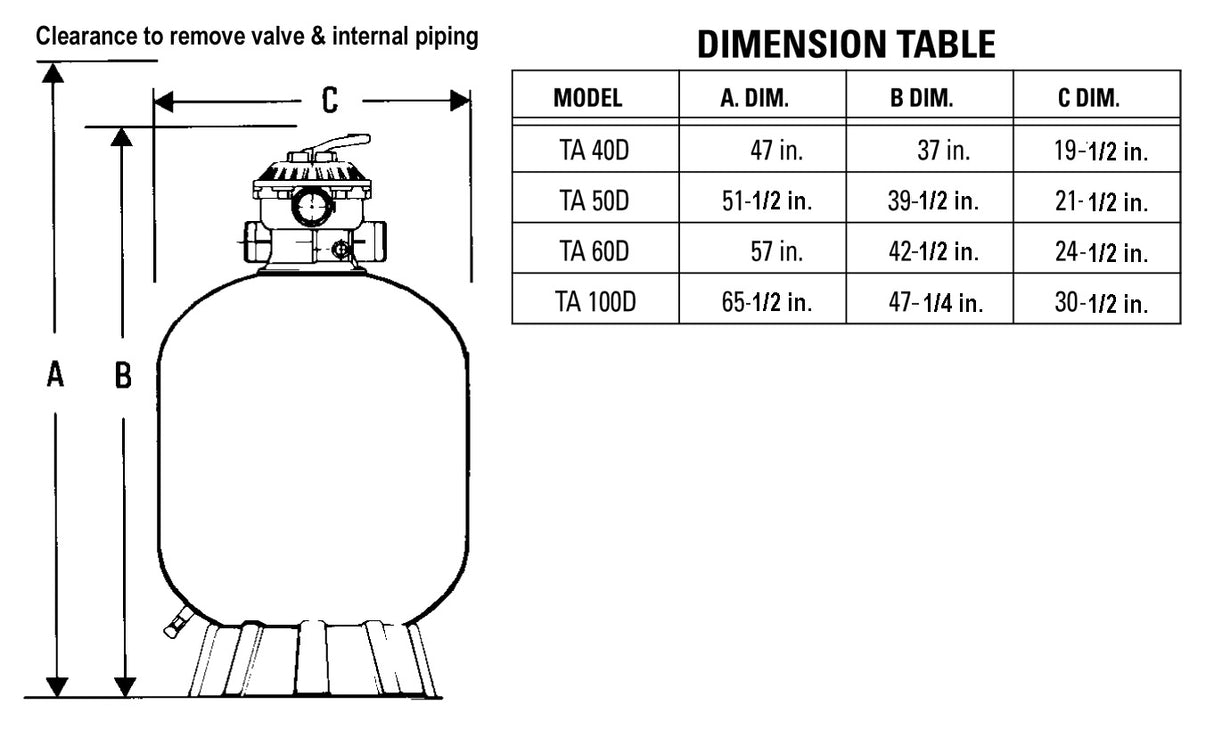

- Dimensions: 35" H x 24.5" W
- Weight: 64 lbs. (without Sand)
- SKU: EC-145240
- UPC: 788379500412
Brief History
PentPentair'selus series has been a cornerstone of sand filtration technology for over two decades. Known for its robust design and reliable performance, the Tagelus line has been trusted by pool professionals and homeowners worldwide. The TA100D model represents the pinnacle of this legacy, combining efficiency, durability, and user-friendly features to provide exceptional water clarity with minimal effort.
Electrical Information
This non-electrical filter system requires an operation connection to a compatible pool pump. Ensure your pumppump'sw rate does not exceed the filtfilter'simum flow rating of 100 GPM to maintain optimal performance.
Recommended Installation Tips
- Select an Ideal Location: Install the filter on a flat, stable surface near the pump and pool plumbing for easy connectivity.
- Connect PlumPlumbingperly: Use 2-inch plumPlumbing efficient flow and ensure all connections are sealed tightly to prevent leaks.
- Add Sand Carefully: Fill the filter with #20 silica sand as recommended, ensuring the standpipe remains centered during loading to avoid damage.
- Prime the System: Backwash the filter after installation to remove impurities from the Sand and ensure optimal performance.
- Regular Maintenance: Perform routine backwashing and inspect the Sand periodically to maintain water clarity and extend the filtfilter's span.
