Home Parts List: Hayward Universal H-Series Low NOx 250K BTU Heater (Propane Gas)
Parts List for Parts List: Hayward Universal H-Series Low NOx 250K BTU Heater (Propane Gas)

Parts List: Hayward Universal H-Series Low NOx 250K BTU Heater (Propane Gas)

Jump to Part

124911121316171819202122232427293031343536394041

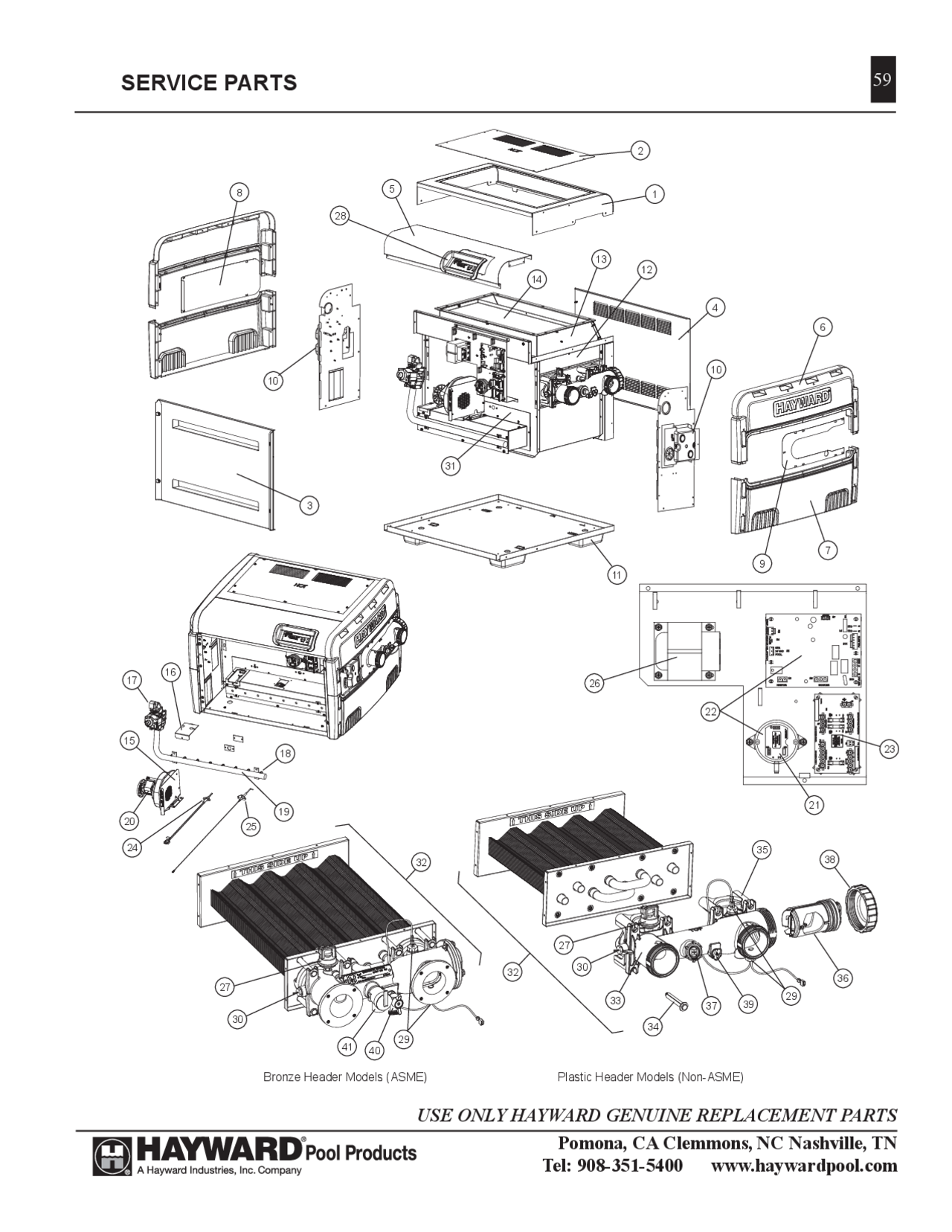

Parts List

Hayward Jacket Top H250FD | FDXLJKT1250 # 1

Hayward Jacket Top H250FD | FDXLJKT1250

View Details
Hayward Top/Flue Cover H250FD | FDXLTFC1250 # 2

Hayward Top/Flue Cover H250FD | FDXLTFC1250

View Details
REAR ACCESS DOOR ASSY H250FD | FDXLRAD1250 # 4

REAR ACCESS DOOR ASSY H250FD | FDXLRAD1250

View Details
Hayward Right Trim Panel Kit | FDXLRTP1930 # 9

Hayward Right Trim Panel Kit | FDXLRTP1930

View Details
BASE LEG KIT FD (SET OF 4) | FDXLPBL1930 # 11

BASE LEG KIT FD (SET OF 4) | FDXLPBL1930

View Details
Hayward Flue Collector Side Panel Kit | FDXLFCS1930 # 12

Hayward Flue Collector Side Panel Kit | FDXLFCS1930

View Details
KIT-RAINGUARD ASSY H250FD | FDXLRGK1251 # 13

KIT-RAINGUARD ASSY H250FD | FDXLRGK1251

View Details
Hayward Igniter Access Cover Assembly Kit | FDXLIAC1930 # 16

Hayward Igniter Access Cover Assembly Kit | FDXLIAC1930

View Details
Hayward Gas Valve LP Kit FD | FDXLGSV0002 # 17

Hayward Gas Valve LP Kit FD | FDXLGSV0002

View Details
Hayward Gas Orifice Kit, LP, (PK 8) UHS | FDXLBOP1930 # 18

Hayward Gas Orifice Kit, LP, (PK 8) UHS | FDXLBOP1930

View Details
Hayward Gas Manifold Kit H250FD | FDXLMAN1250 # 19

Hayward Gas Manifold Kit H250FD | FDXLMAN1250

View Details
Hayward Combustion Blower Kit FD | FDXLBWR1930 # 20

Hayward Combustion Blower Kit FD | FDXLBWR1930

View Details
Hayward Blower Vacuum Switch | FDXLBVS1930 # 21

Hayward Blower Vacuum Switch | FDXLBVS1930

View Details
Hayward Integrated Control Board Kit - FD Heaters | FDXLICB1930 # 22

Hayward Integrated Control Board Kit - FD Heaters | FDXLICB1930

View Details
Hayward Field Wiring Panel Kit FD | FDXLFWP1930 # 23

Hayward Field Wiring Panel Kit FD | FDXLFWP1930

View Details
Hayward Ignitor Kit - FD Heaters | FDXLIGN1930 # 24

Hayward Ignitor Kit - FD Heaters | FDXLIGN1930

View Details
PRESSURE SWITCH, FD HEATERS | FDXLWPS1930 # 27

PRESSURE SWITCH, FD HEATERS | FDXLWPS1930

View Details
Hayward High Limit Kit, FD Heaters | FDXLHLI1930 # 29

Hayward High Limit Kit, FD Heaters | FDXLHLI1930

View Details
Hayward Thermistor, FD Heater | FDXLTER1930 # 30

Hayward Thermistor, FD Heater | FDXLTER1930

View Details
Hayward CC Front/Air Box Gasket Kit FD | FDXLGSK1934 # 31

Hayward CC Front/Air Box Gasket Kit FD | FDXLGSK1934

View Details
Hayward Header Hardware Kit, FD | FDXLHDW1930 # 34

Hayward Header Hardware Kit, FD | FDXLHDW1930

View Details
Hayward KIT-HEADER MOUNTING BASE | FDXLHMB1930 # 35

Hayward KIT-HEADER MOUNTING BASE | FDXLHMB1930

View Details
Hayward Universal H-Series Bezel & Keypad, Pre-July 2016 Style | FDXLBKP1930 # 36

Hayward Universal H-Series Bezel & Keypad, Pre-July 2016 Style | FDXLBKP1930

View Details
Hayward TriStar Drain Plug with O-Ring | SPX4000FG # 39

Hayward TriStar Drain Plug with O-Ring | SPX4000FG

View Details
Hayward Drain Valve Kit ASME | FDXLDRV1930A # 40

Hayward Drain Valve Kit ASME | FDXLDRV1930A

View Details
Hayward RELIEF VALVE CZ, HM2, CPS, PSG, SG | Part CHXRLV1930 # 41

Hayward RELIEF VALVE CZ, HM2, CPS, PSG, SG | Part CHXRLV1930

View Details
