BlueSquare Q360 Infloor Pop Up Cleaning Head - Overview

Hello there! We're back today with another wonderful blog overview. Periodically we like to inform our customers of the newest updates in the swimming pool industry. Whether it be a simple "who's who" or maybe even a recent update to equipment. This week we will be discussing the BlueSquare Q360 Infloor Pop Up Cleaning Heads. Let's dive in!

First we'd like to talk about how an Infloor System works. There are many different versions of in floor cleaning systems out there however, the principal operation for each manufacturer is roughly the same. As with any pool, the water is circulated through a system of suction lines, run through a filter, and returned back into the pool through various pool jets and water features. This is where the infloor system comes in. Once the water has been filtered, it is driven through an actuator which disperses the water at high pressure to a designated "zone" of three to five cleaning heads. These heads "pop up" from the pool floor and spray dirt & debris towards the main suction drain.

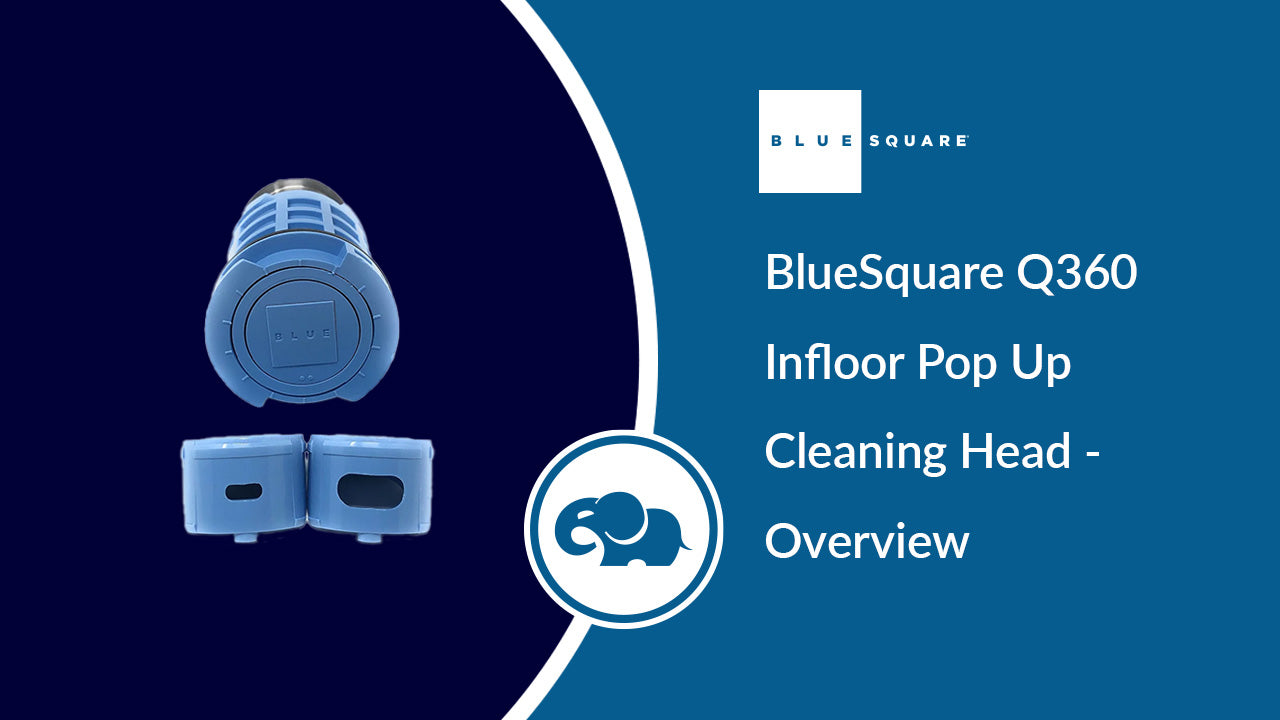

Blue Square Q360 Pop Up Head with Nozzles

The Blue Square Q360 Performance Jet is designed to improve the overall cleaning performance with little to no maintenance. The innovative weighted chassis and durable outer housing increase the life of the cleaning system. The "Final Sweep" pivoting motion helps prevent dirt and debris from collecting near the pop-up head. When the cleaning head rotates to the next position, the nozzle sweeps in the opposite direction to clear any remaining debris before it seats flat in the collar.

They are installed and removed from the matching Collar easily with the All Metal Blue Square Tool, which is equipped with an adapter to attach the tool to any standard pool pole. The heads measure 2 inches across and 3 5/8 inches from top to bottom.

Includes 3 Jet Nozzles to determine cleaning strength:

  • Small "Low Flow" - 10 Gallons per minute
  • Medium "Dual Flow" - 15 Gallons per minute
  • Large "High Flow" - 20 Gallons per minute

Available in 5 colors to blend with any pool surface:

  • White
  • Beige
  • Gray
  • Blue
  • Black

Be sure to check out the video below to learn how to remove the nozzle inserts and other tips and tricks.

As you can see from the picture and video above, the BlueSquare Infloor Cleaning System is one of the most effective ways to keep your pool clean and circulating efficiently. You'll save money on chemical and heating costs, and you'll also save time by not having to hand vacuum your pool as often. Please feel free to reach out to us directly with any questions you might have about your BlueSquare In-floor Pool Cleaning System. We're happy to help!
