Intermatic PE700 Series

Intermatic has come out with the brand new PE700 series. Take control of your pool equipment schedules with the wireless electronic time switch. This general-purpose 24-hour, 7-day timer control is capable of automatically switching loads according to a preset daily schedule. Simply wire to various downstream hard-wired pool equipment and turn these loads On and Off via schedule or manually through the Intermatic Connect Mobile App or Voice command. This is fully compatible with Alexa or Google Home devices. The PE700 series also has a built-in astronomic and daylight saving time adjustment.

Connect App

Once connected to a Wi-Fi network, the PE700 series can be accessed via the Intermatic Connect app from any location. Create automatic ON/OFF schedules for connected pool equipment and manually override or update from anywhere. The Intermatic Connect app is available via Google Play and the App Store.

Remote Input

Enhance the functionality by wiring a photocontrol/ presence sensor directly to the PE700 series control then apply an override to the chosen circuits. This means that the override can handle much larger loads as it now allows the control to handle the load directly while there is very little drawn on the override itself.

Simple Retrofit

The PE700 series enclosure knockout sizes and locations are the same as the legacy Intermatic enclosures, making it a simple and easy upgrade.

LED Indicators

LED indicators give users a visual cue to indicate the device's current state and connection status. The independent relay state indicator light will be active when the normally open relay is energized.

Connection Status:

  • Solid Green = Connected
  • Solid Red = Disconnected
  • Flashing Green = Attempting To Connect

Rugged Performance

A robust environmental rating of 158 degrees Fahrenheit allows the control. To perform in even the hottest climates.

SPDT Relays

Relay 1 and 2 can be configured to function as independent single pole double throw (SPDT) 120V circuits or work together as a double pole double throw (DPDT) switch for 240V loads. The PE723P has 2 circuits while the PE733P has 3 circuits. Relay 1 and 2 can be configured to function as independent SPDT 120V circuits or work together as a DPDT switch for 240V loads.

Two PE700 Series Models

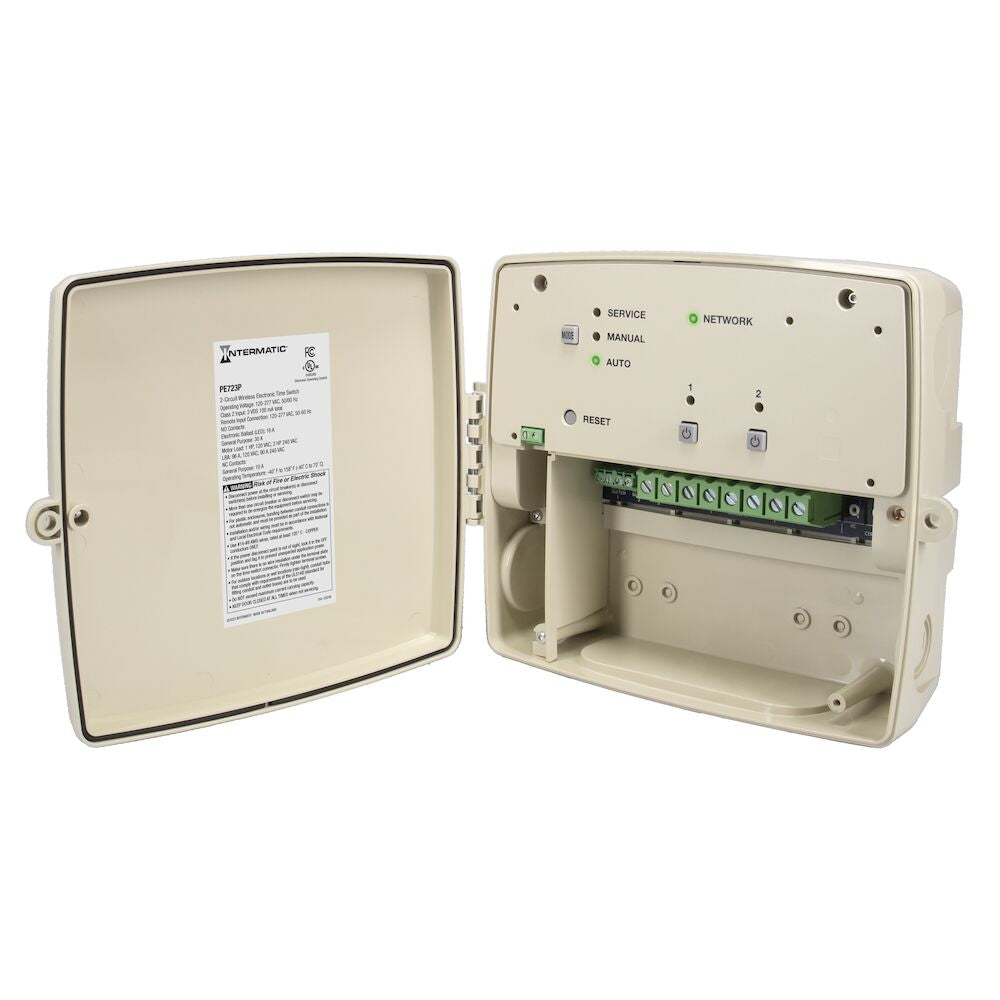

The PE700 series has two different models. The only difference between them is the amount of circuits. Part number PE723P has 2 circuits while part number PE733P has 3 circuits. The input voltage is 120-277V and 50/60 Hz. The enclosure type is type 3 plastic for indoor or outdoor. The operating temperature max is 158 degrees Fahrenheit and the minimum is -40 degrees Fahrenheit.


In conclusion, Intermatic PE723P and PE733P Smart Timers offer a multipurpose solution for indoor and outdoor load control applications. Available in a 2-circuit and 3-circuit configuration, these controls provide 7-day On/Off programming. The PE700 series enclosure knockout sizes and locations are the same as the legacy Intermatic enclosures, making it a simple and easy upgrade. If you have any questions about this please contact us and we can help you to the best of our ability.
