AquaStar 10-Inch Universal Sumpless Suction Cover, Adapter Kit and Mud Frame, Dark Gray | A10RCFR105

Name: AquaStar 10-Inch Universal Sumpless Suction Cover, Adapter Kit and Mud Frame, Dark Gray | A10RCFR105
Brand: AquaStar
SKU: A10RCFR105
Price: 56.95 USD
Availability: OutOfStock

AquaStar | SKU: A10RCFR105

Sold out

$56⁹⁵ USD $76⁹⁹

Ships to

The Dimensions row gives the cover diameter and profile above the seating plane; it excludes lower frame projections. Sumpless configurations still require the correct certified plumbing and flow arrangement.

View the A10 full-kit product cut-sheet (PDF)

Product FAQs

What is included with A10RCFR105?

The full single-kit configuration includes one dark gray A10 cover, one universal adapter frame, one super-low-profile mud frame, two long slides, two short slides, bushings, three plastic concrete anchors and the assortment of 316 stainless steel mounting screws shown in the current catalog. Not every fastener or adapter is used for every installation. The optional BIK4 brass anchor kit is separate.

Which frames and sumps is the full kit designed to retrofit?

AquaStar identifies the full A10 kit for many existing nominal 7-inch to 10-inch sumps/frames, using the appropriate adapter holes, slides, bushings and fasteners. The instructions show 8-inch and 10-inch AquaStar frames, super-low-profile frames, Waterway frames, Paramount SDX arrangements and an approved direct-anchoring option. Match the actual geometry and installation method; the term universal does not guarantee every existing frame or condition.

What does the replacement guide list?

The 2026 guide identifies A10 as a current option across standard 8-inch, off-standard 8-inch and standard 10-inch replacement groups. Those groups include 8AV, 8CC, 8HP, 8AVWR, 8FUW, A8R, LP8AV, LP8AVWR, R8HP, RLP8AV, 10AV, 10AVWR, 10AVR, 10CC, 10FL, 10RCFR and 10MF families. Verify the exact frame, mounting route and adequate certified flow configuration before selecting a replacement.

Does sumpless mean every installation has the same zero-depth rating?

No. AquaStar’s specification document revised June 16, 2025 lists specific zero-depth configurations and other configurations with minimum pipe depths and flow-path requirements. For example, its specified floor arrangement with 2-inch bottom plumbing at zero pipe depth is listed at 119 GPM; a different 2-inch bottom-pipe floor arrangement with a 3-inch minimum depth is listed at 150 GPM and requires its stated additional geometry. Use the exact approved SOFA row and actual plumbing rather than one universal rating.

What does the current catalog list for the mounting components?

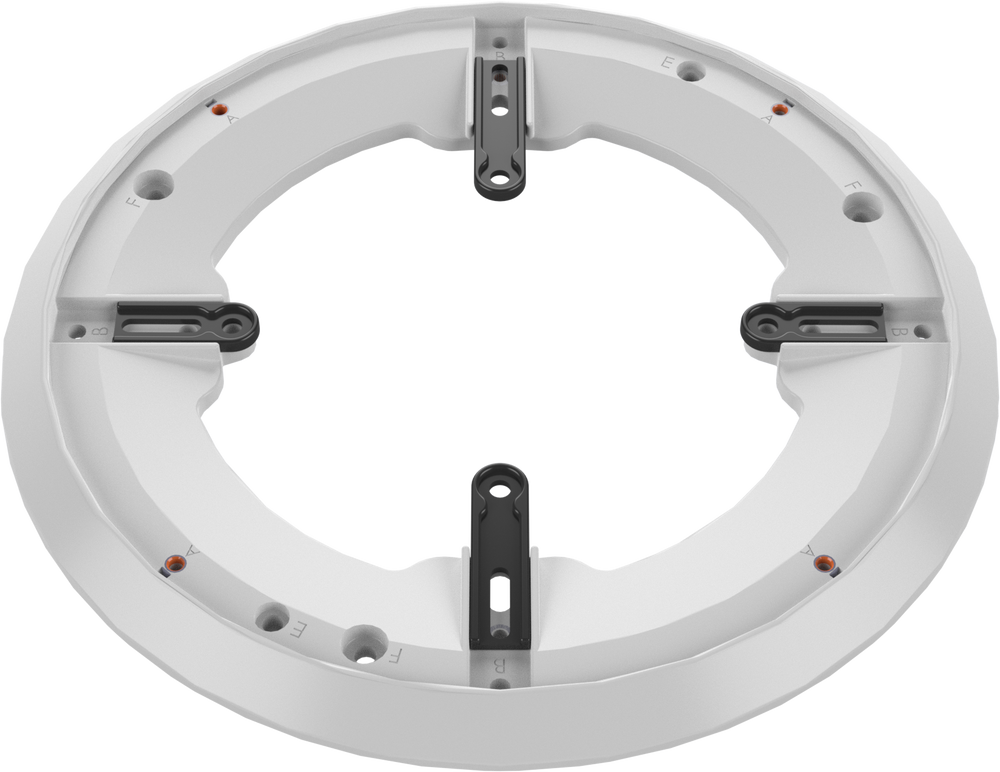

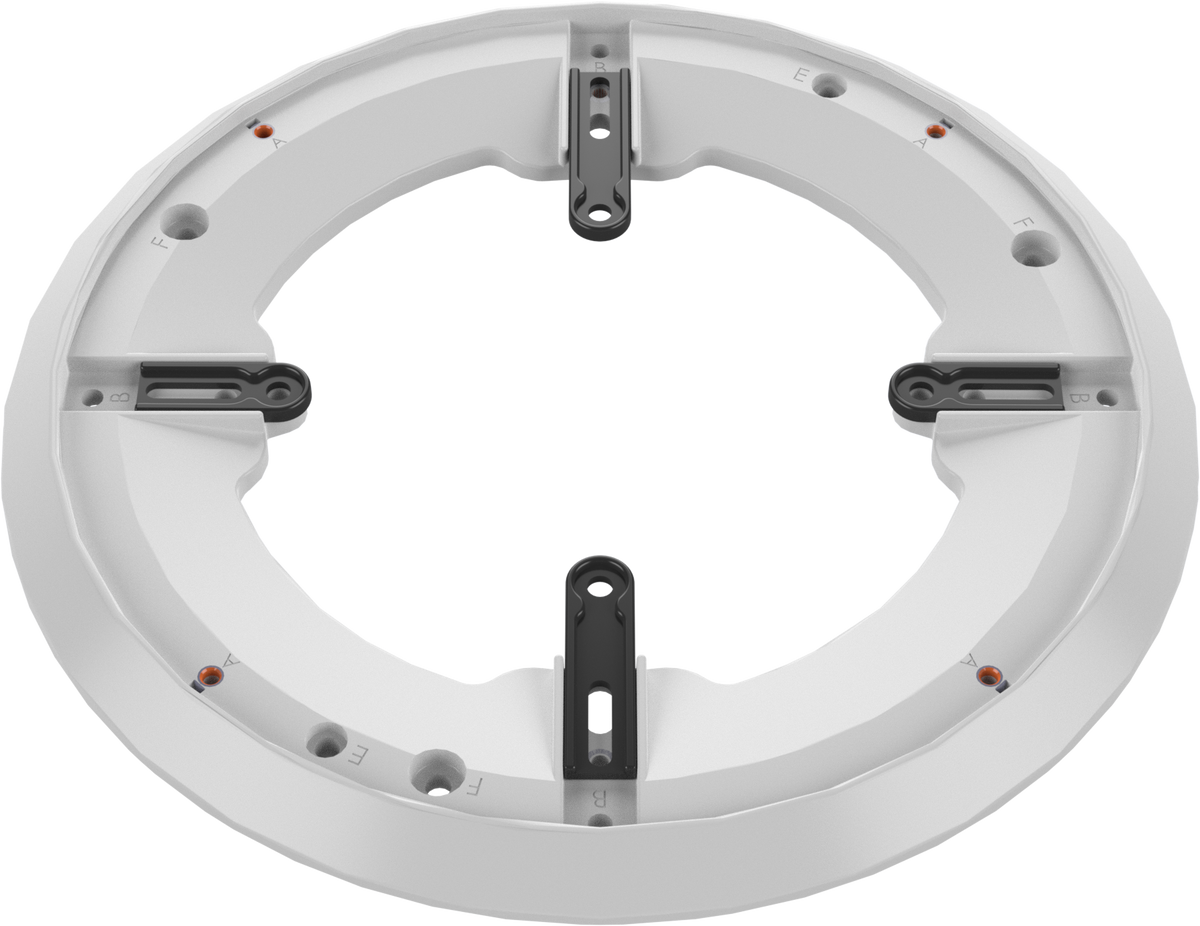

The illustrated full kit lists two long slides, two short slides, four ⅜-inch bushings, two ¼-inch bushings and three ¼-inch plastic concrete anchors, with the adapter frame, cover and mud frame. These components support different mounting routes; follow the manufacturer’s application-specific drawings.

Which screws are identified in the current catalog?

The 2026 full-kit drawing lists the following 316 stainless steel fastener options:

10-32 × ⅜-inch pan-head Phillips: 2
#10 × 1-inch pan-head Phillips: 4
10-24 × ⅞-inch pan-head Phillips: 2
#8 × 1-inch pan-head Phillips: 2
#10 × ¾-inch pan-head Phillips: 4
10-32 × ¾-inch pan-head Phillips: 3
8-32 × ¾-inch pan-head Phillips: 2
10-32 × ¾-inch flat-head Phillips: 4
#8 × ¾-inch pan-head Phillips: 2
8-32 × ⅞-inch pan-head Phillips: 2

Not all hardware is used for every installation. Confirm the exact fasteners required by the applicable installation drawing and actual kit revision before work.

Are brass anchors included?

The full kit includes the specified plastic concrete anchors. BIK4 is the separate optional brass anchor kit identified for approved direct-anchoring installations. The catalog’s BIK4 application uses the three outside A10 frame holes for the specified sump/frame arrangements up to 10 inches; follow the full mounting instructions.

What is the difference between this full kit and the contractor two-pack?

This A10RCFRxxx SKU is the full single cover, universal adapter and mud-frame configuration. AquaStar separately lists A10RCFR2xxx as a contractor two-pack with mud frames, described as without the retrofit kit. Do not assume the two-pack supplies the full single-kit assortment of retrofit components.

Which replacement hardware kit is listed?

The catalog identifies ProStar SCW005 for the full A10RCFR family. Verify that the replacement kit supplies the exact adapters and fasteners required for the chosen installation; hardware is application-specific and not every supplied piece is used. The separate contractor two-pack has a different listed replacement kit, SCW006.

Which certification and installation documents apply?

The current family is identified as certified to NSF/ANSI/CAN 50 and ANSI/APSP/ICC-16 2017. Use the A10-specific IN020-110923 instructions, the matching certificate and the current configuration-specific flow document. Match the actual product markings and manufacturing generation to the appropriate files.

When should the cover and screws be replaced?

AquaStar’s IN020-110923 instructions require replacement of the cover assembly and fasteners within five years of installation, or earlier if damaged. Service life begins when installed, with or without water. Inspect the adapter, mud frame, anchors and other components and follow all manufacturer maintenance requirements.

Does universal mean the cover is unblockable?

No. The A10-specific instructions identify this as a blockable suction outlet fitting assembly. New pools and spas require a multiple-SOFA system. Existing single-outlet systems also require the appropriate additional anti-entrapment device or system described in the manual. A qualified pool professional must verify the full design.

Does the six-per-case notation change the listing quantity?

No. This listing is for one full cover kit. The six-per-case figure is the manufacturer outer-case reference; the contractor two-pack has its own separately numbered package.

What warranty terms does AquaStar state?

AquaStar’s 2026 catalog states a general one-year limited warranty from original installation for defects in materials and workmanship, subject to the complete terms and exclusions. Color fading, improper installation, poor water chemistry and other listed causes are excluded; non-approved components may void coverage. Repair or replacement is at AquaStar’s option. Read the manufacturer’s catalog limited warranty, printed page 238. A drain cover’s required replacement interval is a separate matter.

Delivery and Shipping

FREE SHIPPING IN THE USA
WORLDWIDE SHIPPING AVAILABLE
30 DAY RETURNS

Resources & PDF Downloads

A10 Installation, Operation & Maintenance — IN020-110923 (PDF)

A10 Configuration-Specific Flow Ratings — revised 06/16/2025 (PDF)

A10 General Certificate of Conformity — Rev. 04242023 (PDF)

Description

An A10 cover kit with multiple approved mounting options

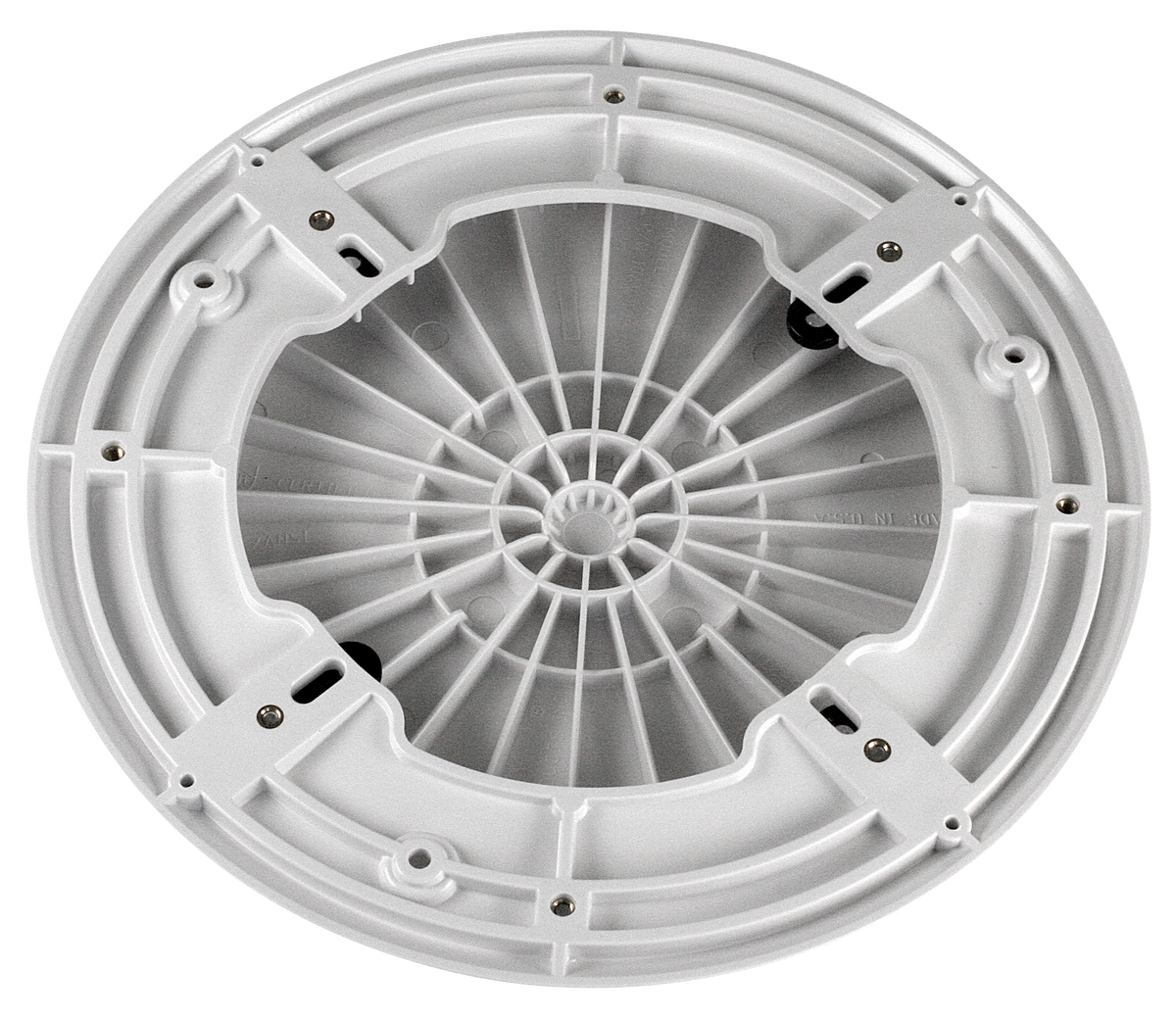

AquaStar A10RCFR105 is the dark gray 10-inch Universal sumpless suction outlet cover with the full universal adapter kit and mud frame. The adapter provides mounting options for many existing nominal 7-inch to 10-inch frames and sumps, subject to the manufacturer’s installation requirements.

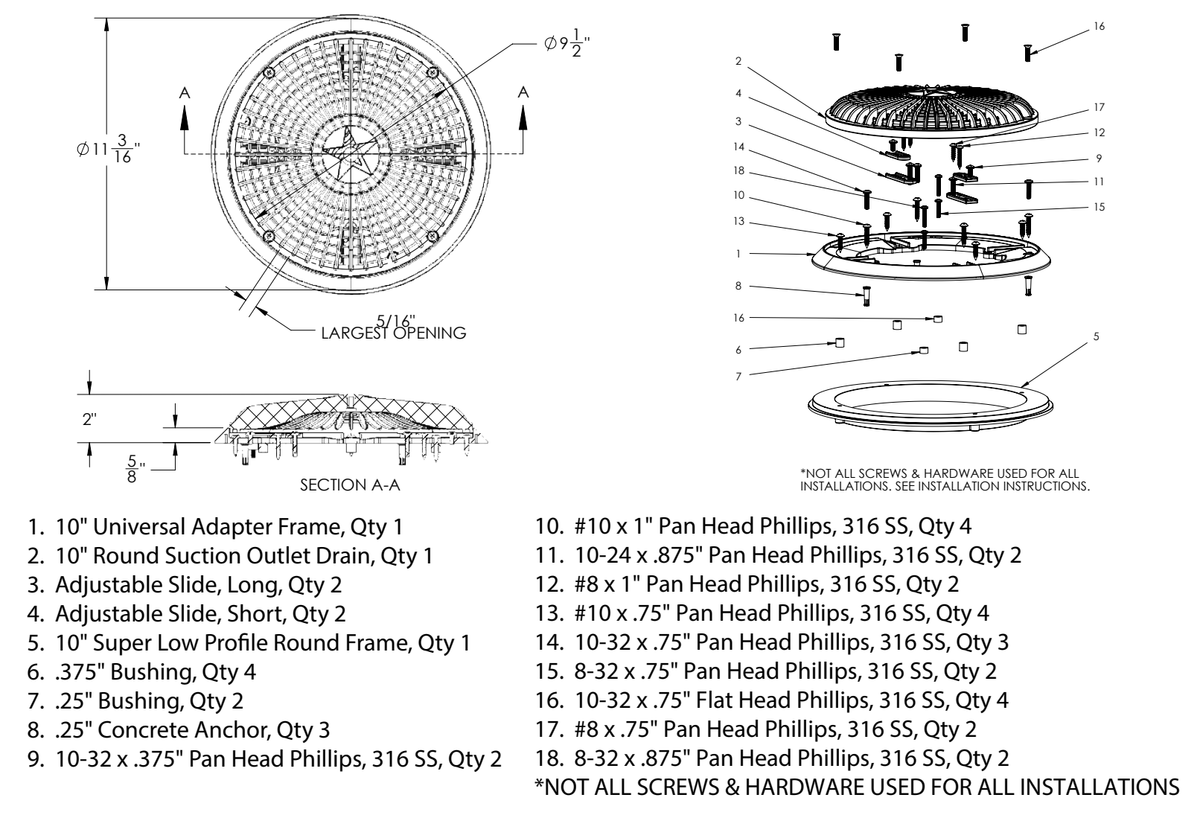

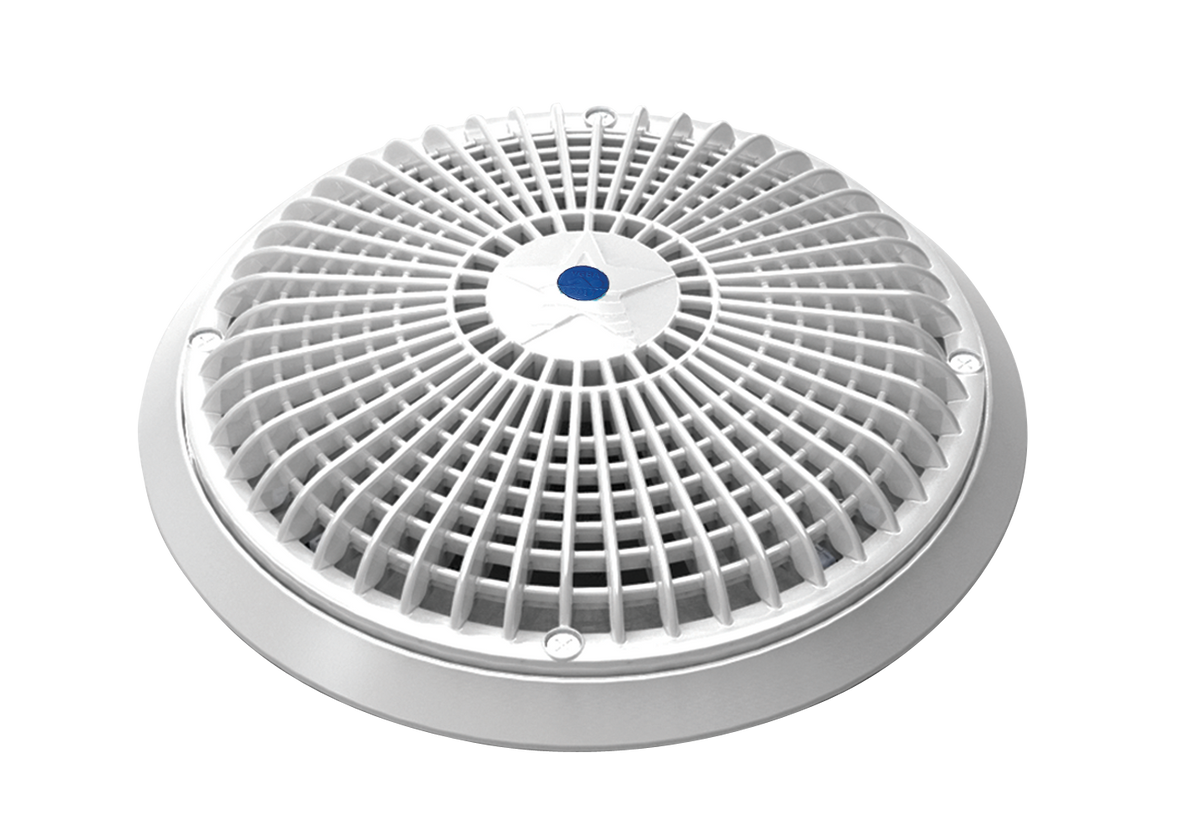

Representative image: The manufacturer’s family photo illustrates one full A10 cover kit. The selected listing finish is Dark Gray; the photo finish may differ. The specification drawing identifies the full-kit mounting components, which vary by application.

Full adapter kit and mounting assortment

Includes the cover, universal adapter frame, super-low-profile mud frame, long and short slides, bushings, plastic concrete anchors and an assortment of 316 stainless steel screws. Not all hardware is used in every installation. The UV-resistant engineered polymer cover has a 31.5-square-inch open area.

Match the actual mounting and flow configuration

The current manufacturer flow document includes specific zero-depth arrangements and other arrangements with different minimum depths and geometry. Have a qualified pool professional confirm the frame, mounting method, plumbing and exact certified SOFA configuration. The optional BIK4 brass anchor kit is separate.

Replace the cover assembly and fasteners within five years of installation, or earlier if damaged. See Specifications, A10-specific manufacturer resources and Product FAQs for the detailed component and fitment guidance.

Specifications

SKU

A10RCFR105
Product Type

A10 Universal sumpless suction outlet cover, full adapter kit and mud frame; dark gray; one full kit
Size/Connection

10-inch nominal family; 11-3/16-inch cover outside diameter; 2-inch cover profile above seating plane; 31.5 in² open area; actual adapter patterns and mounting geometry in drawing
Materials

UV-resistant engineered polymer cover; 316 stainless steel mounting screws
Dimensions

11.19 in, 11.19 in, 2 in
Warranty
