AquaStar 10-Inch Color Choice Fillable Suction Cover, Riser and Frame, Light Gray | CC10103

One light gray Color Choice suction outlet cover, one riser ring, one 10-inch round mud frame and four #10 × ¾-inch flat-head Phillips screws in 316 stainless steel. Finish material is applied on site and is not included. The catalog’s eight-per-case notation is a manufacturer case-pack reference.

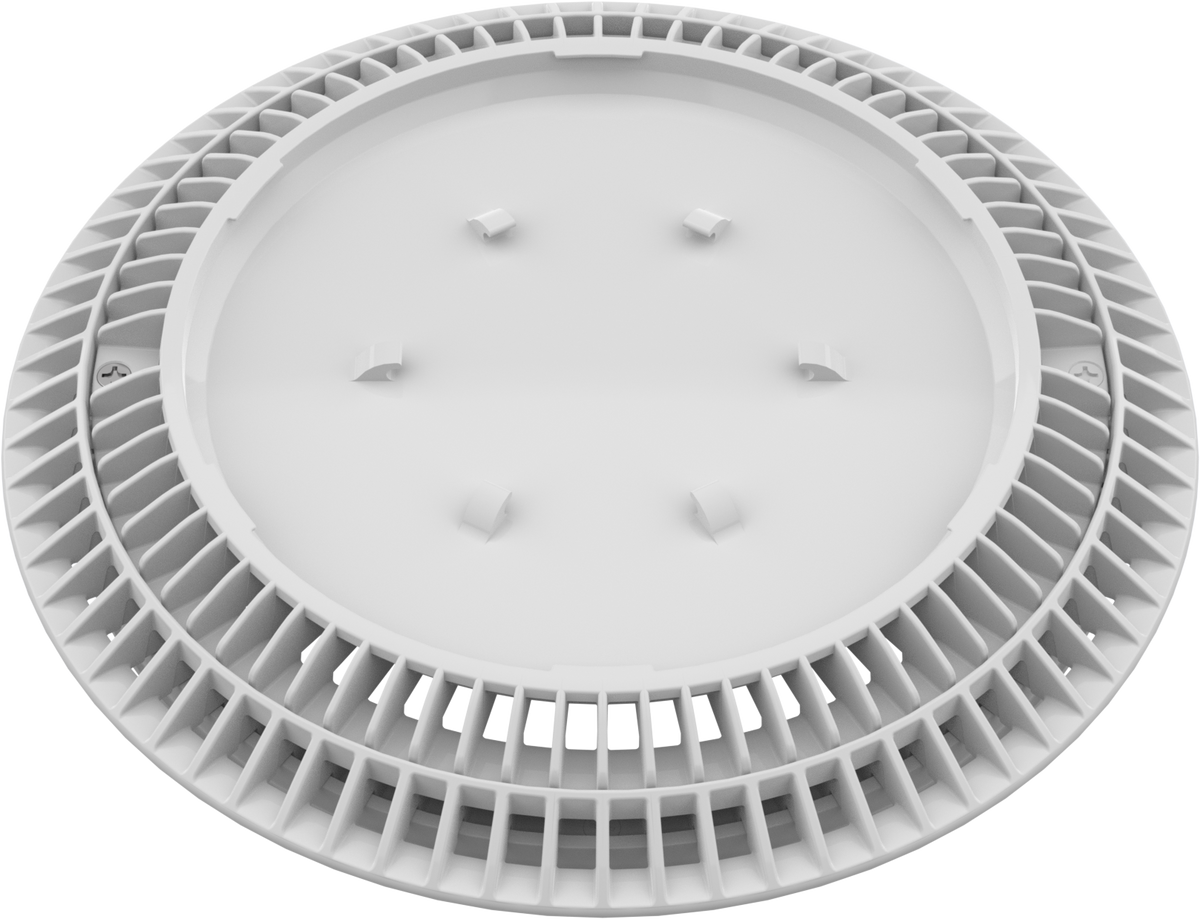

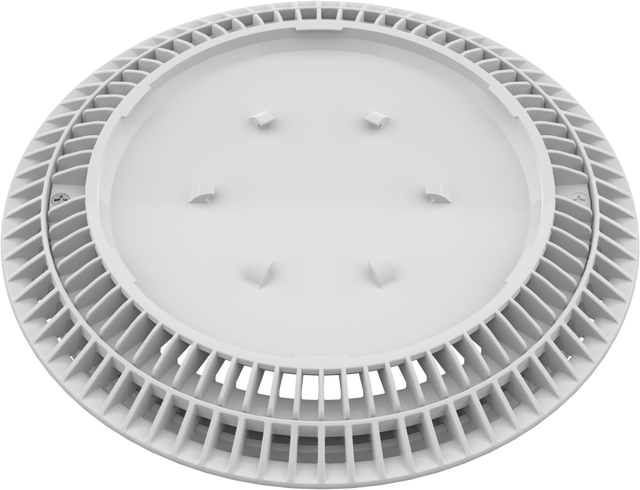

AquaStar designed the fillable cover so plaster, aggregate or tile can be applied to its top to blend with the pool finish. The component remains a suction outlet cover for the pool circulation system; the manufacturer documents do not establish a pedestrian-load rating for deck access use.

AquaStar’s IN021-062724 instructions specifically require CC10 covers to be finished with a cementitious material in accordance with ANSI/APSP/ICC/NPC-12 2016. Have the installer follow the complete finishing and installation requirements; maintain the specified open flow paths and service access.

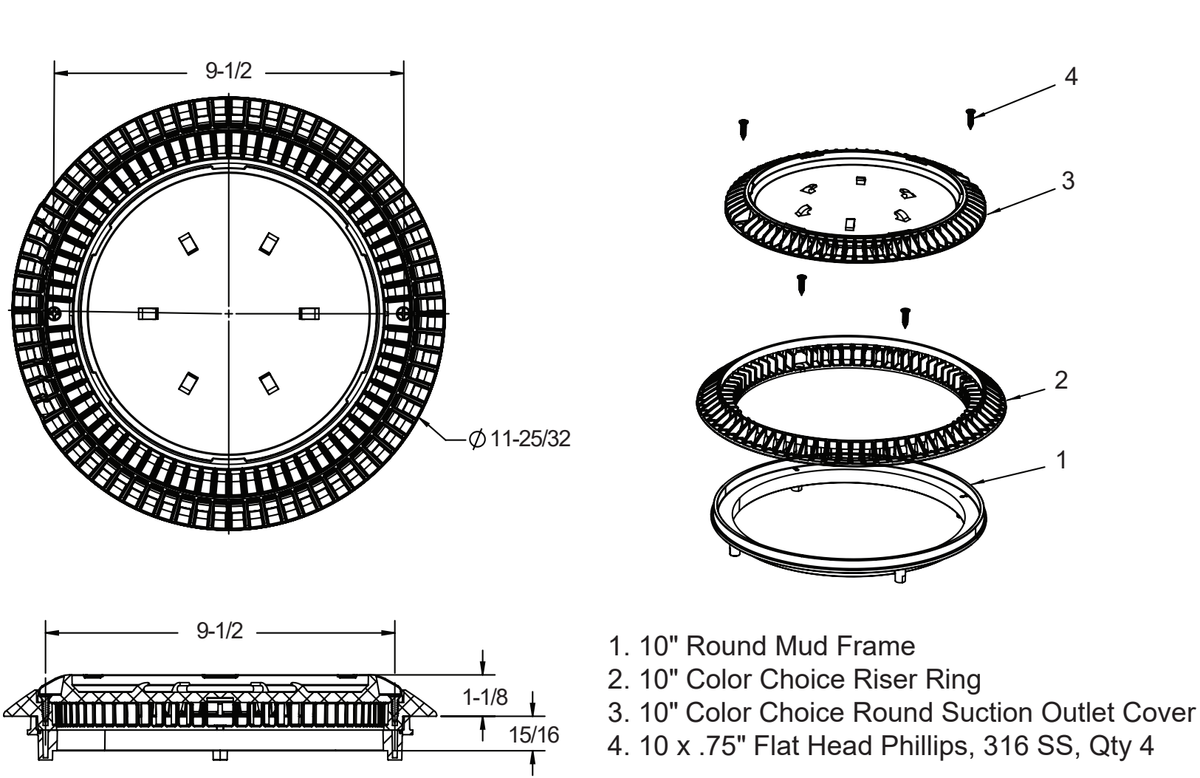

The 10-inch designation identifies the product family and standard mounting application. The current catalog drawing gives a 11-25/32-inch cover outside diameter and a 9½-inch center-to-center screw pattern. Check those dimensions and the full sump geometry before selecting a replacement.

The separate Color Choice riser ring is part of the illustrated cover assembly. The section drawing shows the cover-and-riser profile above the mud frame. Use the manufacturer drawing to verify the actual stack height; the ring does not make every frame or sump compatible.

No. This standard CC10 configuration supplies the cover, riser ring, mud frame and screws. The separate F-suffix and SSB-suffix configurations include different PVC sumps and have different part numbers.

Use the exact CC10 SOFA configuration in AquaStar’s specification document, revised April 2, 2024. For example, the specified 2-inch bottom-pipe arrangement with a 3-inch minimum depth is listed at 106 GPM, subject to the document’s full flow-path geometry and installation conditions. A cover diameter or pipe size by itself does not establish the system rating.

The current catalog identifies CC10 as certified to NSF/ANSI/CAN 50 and ANSI/APSP/ICC-16 2017. Match the actual manufacturing generation and product markings to the manufacturer documents. AquaStar directs post-May 24, 2021 production to the VGBA 2017 support files.

The IN021-062724 instructions require replacement of the cover assembly and fasteners within five years of installation, or earlier if damaged. Service life starts when installed, with or without water. Inspect the frame, riser and other components and follow all manufacturer maintenance requirements.

The 2026 catalog identifies ProStar SCW007 for CC10xxx: four #10 × ¾-inch flat-head Phillips screws. That replacement hardware kit is sold separately. Use only approved components.

CC10 is a blockable suction outlet configuration. New pools and spas require a multiple-SOFA system. Existing single-outlet installations also require an appropriate additional anti-entrapment device or system described in the manual. Have the full suction-system design checked by a qualified pool professional.

AquaStar’s 2026 catalog states a general one-year limited warranty from original installation for defects in materials and workmanship, subject to the complete terms and exclusions. Color fading, improper installation, poor water chemistry and other listed causes are excluded; non-approved components may void coverage. Repair or replacement is at AquaStar’s option. Read the manufacturer’s catalog limited warranty, printed page 238. A drain cover’s required replacement interval is a separate matter.
