BlueVivid 300W Pool Light Transformer 13V/15V – VLT600300
Input: 120 V, 60 Hz, hardwired line voltage. Secondary taps: 13 V AC and 15 V AC. Input and fixture voltage are different values. Have a licensed electrician select and install the transformer for the actual system. The manufacturer lists a 300 W capacity for VLT600300. Have the installer calculate total connected load and apply the complete installation requirements; the number of lights depends on their ratings and configuration. This SKU is the stainless-steel enclosure version. The manufacturer uses separate A-suffix part numbers for aluminum-enclosure models. Match the full part number before ordering. The manufacturer drawing shows an overall mounting height of 11.5 inches, width 5.31 inches and depth 5.12 inches. The enclosure-body height is separately shown as 9.53 inches. These are product drawing measurements, not shipping-box dimensions. The manufacturer sheet lists 5 years. Confirm eligibility, coverage and claim requirements with Blue Square warranty support. Do not transfer that duration to a different lighting product. No. This listing is for the transformer. Select the compatible lights and required cables separately.Product FAQs
What are the input and output voltages?
What is the maximum listed load?
Is this the aluminum-enclosure model?
What product dimensions are shown?
What warranty is listed?
Are lights and cables included?
Delivery and Shipping
Delivery and Shipping
- FREE SHIPPING IN THE USA
- WORLDWIDE SHIPPING AVAILABLE
- 30 DAY RETURNS
BlueVivid 300W Pool Light Transformer 13V/15V – VLT600300
Description
Description
Blue Square | VLT600300
Vivid 360 300 W Low-Voltage Transformer

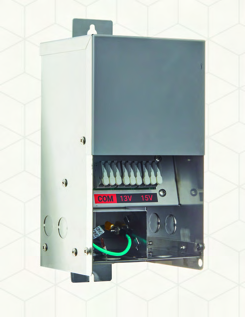

The Blue Square VLT600300 is a 300 W pool and spa lighting transformer with a stainless-steel enclosure. It uses a hardwired 120 V, 60 Hz input and provides 13 V AC and 15 V AC secondary taps.
300 W capacity
Select the transformer by the complete connected load and installation requirements; do not use a generic number-of-lights estimate.
13 / 15 V AC taps
Both secondary tap options are provided. The installer should select the appropriate tap for the actual fixture and cable run.
Stainless-steel enclosure
The manufacturer specifies a stainless-steel body with removable face plate for these models; A-suffix aluminum models are separate products.
Check fit before ordering
Have the installer calculate the total connected lighting load and verify the required voltage at the fixtures, cable lengths and circuit requirements. The transformer is supplied separately from the lights and their cables.
See Specifications, Resources & PDF Downloads and Product FAQs for identifiers, support and purchasing details.
Specifications
Specifications
-
SKU
-
Product Type
-
Size/Connection
-
Materials
-
Power Source
-
Dimensions11.5 in, 5.31 in, 5.12 in
-
Warranty
