Caretaker Clear Standard Cleaning-Head Nozzle — 25 Pack | 3-9-461

3-9-461: Standard (S); clear; 25 nozzles per pack; TL-1334 design reference: 5 feet 6 inches radius at 16 GPM.

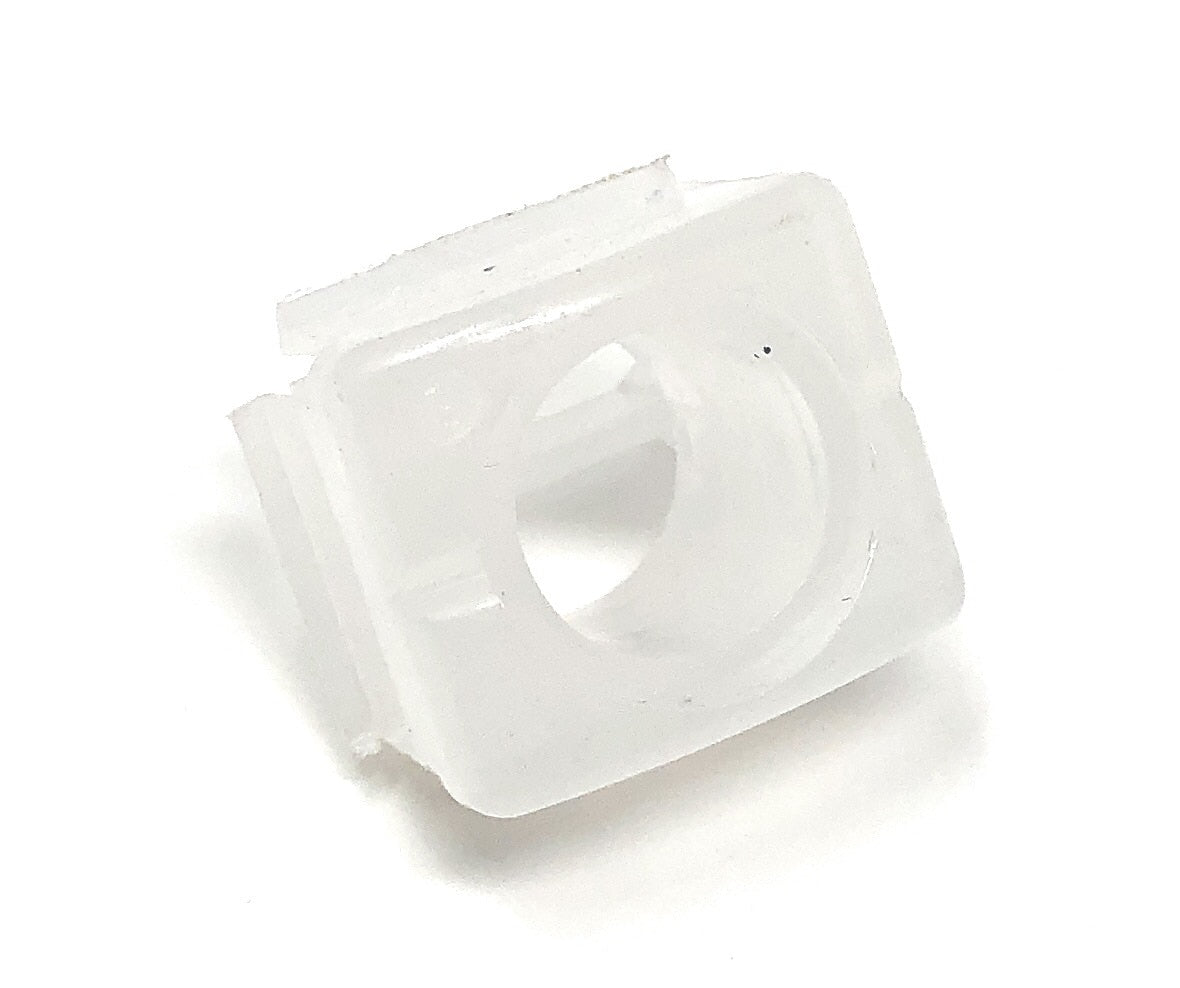

25 clear Standard nozzle inserts. Cleaning heads, collars, floor fittings and removal tools are separate.

For the matching Jandy/Caretaker cleaning-head nozzle application specified by the certified pool design. Match the Standard designation and S plan marking; do not substitute another nozzle because it looks similar. The approved design determines nozzle type, number and placement. High Flow (H) heads have their nozzles factory-installed and are a separate configuration. The individual option is 1-9-461.

Shut off the pump, prevent restart and let the cleaning head fully retract before removing it with the matched tool. Follow the manufacturer head and nozzle instructions; bayonet and pre-1992 threaded connections have different release directions. Retain the nozzle designation required by the certified design.

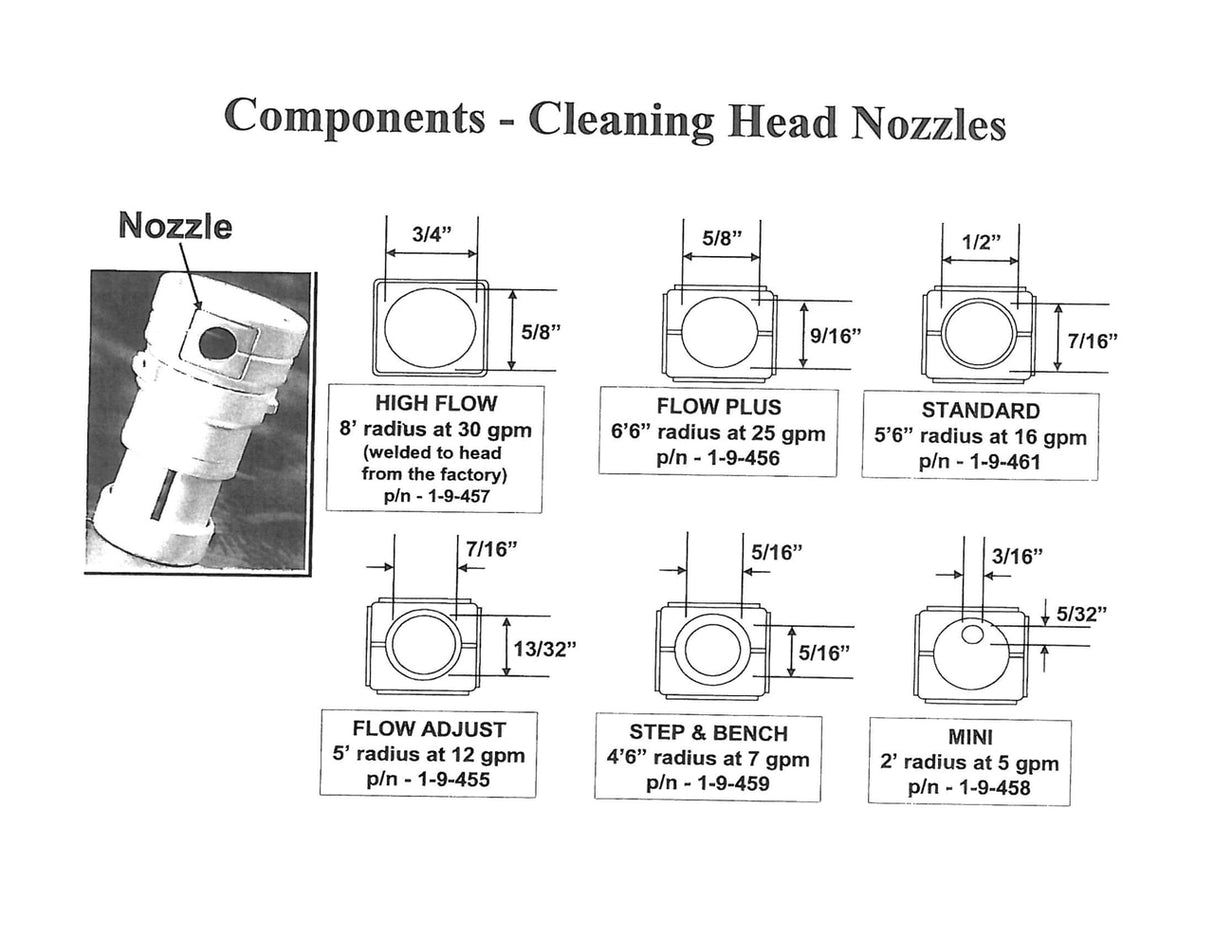

TL-1334 Rev C Figure 1 shows the Standard nozzle with a 5 feet 6 inches design-reference cleaning radius at 16 GPM. This is a system-design reference under the manual’s conditions, not a guaranteed radius at any pump speed. Use the certified pool plan and actual delivered flow.

Jandy’s separate In-Floor limited warranty states one year for manufacturing defects and 90 days for purchased replacement parts, subject to its certified-design, qualified-installation, original-purchaser/site and other terms. The conditional lifetime provision applies to eligible original cleaning heads installed with Jandy In-Floor valves; it does not automatically give this purchased accessory, fitting, nozzle or gasket lifetime coverage. Coverage is for the 50 United States and Canada; shipping and labor are excluded. Property transfer or remodeling ends coverage as described in the statement.

Fluidra 2026 ordering table, page 124; manufacturer accessory/selection reference; Jandy In-Floor limited warranty.
