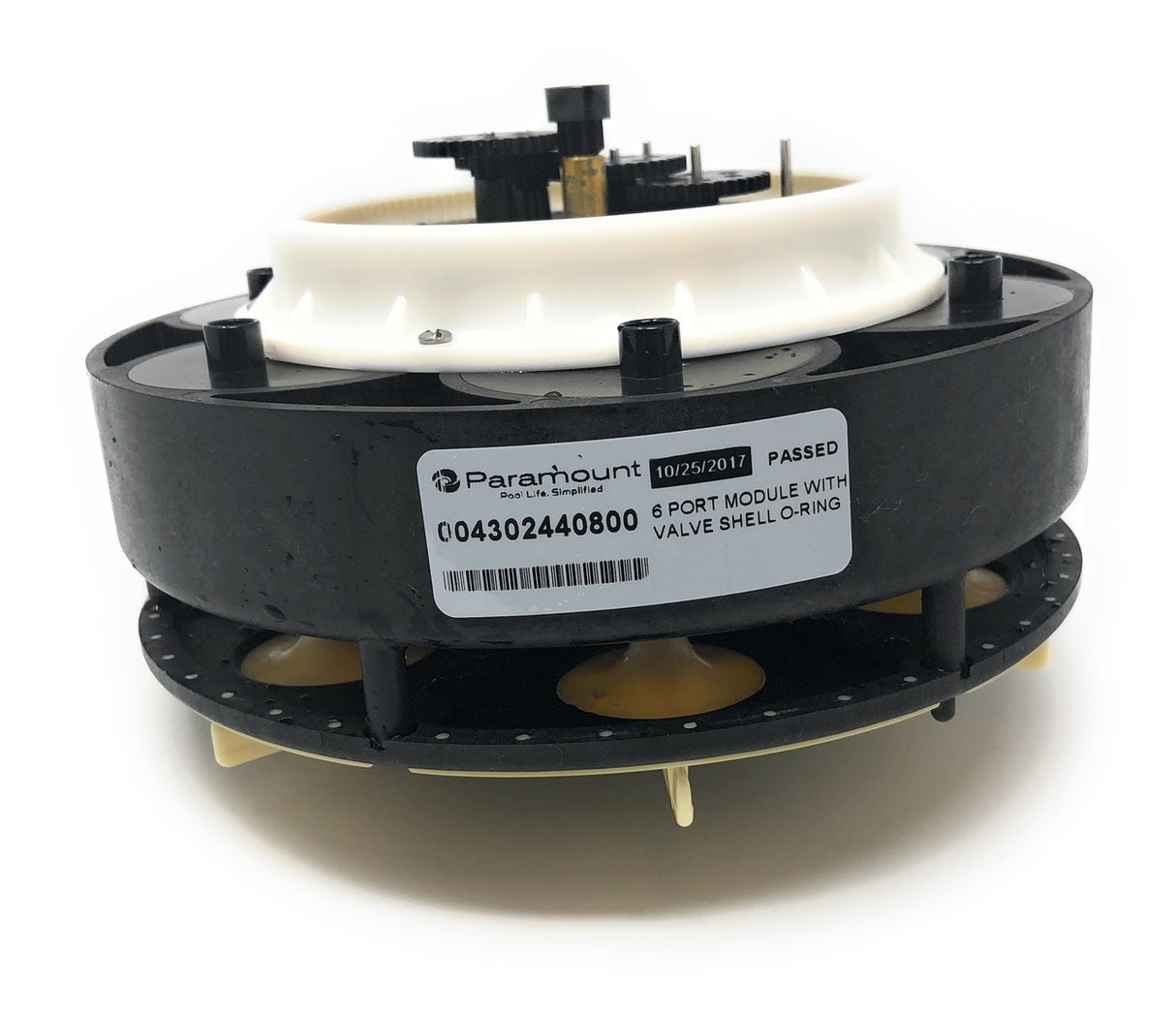

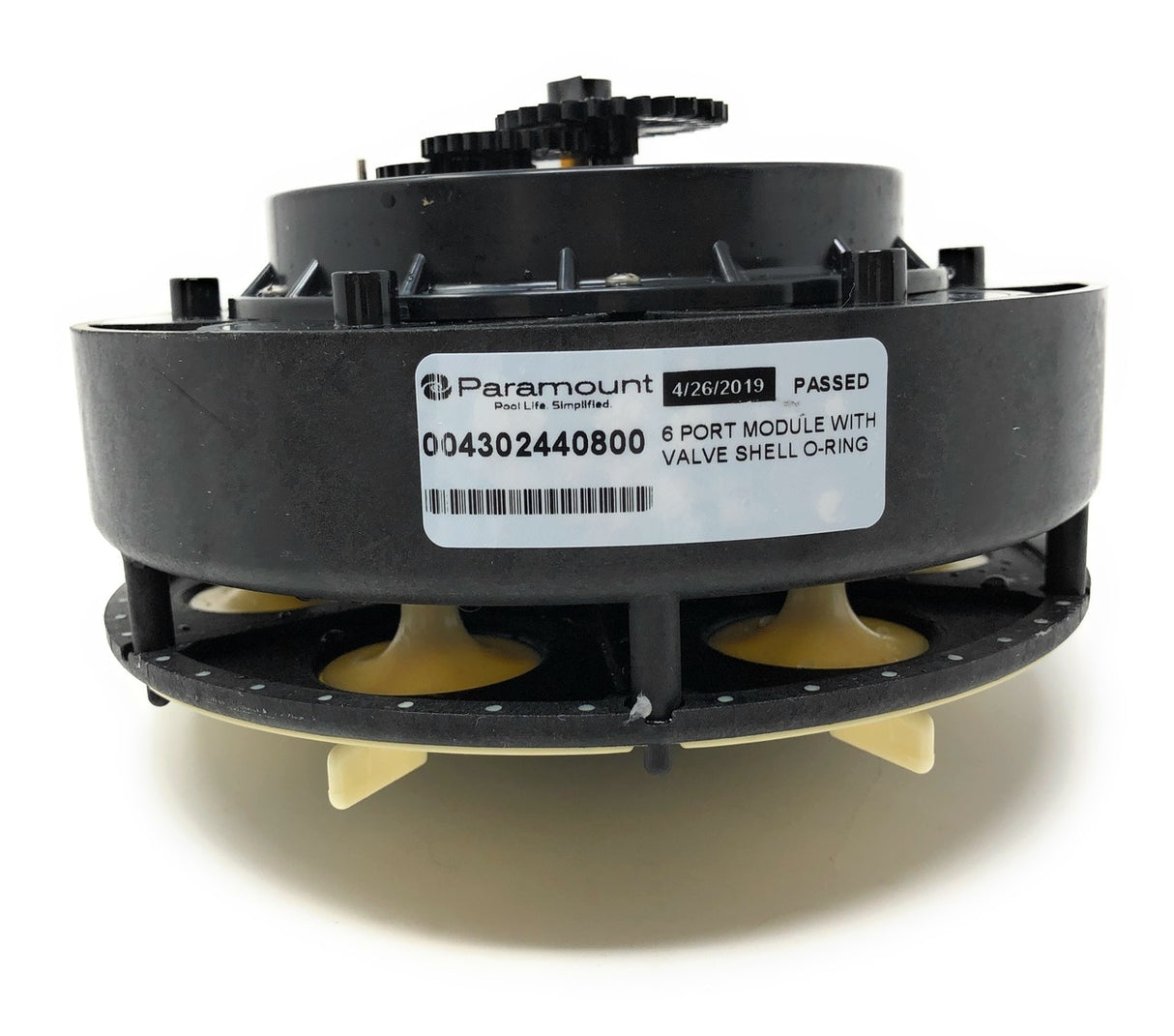

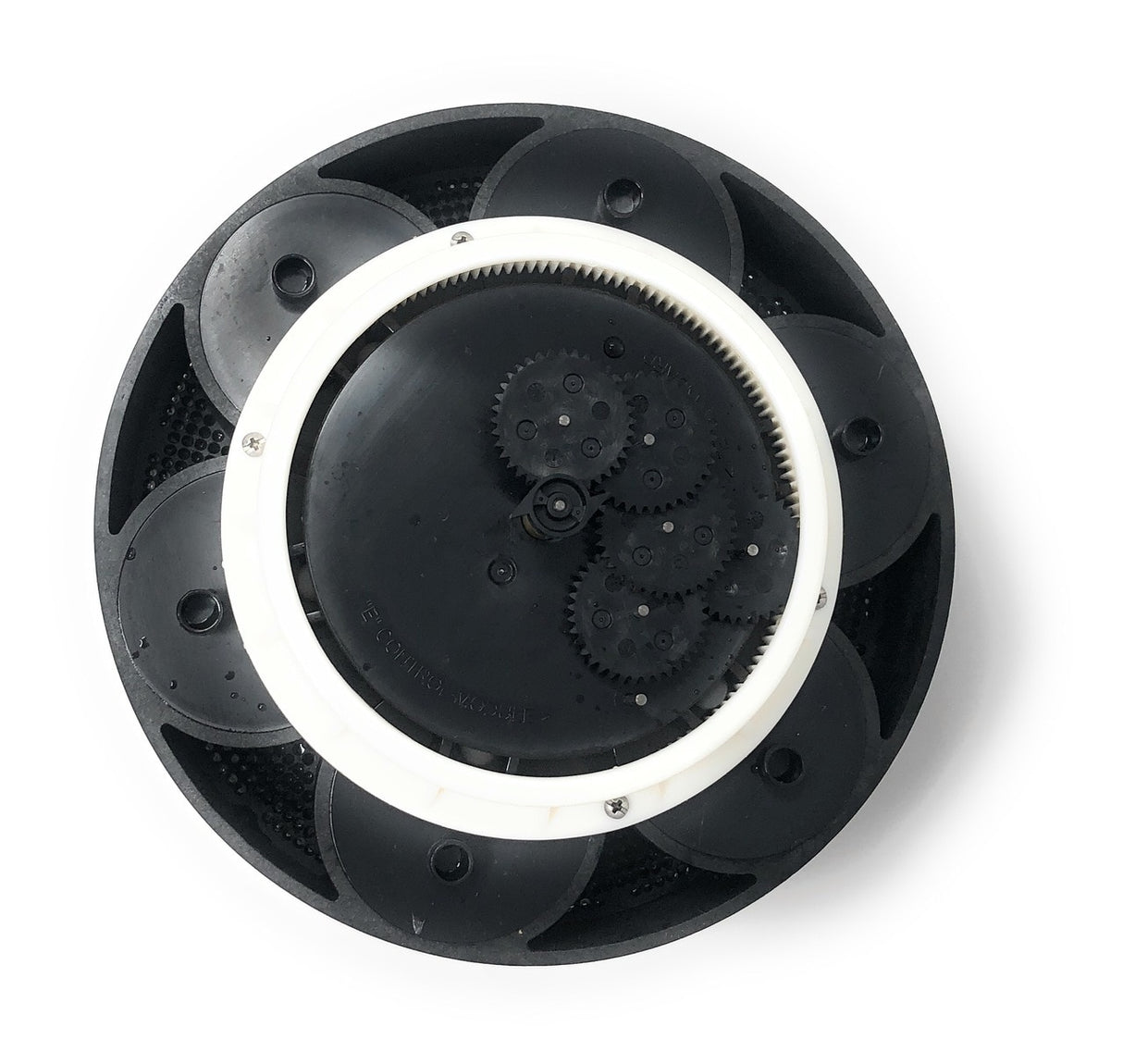

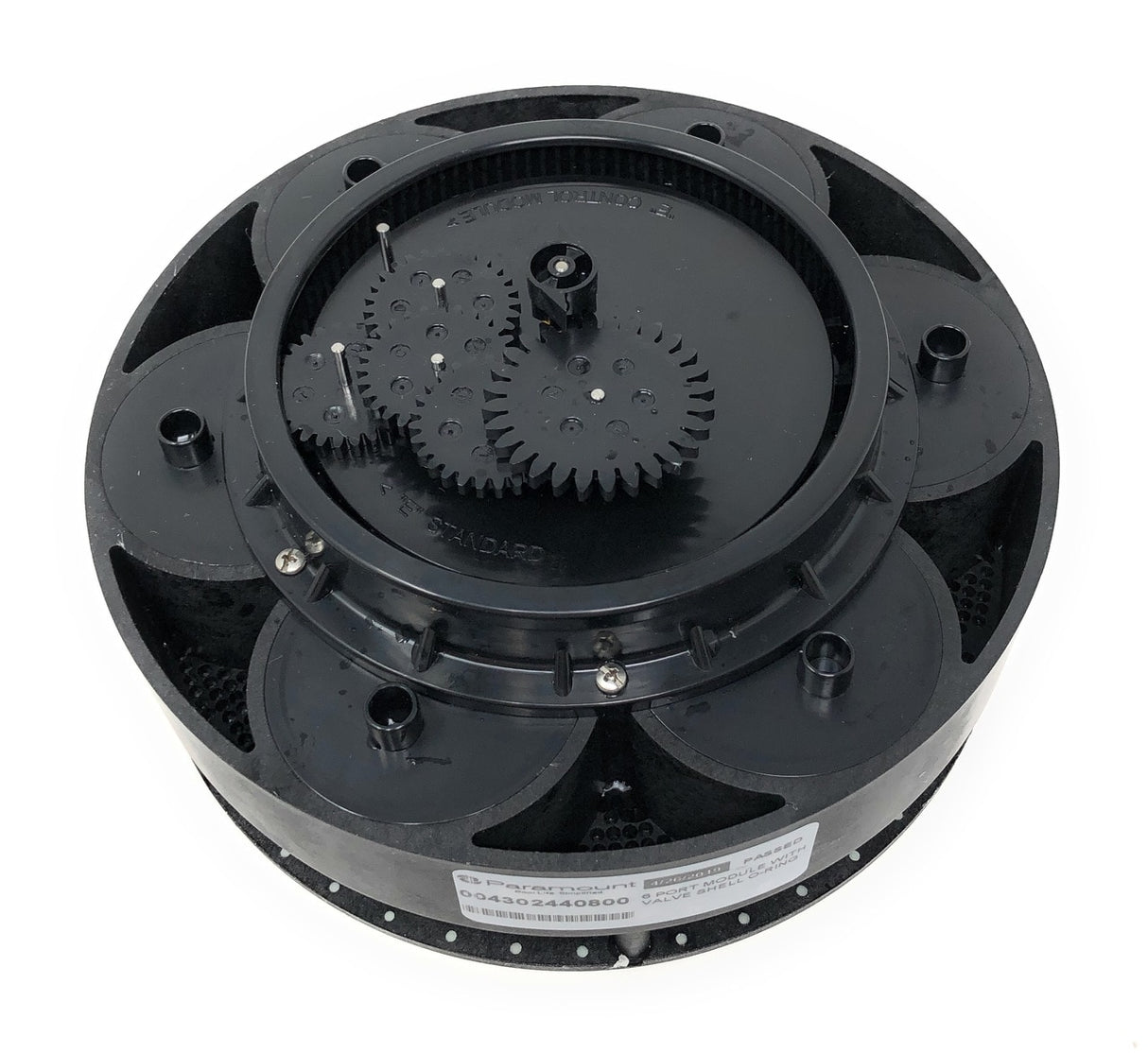

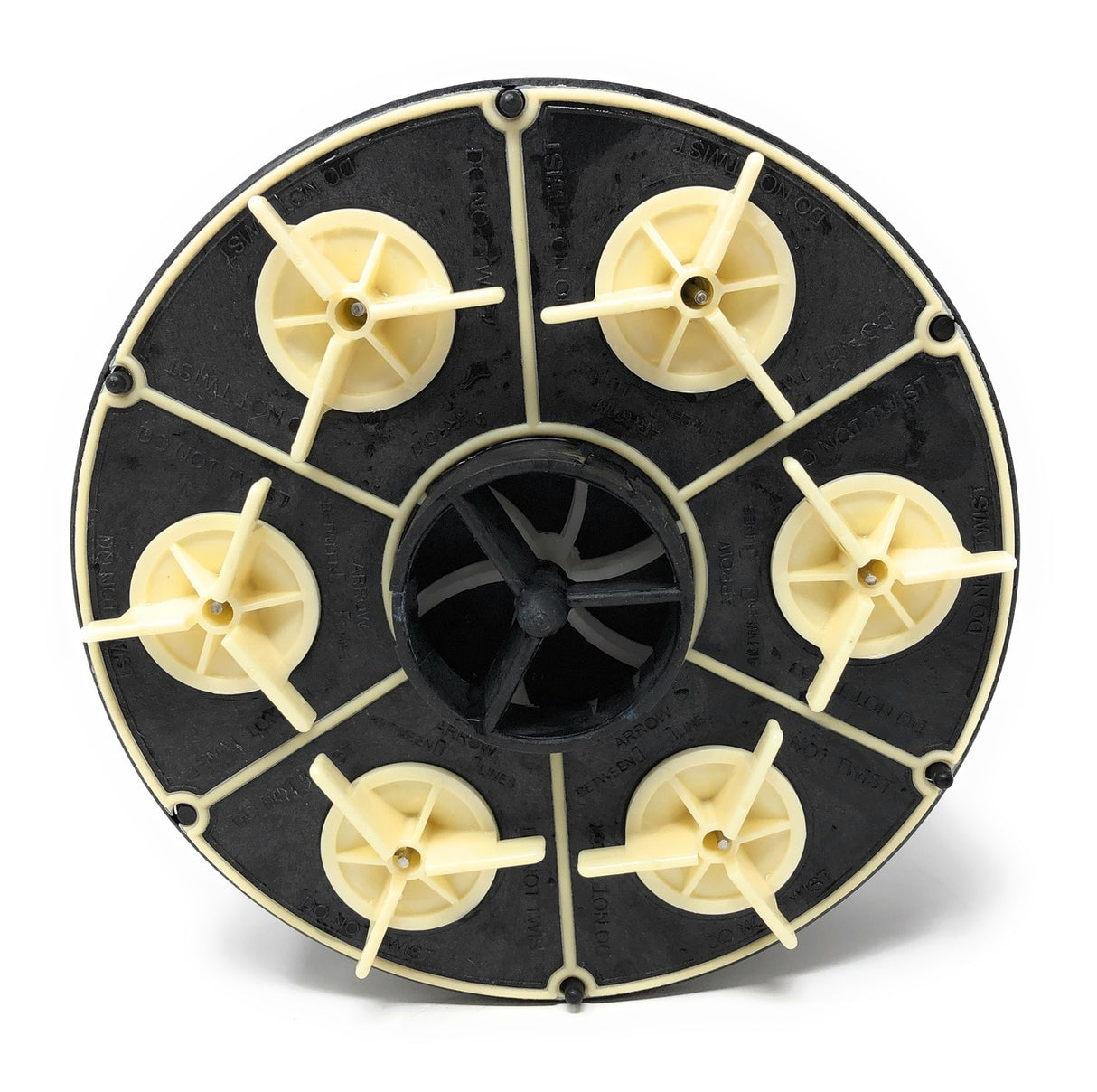

Paramount Water Valve 6-Port Gear Module | 004-302-4408-00

Paramount  |  SKU: 004-302-4408-00  |  Barcode: 004302440800
$30495 USD $36599

  • OEM Part: 004-302-4408-00 (6-port module)
  • Included: Module + new O-ring
  • Base O-ring reference: 005-302-0100-00

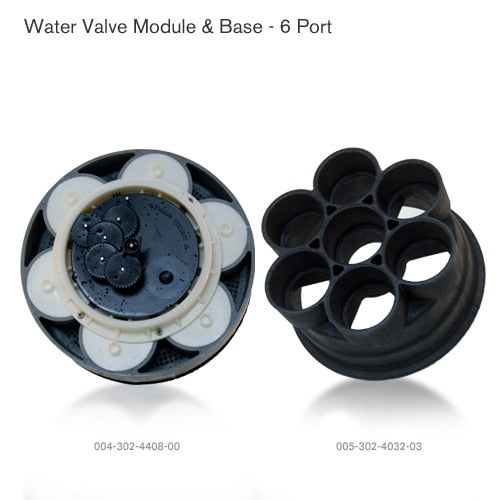

  • Valve base references: 6-port bases 005-302-4032-03 (2") / 005-302-4030-03 (1½")
  • System use: Paramount in-floor cleaning valves

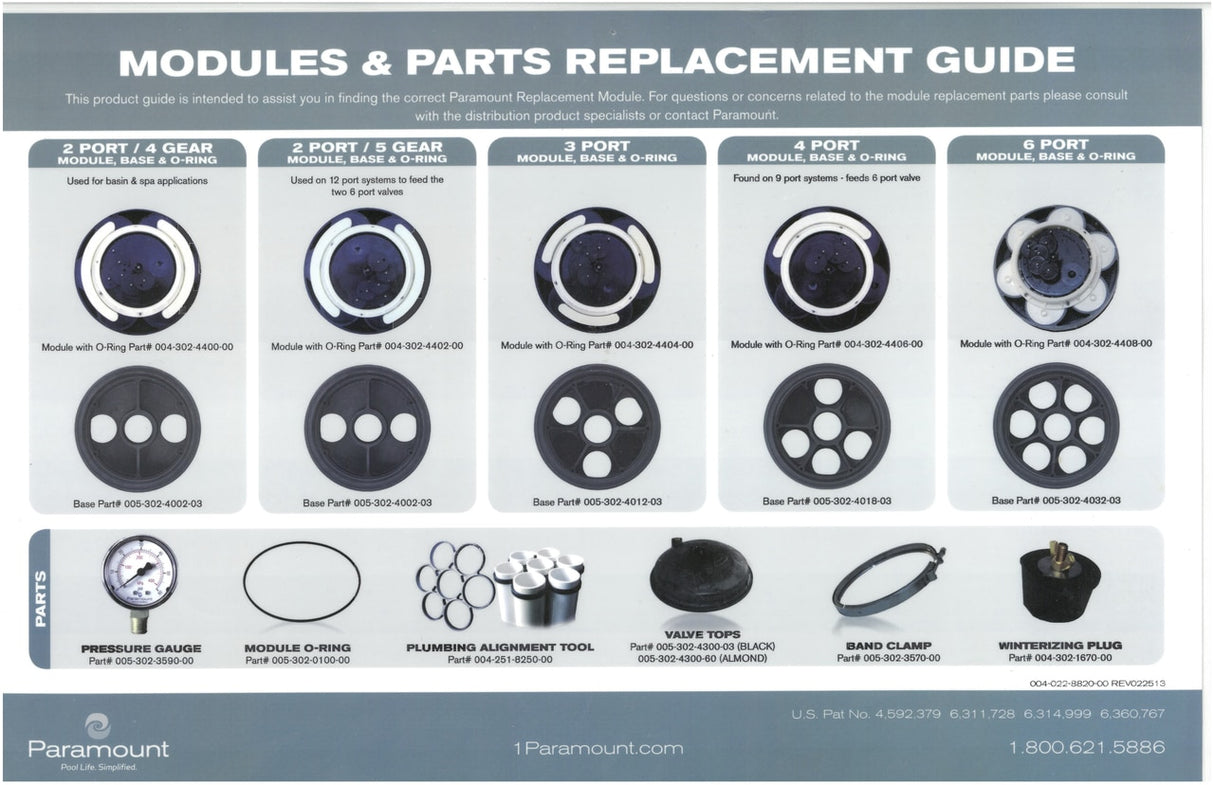

    • Paramount’s guide details module options (2-, 3-, 4-, 6-port) and combo valves (9-port, 12-port). Follow safety steps when opening the valve; never approach an open valve with the pump running.

    Q: Does this include the base O-ring?
    A: The module ships with its own O-ring; replace the base O-ring (005-302-0100-00) if worn.

    Q: Can I adjust the pistons?
    A: No. They are factory-set; adjusting them harms performance.

    Q: Will it fit my combo system?
    A: Yes—if your system uses a 6-port valve (including 9-port/12-port combos), this is the correct module.

Delivery and Shipping
  • FREE SHIPPING IN THE USA
  • WORLDWIDE SHIPPING AVAILABLE
  • 30 DAY RETURNS

Description

Paramount® 6-Port Water Valve Gear Module with O-Ring | 004-302-4408-00

Restore proper zone sequencing in your Paramount in-floor cleaning system with the genuine Paramount 6-Port Water Valve Gear Module. This OEM replacement module includes a new O-ring and factory-set pistons for fast, drop-in installation without adjustments.

Features

  • Genuine Paramount OEM replacement gear module.
  • Includes a new factory O-ring for installation.
  • Factory-set pistons require no field adjustment.
  • One-piece drop-in design simplifies replacement.
  • Restores proper water valve zone sequencing.
  • Compatible with Paramount 6-port water valve systems.
  • Part Number: 004-302-4408-00.

Description

The Paramount 6-Port Water Valve Gear Module is designed to restore reliable operation to Paramount in-floor pool cleaning systems. Over time, worn or damaged gear modules can cause improper valve rotation, poor cleaning performance, or uneven water distribution. Replacing the module helps return the system to proper operation with minimal downtime.

This genuine Paramount replacement arrives fully assembled with factory-set pistons, eliminating the need for adjustments during installation. Simply remove the existing module, install the replacement with the included O-ring, and reassemble the valve according to Paramount's service instructions.

Designed specifically for Paramount 6-port water valves, this OEM module delivers the fit, performance, and reliability expected from original equipment components.

Compatibility

  • Paramount 6-Port Water Valve Systems.
  • Compatible with systems utilizing a dedicated 6-port valve.
  • Also used in select 9-port and 12-port combination valve configurations that feed a 6-port module.

Related Replacement Parts

Technical Specifications

SKU 004-302-4408-00
UPC 004302440800
Brand Paramount Pool & Spa Systems
Product 6-Port Water Valve Gear Module
Product Type Replacement Gear Module
Application Paramount In-Floor Pool Cleaning Systems
Construction OEM factory-assembled module with integrated pistons and replacement O-ring
Installation Drop-in replacement
Power Source Not Required
Warranty 1-Year Limited Manufacturer Warranty

Installation Tip

For best results, replace the Base O-Ring (005-302-0100-00) whenever servicing the water valve and inspect the pressure gauge for proper operation. Do not disassemble or adjust the factory-set pistons, as doing so can affect valve sequencing and cleaning performance.

Specifications
