Caretaker 99 2" Complete High-Flow Head (Jet Black) | 5-9-516
In-store pickup or delivery only
Call (602) 274-7946
One cleaning head, one 2-inch plumbing collar and one protective plaster cap. Includes the bonded, non-removable high-flow nozzle. This assembly includes the matching collar identified above. A head-only listing replaces the cleaning head in an existing compatible collar. Match the actual package and installation before ordering. Includes the bonded, non-removable high-flow nozzle. Color selects the finish. It does not confirm the connection, collar configuration, flow type or the nozzle size required by the cleaning-system plan. The cleaning head must be fully down before removal. The Caretaker guide describes turning the compatible removal tool counterclockwise to release a bayonet head, then turning clockwise to lock it during reinstallation. Older threaded heads have a different procedure; identify the connection first. The installation guide calls for 2-inch Class 200 or 2.5-inch Schedule 40 risers. It states that a 2-inch Schedule 40 stub-up requires a pipe reamer. Have the installer match the pipe type and collar before installation. The high-flow heads supplied in this kit have a bonded nozzle. It is not a removable standard nozzle insert.Product FAQs
What comes with this complete-head kit?
How is a complete kit different from a head-only listing?
Is the nozzle included?
Does the color determine the correct head or nozzle?
How does the bayonet connection release?
Does the collar fit an unmodified 2-inch Schedule 40 riser?
Can the high-flow nozzle be removed?
Call (602) 274-7946
Caretaker 99 2" Complete High-Flow Head (Jet Black) | 5-9-516
Description
Description
Caretaker | 5-9-516
2" Complete High-Flow Head (Jet Black)

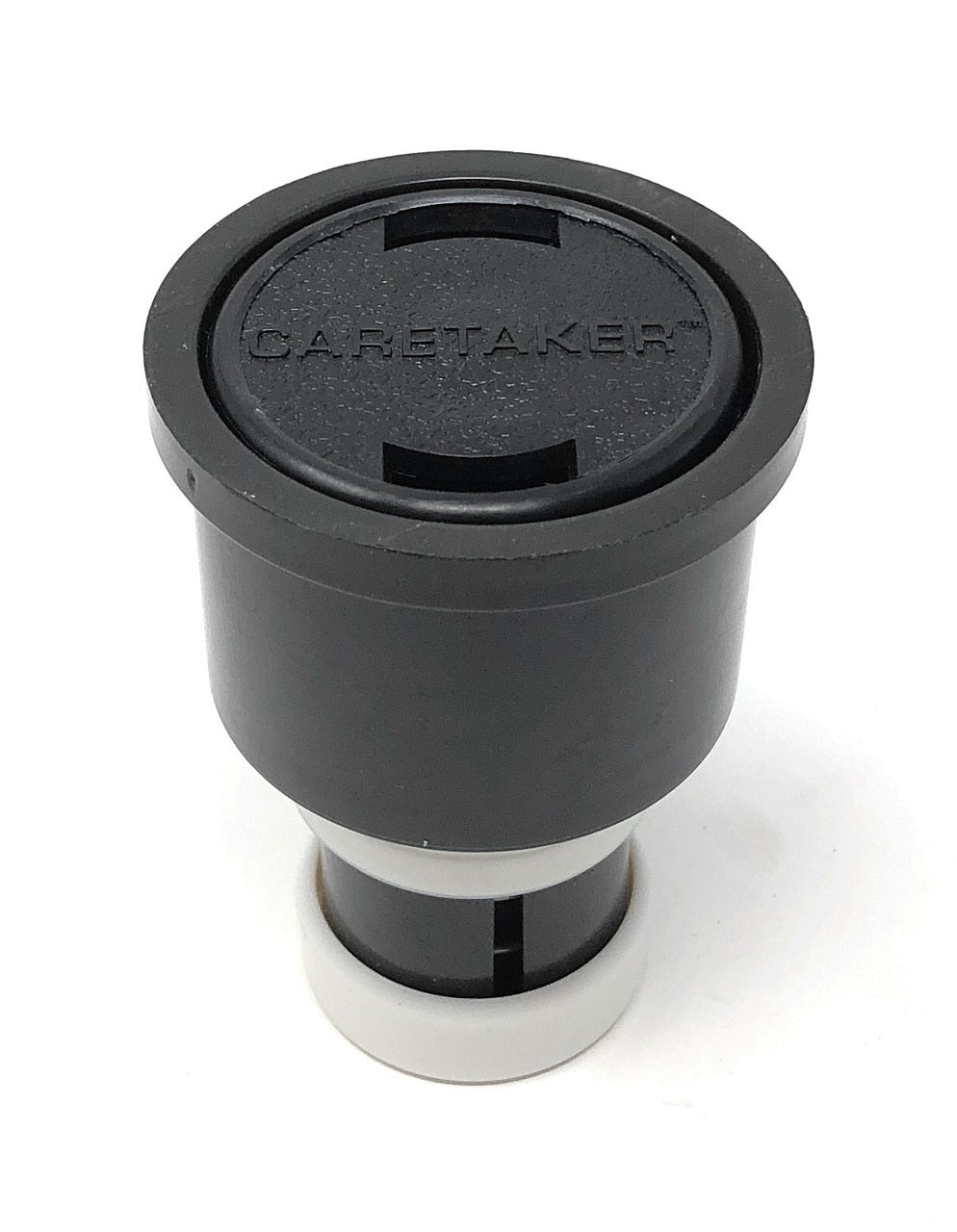

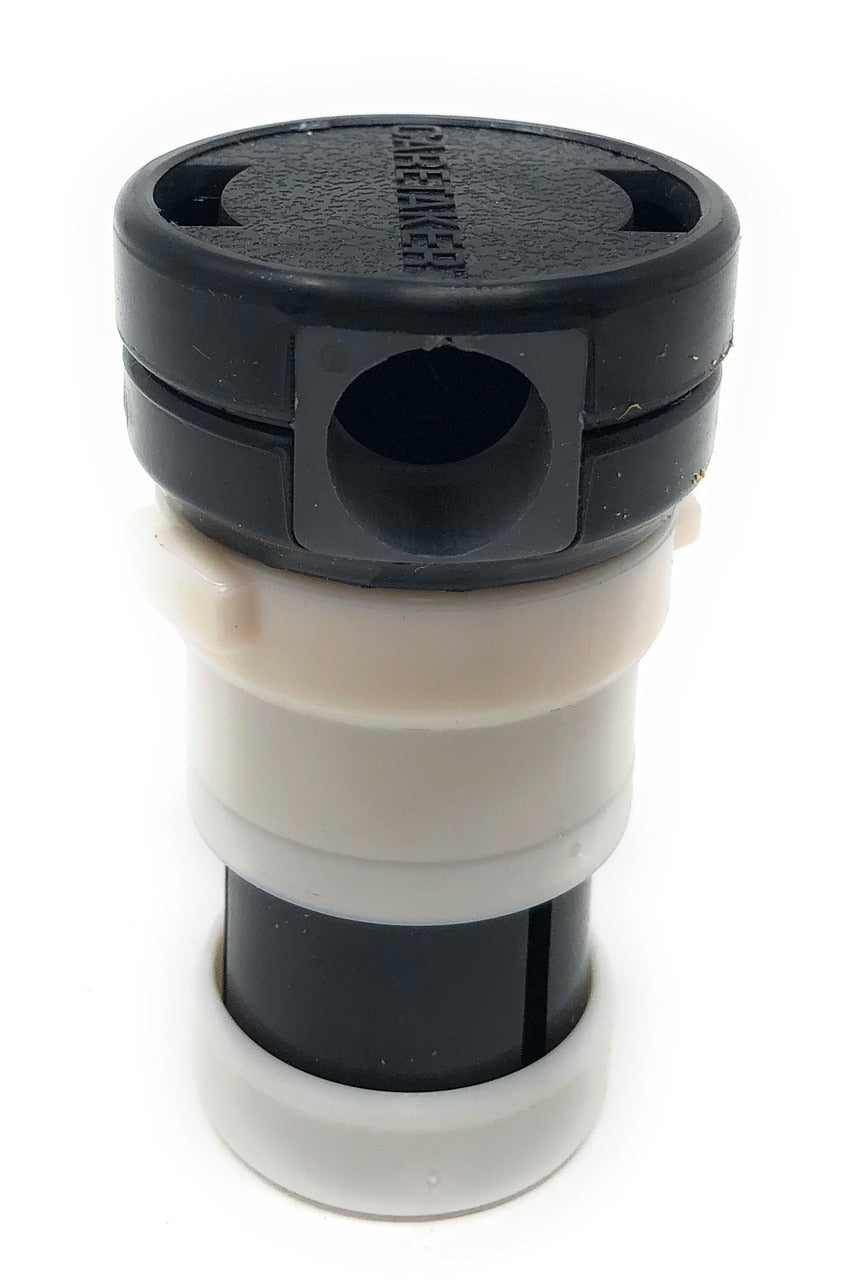

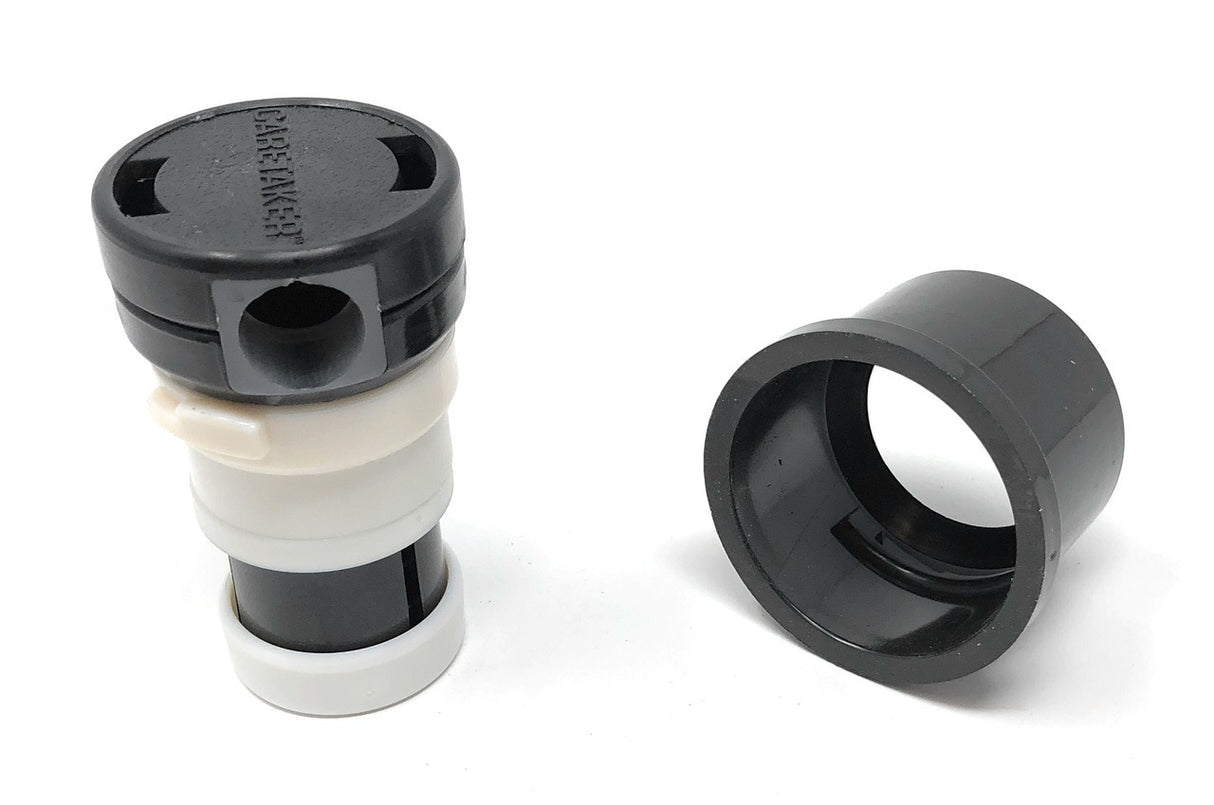

This Caretaker 99 2" Complete High-Flow Head (Jet Black) combines the cleaning head with its matching collar. Water from the in-floor system raises the head and directs the cleaning jet at its assigned pool location. Includes the bonded, non-removable high-flow nozzle.
Included in this kit

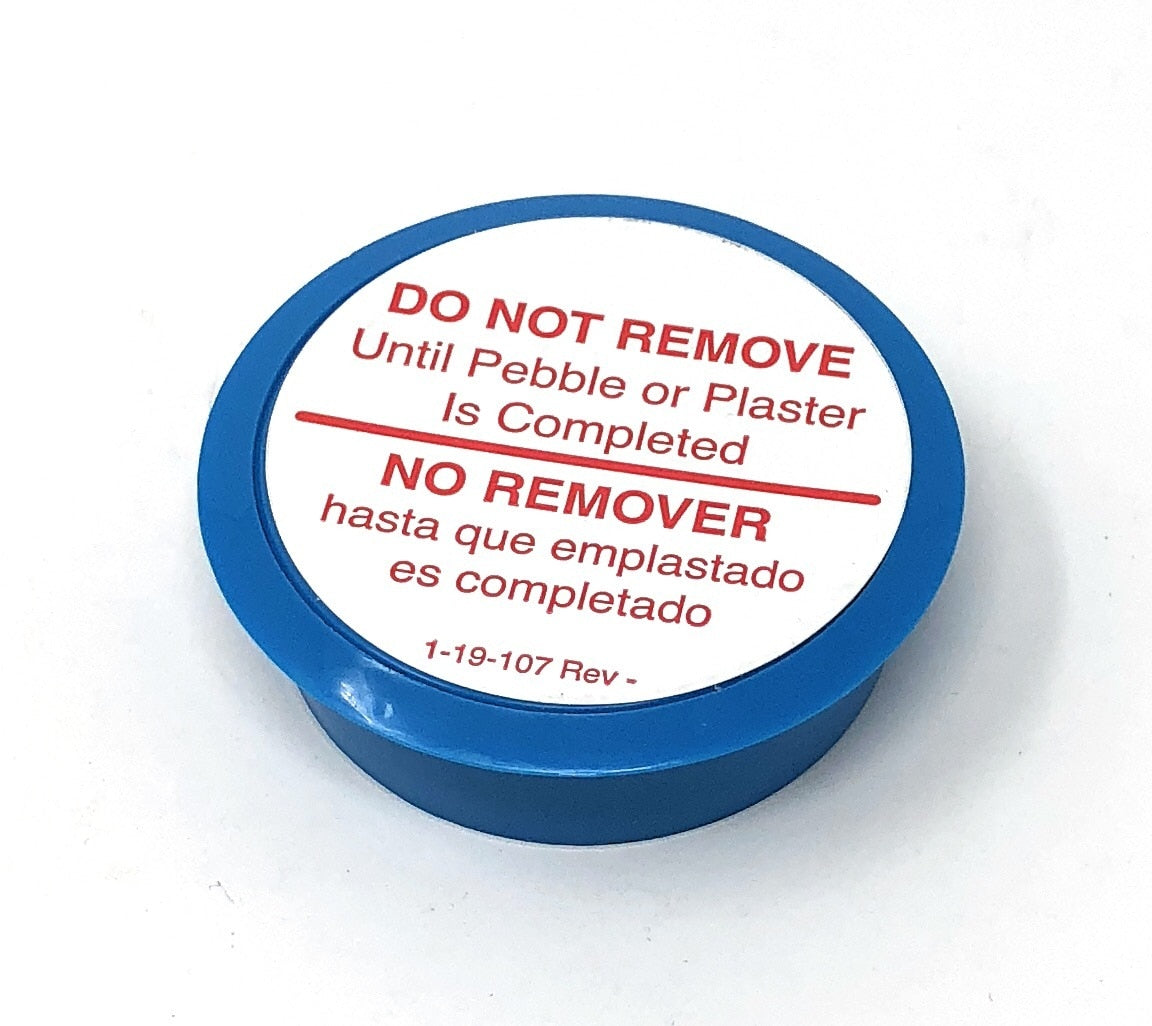

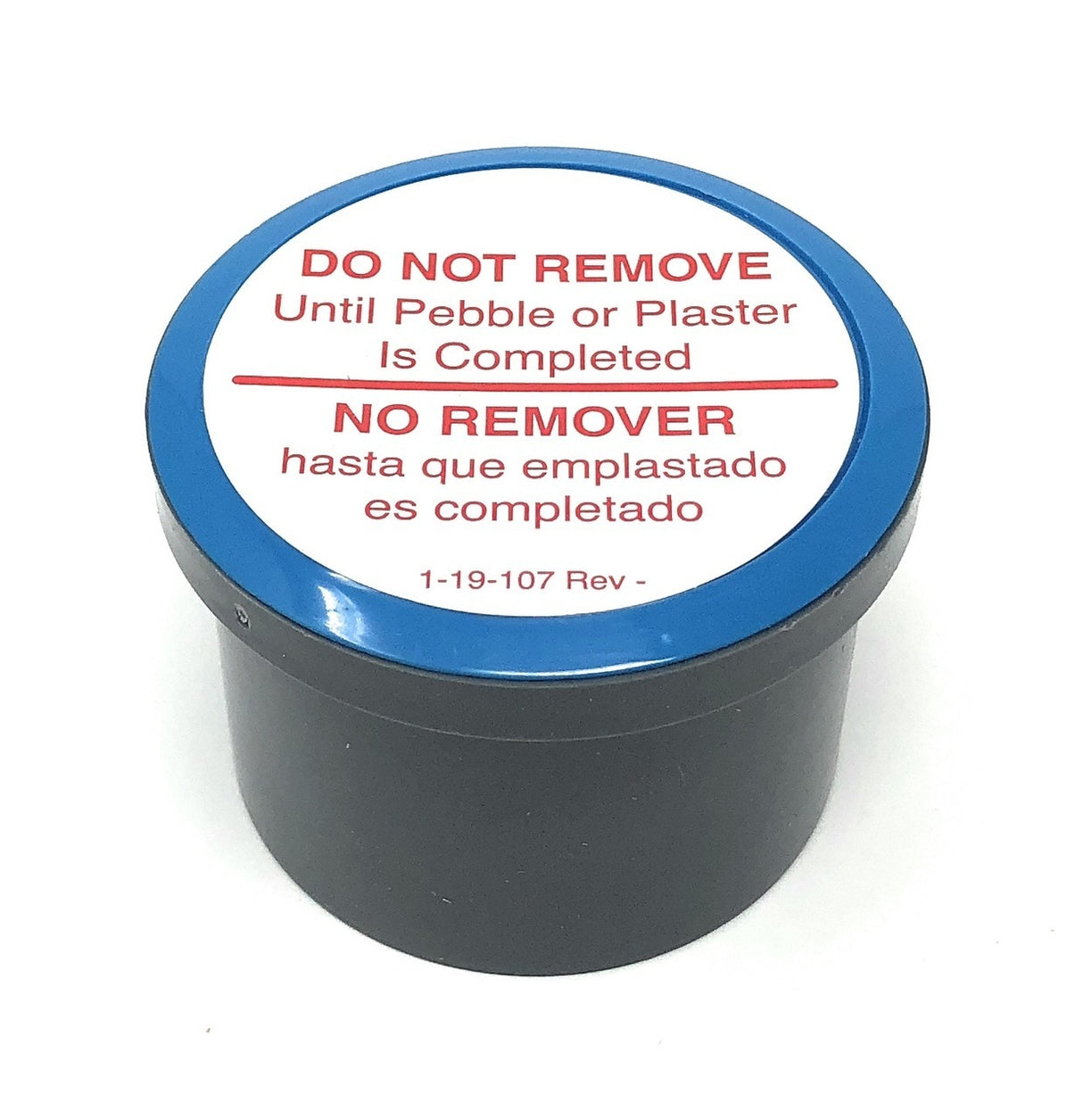

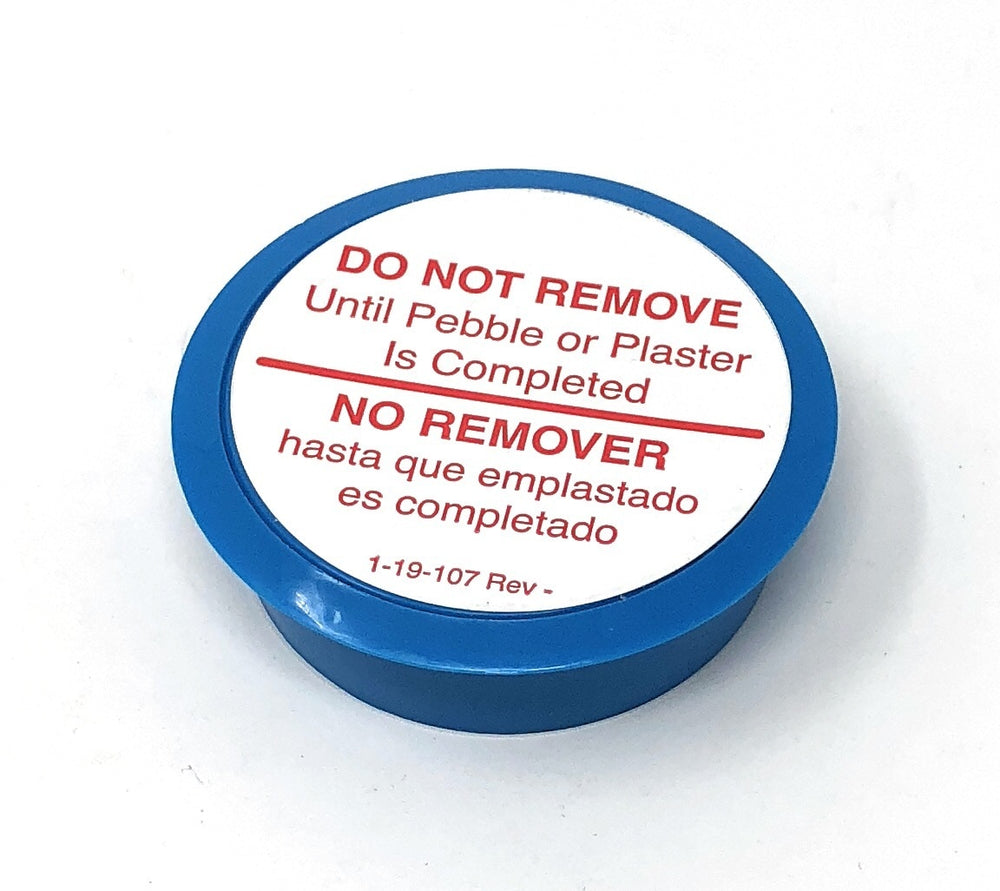

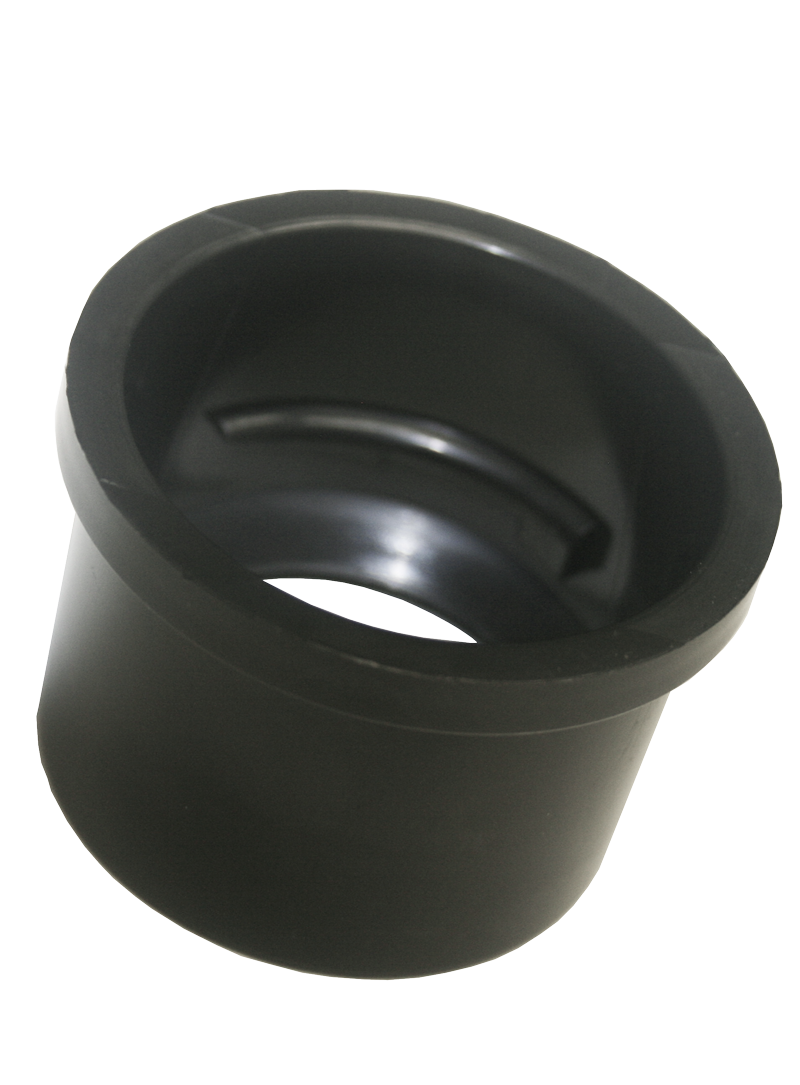

One cleaning head, one 2-inch plumbing collar and one protective plaster cap.
Nozzle configuration
Includes the bonded, non-removable high-flow nozzle.
Check fit before ordering
Match 5-9-516, the Jet Black color, the bayonet connection and the included collar configuration to your installation. Older threaded heads use a different connection. The listed collar size is a nominal plumbing configuration, rather than the outside dimensions of the head. The installation guide specifies 2-inch Class 200 or 2.5-inch Schedule 40 risers; a 2-inch Schedule 40 stub-up requires the specified pipe reamer.
See Specifications, Resources & PDF Downloads and Product FAQs for identifiers, support and purchasing details.
