Caretaker 99 VinylCare Complete High-Flow Head (Dark Blue) | 5-9-7086

Caretaker | SKU: 5-9-7086 | Barcode: 738919018105

Sold out

In-store pickup or delivery only

Call (602) 274-7946

Ships to

Product FAQs

What comes with this complete-head kit?

One cleaning head and one VinylCare plumbing collar. Includes the bonded, non-removable high-flow nozzle.

How is a complete kit different from a head-only listing?

This assembly includes the matching collar identified above. A head-only listing replaces the cleaning head in an existing compatible collar. Match the actual package and installation before ordering.

Is the nozzle included?

Includes the bonded, non-removable high-flow nozzle.

Does the color determine the correct head or nozzle?

Color selects the finish. It does not confirm the connection, collar configuration, flow type or the nozzle size required by the cleaning-system plan.

How does the bayonet connection release?

The cleaning head must be fully down before removal. The Caretaker guide describes turning the compatible removal tool counterclockwise to release a bayonet head, then turning clockwise to lock it during reinstallation. Older threaded heads have a different procedure; identify the connection first.

Can the high-flow nozzle be removed?

The high-flow heads supplied in this kit have a bonded nozzle. It is not a removable standard nozzle insert.

Call (602) 274-7946

Where to Buy

Resources & PDF Downloads

Caretaker Head & Collar Installation Guide

Caretaker Owner's Manual - TL-1301 Rev C

Jandy Caretaker Cleaning Heads - Manufacturer Support

Description

Caretaker | 5-9-7086

VinylCare Complete High-Flow Head (Dark Blue)

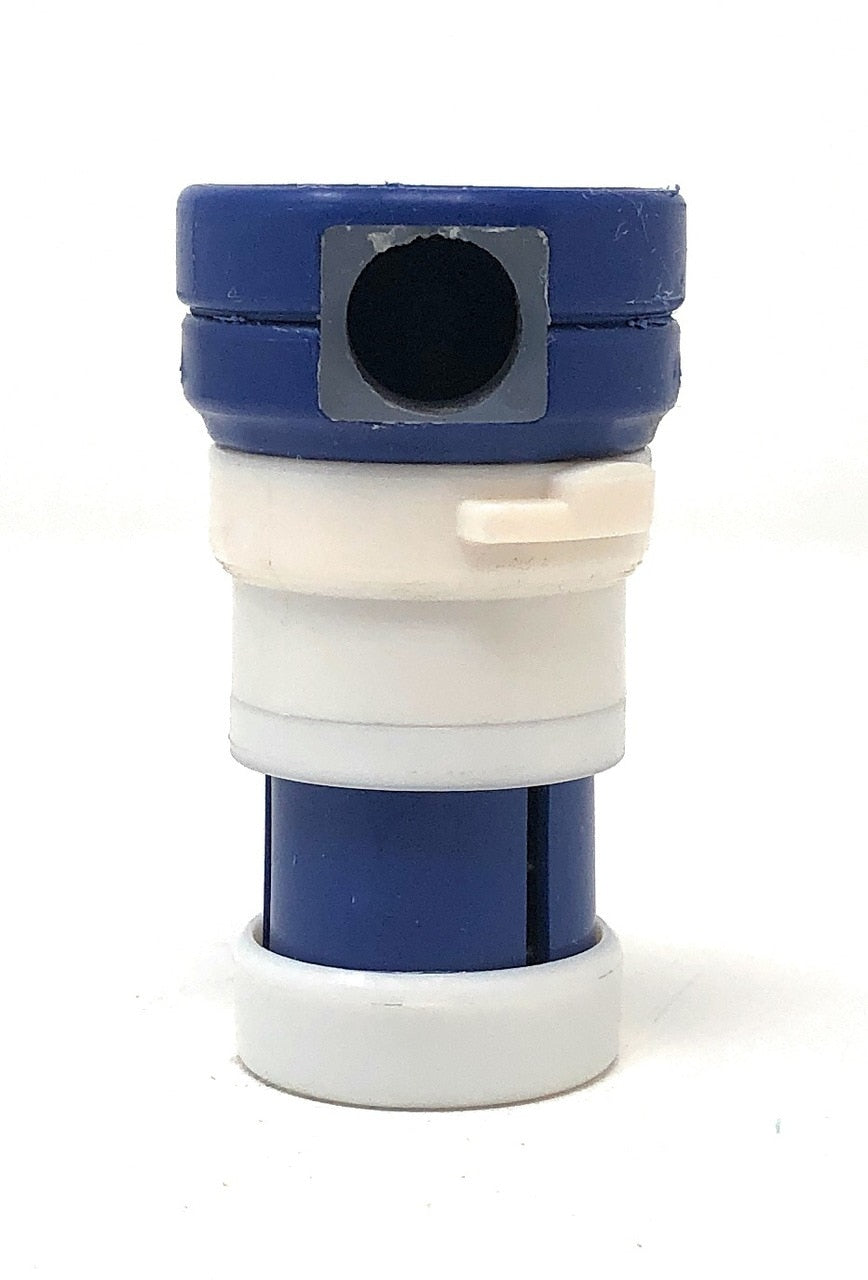

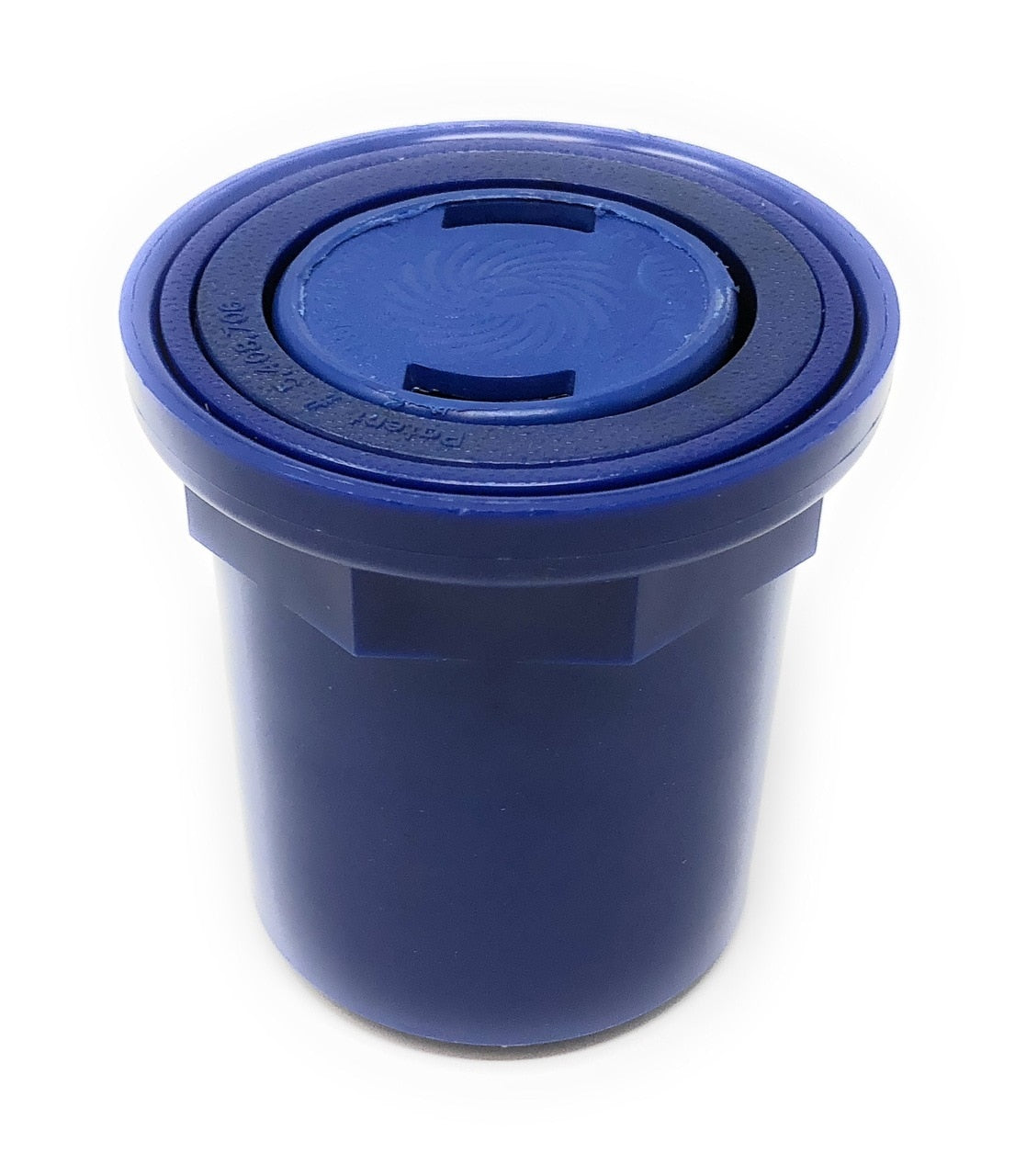

This Caretaker 99 VinylCare Complete High-Flow Head (Dark Blue) combines the cleaning head with its matching collar. Water from the in-floor system raises the head and directs the cleaning jet at its assigned pool location. Includes the bonded, non-removable high-flow nozzle.

Included in this kit

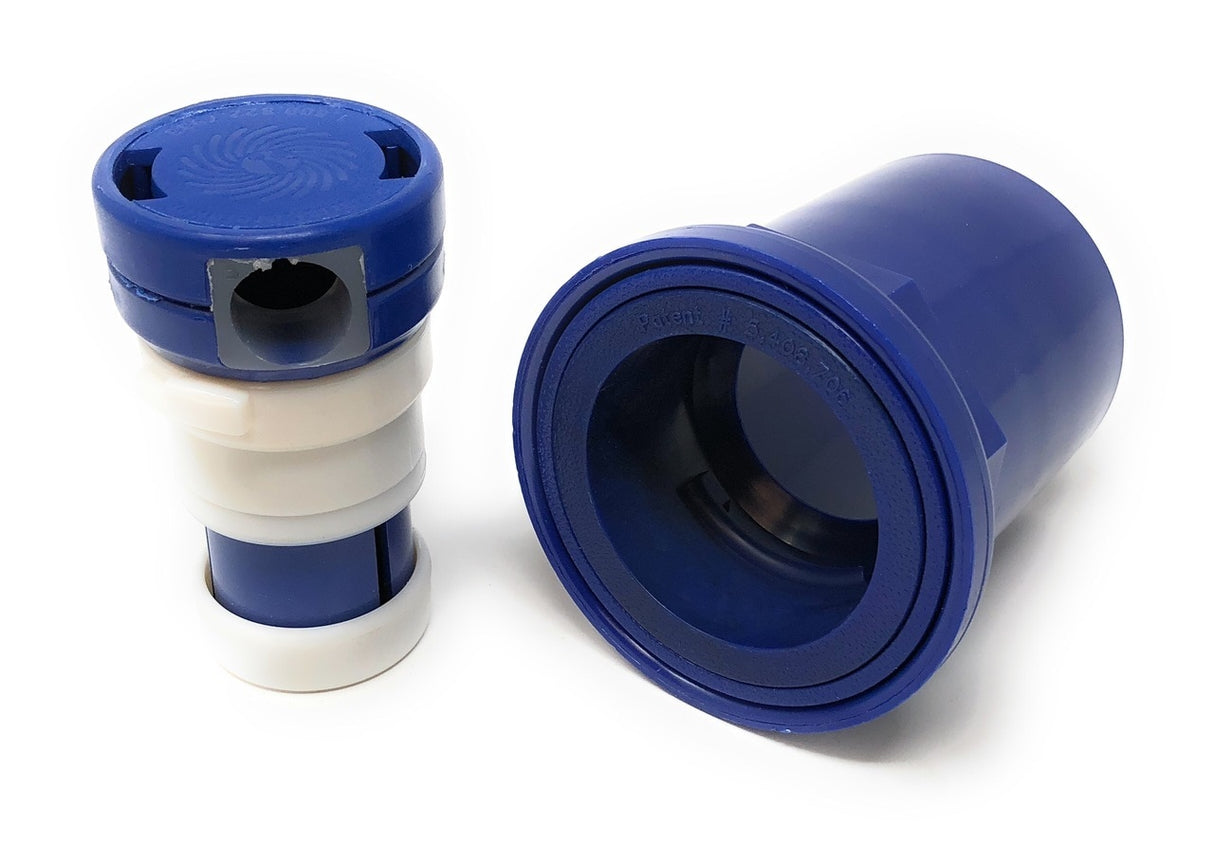

One cleaning head and one VinylCare plumbing collar.

Nozzle configuration

Includes the bonded, non-removable high-flow nozzle.

Check fit before ordering

Match 5-9-7086, the Dark Blue color, the bayonet connection and the included collar configuration to your installation. Older threaded heads use a different connection. This VinylCare assembly is for the matching vinyl-liner installation.

See Specifications, Resources & PDF Downloads and Product FAQs for identifiers, support and purchasing details.

Specifications

SKU

5-9-7086
UPC or GTIN

738919018105
Product Type

Caretaker 99 VinylCare Complete High-Flow Head (Dark Blue)
Size/Connection

VinylCare collar included for vinyl-liner installation
Power Source

Hydraulic
