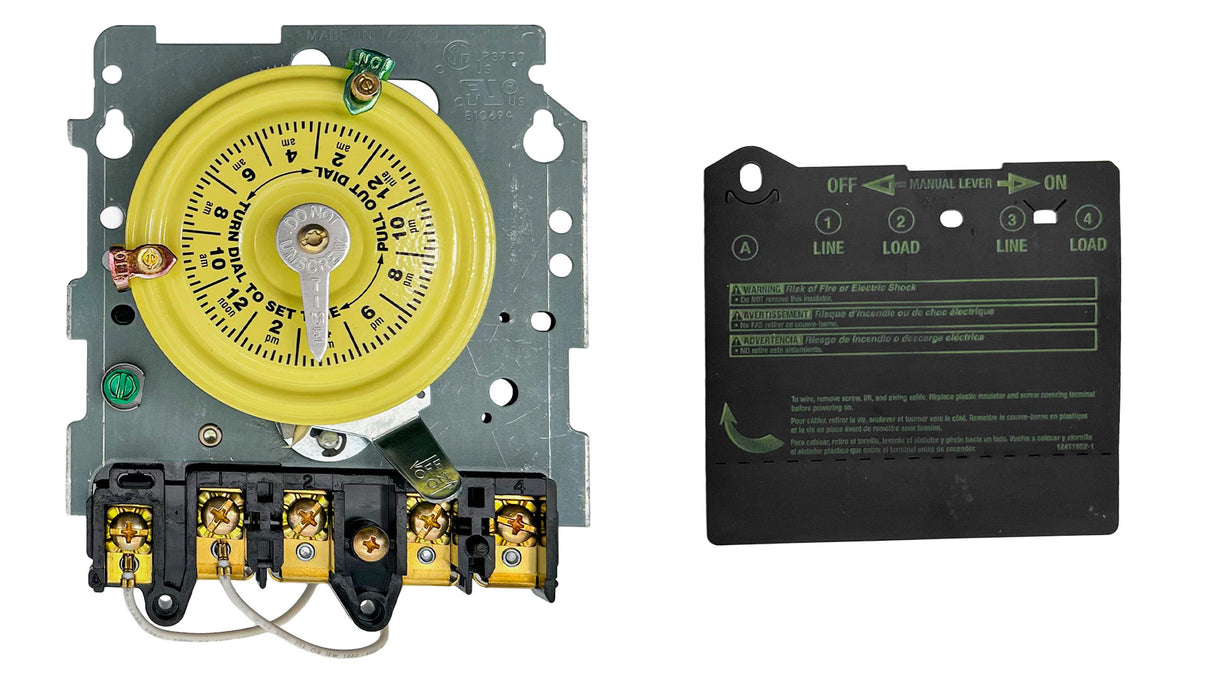

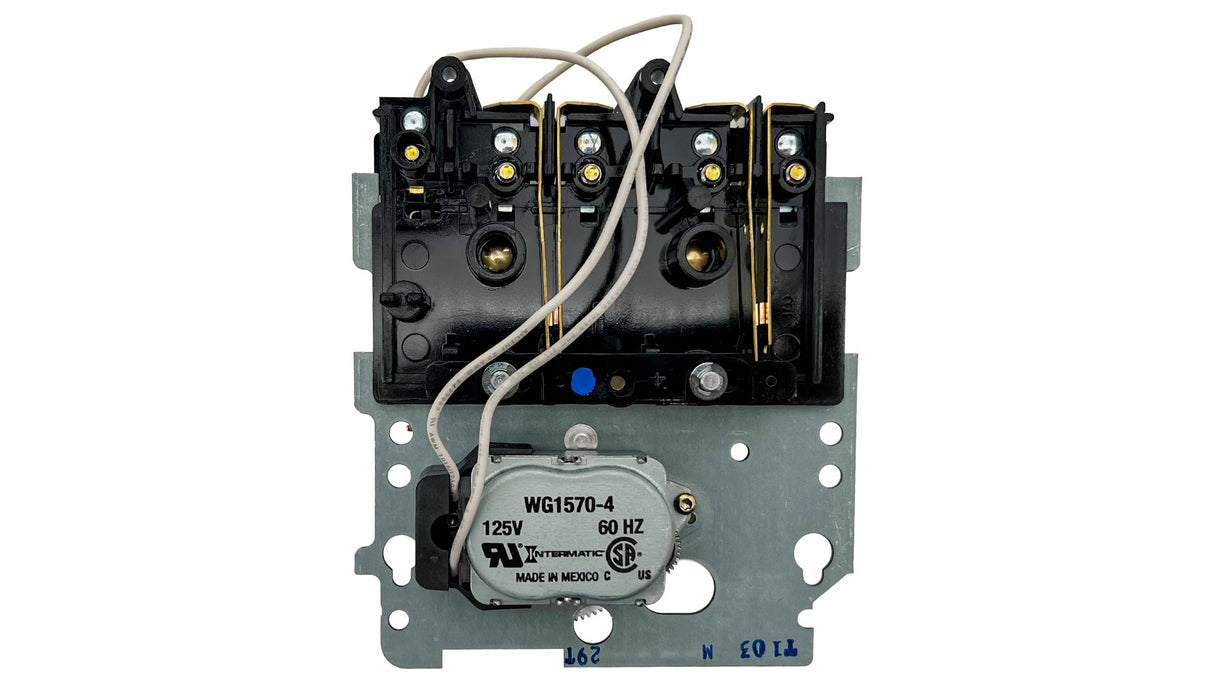

Intermatic 24-Hour 120V Mechanical Time Switch, DPST, Mechanism Only | T103M

 Heavy-duty mechanical time switches to control a single load.

Features:

• Highest motor load ratings in the industry
• 12 ON/OFF operations per day
• One ON and one OFF tripper included
• Can be installed in most Intermatic enclosures
• Teeter-type terminals for multiple load connections

Specifications:

• Minimum ON/OFF Times - 1 Hour
• Maximum ON/OFF Operations - 12
• Has Manual Override
• Mechanism Only
• Input Voltage Range - 120V, 60Hz
• Number of Circuits - 1
• Switch Type - DPST
• Maximum Power Consumption - 3W

Applications:

• Indoor Lighting Control
• Timing/Scheduling ON/OFF
