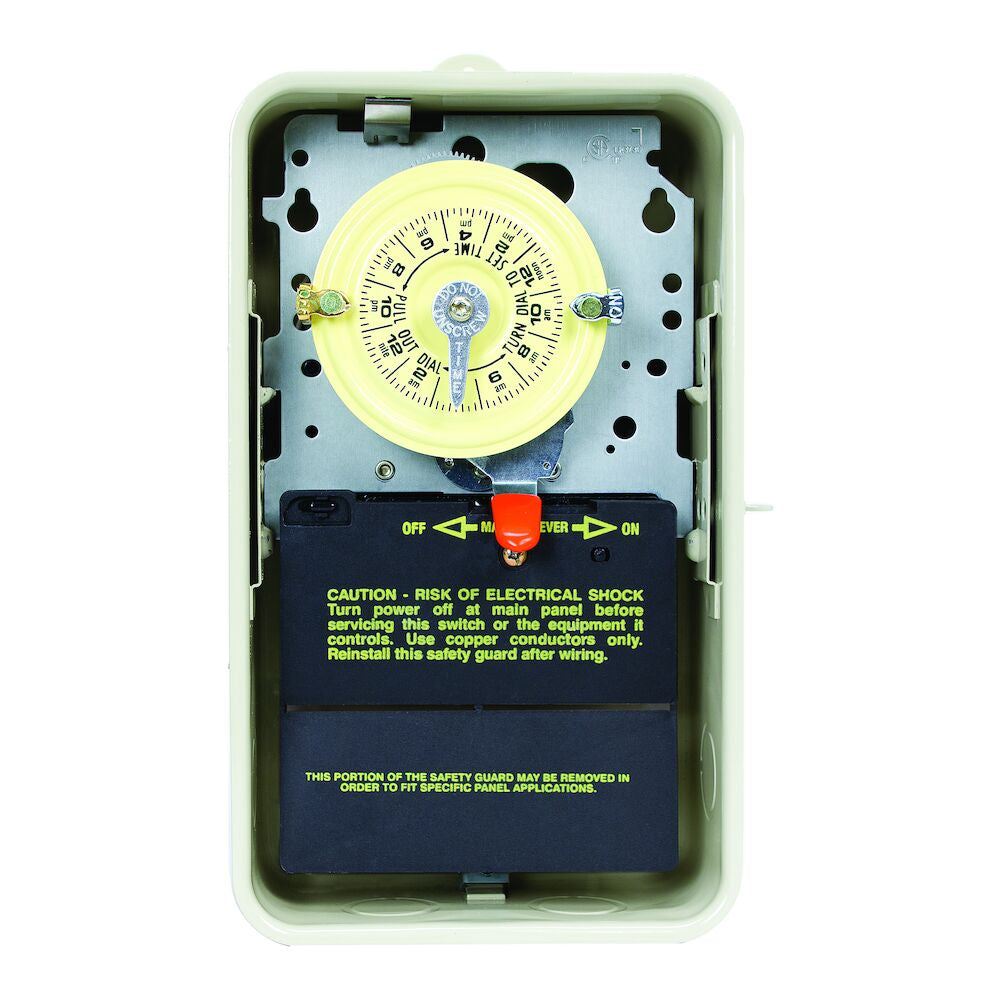

Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure | T104R3

Heavy-duty mechanical time switches to control a single load.

Features:

• Highest motor load ratings in the industry
• 12 ON/OFF operations per day
• One ON and one OFF tripper is included
• Teeter-type terminals for multiple load connections

Specifications:

• Switch Type - DPST
• Input Voltage - 280-277V, 60Hz
• Electronic Ballast - 16A
• Maximum ON/OFF Operations - 12
• Operation Mode - 24 Hour
• Enclosure Type - Outdoor Type 3R Metal
• Maximum Power Consumption (W) - 3W

Applications:

• Heater Thermostat Control
• Motor Control
• Pump Control
• Water Circulation
