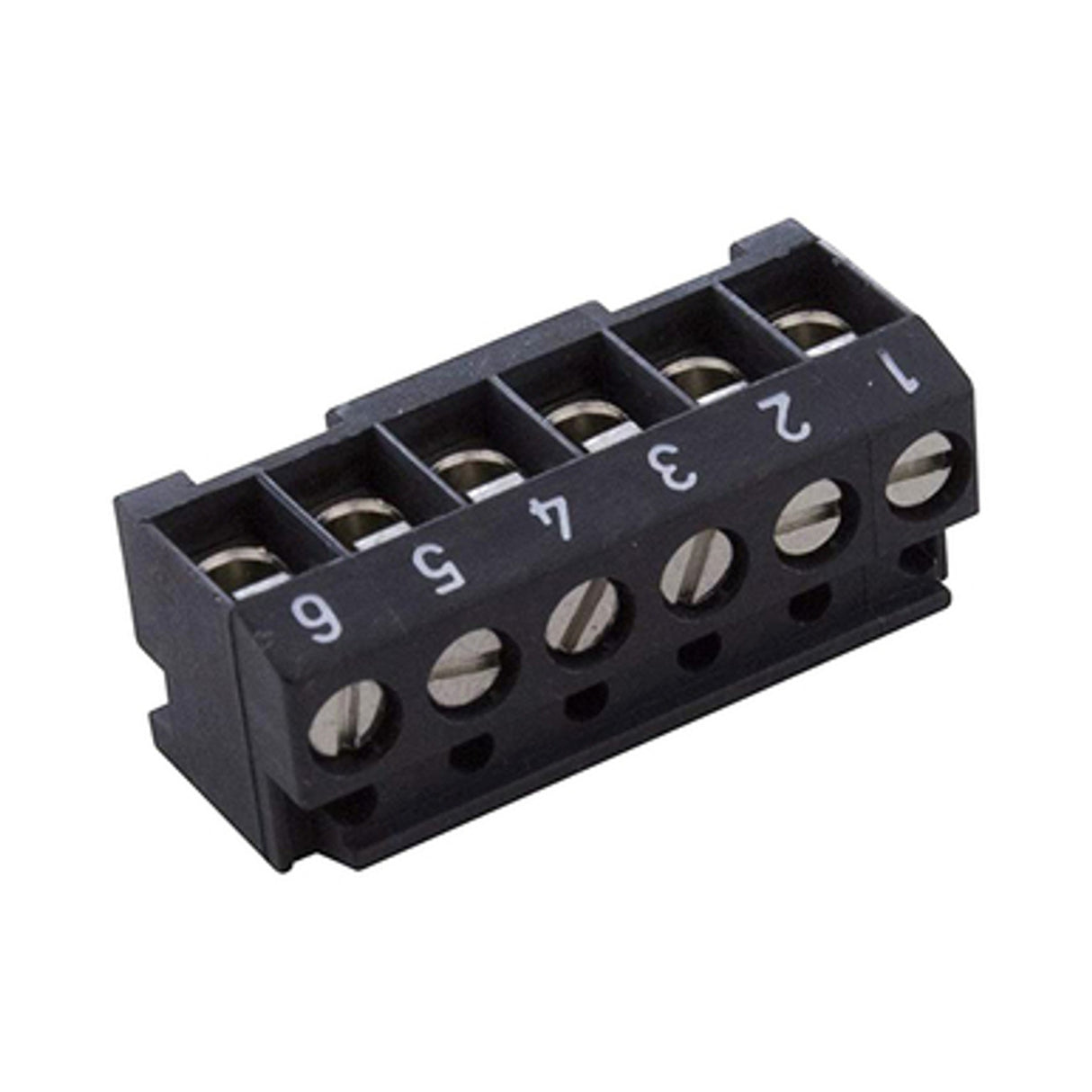

Jandy Terminal Bar Connector, 6 Pin Brown, AquaLink RS | Model: 6547+

Jandy Terminal Bar Connector, 6 Pin Brown, AquaLink RS | Model: 6547+

The Jandy 6547+ Terminal Bar Connector is an essential replacement component for Jandy AquaLink RS automation systems. This 6-pin connector serves as the link between the terminal bar and the wiring of the AquaLink RS, ensuring seamless communication and reliable operation of your pool automation system.

Key Features:

• Precise Compatibility: Tailored for use with Jandy AquaLink RS systems.
• Durable Design: Built to withstand harsh pool environments and frequent use.
• Effortless Installation: Designed for straightforward replacement to minimize downtime.
• Enhanced Connectivity: Ensures secure and reliable electrical connections.

Product Specifications:

• Model Number: 6547+
• Type: 6-Pin Terminal Bar Connector
• Color: Brown
• Material: High-quality plastic and metal components for durability
• Application: For use with Jandy AquaLink RS automation systems

Installation Tips and Tricks:

1. Power Down: Always turn off power to the AquaLink RS system before starting any maintenance to avoid electrical hazards.
2. Access the Terminal Bar: Remove the cover of the AquaLink RS system to expose the terminal bar.
3. Detach the Old Connector: Carefully unplug the existing connector. Inspect the wiring and pins for wear or damage.
4. Install the New Connector: Align the 6547+ Terminal Bar Connector with the terminal bar and press it into place securely. Ensure proper pin alignment.
5. Test the System: Power up the AquaLink RS system and verify that all connections function correctly.

Maintenance Tips:

• Inspect connections periodically to ensure they remain tight and free of corrosion.
• Keep the terminal bar area dry and protected from moisture to prevent electrical issues.
• Replace worn or damaged connectors immediately to maintain system integrity.

Why Choose the Jandy 6547+ Terminal Bar Connector?

This terminal bar connector is engineered for reliability and compatibility with Jandy AquaLink RS systems, making it the go-to choice for maintaining or upgrading your pool automation setup. Its durable construction and easy installation process allow you to restore your system's functionality quickly and efficiently.

Ensure your AquaLink RS system operates at peak performance with the dependable Jandy 6547+ Terminal Bar Connector.
