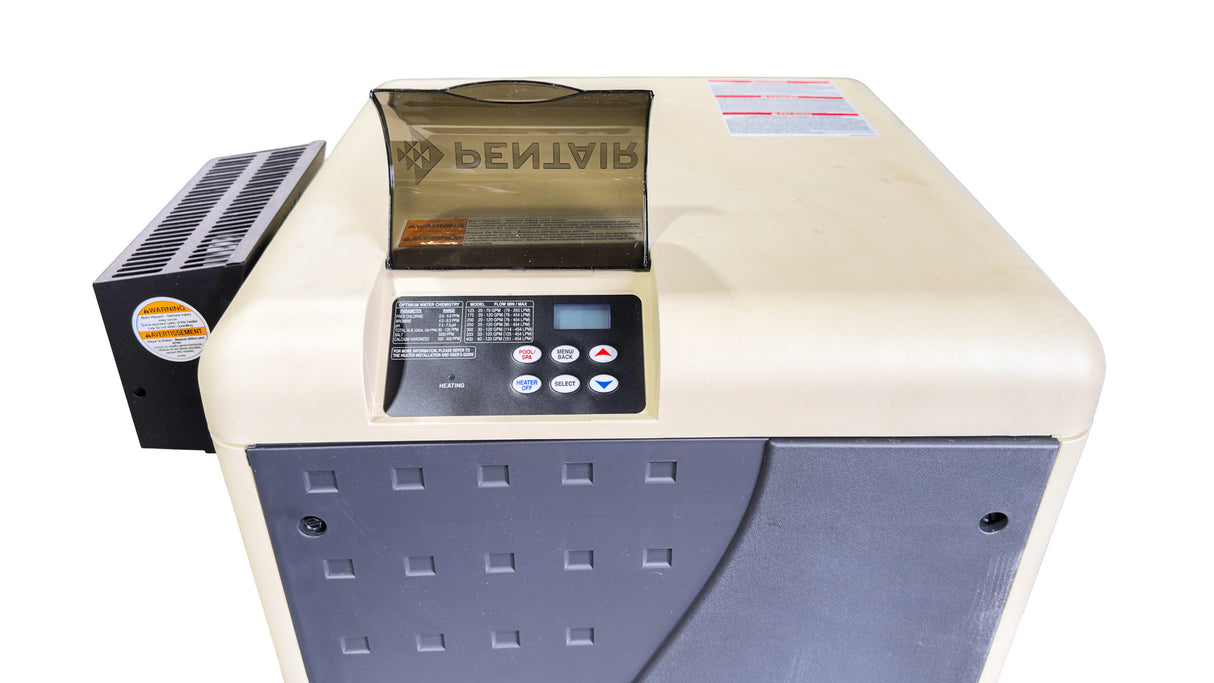

Pentair MasterTemp 400 Natural-Gas Pool Heater | 460736

Pentair  |  SKU: 460736  |  Barcode: 788379724078

In-store pickup or delivery only

Call (602) 274-7946

Ships to

Select your store

Pickup inventory reflects the selected variant.

Installation and replacement parts

Have a qualified installer verify gas capacity, water flow, combustion air, venting, electrical supply, bonding and clearances for the site. Indoor and outdoor installations must follow the applicable manual. Do not reuse a previous heater’s vent or assume an air-intake kit is an exhaust-vent kit. Compatible automation, network equipment and the Smart Heater Bypass Kit are separate purchases.

Installation and service must be performed by a qualified pool-heater professional. Improper installation or service can cause fire, explosion, electric shock or carbon-monoxide exposure. Follow the complete manufacturer instructions; never bypass a safety switch.

Replacement-part selection: Pentair 474061 tube-sheet coil assembly is listed for this model manufactured after January 12, 2009 (new tub design). Compare the exact rating plate and manufacturer diagram before ordering. For older equipment, use the date-specific entry in the linked parts sheet.

Optional accessories: 461031 direct-air intake kit and 462048 Smart Heater Bypass Kit are separate purchases. Applicability depends on the installation and control generation.

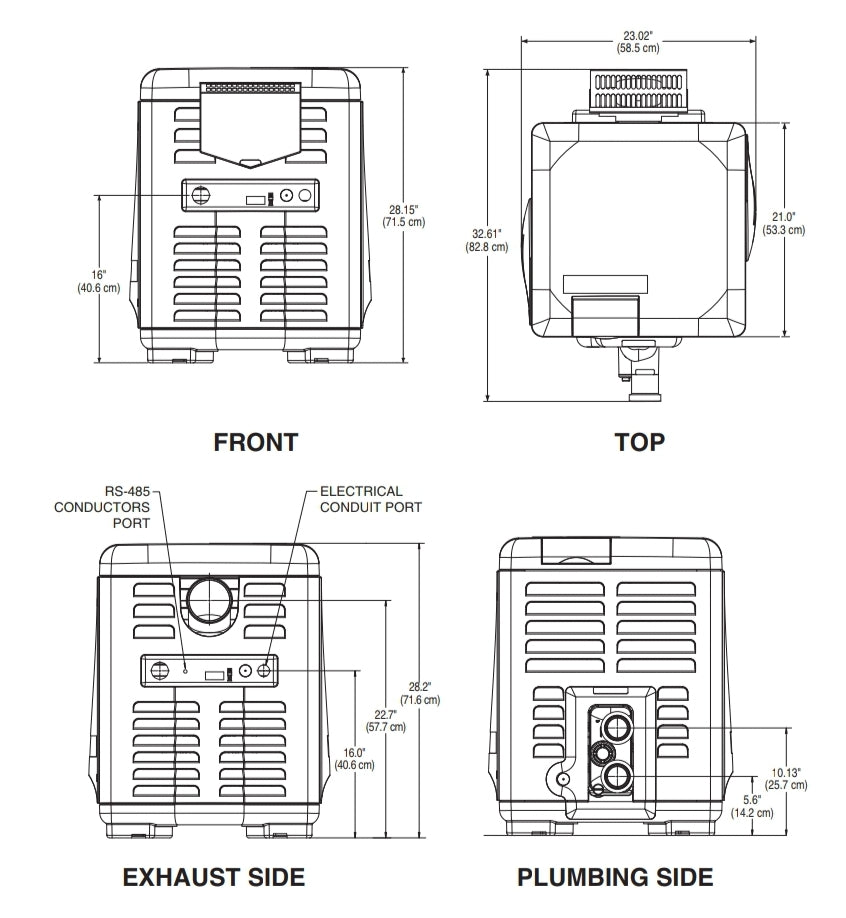

Drawing dimensions: the 32.61-inch dimension is the overall top-view envelope including projections, not the 21-inch body depth. Front-view height is 28.15 inches; the side drawing shows 28.2 inches. These do not include required service or vent clearances.

Product FAQs
What are the fuel and capacity of 460736?
Natural gas with a 400,000 BTU/hr input rating. The rating describes fuel input, not delivered heat. Heat-up time depends on water volume, temperature rise, weather and heat loss.
How is this different from other MasterTemp versions?
This is MasterTemp 400 with a copper heat exchanger. HD models use a cupro-nickel exchanger. Propane and ASME versions are separate models; similar cabinets do not establish interchangeability.
Does it connect directly to Wi-Fi or a phone app?
The heater is not a standalone Wi-Fi controller. Current MasterTemp controls support connection to compatible Pentair automation; the manual describes RS-485 integration with IntelliCenter. Remote access requires the appropriate automation and network setup. Confirm the supplied control-board generation, since legacy heaters may require different components.
Can it be installed indoors?
Only with the manufacturer-required combustion-air and venting design, clearances and local approvals. Have a qualified installer use the exact model manual. The optional direct-air intake duct kit is not an exhaust-vent solution; never improvise a vent installation.
What flow and electrical supply does it require?
The manual lists 40–120 GPM through the 400 heater and 120/240 VAC, 60 Hz, single-phase power. These are equipment requirements, not installation instructions. A qualified installer must verify the actual circuit, hydraulic design and any bypass requirements.
Which replacement heat exchanger should I order?
Pentair lists tube-sheet coil kit 474061 for this model’s post-January 12, 2009 tub design. Match the manufacturing date, model, exchanger material and diagram before ordering. Earlier units and ASME versions have different entries; do not assume all MasterTemp heat exchangers interchange.
Is the catalog weight the net heater weight?
No. Pentair’s ordering catalog labels 136 lb as carton weight. It is not a verified net product weight. Use the installation drawing for equipment dimensions and required clearances.
What warranty applies?
Coverage depends on purchase route, installation and the applicable manufacturer terms. Pentair’s general warranty page and TradeGrade policy currently publish different online-purchase terms. Confirm coverage for this exact transaction with Pentair before purchase; do not assume the standard two-year heater coverage or a bundle extension applies. Review Pentair warranty information and the TradeGrade policy.

Call (602) 274-7946

Description

PENTAIR · 460736

MasterTemp 400. Choose the correct configuration.

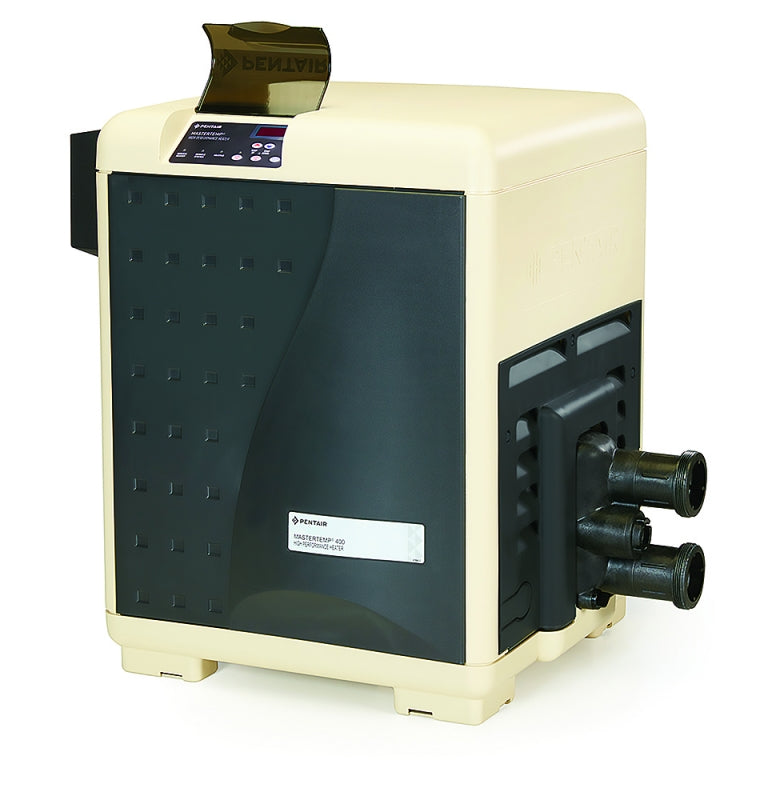

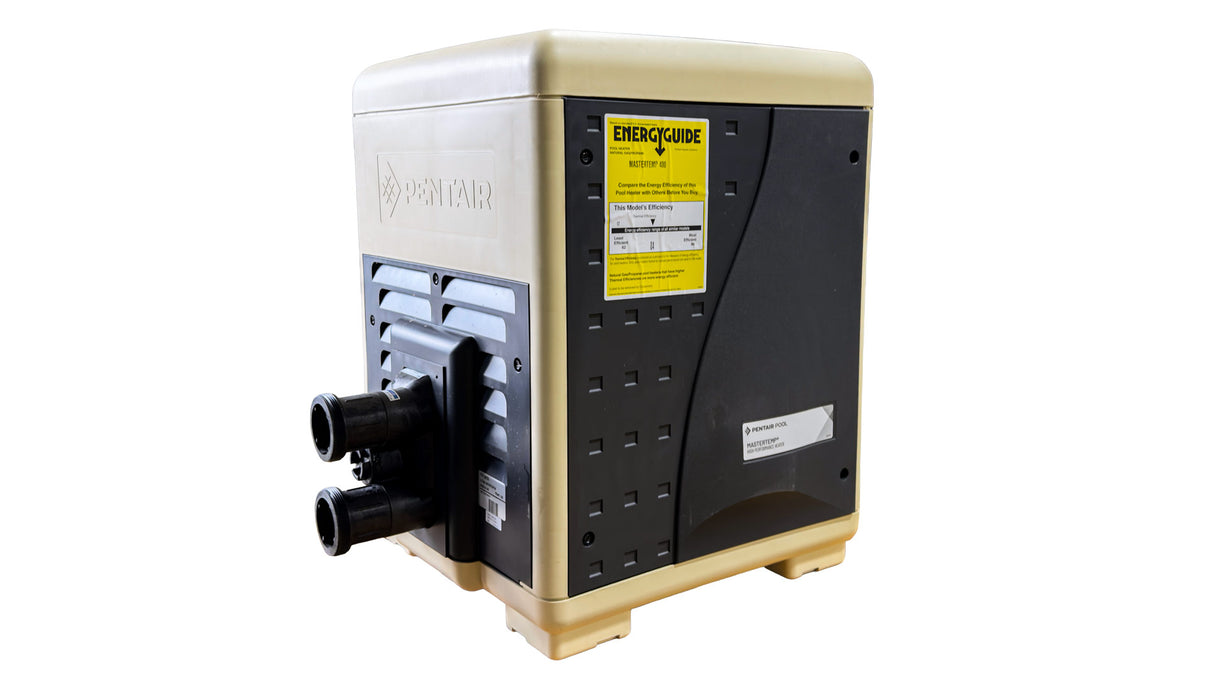

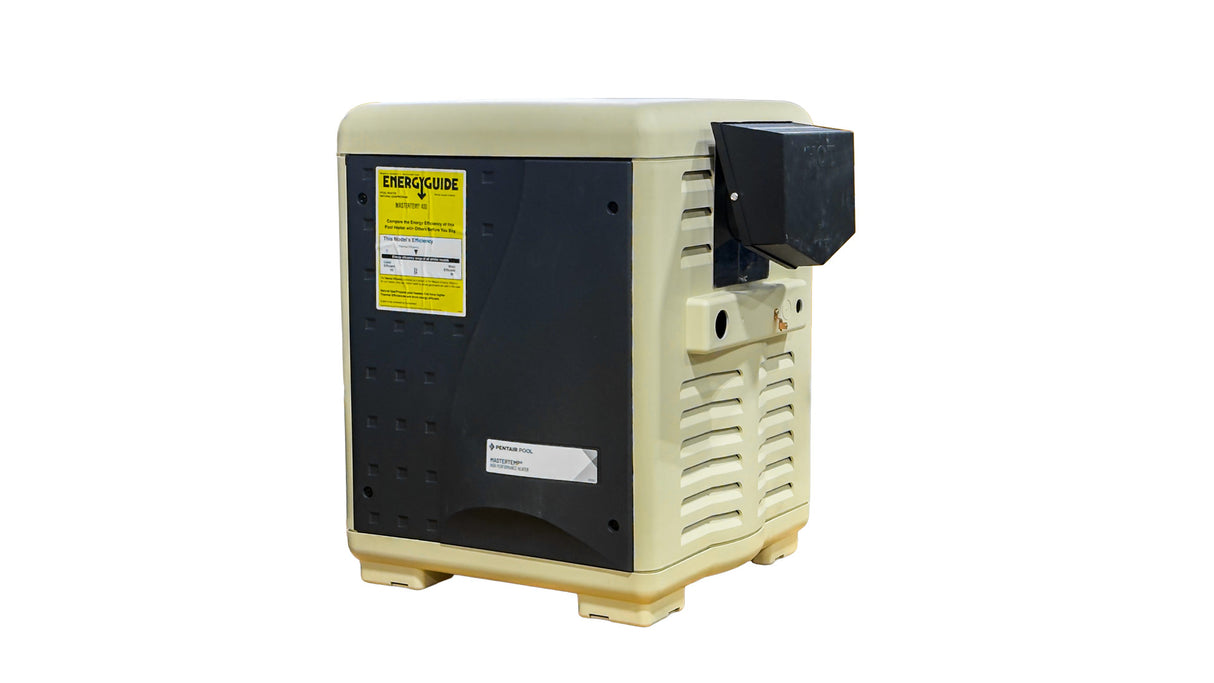

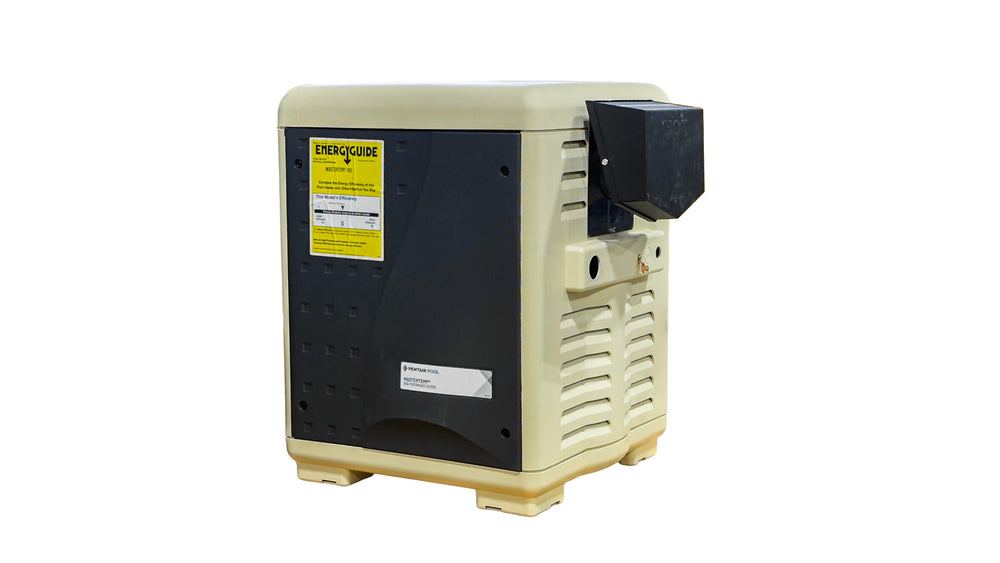

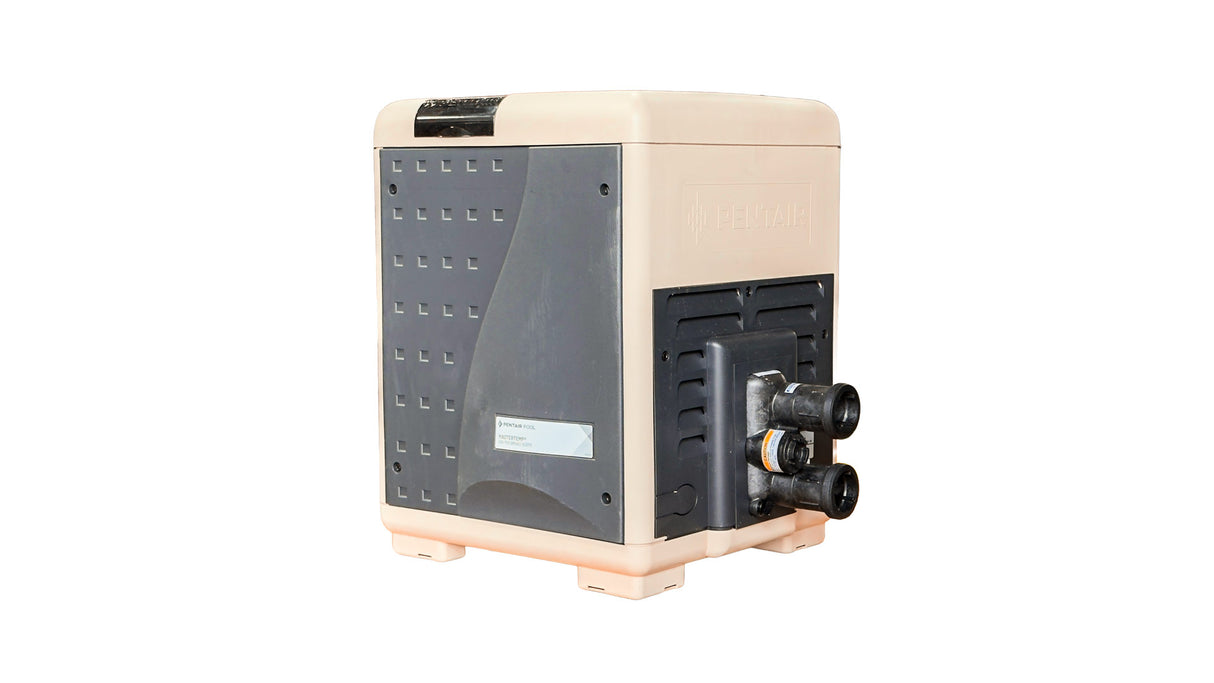

The Pentair MasterTemp 400, part 460736, is a natural-gas pool and spa heater with a 400,000 BTU/hr input rating and a copper heat exchanger. Pentair lists 84% heat-exchanger efficiency for this exact configuration. The input rating is fuel input, not a promise of heat delivered to the water or a particular heat-up time.

Match the gas and model

Natural gas, MasterTemp 400. Propane and ASME versions have separate model numbers.

Heat exchanger construction

Copper heat exchanger. This is the standard copper version, not the HD cupro-nickel configuration.

Plan the complete installation

Natural gas supplies heat; a correctly configured 120/240 VAC, 60 Hz, single-phase electrical supply is also required.

Check fit before ordering

Have a qualified installer verify gas capacity, water flow, combustion air, venting, electrical supply, bonding and clearances for the site. Indoor and outdoor installations must follow the applicable manual. Do not reuse a previous heater’s vent or assume an air-intake kit is an exhaust-vent kit. Compatible automation, network equipment and the Smart Heater Bypass Kit are separate purchases.

See Specifications for product details, Resources & PDF Downloads for manufacturer documents, and Product FAQs for fitment and service questions.

Professional installation: Installation and service must be performed by a qualified pool-heater professional. Improper installation or service can cause fire, explosion, electric shock or carbon-monoxide exposure. Follow the complete manufacturer instructions; never bypass a safety switch.

Manufacturer California Proposition 65 warning: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.

Specifications

  • SKU
    460736
  • UPC or GTIN
    788379724078
  • Product Type
    Natural-Gas Pool and Spa Heater
  • Size/Connection
    400,000 BTU/hr fuel input; 84% manufacturer-listed heat-exchanger efficiency; 2-inch PVC slip unions; 120/240 VAC, 60 Hz, single phase; 40–120 GPM through heater. Figure 2 equipment drawing: 23.02 in width, 21 in body depth, 28.15 in front-view height; top-view envelope with projections 32.61 in. Installation and service clearances are additional.
  • Materials
    Copper heat exchanger
  • Power Source
    Natural gas
  • Compatibility
  • Dimensions
    32.61 in, 23.02 in, 28.2 in
