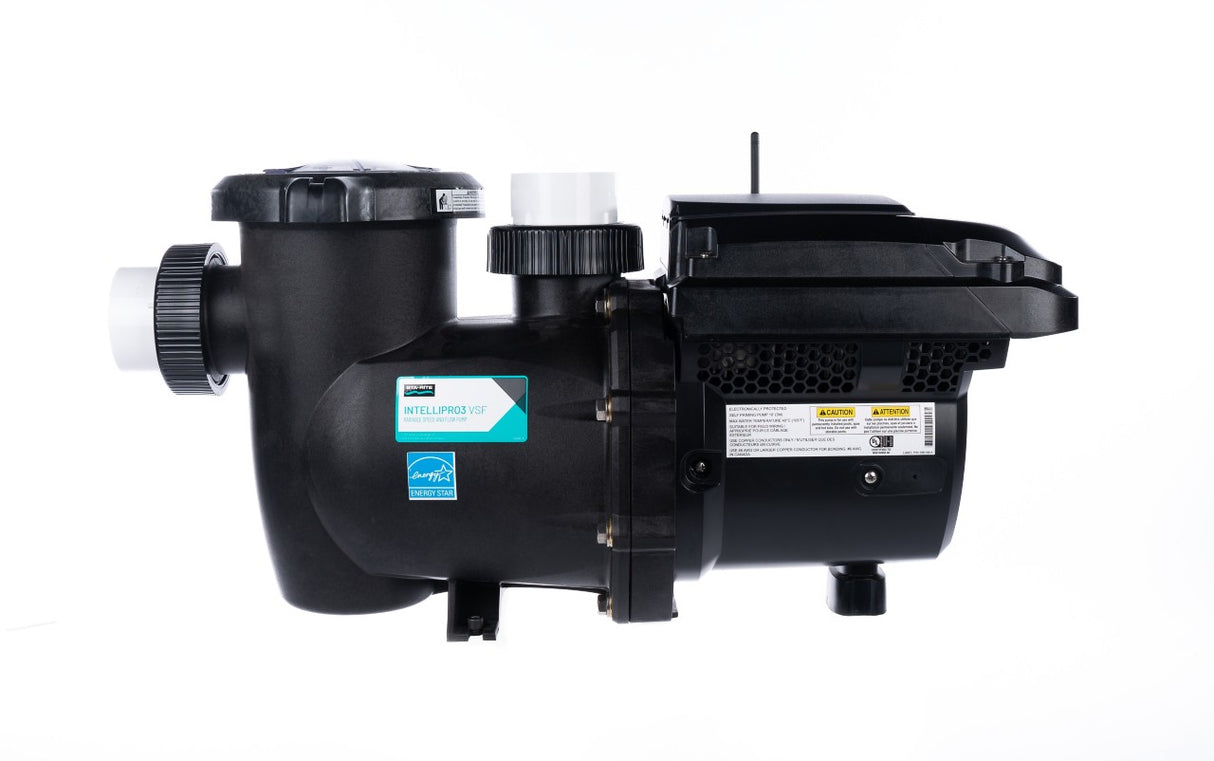

Pentair IntelliPro3 VSF 3 THP Pool Pump with I/O Relay Board | 013076

Pentair | SKU: 013076 | Barcode: 788379886158

Sold out

In-store pickup or delivery only

Call (602) 274-7946

Ships to

Product FAQs

What distinguishes model 013076?

This is the 3 THP IntelliPro3 VSF pump with the I/O relay board included. It is a complete pump. The optional touchscreen is a separate accessory; it is not included in this configuration.

What electrical supply does this model require?

The 013076 model is rated for 208–230 V AC, 50/60 Hz. The 3 THP version is not rated for 115 V. Have a qualified professional verify the supply, wiring and protection against the installation guide and pump nameplate.

Which plumbing sizes can be used?

Pentair shows 2-inch or 2.5-inch plumbing; 3-inch plumbing requires the optional 410029 union kit. Confirm the union arrangement and installation clearances before ordering; pump horsepower alone does not establish a drop-in replacement.

What does the included I/O relay board do?

It can switch up to two compatible external devices within the board ratings. It does not convert supply voltage or replace every function of a dedicated automation system. The relay guide specifies separate 5 A and 16 A high-voltage terminals; a qualified professional must check each load and wiring arrangement.

Can I use an app or add a local touchscreen?

The pump supports the Pentair Pool app and wireless setup. For an optional local display, the manufacturer lists touchscreen 356348Z for this pump family. View the matching touchscreen. The display is sold separately.

What are the pump dimensions and weight?

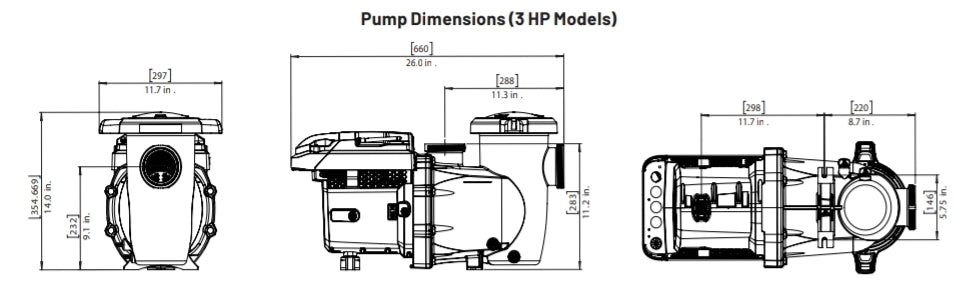

Pentair lists a pump weight of 55 lb. The manufacturer drawing shows overall length × width × height of 26 × 11.7 × 14 inches. These are pump measurements, not carton measurements. Allow the separate access and ventilation clearances specified in the installation guide.

Which warranty terms should I check?

Pentair lists 3 years for qualifying residential installations and 2 years for commercial use. Dealer-channel purchase, professional installation, registration and exclusions apply. Review Pentair’s warranty conditions and TradeGrade purchase terms before purchase.

How should I interpret the energy-savings claim?

Pentair’s up-to-90% comparison uses a single-speed pump running 12 hours per day, electricity at $0.16 per kWh and a 20,000-gallon pool. It is not a guaranteed bill reduction. Actual results depend on utility rates, pool size, run time, speed, pump model and system hydraulics; WEF and savings vary by model.

Where are the installation and operating instructions?

Use Resources & PDF Downloads on this page for the IntelliFlo3/IntelliPro3 installation and maintenance guide, app/user guide and relay-board instructions. The installation guide includes performance curves, dimensions and service information. Follow its professional-service and electrical-safety requirements.

Call (602) 274-7946

Where to Buy

Resources & PDF Downloads

Installation & Maintenance Guide – IntelliFlo3 / IntelliPro3 VSF

App & User Guide – IntelliFlo3 / IntelliPro3 VSF

I/O Relay Control Board Guide – Rev. B, May 2023

Description

Pentair IntelliPro3 VSF | 013076

Set circulation to suit your pool

The IntelliPro3 VSF 3 THP pump combines adjustable circulation with an included I/O relay board. Choose this complete pump when you want connected pump control and switching for compatible external equipment.

Adjustable circulation

Variable speed and flow control adjusts operation to maintain the programmed flow as pool-system conditions change.

Connected operation

Use the Pentair Pool app for pump control and scheduling, with an optional touchscreen for a local interface.

I/O board included

This configuration includes the relay board for switching compatible accessory loads within the documented limits.

Check before ordering

Match the 208–230 V AC supply, required flow and plumbing arrangement to the installation. The touchscreen is optional. The 3-inch union kit is also separate. Have a qualified professional confirm sizing and installation. Check Pentair’s dealer-channel warranty conditions before purchase.

Find the technical details in Specifications, the manuals in Resources & PDF Downloads, and model-specific answers in Product FAQs.

Specifications

SKU

013076
UPC or GTIN

788379886158
Product Type

Variable Speed & Flow Pool Pump with I/O Relay Board
Size/Connection

3 THP; WEF 7.1; 208–230 V AC; 50/60 Hz; full-load current 12.4–11.2 A; 2-inch or 2.5-inch plumbing; 3-inch plumbing requires the optional 410029 union kit.
Materials

Durable motor, drive & hydraulics; engineered housing; UL & NSF certified.
Power Source

AC-powered
Dimensions

26 in, 11.7 in, 14 in
Weight

55 lb
