1 1/2″ 5-Port Plumbing Template – Pentair In-Floor | 230219

1 1/2″ 5-Port Plumbing Template – Pentair In-Floor (A&A)

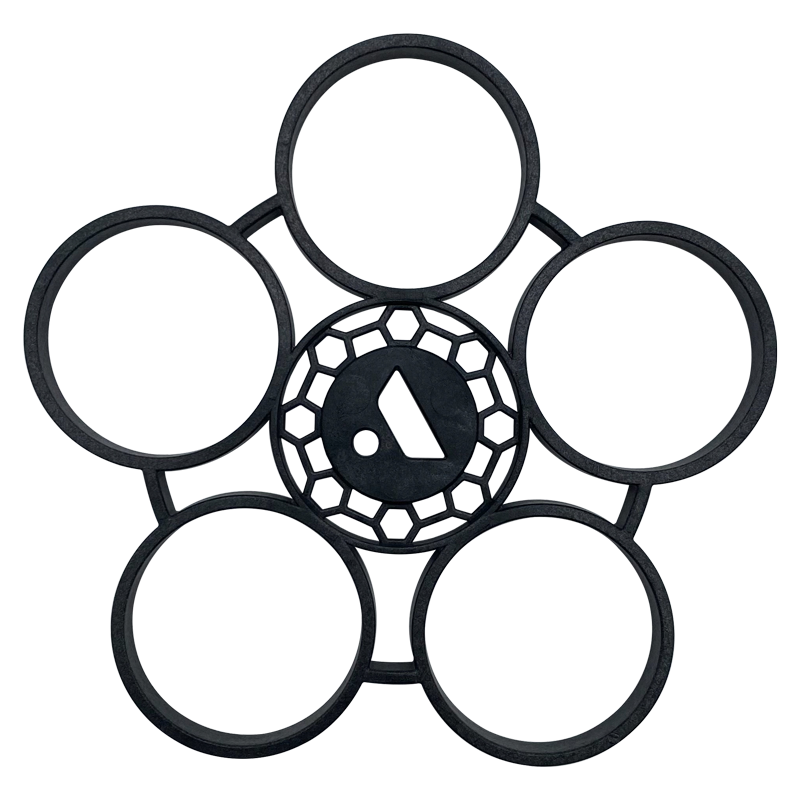

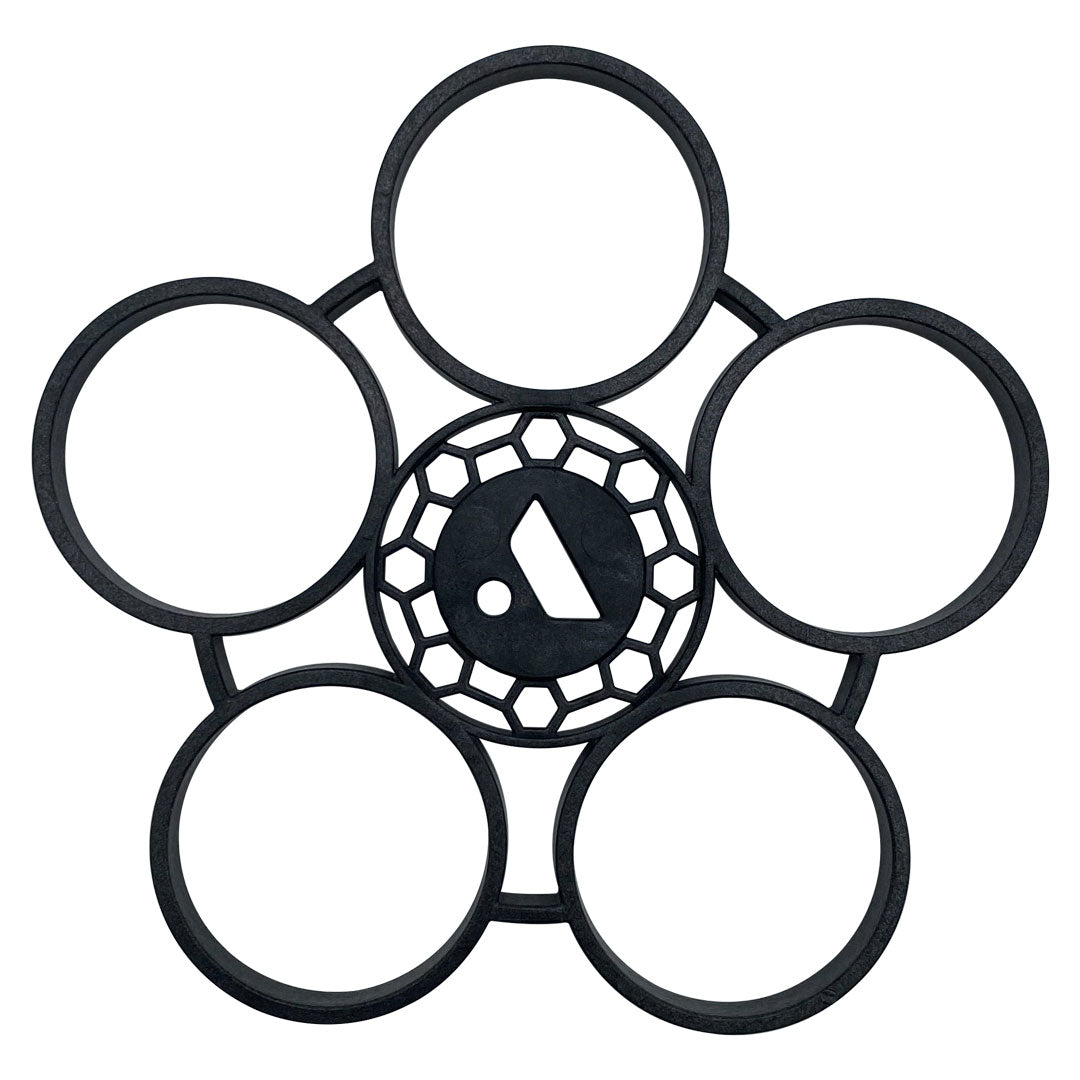

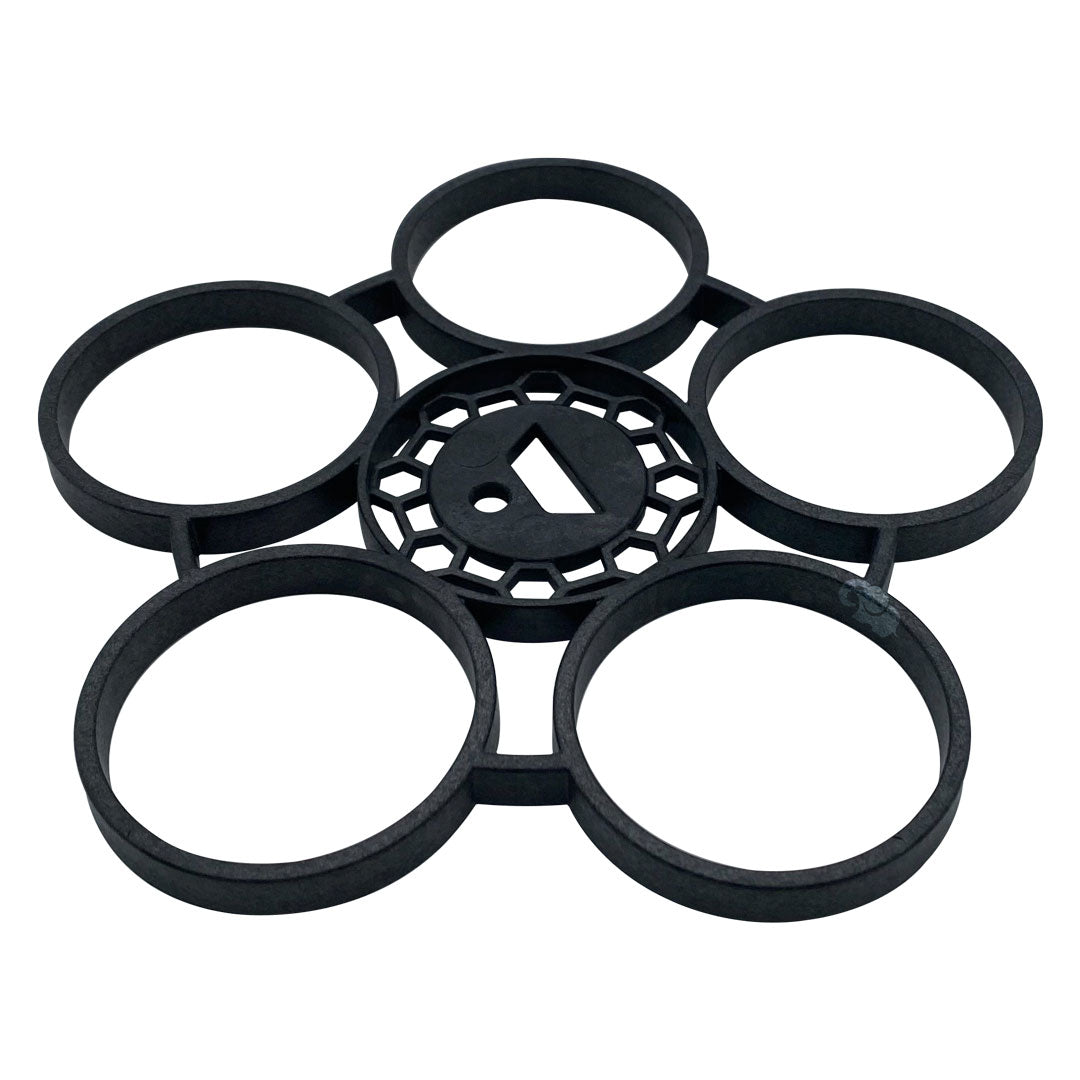

Easily align your 1.5″ PVC plumbing when installing a Pentair 5-port in-floor valve.

Features

• Precision alignment tool for 1.5″ Pentair / A&A 5-port plumbing
• OEM-grade plastic for accurate, repeatable use
• Simple slide-on design holds pipe geometry while gluing
• Useful for both new pool builds and renovation projects
• Low-cost part to reduce installation errors and rework

Description

This plumbing template provides an easy way to ensure your 1.5″ plumbing is perfectly aligned when installing 5-port water valves. By sliding the tool over the pipes, you can maintain position and alignment while setting the valve base — minimizing misalignment and helping you build a more reliable in-floor cleaning system.

Pro Tip

Pair this template with the corresponding 5-port lower housing (SKU 230018) and T-Valve (SKU 225571 or glue-in SKU 230052) for a smooth and accurate assembly.

Related Parts

• A&A / Pentair 1.5″ 5-Port Actuator T-Valve | SKU 225571
• A&A 1.5″ Glue-In T-Valve Assembly | SKU 230052
• Low Profile 1.5" 6 Port Actuator T-Valve – Pentair In-Floor (A&A) | 224470
• Pentair In-Floor 1.5" 6-Port T-Valve with QuikStop | 225470

Installation Tips

Use this tool only before gluing in the base fitting. Do not embed it permanently — remove once the valve base is secured. Always follow safe PVC solvent-welding practices and allow proper cure time.
