This part is manufactured by Pentair (formerly A&A Manufacturing) for use with their In-Floor water actuator valve systems. Since it’s an alignment tool, no standard performance warranty applies, but it’s designed to last through installation cycles when handled correctly.
Q: Do I need the template if I'm just replacing the valve body but keeping existing plumbing? A: Not strictly — the template is most valuable when aligning new PVC runs. If your plumbing hasn’t moved, the template is optional but still useful as a check tool. Q: Is this template compatible with 3-port or 2-port valves? A: No — this model (230156) is specifically designed for 2″ 6-port valve configurations.
Delivery and Shipping
Delivery and Shipping
- FREE SHIPPING IN THE USA
- WORLDWIDE SHIPPING AVAILABLE
- 30 DAY RETURNS
- UPGRADED | EXPEDITED SHIPPING AVAILABLE
Pentair 2″ 6-Port Plumbing Template | 230156
Description
Description

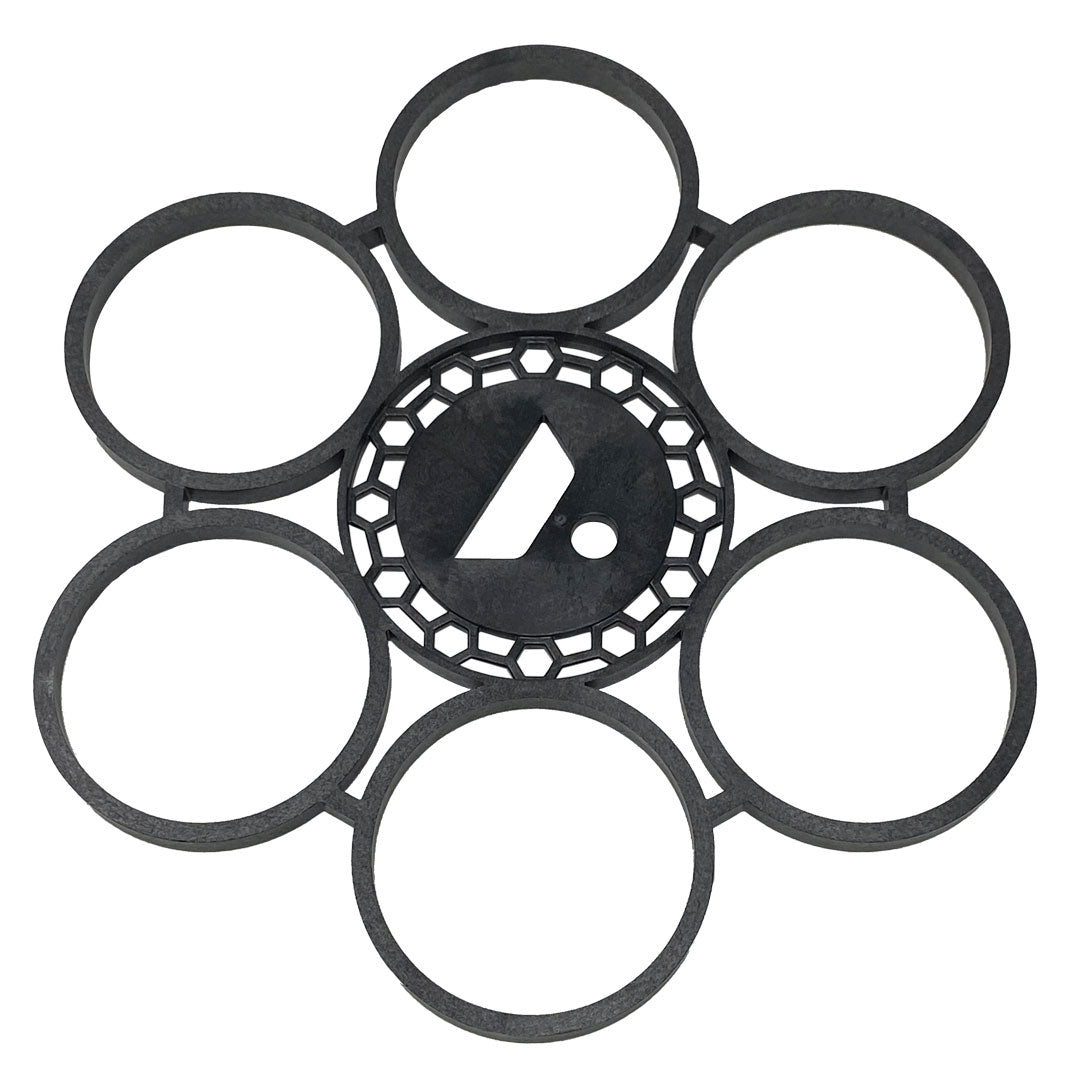

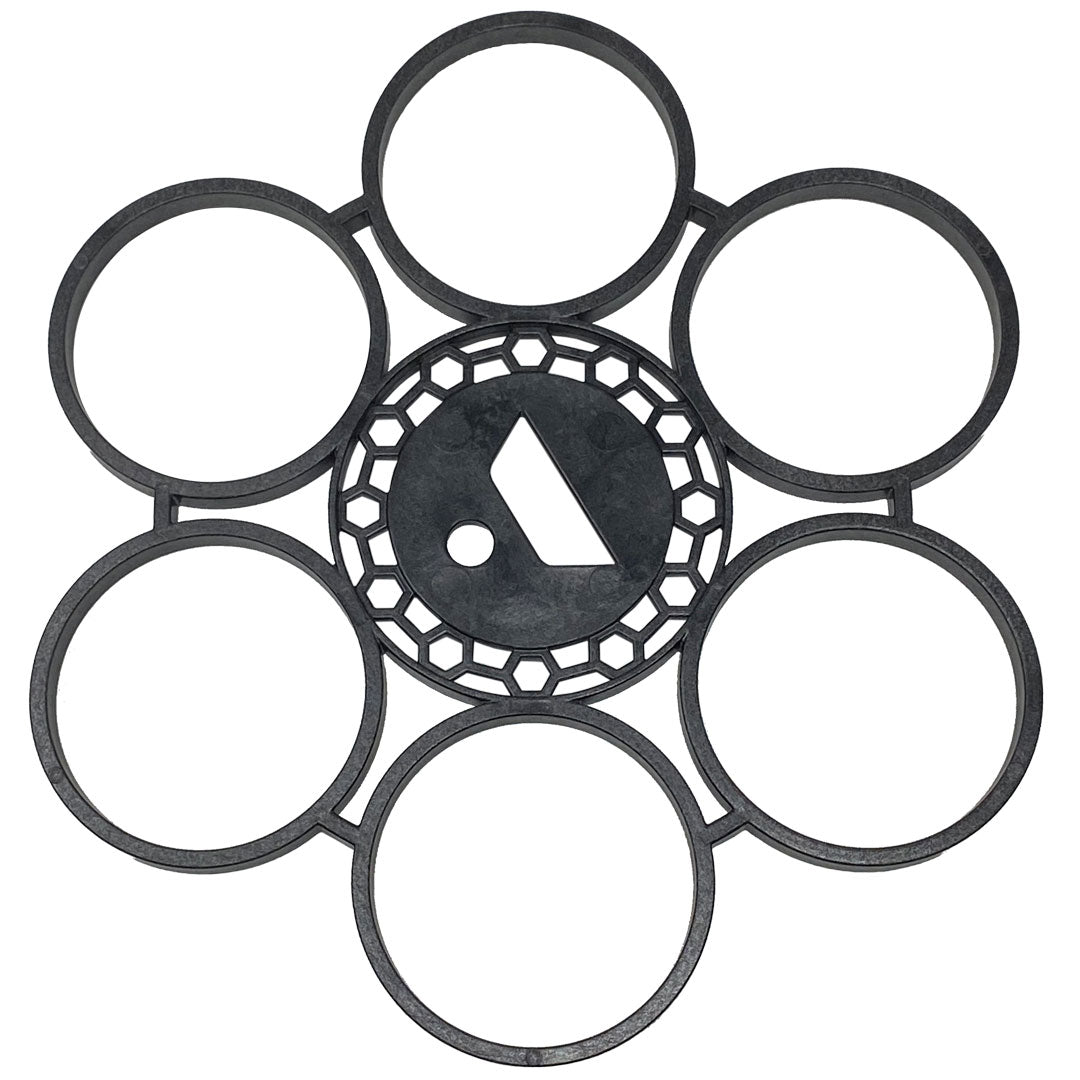

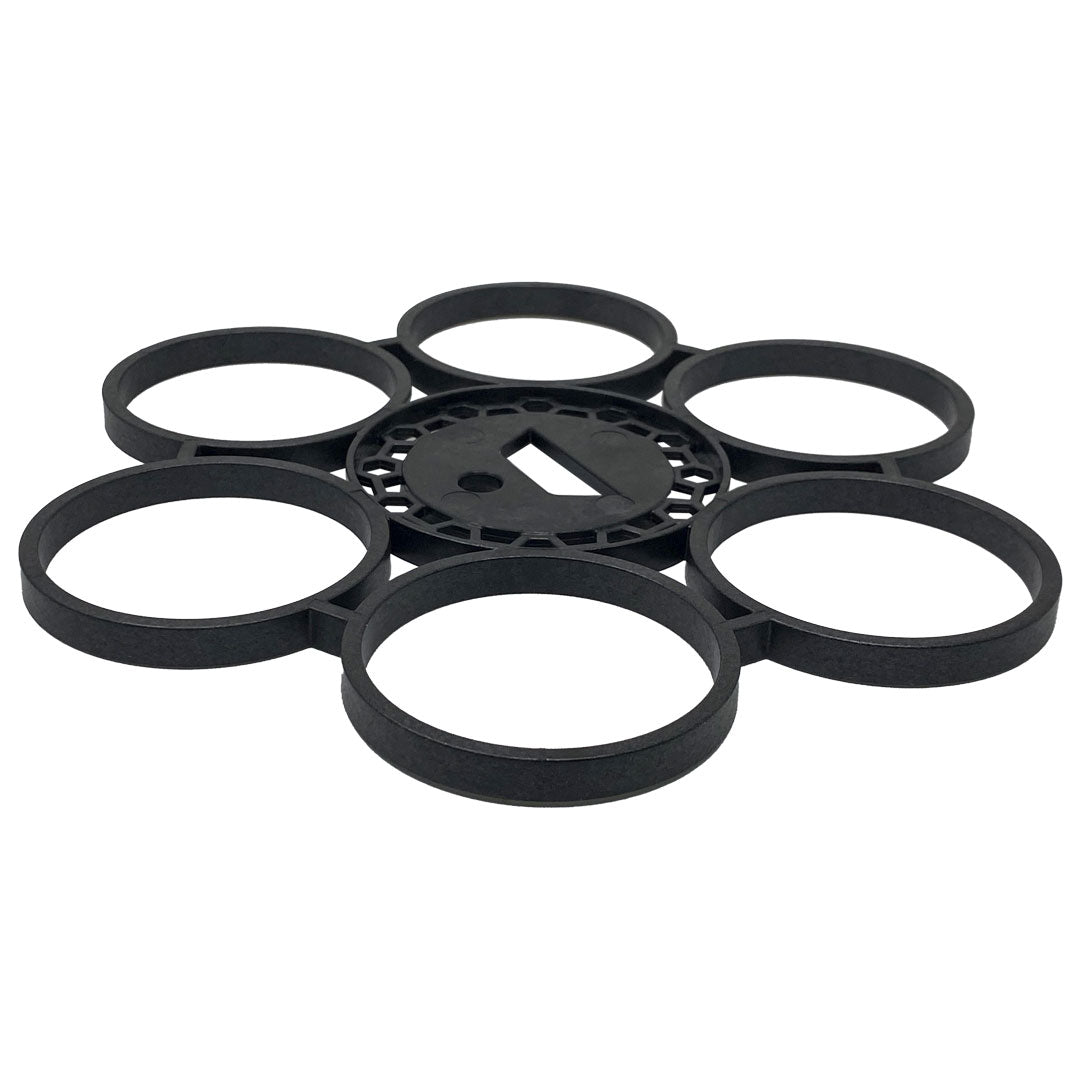

Pentair 2″ 6-Port Plumbing Template | SKU 230156
Ensure accurate alignment for your Pentair/A&A 2″ 6-port valve with this PVC plumbing template (SKU 230156).
Features
- Precisely positions 2″ PVC lines for Pentair 6-port in-floor valve installations
- Genuine Pentair part for reliable compatibility
- Reduces risk of misalignment and stress on the valve housing
- Lightweight and reusable—approx. 0.5 lb
- Recommended by Pentair’s housing replacement guide
Description
The Pentair 2″ 6-Port Plumbing Template (SKU 230156) is a purpose-built alignment tool for installing or replacing a Pentair/A&A 6-port water actuator housing. By guiding the placement of 2″ PVC plumbing exactly into the correct positions, it helps prevent misalignment that can lead to leaks, housing stress, or shortened valve life. This template is made of durable, pool-safe material and is strongly recommended by Pentair in their official installation documentation. :contentReference[oaicite:8]{index=8}
Pro Tip
Use the template together with your PVC primer and heavy-gray pool glue. After you align and mark the plumbing with the template, remove it temporarily to glue your pipes — reattach to ensure everything stays square throughout curing.
Related Parts
- Pentair 2″ Low-Profile 6-Port Valve Housing | SKU 2300436
- Port Installation Kit (Valve, Template, Saw, Primer & Glue) | 6P-KIT
- T-Valve Installation & Removal Tool Set - Pentair In-Floor(A&A) | 235090
Installation Tips
Use this template *before* gluing — align the PVC runs, mark them, then remove the template to apply glue. Reuse the template after gluing to validate alignment and ensure correct valve base placement. Follow Pentair’s official installation guidance. :contentReference[oaicite:9]{index=9}
Specifications
Specifications
-
SKU
-
UPC or GTIN
-
Product Type
-
Size/Connection
-
Materials
-
Weight
-
Warranty
