Pentair FNS Plus Filter 48 sq ft | EC-180008

Pentair FNS Plus Filter 48 sq ft | EC-180008

D.E. (diatomaceous earth) pool filter by Pentair (SKU EC-180008) with 48 sq ft grid pack, ~96 GPM flow, and fiberglass-reinforced tank.

Features

• 48 sq ft effective filtration area for sustained clarity and turnover.
• Rated for approximately 96 GPM flow under guideline conditions.
• Fiberglass-reinforced polypropylene tank offers durable, long-life performance.
• Curved vertical grid (Service-Ease™) pack and top-to-bottom backwash design simplify maintenance.
• 2″ plumbing connections, 1″ clean-out drain port, and high-flow internal air relief support efficient operation.

Description

The Pentair FNS Plus Filter 48 sq ft (SKU EC-180008) is designed for residential in-ground pool systems where clarity, efficient filtration, and easier service are important. With 48 square feet of D.E. grid area and flow capability around 96 GPM, it handles a broad range of pool sizes and turnover demands. The robust tank construction resists chemicals and UV exposure. The curved grid pack enhances surface area while minimizing restrictions, and the backwash and air relief features reduce downtime. For pool owners seeking a strong D.E. filtration solution with longevity and ease, the EC-180008 is an excellent choice.

Pro Tip

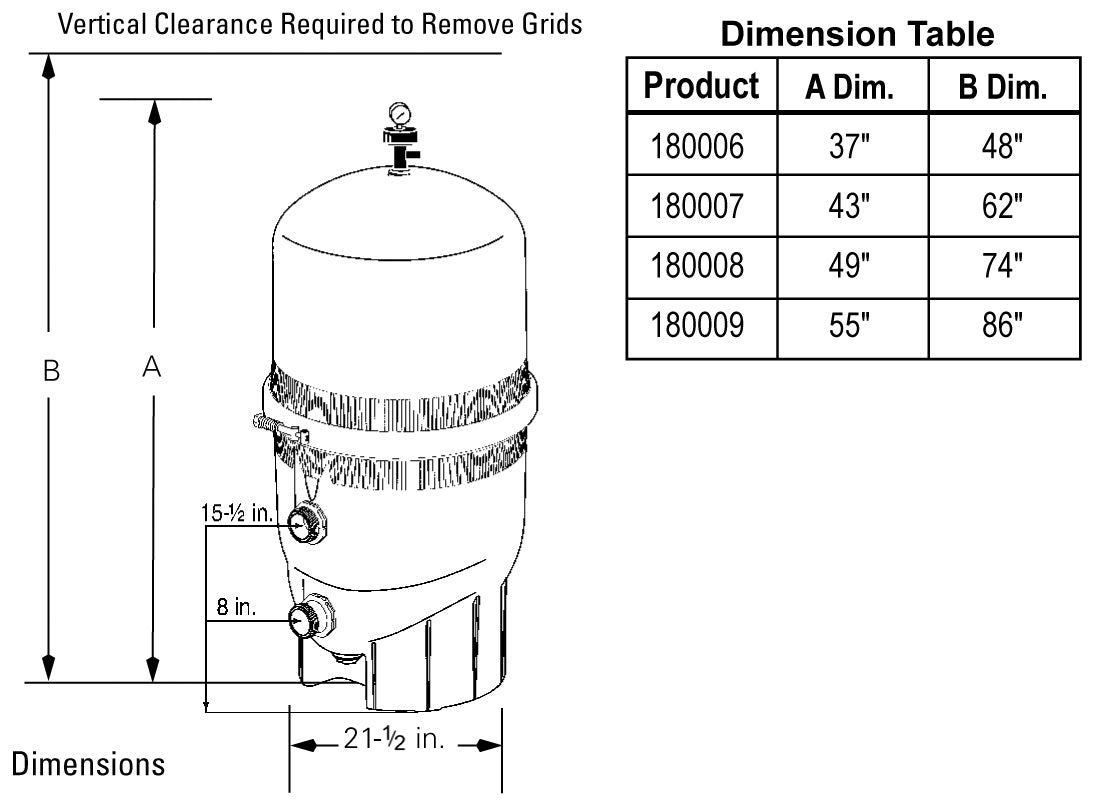

Match your pump output and plumbing so system flow remains at or below ~96 GPM. Ensure at least ~74″ vertical clearance above the filter for grid removal and maintenance. When the pressure gauge rises ~10 psi above the start point, backwash and inspect the grid pack for wear and performance issues.

Related Parts

• Pentair FNS Plus Filter 60 sq ft | EC-180009
• Pentair FNS Plus Filter 36 sq ft | EC-180007
• Pentair High Flow Manual Air Relief Valve | 98209800
• Pentair Manifold Top with Air Bleed | 59023700
• Pentair Internal Air Bleed Assembly for FNS Plus D.E. Filters | 190092
• Pentair Grid Assembly lrg 48 Sq. Ft. Covered | 59002400
• Pentair Grid Assembly sm 48 Sq. Ft. Covered | 59002300Z
• Pentair Element Assembly Complete 48 VGF RPM | 59023400
• Pentair Clean and Clear Plus and FNS Tank O-Ring | 39010200Z
• Pentair Tension Control Clamp For FNS Plus & Clean & Clear Plus Filter Tanks | 190003
• Pentair Standpipe Assembly for 48 Sq Ft FNS Plus Filters | 190036
• Pentair Inlet Pipe Assembly with Bulkhead for FNS Plus D.E. Filters | 190043
• Pentair Tank Bottom Assembly for FNS Plus 48 Sq Ft DE Filter | 170017
• Pentair Lid Assembly 48 Sq Ft FNS Plus | 170021
• Pentair 19" Stainless Steel Backup Ring for DE & Cartridge Filters | 195339
• Pentair FNS Plus 48 Complete Grid Replacement Pack | 198082

Installation Tips

High-level safety/compatibility notes only: Turn off and lock out pump power, relieve system pressure before servicing or installing. Ensure the filter base is level and rated for the tank plus D.E. media and water load. Confirm plumbing ports match the 2″ connection size. Check and replace O-ring seals as required, clamp the tank per the manufacturer's torque specs, and verify the air-relief valve and drain port operate correctly before starting the system.
