Pentair Quad D.E. Cartridge Style Filter 100 sq ft | EC‑188594

Pentair Quad D.E. Cartridge Style Filter 100 sq ft | EC-188594

High-capacity hybrid D.E./cartridge pool filter by Pentair (SKU EC-188594) with 100 sq ft effective area, four removable cartridges, ~160 GPM rating, and robust tank construction.

Features

• 100 sq ft effective filtration area for high debris capacity and fine-particle capture.
• Four cartridge-style elements combine D.E. clarity with cartridge service convenience.

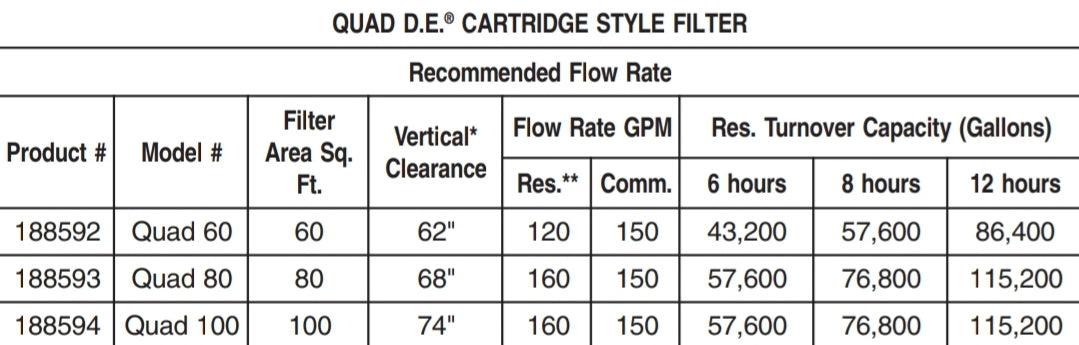

• Flow rating up to approximately ~160 GPM under guideline sizing conditions.
• Fiberglass-reinforced polypropylene tank for long-term durability in pool environments.
• Multiple servicing options: backwash & recharge, remove & rinse cartridges, or open drain plug & rinse.

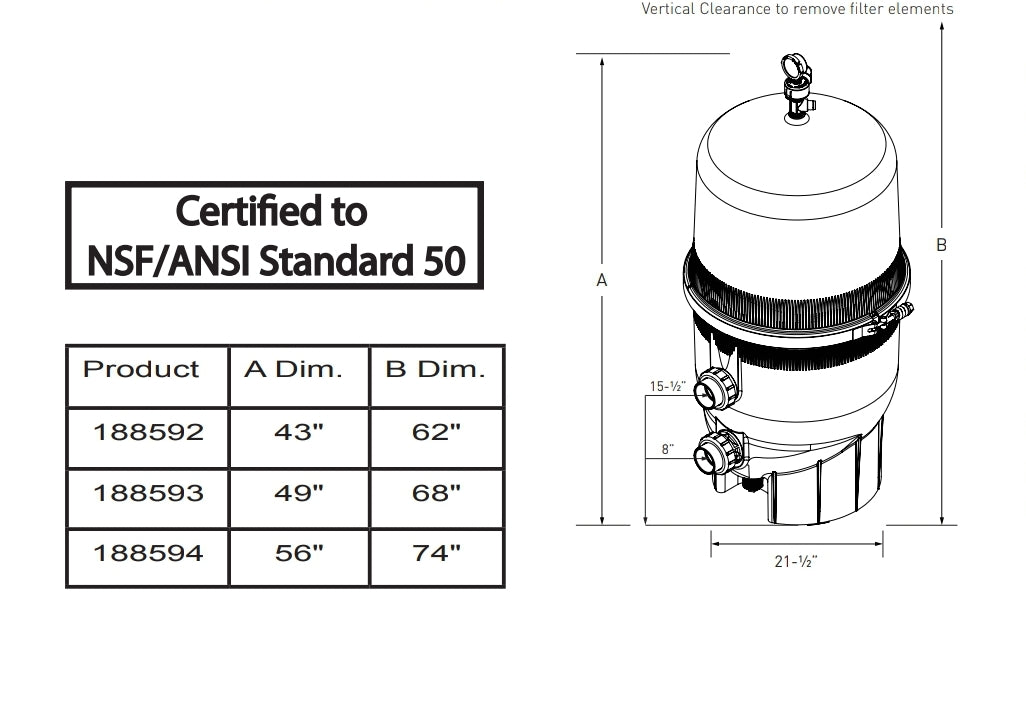

• Compact footprint (~21.5″ diameter) for premium filtration in residential equipment pads.

Description

The Pentair Quad D.E. Cartridge Style Filter 100 sq ft (SKU EC-188594) is built for demanding residential pool installations where clarity, capacity, and low-maintenance operation matter. With its 100 square-foot effective area and four large cartridge elements, the unit delivers the filtration performance of traditional D.E. systems—in a cartridge-style format that simplifies servicing. The durable tank construction and efficient internal flow path make the system well-suited for high turnover zones or larger in-ground pool setups. Maintenance is streamlined thanks to the removable cartridges and smart design. If you're upgrading to a premium filter that reduces service time without sacrificing clarity, this model is a strong choice.

Related Parts

• Pentair Quad D.E. Cartridge Style Filter 60 sq ft | EC‑188592
• Pentair Quad D.E. Cartridge Style Filter 80 sq ft | EC‑188593
• Pentair High Flow Manual Air Relief Valve | 98209800
• Pentair Tank Lid (Top) | 178582
• Pentair Top Manifold Assembly | 170026
• Pentair Air Bleed Assembly | 178583
• Pentair Cartridge Replacement Quad DE 100 | 178656Z
• Pentair Manifold Assembly Bottom Quad DE | 170059
• Pentair Tension Control Tank Clamp  | 190003
• Pentair Tank Body O-Ring | 39010200Z
• Pentair 19" Stainless Steel Backup Ring for DE & Cartridge Filters | 195339
• Pentair Pipe Assembly Outlet - Quad D.E. Filter Replacement CC PLS | 170036
• Pentair Bottom Tank Assembly for Quad DE Filters | 195999

Pro Tip

To maximize performance, ensure your pump and plumbing deliver flow at or below the ~160 GPM guideline rating. Confirm you have at least ~74″ vertical clearance above the unit for cartridge removal and lid access. When your pressure gauge climbs about ~10 psi above its clean-start reading, conduct maintenance—rinse cartridges or backwash as appropriate. Use genuine replacement cartridges and inspect the O-ring, clamp ring, and lid seal with each service cycle.

Installation Tips

High-level safety/compatibility notes only: Disconnect power to the pump and relieve system pressure before installation or servicing. Ensure the filter is mounted on a level, supported pad rated for the full weight of tank + water + cartridges. Confirm plumbing ports (2″ standard) match your system or use adapters as needed. Lubricate the O-ring and ensure the clamp ring or lid fasteners are correctly torqued. Use a compatible multiport or slide valve rated for the system flow (valve sold separately). Confirm the air-relief valve is functioning and the drain port is accessible before restarting the system.
