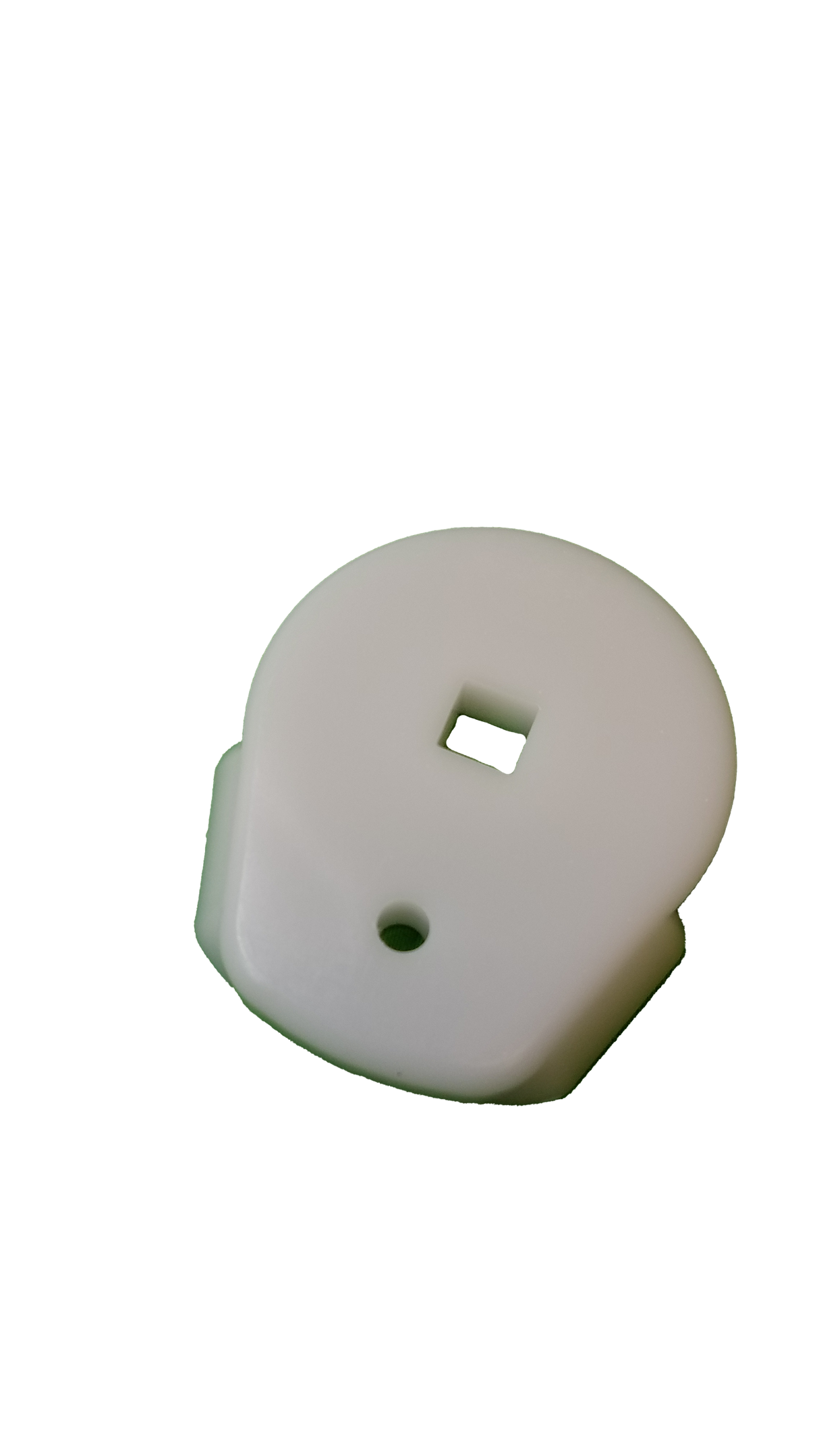

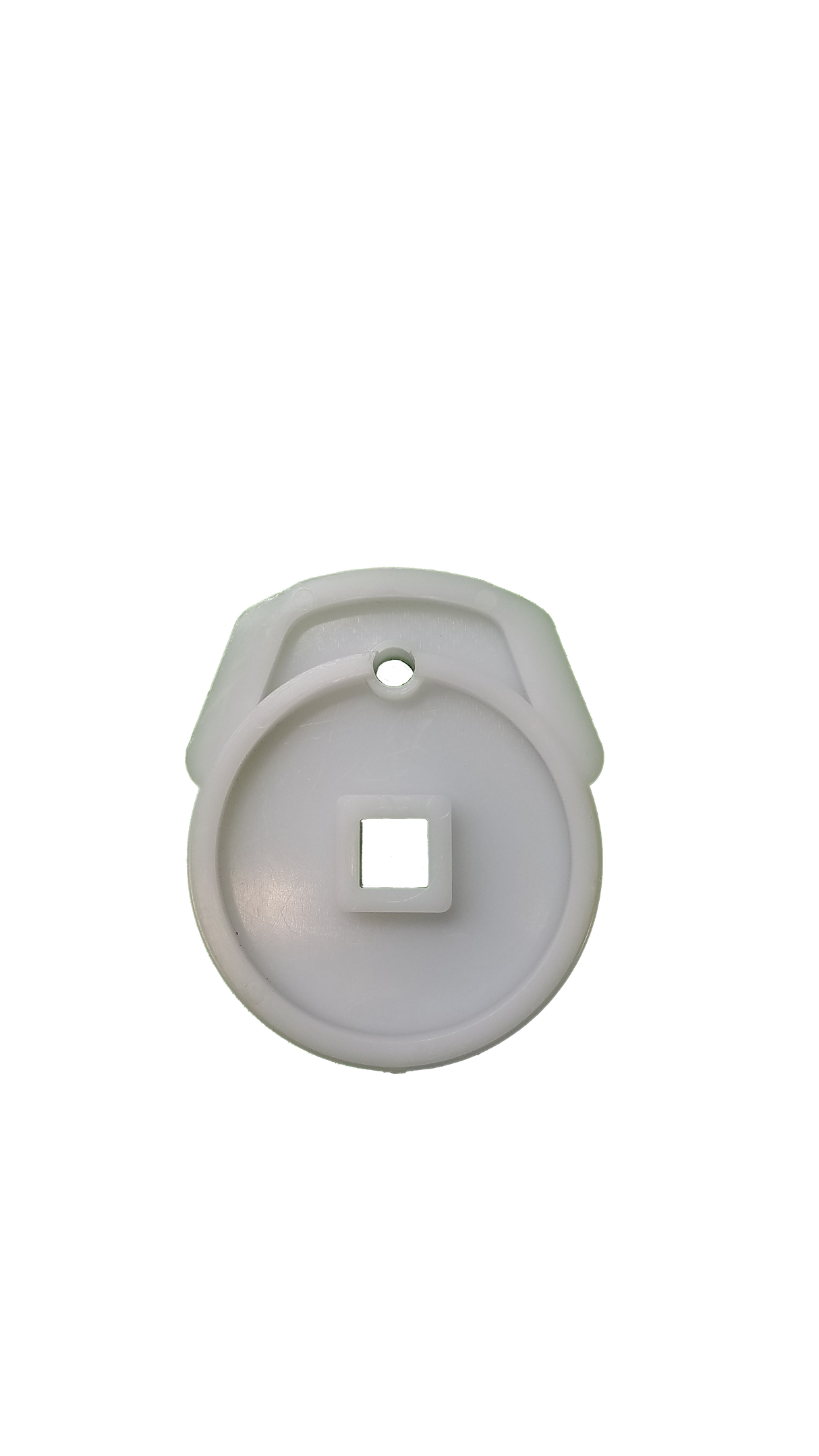

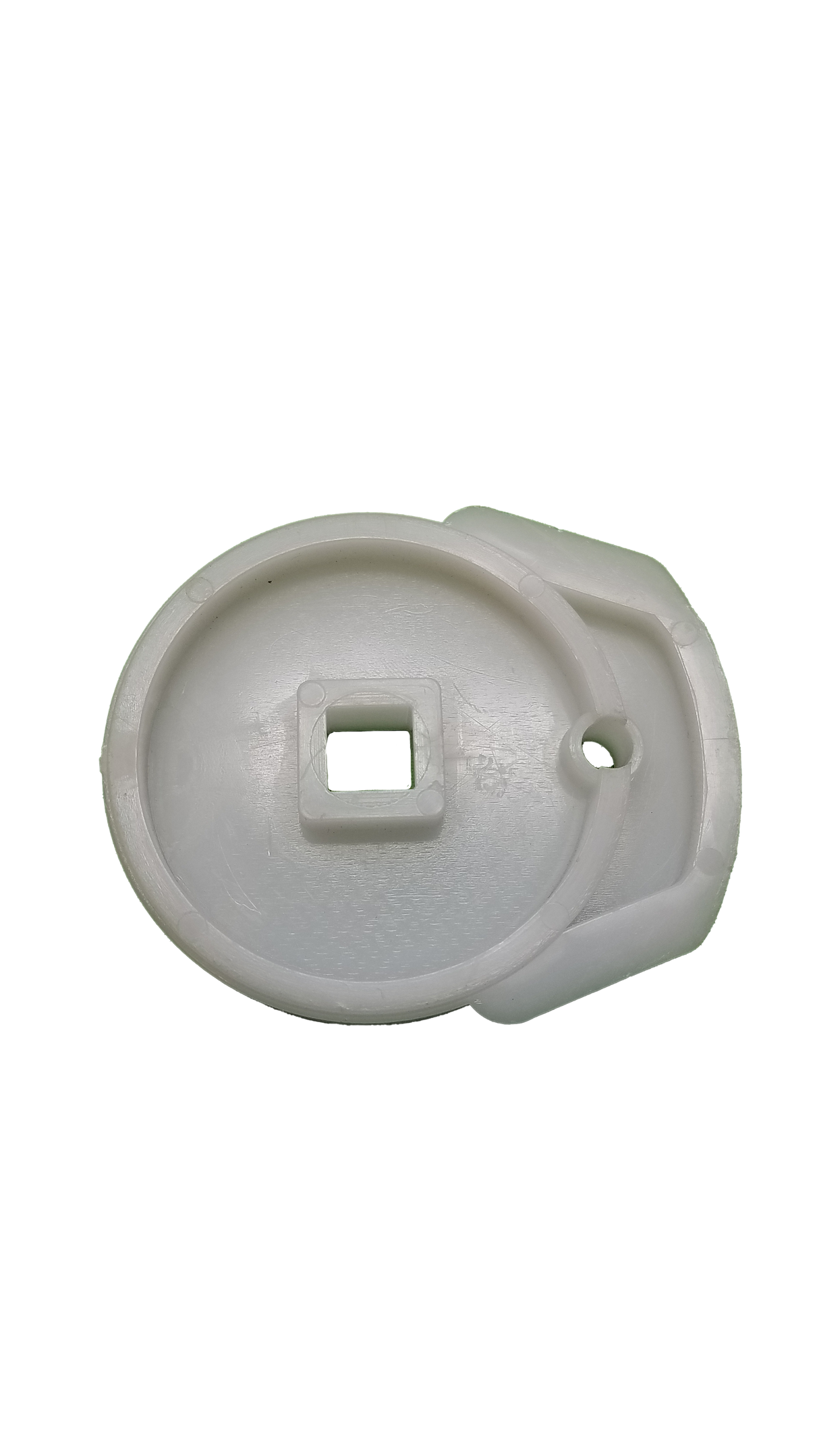

Pentair 5-Port Ball Valve Cam | A&A Top Feed In-Floor | 230061

Pentair 5-Port Ball Valve Cam | A&A Top Feed In-Floor | 230061

Replacement cam for Pentair A&A 5-Port Top Feed in-floor ball valve assemblies. SKU 230061 for restoring proper flap actuation.

Features

• Precision cam designed for the internal gear/ball assembly of 5-Port Top Feed in-floor valves
• Ensures proper lift of each “T-valve” flap so water zones cycle correctly
• Restores actuator function when the original cam is worn or mis-aligned
• OEM-level part from Pentair (formerly A&A) for direct compatibility
• Economical single-component replacement instead of full kit
• Compatible with older acrylic-ball style valves (note: acrylic ball systems discontinued)

Description

The Pentair 5-Port Ball Valve Cam (SKU 230061) is a key component in the internal mechanism of A&A/Pentair 5-Port Top Feed in-floor cleaning valves. As the gear plate rotates, this cam lifts each “T-valve” flap in turn, allowing the large acrylic balls to open the correct outlet port and maintain even cleaning coverage. Over time, the cam may wear, deform or crack under pressure or mis-alignment, causing uneven flow, skipped zones or valve failure. Replacing it restores smooth flap motion, improves valve longevity, and stabilizes performance — reinforcing the durable functioning of the valve assembly under pool pressure stress.

Pro Tip

Before installing, confirm your valve uses the older acrylic-ball system (no longer produced) and check that the existing cam lip sits properly on the anti-friction discs. If multiple internal parts are worn, consider upgrading with the full rebuild kit (SKU 230060) for a comprehensive refresh.

Related Parts

• Pentair Top Feed Complete 5-Port Ball Valve Rebuild Kit | 230060
• Pentair Gear Retainer Clip Kit (12-Pack) | 230057
• Pentair Top Feed Gear Kit for 5 & 6-Port Water Valves | 230054

Installation Tips

Always shut off your pump and isolate the valve plumbing before servicing. Confirm the cam is seated on the anti-friction discs and align the cam lip correctly under the acrylic ball. Check compatibility: this part is for 5-Port acrylic-ball style valves only. Do not force components or over-tighten screws.
