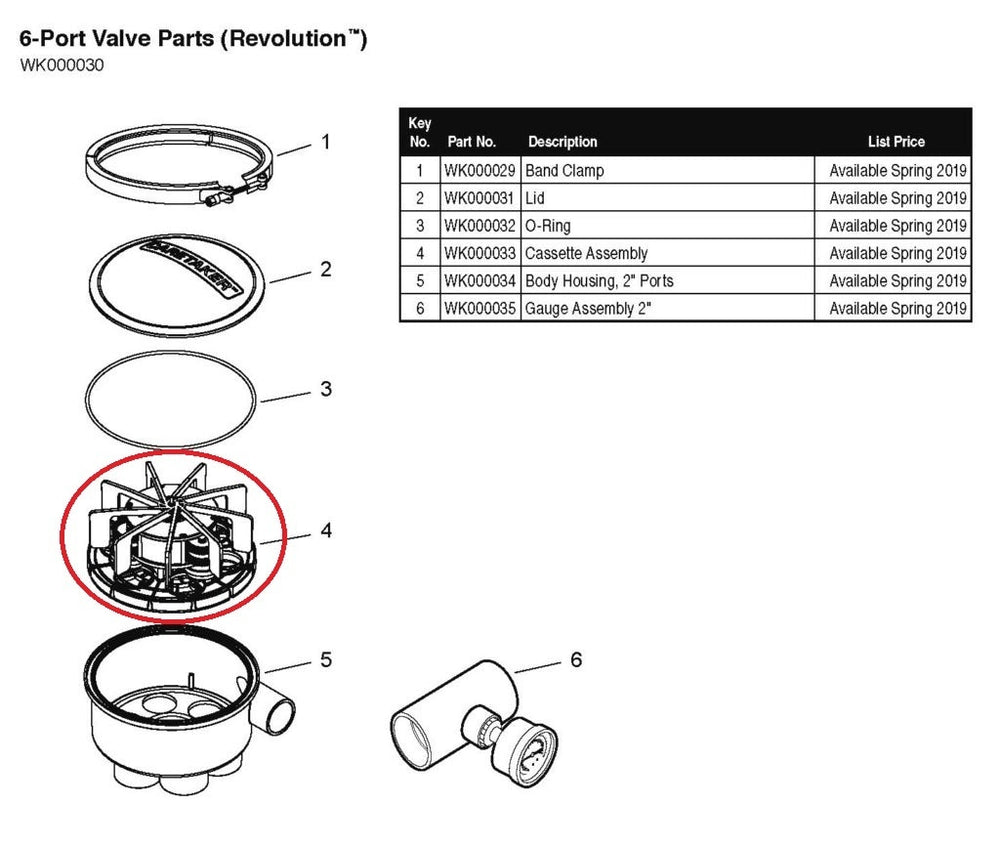

Caretaker Revolution 6-Port Valve Cassette Assembly | WK000033

WK000033: Revolution six-port valve cassette assembly. The exact supplier UPC is 052337081306.

One cassette assembly. Valve housing, lid, clamp and gauge assembly are separate.

For Revolution six-port valve WK000030. The cassette is also required to complete pre-plumbing kit WK000036. This is not a five-port valve mechanism or UltraFlex 2 eight-port motor assembly.

Use a qualified pool professional and the exact linked manufacturer manual. Shut off the pump and prevent restart, then fully relieve pressure before opening the valve or clamp. Verify the installed plumbing, certified pool design and applicable electrical requirements before service. The manual requires removing the cassette for hydrostatic pressure testing. Reinstall it only after the system has been prepared as instructed.

Jandy’s separate In-Floor limited warranty provides one year for manufacturing defects, with 90 days for purchased replacement parts, subject to the actual product and purchase terms. An approved Jandy In-Floor Certified Pool Design, qualified professional installation, original retail purchaser and original installation site are required. The statement applies in the 50 United States and Canada; shipping and labor are excluded. The lifetime cleaning-head provision is not a lifetime valve or controller warranty.

Fluidra 2026 valve packages and ordering codes, page 121 and Jandy In-Floor limited warranty.
