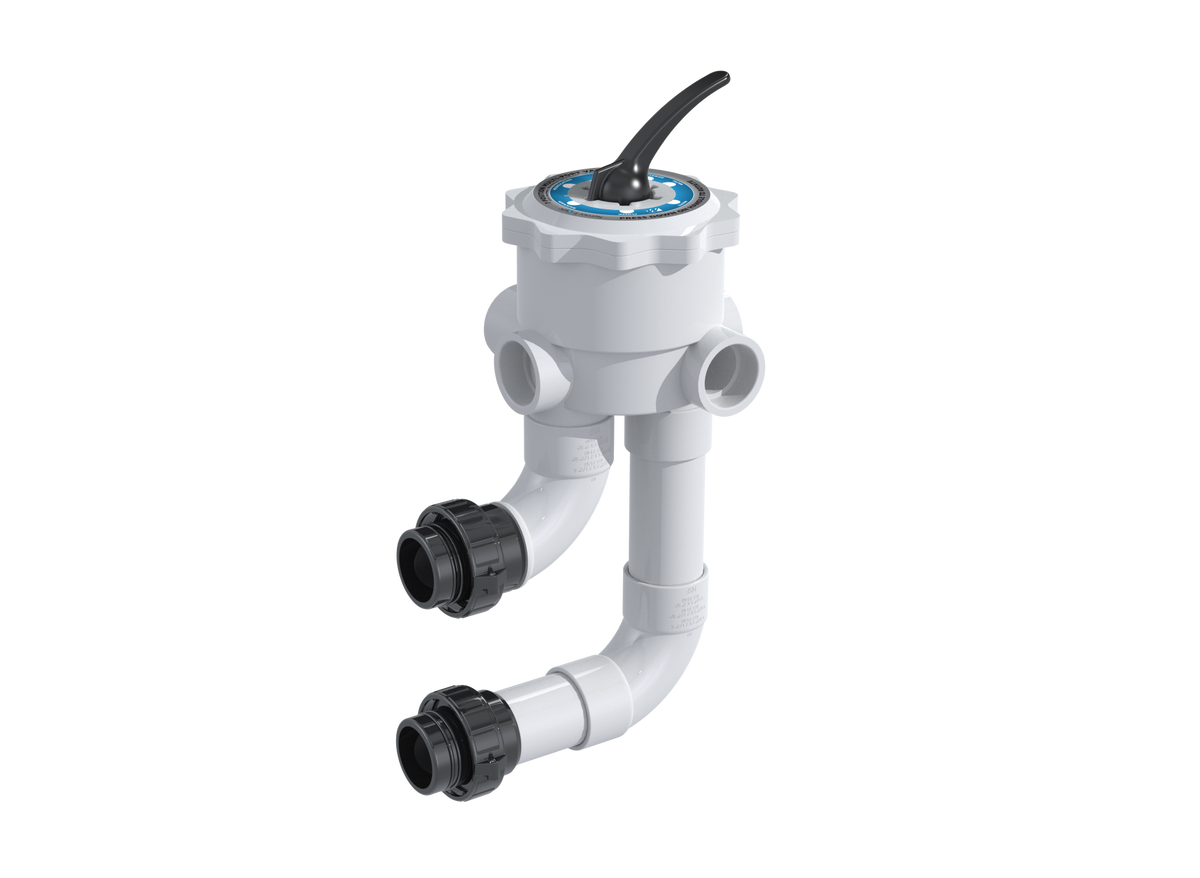

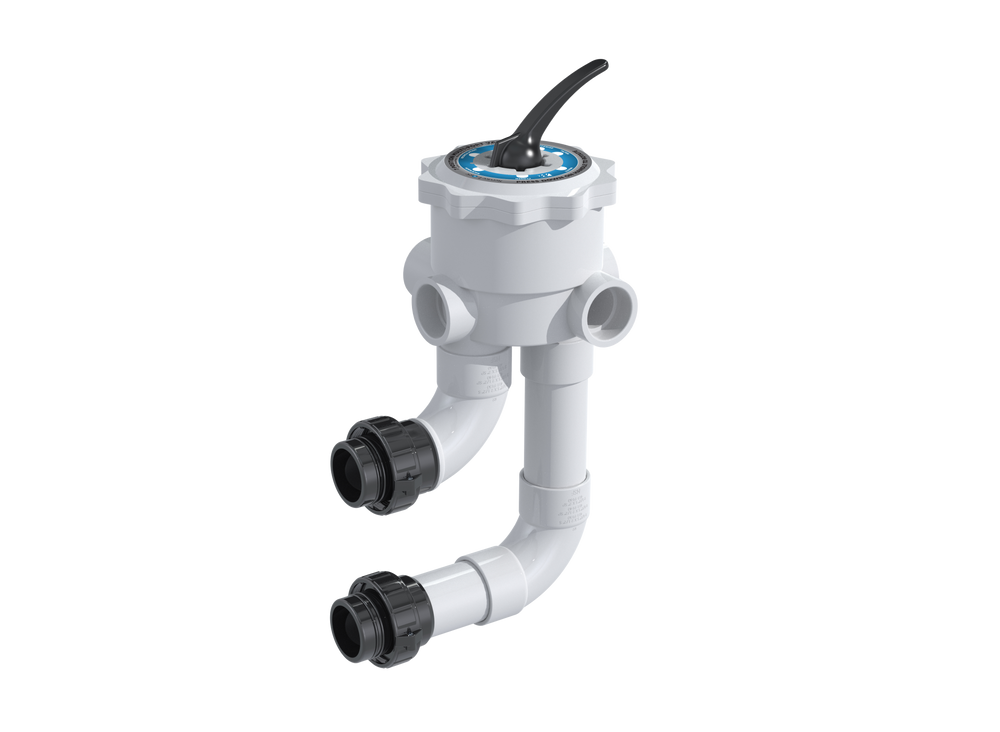

Waterway Plastics WVD001 2-Inch FPT Multi-Port D.E. Valve with Unions
Waterway Plastics Manufacturer Warranty
Waterway’s standard limited warranty generally provides one year for qualifying defects, subject to its original-purchaser, qualified-installation and other policy conditions. A separately sold valve does not automatically receive the filter’s extended warranty.
Read the official Waterway warranty policy and warranty registration information for current terms, requirements and exclusions.
Waterway lists WVD001 as a 2-inch FPT multi-port D.E. valve with union connections. FPT identifies the female pipe-thread configuration; check the complete union arrangement and filter connection geometry before ordering. WVD001 is the 2-inch FPT version. WVD002 is the 2-inch socket alternative. Choose the connection required by the installation; the codes do not identify the same connection. Waterway lists WVD001 as an optional valve for Crystal Water D.E. filters 36 sq. ft. (570-0036-07), 48 sq. ft. (570-0048-07), 60 sq. ft. (570-0060-07). Confirm the installed filter, union geometry and valve configuration before replacement. Port size and a Praher-style designation do not establish universal interchangeability. Match WVD001, the filter model, port arrangement and connecting unions. A similar appearance alone is not sufficient fitment evidence. This listing is for the multi-port valve with union connections. The filter tank, filter internals and other system equipment are separate products. Waterway’s standard limited warranty generally provides one year for qualifying defects, subject to its purchaser, installation and other conditions. The filter’s extended term does not automatically apply to this valve. Read the official warranty policy and registration information. Use the instructions and port markings that match the installed valve and filter. Compare the complete assembly before service; a sand-filter valve guide or slide-valve procedure should not be assumed to apply to WVD001. Have installation and service performed by a qualified pool professional.Product FAQs
What connection does WVD001 use?
How does WVD001 differ from WVD002?
Which Crystal Water D.E. filters list this valve as an option?
Will it fit any 2-inch filter or Praher-style valve installation?
Does this purchase include a Crystal Water filter?
Which warranty applies to the valve?
Where should I find operating instructions for my installation?
Delivery and Shipping
Delivery and Shipping
- FREE SHIPPING IN THE USA
- WORLDWIDE SHIPPING AVAILABLE
- 30 DAY RETURNS
Waterway Plastics WVD001 2-Inch FPT Multi-Port D.E. Valve with Unions
Description
Description
Waterway Plastics · Crystal Water D.E. Valve · WVD001
Choose the threaded valve connection for your Crystal Water D.E. filter
The Waterway Plastics WVD001 brings multi-port flow control and union connections together in the 2-inch FPT configuration listed for Crystal Water D.E. filters. It is the threaded option to compare when replacing a matching valve or planning the filter’s optional valve assembly.
2-inch FPT configuration
Waterway’s female pipe-thread version helps distinguish WVD001 from the separately offered socket-connection valve.
Union connections
The union-connected assembly gives you defined connection points to check against the filter and existing plumbing before purchase.
Documented D.E. application
Listed as an optional valve for the 36, 48 and 60 sq. ft. Crystal Water D.E. filter models. Match the complete model and union arrangement.
Match the valve assembly, not just the pipe size
Check the filter model, complete valve part number, port layout and connecting unions. Waterway also describes this model as a Praher-style D.E. valve with the PLM-long designation; those terms do not establish a universal replacement for every similar valve. This listing covers the valve with union connections. The filter tank and other system equipment are sold separately.
Find verified details in Specifications, manufacturer guidance in Resources & PDF Downloads, and buying and ownership answers in Product FAQs.
Specifications
Specifications
-
SKU
-
UPC or GTIN
-
Product Type
-
Size/Connection
-
Power Source
-
Compatibility
-
Warranty
