Waterway Plastics Power Defender 110 Single-Speed In-Ground Pool Pump 1.10 THP | PD-110
Shipping dimensions are reported package measurements, separate from installed product dimensions. Measurements are shown in Pool360’s listed order; length, width and height axes are not specified.UPC & Shipping Dimensions
Manufacturer Part UPC Shipping Dimensions PD-110 806105661944 37.26 x 27.88 x 11.75 inch
Manufacturer Warranty
Waterway Plastics’ standard limited warranty covers the original purchaser for one year from purchase when installed by a qualified installer. Coverage is subject to Waterway Plastics’ installation requirements, applicable registration requirements, proof of purchase and exclusions. Direct warranty questions and claims to the point of purchase.
Read Waterway Plastics’ official warranty terms and registration information.
Read Waterway’s specific warranty durations, eligibility conditions and consumable exceptions.
No. PD-110 is a 1.10 total-horsepower, single-speed in-ground pool pump. Choose a verified variable-speed model when programmable speed control is required. The owner’s manual specifies 115V or 230V wiring; Waterway’s catalog describes the same dual-voltage model as 110/230V. Your installer must match the supply and motor-label wiring configuration before energizing the pump. Do not assume automatic voltage selection. Waterway identifies the PD-110 plumbing layout as a replacement for Super Pump and SuperFlo installations and includes a base for WhisperFlo and IntelliFlo height applications. Check the existing port positions, pipe sizes, available space and system flow requirements before ordering; these statements do not guarantee every installation will fit unchanged. Waterway lists two self-aligning pump unions and a pump base. This listing is for the complete PD-110 pump, not a replacement motor or wet end. The owner’s manual calls for a visual basket inspection at least weekly. Shut off power and relieve system pressure before opening the strainer, and follow the manual’s complete cleaning and restart instructions. Never run the pump dry. Waterway’s published general limited warranty covers the original purchaser for one year from purchase when installed by a qualified installer, subject to its exclusions and proof-of-purchase requirements. Warranty questions and claims go through the point of purchase. See Waterway’s current warranty terms for details.Product FAQs
Is the PD-110 a variable-speed pump?
What voltage does it require?
Which installations is it designed to replace?
What comes with the pump?
How should the strainer basket be maintained?
What warranty applies?
Delivery and Shipping
Delivery and Shipping
- FREE SHIPPING IN THE USA
- WORLDWIDE SHIPPING AVAILABLE
- 30 DAY RETURNS
Waterway Plastics Power Defender 110 Single-Speed In-Ground Pool Pu...
Description
Description
Waterway Plastics · Power Defender 110 · PD-110
Straightforward circulation for your in-ground pool

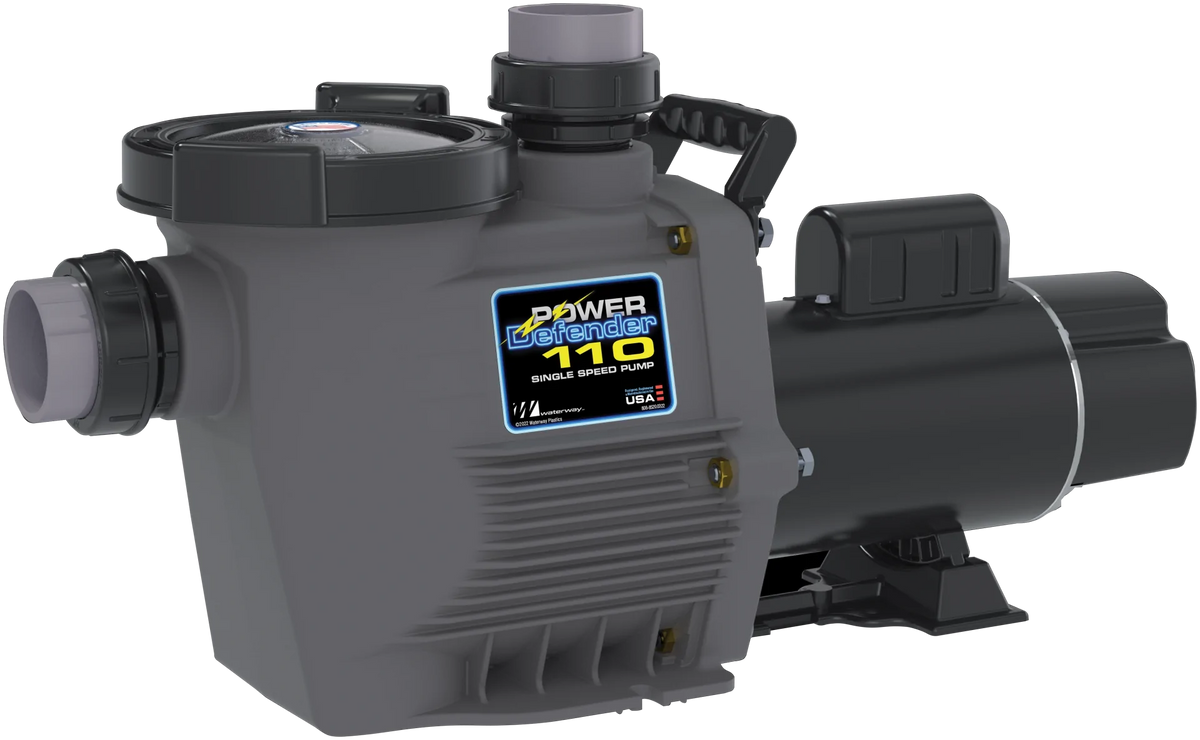

Replace a single-speed circulation pump with the 1.10 THP Power Defender 110. Its familiar plumbing layout, included base and two self-aligning unions help your installer line up the pump with the equipment pad while keeping the purchase focused on the complete pump you need.
A practical replacement layout
Waterway designed the plumbing alignment around Super Pump and SuperFlo applications, with a base for WhisperFlo and IntelliFlo height applications.
Unions included
Two self-aligning pump unions provide connection flexibility during installation and access for later service.

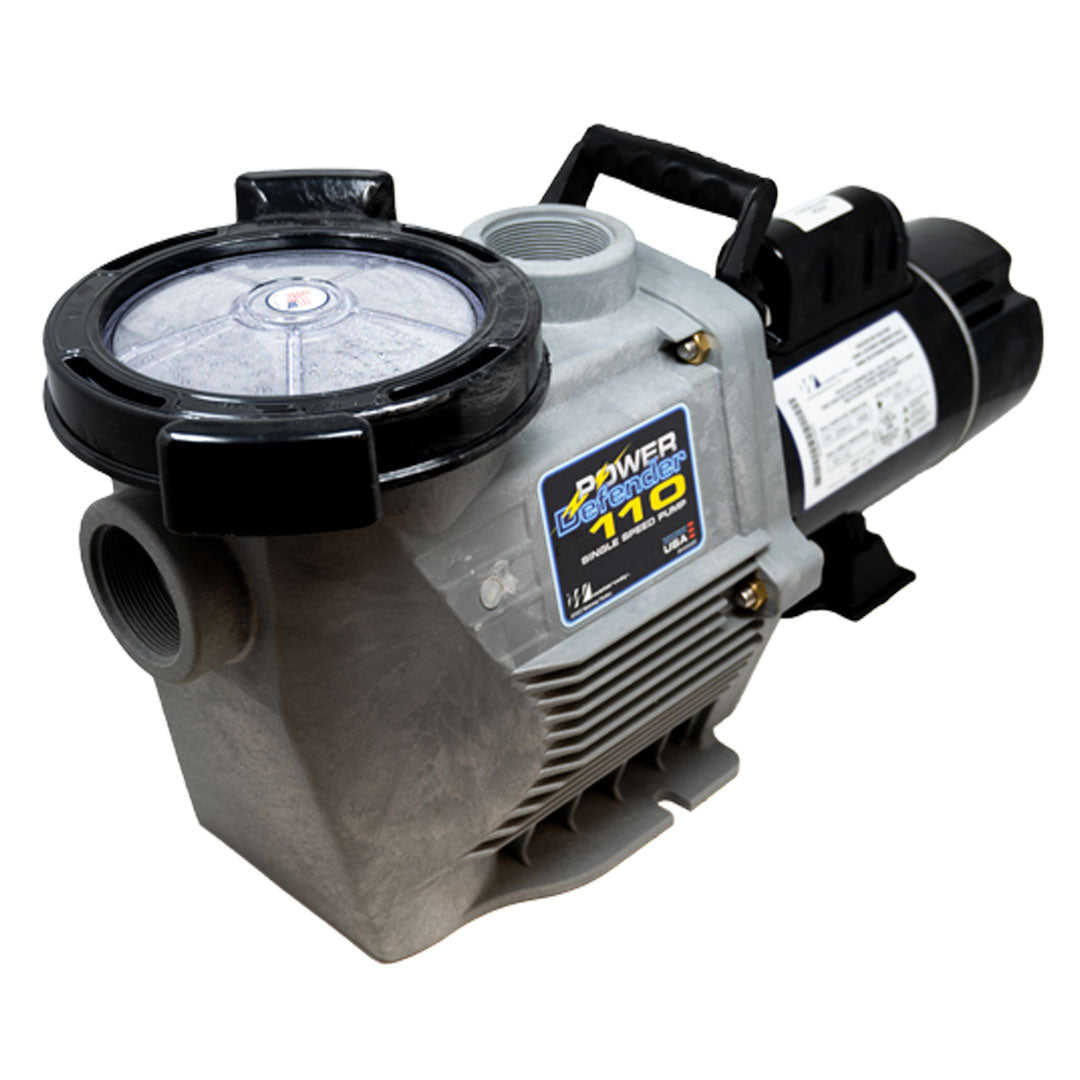

Easy basket inspection
The see-through strainer lid lets you check for collected leaves and debris. Silicon-carbide and Viton shaft-seal materials support wear and chemical resistance.
Before you order
This is a single-speed pump. Have a qualified installer check the system’s required flow, plumbing alignment and motor-label voltage. Electrical installation must follow the owner’s manual and applicable codes.
Find the detailed specifications below, installation and care instructions in Resources & PDF Downloads, and buying answers in Product FAQs.
Specifications
Specifications
-
SKU
-
UPC or GTIN
-
Product Type
-
Size/Connection
-
Materials
-
Power Source
-
Dimensions24.6 in, 9.8 in, 12 in
