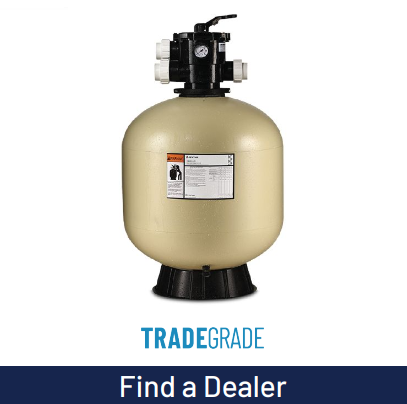

Pentair TA 40D 19″ Tagelus Top Mount Sand Filter | SKU 144126
In-store pickup or delivery only
Call (602) 274-7946
Couldn't load pickup availability
Pentair offers limited warranty coverage for their Tagelus line (check current Pentair documentation for terms and registration). Proper installation and maintenance are required to preserve warranty validity.
Q: What is the maximum operating pressure? A: 50 PSI (3.45 bar) continuous.
Q: How much sand does it require? A: Approximately 175 lb. of sand media.
Call (602) 274-7946
Description
Description
Pentair TA 40D 19″ Tagelus Top Mount Sand Filter | SKU 144126
Fiberglass one‑piece 19″ top mount sand filter with 1.5″ multiport, 1.8 sq. ft, 40 GPM.
Features
- 1.8 sq. ft effective filtration area
- Rated flow up to 40 GPM
- One‑piece fiberglass reinforced tank for durability
- Six‑position top Hi‑Flow multiport valve for operational ease
- Combination water + sand drain for fast servicing
Description
The Pentair TA 40D Tagelus Top Mount Sand Filter is engineered for ease of use and longevity. Its seamless fiberglass tank construction resists cracking and corrosion, eliminating seam failures. Internally it uses a diffuser and lateral system to evenly direct flow through the media, improving trapping efficiency and prolonging filter cycles. The six‑position Hi‑Flow multiport valve centralizes all filtration commands—filter, backwash, rinse, waste, recirculate, closed—at the top for quick access. A combined water and sand drain speeds servicing or winterization without extra disassembly.
Pro Tip
Monitor pressure so you stay well under the 50 PSI shell rating.
Related Parts
Installation Tips
Level and firm the base to avoid stress. Pre‑fill the tank with water before adding sand. Use proper sand grain size (e.g. 0.45–0.55 mm silica). Confirm all valve threads and O‑rings are in place. Never exceed 50 PSI internal pressure.
Specifications
Specifications
-
SKU
-
UPC or GTIN
-
Product Type
-
Size/Connection
-
Materials
-

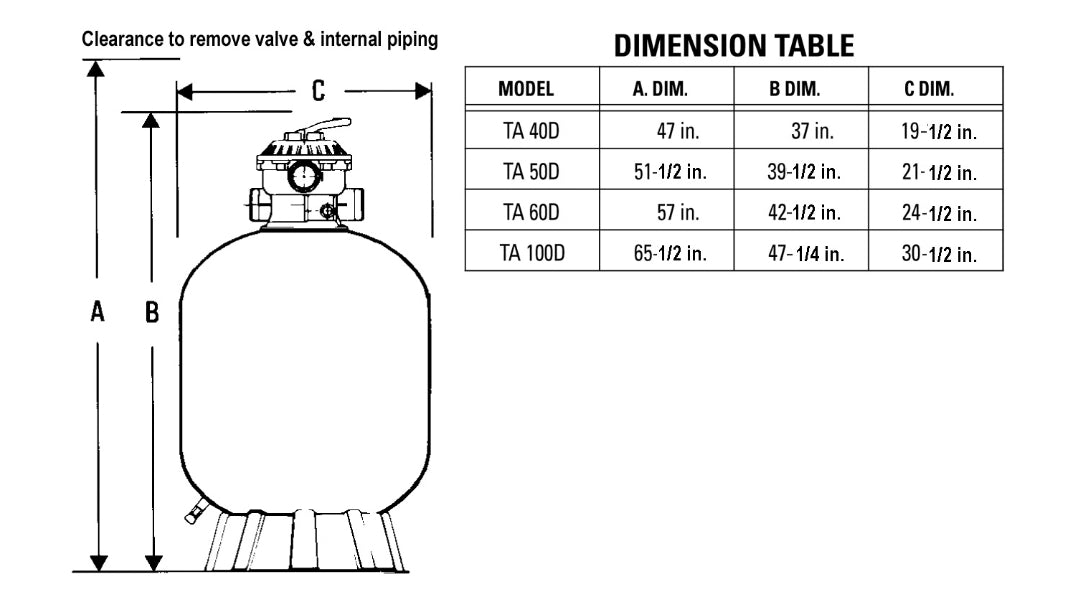

Dimensions19.5 in, 47 in
-
Weight
-
Warranty
Product Warranty
