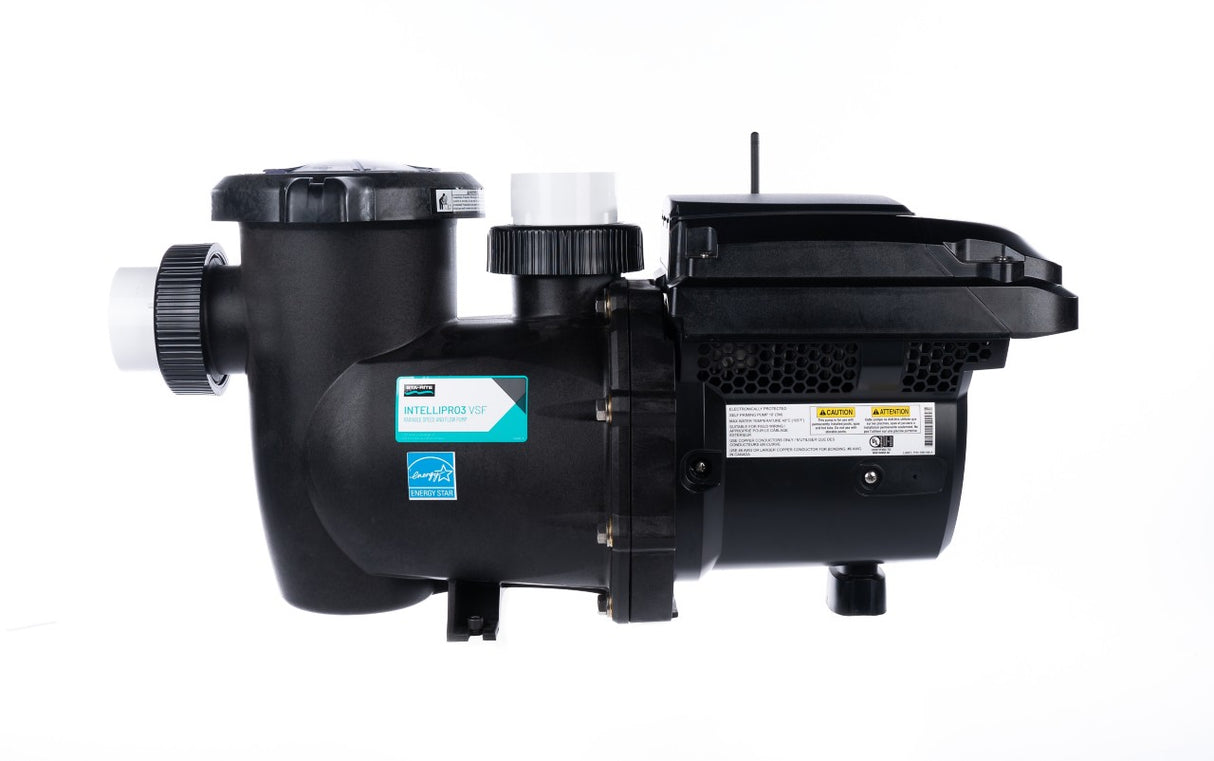

Pentair IntelliPro3 VSF Variable Speed & Flow Pump 3 THP 208-230V | SKU 013075
In-store pickup or delivery only
Call (602) 274-7946
Couldn't load pickup availability
Pentair’s IntelliPro3 VSF line introduces sensorless flow control, smart controls (app and optional touchscreen), and DOE-level efficiency. The 013075 model is backed by Pentair’s standard residential pump warranty; verify installation and registration requirements per Pentair warranty policy.
Q: What makes sensorless flow control different? A: It adjusts pump operation automatically to maintain target flow based on hydraulics, without needing external flow meters, helping reduce energy waste. Q: What plumbing sizes does 013075 support? A: It ships with 2″×2″ or 2.5″×2.5″ ports. There’s an optional 3″×3″ port kit. Adapters are included for smaller connections.
Call (602) 274-7946
Description
Description
Pentair IntelliPro3 VSF Variable Speed & Flow Pump 3 THP 208-230V | SKU 013075
Pentair IntelliPro3 VSF 3 THP 208-230V (SKU 013075) delivers DOE-compliant performance with sensorless flow control and major energy savings.
Features
- Up to 90% energy savings versus single-speed pumps
- THP 3.0 with WEF 7.1, DOE compliant
- Flexible plumbing: 2″×2″ or 2.5″×2.5″ ports (optional 3″ kit available)
- Operating current ~12.4-11.2A at 208-230V
- Remote control and scheduling via Pentair Home app or optional touchscreen
- Enhanced motor, drive, and hydronics for durability and performance
Description
The IntelliPro3 VSF 3 THP 208-230V (SKU 013075) raises the bar for pool pump performance. With built-in sensorless flow technology, it maintains optimal water circulation no matter the demands—filtration, heating, features, or seasonal fluctuations. Rated THP 3.0 and WEF 7.1, it meets DOE regulations while cutting energy use dramatically. The pump supports multiple plumbing port sizes and operates at ~12.4-11.2A to deliver maximum flow without undue waste. Advanced hydraulics, updated motor/drive components, and app integration make it both powerful and smart.
Pro Tip
Pair this pump with a heavy-duty cartridge filter like the Pentair Clean & Clear Plus 420 sq ft (SKU EC-160301) to reduce pressure on the system and keep flow smooth, which maintains energy efficiency and extends pump lifespan.
Related Parts
- Pentair Clean & Clear Plus 420 sq. ft. Cartridge Pool Filter | SKU EC-160301
- Pentair IntelliPro3 VSF 3HP with Touchscreen | SKU 013077
- Pentair IntelliPro3 VSF 3HP with Relay Board | SKU 013076
Installation Tips
Ensure matching voltage and wiring (208-230V), correct bonding and grounding per local code. Use proper unions for the plumbing size to avoid strain. Allow adequate clearance and ventilation around the motor housing.
