Pentair Tagelus TA60D Top Mount Sand Filter w/ Multiport Valve | EC-145241

Pentair Tagelus TA60D Top Mount Sand Filter w/ Multiport Valve | EC-145241

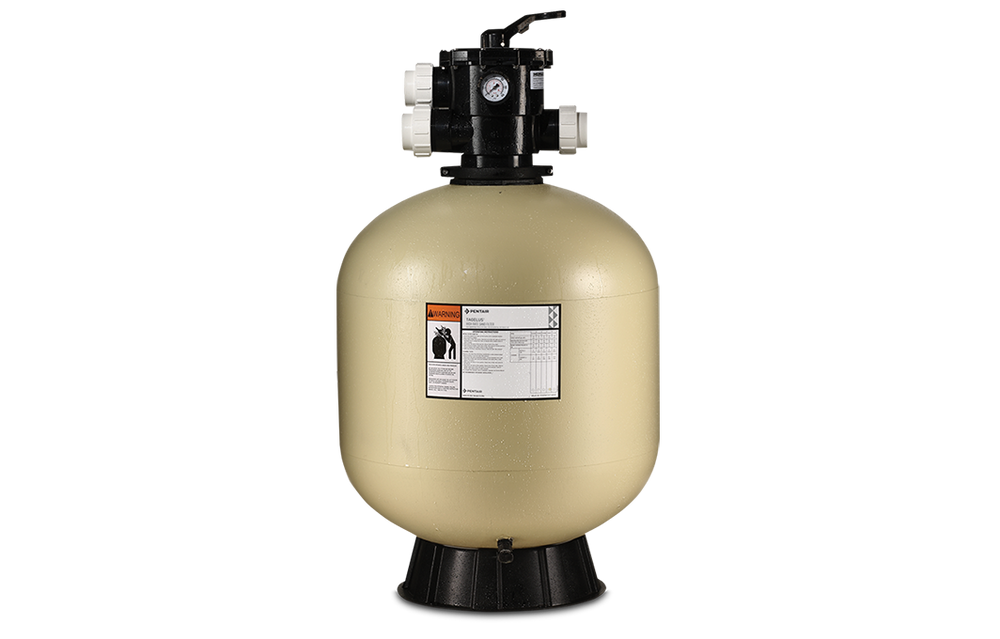

Fiberglass-reinforced 24.5″ diameter top-mount sand filter by Pentair (SKU EC-145241), featuring ~3.1 sq ft filter area, ~60 GPM capacity, and a six-position multiport valve included.

Features

• One-piece fiberglass-reinforced tank built for corrosion and UV resistance.
• 24.5″ diameter tank with ~3.1 sq ft effective filtration area for medium-sized residential pools.
• Top-mounted six-position multiport valve simplifies filter/backwash/rinse/waste/recirculate/closed operations.
• Requires approximately 325 lbs of standard #20 silica sand, optimizing runtime and service intervals.
• Rated for up to 50 psi continuous pressure and up to 104 °F (40 °C) water temperature for dependable performance.
• Internal diffuser and threaded internals maintain a flat sand bed and reduce channeling to extend filter cycles.

Description

The Pentair Tagelus TA60D Top Mount Sand Filter (SKU EC-145241) offers a durable, high-performance foundation for in-ground pool filtration. With its one-piece fiberglass tank, it delivers superior durability in demanding pool environments. The 24.5″ diameter design accommodates a substantial sand load while keeping the footprint reasonable. The top-mounted multiport valve adds convenience and ease of operation. Internal engineering, such as the diffuser and threaded components, ensures efficient flow, extended run times, and easier servicing. Put simply, this filter provides a durable, dependable answer when clarity and longevity matter.

Pro Tip

Ensure your equipment pad has enough clearance for the tank and valve, and that the base is level and structurally sound. Load the correct amount (~325 lbs) of #20 silica sand and keep system flow below the filter’s design flow rate for optimum performance and longevity.

Related Parts

• Pentair Tagelus TA100D Top Mount Sand Filter | EC-145240
• Pentair 2″ Top Mount Multiport Valve Kit | SKU 262525

Installation Tips

High-level safety/compatibility notes only: Turn off the pump and relieve system pressure before servicing or installing. Confirm the base is level and can support the tank with sand. Use the correct sand volume (325 lbs) and verify plumbing size and valve clearance. Bond and ground filter system, if required by code. Do not exceed 50 psi or 104 °F water temp.
