Pentair Triton II TR60 Side Mount Sand Filter (No Valve) | EC-140264

Pentair Triton II TR60 Side Mount Sand Filter (No Valve) | EC-140264

Durable 24″ diameter side-mount sand filter by Pentair with fiberglass-reinforced tank and valve sold separately.

Features

• One-piece fiberglass-reinforced tank built via GlasLok™ for UV and corrosion resistance.
• 3.14 sq ft filtration area supports flow rates around 63 GPM — suitable for medium residential pools.
• Side-mount configuration lets you choose and install your own valve (multi-port or push-pull).
• Heavy-duty closure with built-in pressure gauge and manual air relief valve simplifies inspection and service.
• Swing-away diffuser and threaded internal parts allow fast maintenance and ease of part replacement.
• Rated for continuous operation at up to 50 psi and water temperatures up to 104 °F (40 °C).

Description

The Pentair Triton II TR60 Side Mount Sand Filter (SKU EC-140264) is engineered for long-life service and dependable filtration in in-ground pool settings. Its 24″ diameter fiberglass-reinforced tank employs Pentair’s GlasLok™ manufacturing process, delivering outstanding resistance to corrosion and weathering. With a filtration area of 3.14 sq ft and side-mount valve compatibility, it supports flows in the neighborhood of 63 GPM while giving you flexibility on valve choice. The robust lid design, pressure gauge, air relief valve, swing-away diffuser, and threaded internals make service and maintenance straightforward. Rated for up to 50 psi and 104 °F, this filter provides a solid foundation for efficient, low-maintenance pool water clarity.

Pro Tip

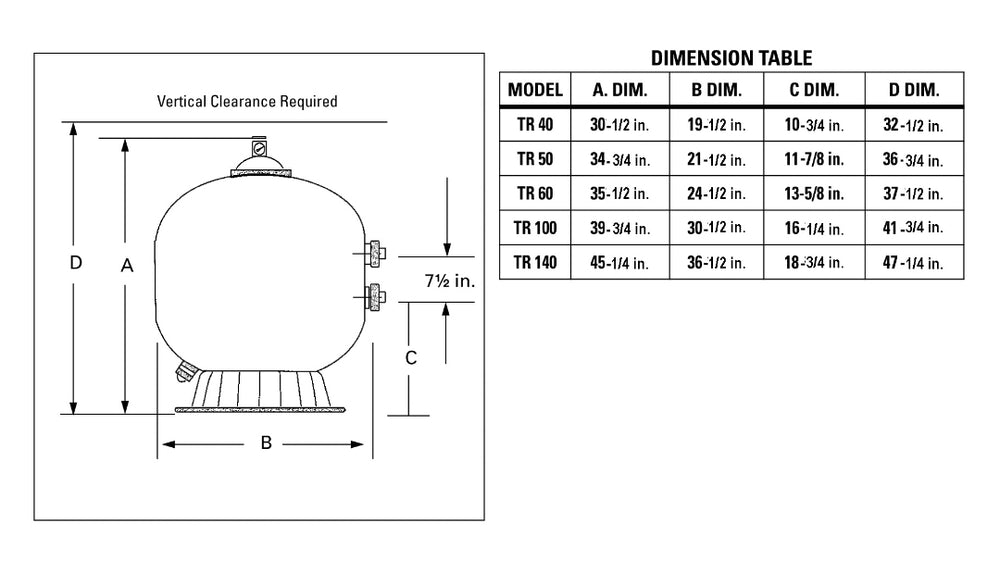

Ensure you have proper vertical clearance and sand capacity (approximately 325 lbs of #20 silica sand) before installation. Choose a compatible 2″ side-mount valve (multi-port or push-pull) that matches the tank’s flow rating and your plumbing layout.

Related Parts

• Pentair Triton II TR100 Side Mount Sand Filter (No Valve) | EC-140210
• Pentair 2″ Threaded Multiport Valve for Sand & D.E. Filters | 261055
• Pentair 1.5″ Threaded Multiport Valve for Sand & D.E. Filters | 261173
• Pentair PVC Push Pull Slide Valve, 7 1/2 Inch Centerline, Almond, For D.E. and Sand Filters | 263064

Installation Tips

High-level safety/compatibility notes only: Turn off pump power and relieve system pressure before servicing. Confirm the filter base is level and plumbing clearances accommodate the 24″ diameter tank. Load the correct amount of sand (#20 silica) per Pentair specifications. Bond and ground the filter system if required by local code. Do not exceed the maximum operating pressure of 50 psi and ensure water temperature does not exceed 104 °F.
