Parts List for Cleaner Parts List: AquaNaut 400-450

Cleaner Parts List: AquaNaut 400-450

The AquaNaut 400/450 offers most of the same qualities that the AquaNaut 200 offers as well, such as: the patented self-adjusting variable vanes known as V-Flex™ technology, which automatically adjust to allow for large debris to pass through the cleaner delivering maximum suction power at virtually any flow and providing a clog-free clean – covering pool floor, walls* and coves. The difference between the two models is the 2-wheel drive capability of the AquaNaut 200 and the 4-wheel drive capability of the AquaNaut 400/450. Please scroll down to see the full list of parts and accessories for this cleaner.

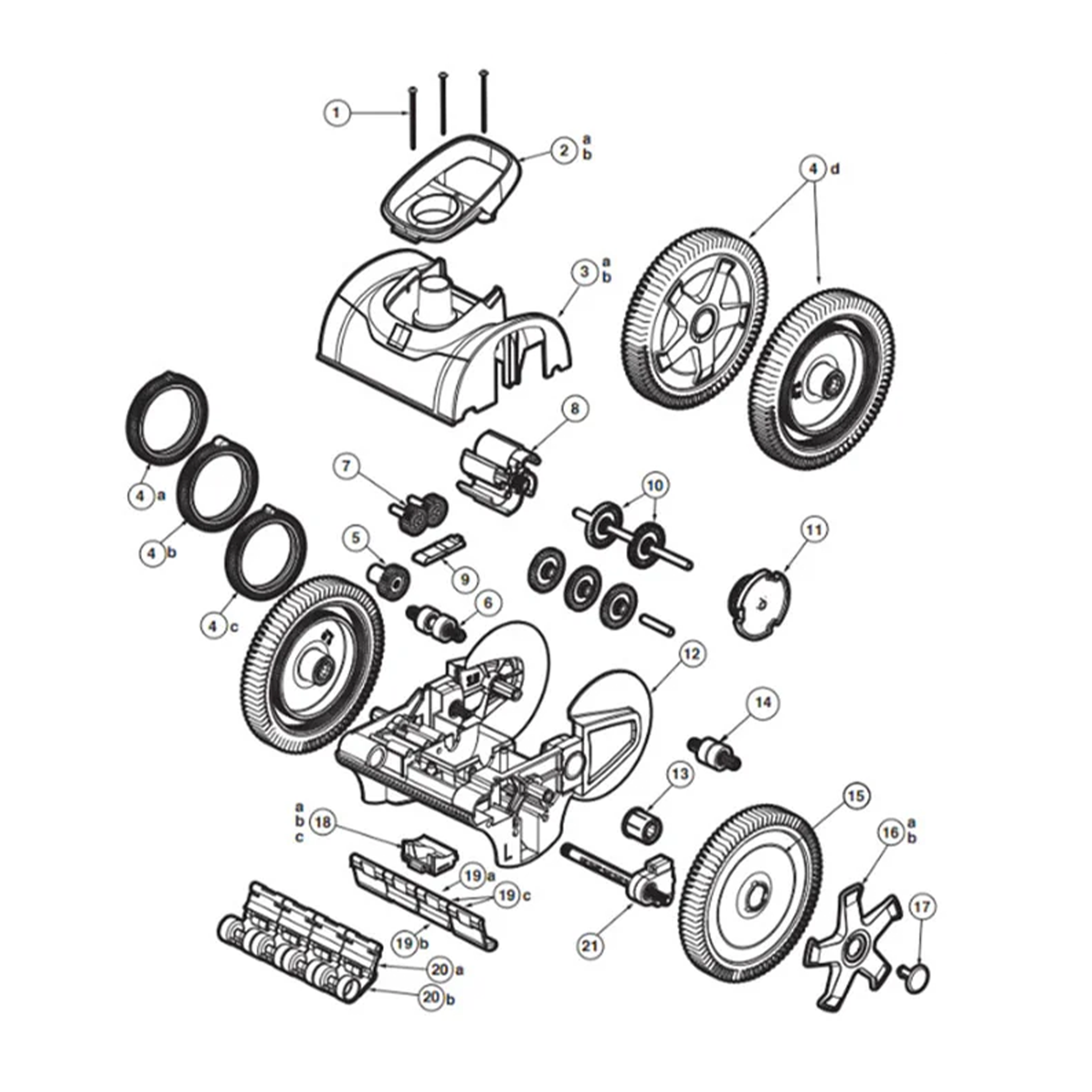

Parts List

Hayward AquaNaut 400 Suction Side Cleaner #

Hayward AquaNaut 400 Suction Side Cleaner

$772.95 $469.95 $772.95
View Details
Hayward AquaNaut 200 400 & 450 Screw #10 18-8 (3 Pack) # 1

Hayward AquaNaut 200 400 & 450 Screw #10 18-8 (3 Pack)

$22.95 $14.95 $22.95
View Details
Hayward AquaNaut 400 Handle Blue Logo # 2a

Hayward AquaNaut 400 Handle Blue Logo

$36.95 $23.95 $36.95
View Details
Hayward AquaNaut 450 Handle Blue Met # 2b

Hayward AquaNaut 450 Handle Blue Met

$23.95
View Details
Hayward AquaNaut 200 & 400 Upper Body Blue Logo # 3a

Hayward AquaNaut 200 & 400 Upper Body Blue Logo

$64.95 $44.95 $64.95
View Details
Hayward AquaNaut 450 Upper Body Blue Logo # 3b

Hayward AquaNaut 450 Upper Body Blue Logo

$65.95 $40.95 $65.95
View Details
Hayward AquaNaut 200 400 & 450 Wheel Tread - Finger Hump - Blue Met (2 Pack) # 4a

Hayward AquaNaut 200 400 & 450 Wheel Tread - Finger Hump - Blue Met (2 Pack)

$34.95
View Details
Hayward AquaNaut 200 400 & 450 Wheel Tread - Super - Blue Met (2 Pack) # 4b

Hayward AquaNaut 200 400 & 450 Wheel Tread - Super - Blue Met (2 Pack)

$34.95
View Details
Hayward AquaNaut 200 400 & 450/Poolvergnuegen Wheel Tread - Super Super - Blue (2 Pack) # 4c

Hayward AquaNaut 200 400 & 450/Poolvergnuegen Wheel Tread - Super Super - Blue (2 Pack)

$65.49 $40.49 $65.49
View Details
Hayward AquaNaut 200 400 & 450 Wheel Tread Blue Met - Optional (2 Pack) # 4d

Hayward AquaNaut 200 400 & 450 Wheel Tread Blue Met - Optional (2 Pack)

$30.95
View Details
Hayward AquaNaut 200 400 & 450 / Poolvergnuegen Gear Drive Large # 5

Hayward AquaNaut 200 400 & 450 / Poolvergnuegen Gear Drive Large

$19.95 $12.95 $19.95
View Details
Hayward AquaNaut 200/Poolvergnuegen Shaft Bearing # 6

Hayward AquaNaut 200/Poolvergnuegen Shaft Bearing

$36.95 $25.95 $36.95
View Details
Hayward AquaNaut 200 400 & 450/Poolvergnuegen Gear Drive Small (2 Pack) # 7

Hayward AquaNaut 200 400 & 450/Poolvergnuegen Gear Drive Small (2 Pack)

$11.95
View Details
Hayward AquaNaut 200 400 & 450/Poolvergnuegen Turbine 6-Vane Kit # 8

Hayward AquaNaut 200 400 & 450/Poolvergnuegen Turbine 6-Vane Kit

$36.95 $25.95 $36.95
View Details
Hayward AquaNaut 200 400 & 450 Shaft Retainer White Plastic # 9

Hayward AquaNaut 200 400 & 450 Shaft Retainer White Plastic

$16.95 $10.95 $16.95
View Details
Hayward AquaNaut 200 400 & 450/Poolvergnuegen Gear Reduction (5-Pack) # 10

Hayward AquaNaut 200 400 & 450/Poolvergnuegen Gear Reduction (5-Pack)

$10.95
View Details
Hayward AquaNaut 400 & 450 / Poolvergnuegen Steering Cam 4x4 # 11

Hayward AquaNaut 400 & 450 / Poolvergnuegen Steering Cam 4x4

$18.95 $12.95 $18.95
View Details
Hayward AquaNaut 400 & 450 Lower Body 4-Wheel Black Met # 12

Hayward AquaNaut 400 & 450 Lower Body 4-Wheel Black Met

$65.95 $45.95 $65.95
View Details
Hayward AquaNaut 200 400 & 450/Poolvergnuegen Wheel Bearing (2 Pack) # 13

Hayward AquaNaut 200 400 & 450/Poolvergnuegen Wheel Bearing (2 Pack)

$17.95
View Details
Hayward AquaNaut 400 & 450/Poolvergnuegen Rear Gear Shaft # 14

Hayward AquaNaut 400 & 450/Poolvergnuegen Rear Gear Shaft

$35.95 $25.95 $35.95
View Details
Hayward AquaNaut 200 400 & 450 Wheel Hub Black Met # 15

Hayward AquaNaut 200 400 & 450 Wheel Hub Black Met

$37.95 $24.95 $37.95
View Details
Hayward AquaNaut 200 400 & 450/TriVac 700 Wheel Style 5-Spoke Gray Met (2 Pack) # 16a

Hayward AquaNaut 200 400 & 450/TriVac 700 Wheel Style 5-Spoke Gray Met (2 Pack)

$14.95
View Details
Hayward AquaNaut 450 / TriVac 500 Wheel Style - 4-Spoke Gray Met (2 pack) # 16b

Hayward AquaNaut 450 / TriVac 500 Wheel Style - 4-Spoke Gray Met (2 pack)

$10.95 $6.95 $10.95
View Details
Hayward AquaNaut 200 400 & 450/TriVac 700/500 Wheel Retainer Gray Met # 17

Hayward AquaNaut 200 400 & 450/TriVac 700/500 Wheel Retainer Gray Met

$16.95 $9.95 $16.95
View Details
Hayward AquaNaut 200 400 & 450 Suction Inlet Small Gray # 18a

Hayward AquaNaut 200 400 & 450 Suction Inlet Small Gray

$10.95
View Details
Hayward AquaNaut 200 400 & 450 Suction Inlet Medium Black Met # 18b

Hayward AquaNaut 200 400 & 450 Suction Inlet Medium Black Met

$10.95
View Details
Hayward AquaNaut 200 400 & 450 Suction Inlet Large Gray # 18c

Hayward AquaNaut 200 400 & 450 Suction Inlet Large Gray

$16.95 $10.95 $16.95
View Details
Hayward AquaNaut 200 400 & 450/Poolvergnuegen Bracket Skirt (4 Pack) # 19a, 20a

Hayward AquaNaut 200 400 & 450/Poolvergnuegen Bracket Skirt (4 Pack)

$13.95
View Details
Hayward AquaNaut 200 400 & 450/Poolvergnuegen Skirt Black (4 Pack) # 19b

Hayward AquaNaut 200 400 & 450/Poolvergnuegen Skirt Black (4 Pack)

$13.95
View Details
Hayward AquaNaut 400 & 450/Poolvergnuegen Rear Skirt Kit Black (2 Hinged & 2 Non Hinged)(4-Wheel Only) # 19c

Hayward AquaNaut 400 & 450/Poolvergnuegen Rear Skirt Kit Black (2 Hinged & 2 Non Hinged)(4-Wheel Only)

$20.95 $14.95 $20.95
View Details
Hayward AquaNaut 200 400 & 450/Poolvergnuegen Roller Skirt Black (4 Pack) # 20b

Hayward AquaNaut 200 400 & 450/Poolvergnuegen Roller Skirt Black (4 Pack)

$16.95
View Details
Hayward AquaNaut 200 400 & 450/Poolvergnuegen Steering Bracket Roller # 21

Hayward AquaNaut 200 400 & 450/Poolvergnuegen Steering Bracket Roller

$52.49 $35.49 $52.49
View Details
Hayward AquaNaut and The PoolCleaner Limited Edition 1M, Leader Hose 10 pack, Dark Gray #

Hayward AquaNaut and The PoolCleaner Limited Edition 1M, Leader Hose 10 pack, Dark Gray

$155.95 $103.95 $155.95
View Details
Hayward AquaNaut and The PoolCleaner Limited Edition 1M - Connector Hose 10 Pack, Dark Gray #

Hayward AquaNaut and The PoolCleaner Limited Edition 1M - Connector Hose 10 Pack, Dark Gray

$155.95 $103.95 $155.95
View Details
Hayward AquaNaut and The PoolCleaner Limited Edition 1M - Connector Hose 24 Pack, Dark Gray #

Hayward AquaNaut and The PoolCleaner Limited Edition 1M - Connector Hose 24 Pack, Dark Gray

$322.95 $214.95 $322.95
View Details
Hayward AquaNaut and The PoolCleaner Limited Edition Hose Kit 1 Leader, 9 Connector 33', Dark Gray #

Hayward AquaNaut and The PoolCleaner Limited Edition Hose Kit 1 Leader, 9 Connector 33', Dark Gray

$152.95 $101.95 $152.95
View Details
