Parts List for Cleaner Parts List: Pentair KK Platinum

Cleaner Parts List: Pentair KK Platinum

The Kreep Krauly Platinum is a rugged pressure-side pool cleaner and is an ideal choice for inground pools exposed to higher loads of leaves and debris. It is a great choice for pools in yards with lush landscaping and tougher cleaning challenges. The dual thrust jets provide maximum speed and suction, so most pools are cleaned in just 1-3 hours. Please scroll down to see the full list of parts and accessories for this cleaner.

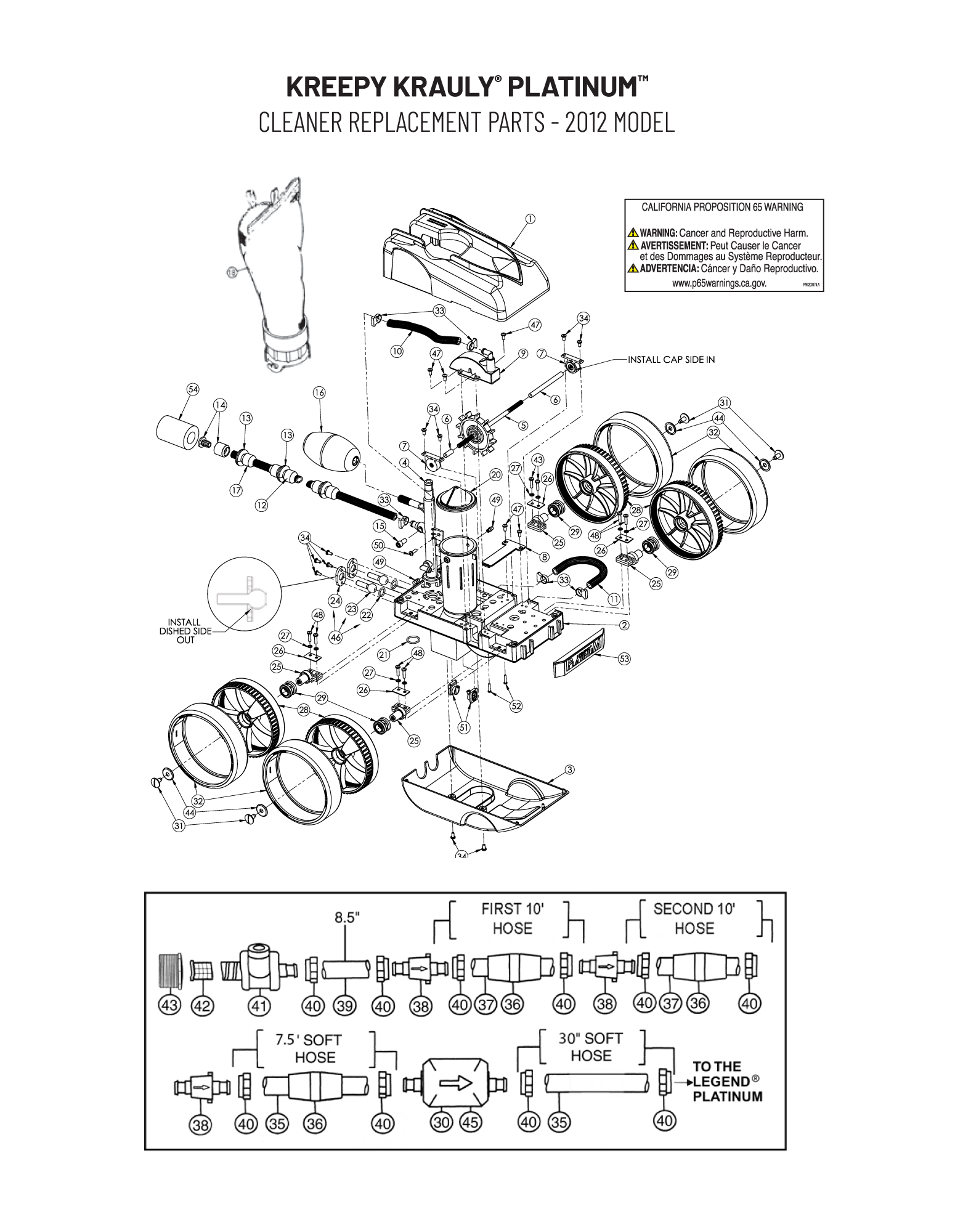

Parts List

Pentair Kreepy Krauly Platinum Top Cover - Grey # 1

Pentair Kreepy Krauly Platinum Top Cover - Grey

View Details
Pentair Kreepy Krauly Legend and Platinum Main Frame # 2

Pentair Kreepy Krauly Legend and Platinum Main Frame

View Details
Pentair Kreepy Krauly Platinum Main Frame - Grey # 2

Pentair Kreepy Krauly Platinum Main Frame - Grey

View Details
Pentair Kreepy Krauly Platinum Bottom Cover - White # 3

Pentair Kreepy Krauly Platinum Bottom Cover - White

View Details
Pentair Kreepy Krauly Platinum Bottom Cover - Grey # 3

Pentair Kreepy Krauly Platinum Bottom Cover - Grey

View Details
Pentair Kreepy Krauly Legend and Platinum Feed Mast w/ O-Ring - White # 4

Pentair Kreepy Krauly Legend and Platinum Feed Mast w/ O-Ring - White

View Details
Pentair Kreepy Krauly Legend and Platinum Feed Mast w/ O-Ring - Grey # 4

Pentair Kreepy Krauly Legend and Platinum Feed Mast w/ O-Ring - Grey

View Details
Pentair Kreepy Krauly Legend /  Legend II / Platinum Turbine Drive Shaft - Complete # 5

Pentair Kreepy Krauly Legend / Legend II / Platinum Turbine Drive Shaft - Complete

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Turbine Spacers # 6

Pentair Kreepy Krauly Legend / Legend II / Platinum Turbine Spacers

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Turbine Bearings - Grey (2 Pack) # 7

Pentair Kreepy Krauly Legend / Legend II / Platinum Turbine Bearings - Grey (2 Pack)

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Turbine Shaft Shield # 8

Pentair Kreepy Krauly Legend / Legend II / Platinum Turbine Shaft Shield

View Details
Pentair Kreepy Krauly Platinum Turbine Shaft - Grey # 8

Pentair Kreepy Krauly Platinum Turbine Shaft - Grey

View Details
Pentair Kreepy Krauly Legend / Platinum Turbine Cover w/ Elbows # 9

Pentair Kreepy Krauly Legend / Platinum Turbine Cover w/ Elbows

View Details
Pentair Kreepy Krauly Platinum Turbine Cover w/ Elbow - Grey # 9

Pentair Kreepy Krauly Platinum Turbine Cover w/ Elbow - Grey

View Details
Pentair Kreepy Krauly Platinum Turbine Cover Hose - 9 in. White # 10

Pentair Kreepy Krauly Platinum Turbine Cover Hose - 9 in. White

View Details
Pentair Kreepy Krauly Platinum Turbine Cover Hose - 9 in. - Grey # 10

Pentair Kreepy Krauly Platinum Turbine Cover Hose - 9 in. - Grey

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Turbine Venturi Hose 7-3/4 in. Length # 11

Pentair Kreepy Krauly Legend / Legend II / Platinum Turbine Venturi Hose 7-3/4 in. Length

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Turbine Venturi Hose 7-3/4 in. length - Grey # 11

Pentair Kreepy Krauly Legend / Legend II / Platinum Turbine Venturi Hose 7-3/4 in. length - Grey

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Complete # 12

Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Complete

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Complete - Grey # 12

Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Complete - Grey

View Details
Pentair Kreepy Krauly Platinum / Racer / Racer LS Sweep Hose - Wear Ring # 13

Pentair Kreepy Krauly Platinum / Racer / Racer LS Sweep Hose - Wear Ring

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Jet w/ Collar # 14

Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Jet w/ Collar

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Jet w/ Collar - Grey # 14

Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Jet w/ Collar - Grey

View Details
Pentair Kreepy Krauly Platinum Sweep Hose Adj. Screw - White # 15

Pentair Kreepy Krauly Platinum Sweep Hose Adj. Screw - White

View Details
Pentair Kreepy Krauly Platinum Sweep Hose Adj. Screw - Grey # 15

Pentair Kreepy Krauly Platinum Sweep Hose Adj. Screw - Grey

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Ballast Float # 16

Pentair Kreepy Krauly Legend / Legend II / Platinum Ballast Float

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Ballast Float - Grey # 16

Pentair Kreepy Krauly Legend / Legend II / Platinum Ballast Float - Grey

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Hose Sleeve # 17

Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Hose Sleeve

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Hose Sleeve - Grey # 17

Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Hose Sleeve - Grey

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Coarse Mesh Bag - Blue # 18

Pentair Kreepy Krauly Legend / Legend II / Platinum Coarse Mesh Bag - Blue

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Coarse Mesh Bag - Blue/Grey Collar # 18

Pentair Kreepy Krauly Legend / Legend II / Platinum Coarse Mesh Bag - Blue/Grey Collar

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Fine Mesh Bag - Velcro Brand Fastener # 18

Pentair Kreepy Krauly Legend / Legend II / Platinum Fine Mesh Bag - Velcro Brand Fastener

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Fine Mesh Bag - Velcro Brand Fastener - Grey # 18

Pentair Kreepy Krauly Legend / Legend II / Platinum Fine Mesh Bag - Velcro Brand Fastener - Grey

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Fine Mesh Bag - Mechanical lock # 19

Pentair Kreepy Krauly Legend / Legend II / Platinum Fine Mesh Bag - Mechanical lock

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Fine Mesh Bag - Grey - Mechanical lock # 19

Pentair Kreepy Krauly Legend / Legend II / Platinum Fine Mesh Bag - Grey - Mechanical lock

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Debris Valve # 20

Pentair Kreepy Krauly Legend / Legend II / Platinum Debris Valve

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum O-Ring for Feed Mast # 21

Pentair Kreepy Krauly Legend / Legend II / Platinum O-Ring for Feed Mast

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum O-Ring for Thrust Jet # 22

Pentair Kreepy Krauly Legend / Legend II / Platinum O-Ring for Thrust Jet

View Details
Pentair Kreepy Krauly Platinum Thrust Jets - White # 23

Pentair Kreepy Krauly Platinum Thrust Jets - White

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Thrust Jet Plates - White # 24

Pentair Kreepy Krauly Legend / Legend II / Platinum Thrust Jet Plates - White

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Thrust Jet - Plate - Grey # 24

Pentair Kreepy Krauly Legend / Legend II / Platinum Thrust Jet - Plate - Grey

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Axle - Large Wheels # 25

Pentair Kreepy Krauly Legend / Legend II / Platinum Axle - Large Wheels

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Axle Plate # 26

Pentair Kreepy Krauly Legend / Legend II / Platinum Axle Plate

View Details
Pentair Kreepy Krauly Platinum Axle - Lock Washer # 27

Pentair Kreepy Krauly Platinum Axle - Lock Washer

View Details
Pentair Kreepy Krauly Platinum Wheel w/ out Bearings - Grey # 28

Pentair Kreepy Krauly Platinum Wheel w/ out Bearings - Grey

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Wheel Bearings - Only (2 Pack) # 29

Pentair Kreepy Krauly Legend / Legend II / Platinum Wheel Bearings - Only (2 Pack)

View Details
Pentair Kreepy Krauly Legend / Platinum Back-up Valve # 30

Pentair Kreepy Krauly Legend / Platinum Back-up Valve

View Details
Pentair Kreepy Krauly Legend / Platinum Back-up Valve Case (No Gears)(Grey) # 30

Pentair Kreepy Krauly Legend / Platinum Back-up Valve Case (No Gears)(Grey)

View Details
Pentair Kreepy Krauly Platinum Wheel Screw - Gray # 31

Pentair Kreepy Krauly Platinum Wheel Screw - Gray

View Details
Pentair Kreepy Krauly Platinum Wheel - Rubber Tire - Black # 32

Pentair Kreepy Krauly Platinum Wheel - Rubber Tire - Black

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Hose Clamp # 33

Pentair Kreepy Krauly Legend / Legend II / Platinum Hose Clamp

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Screw # 34

Pentair Kreepy Krauly Legend / Legend II / Platinum Screw

View Details
Pentair Kreepy Krauly Platinum Feed Hose - Clear Soft 10 ft. # 35

Pentair Kreepy Krauly Platinum Feed Hose - Clear Soft 10 ft.

View Details
Pentair Kreepy Krauly Legend / Platinum Feed Hose - Grey Soft - 10 ft. # 35

Pentair Kreepy Krauly Legend / Platinum Feed Hose - Grey Soft - 10 ft.

View Details
Pentair Kreepy Krauly Legend / Platinum Float - Feed Hose # 36

Pentair Kreepy Krauly Legend / Platinum Float - Feed Hose

View Details
Pentair Kreepy Krauly Legend / Platinum Float - Feed Hose - Grey # 36

Pentair Kreepy Krauly Legend / Platinum Float - Feed Hose - Grey

View Details
Pentair Kreepy Krauly Platinum Feed Hose - 10 ft. - White # 37

Pentair Kreepy Krauly Platinum Feed Hose - 10 ft. - White

View Details
Pentair Kreepy Krauly Legend / Platinum Feed Hose - Grey - 10 ft. # 37

Pentair Kreepy Krauly Legend / Platinum Feed Hose - Grey - 10 ft.

View Details
Pentair Kreepy Krauly Legend / Platinum Swivel - Feed Hose # 38

Pentair Kreepy Krauly Legend / Platinum Swivel - Feed Hose

View Details
Pentair Kreepy Krauly Legend / Platinum Swivel - Feed Hose - Grey # 38

Pentair Kreepy Krauly Legend / Platinum Swivel - Feed Hose - Grey

View Details
Pentair Kreepy Krauly Legend / Platinum Adapter Hose - White 8-1/2 in. # 39

Pentair Kreepy Krauly Legend / Platinum Adapter Hose - White 8-1/2 in.

View Details
Pentair Kreepy Krauly Legend / Platinum Adapter Hose - White 8-1/2 in. - Grey # 39

Pentair Kreepy Krauly Legend / Platinum Adapter Hose - White 8-1/2 in. - Grey

View Details
Pentair Kreepy Krauly Legend / Platinum Mender Nut (2-Pack) # 40

Pentair Kreepy Krauly Legend / Platinum Mender Nut (2-Pack)

View Details
Pentair Kreepy Krauly Legend / Platinum Feed Hose Mender Nut Plastic (Grey) (2-Pack) # 40

Pentair Kreepy Krauly Legend / Platinum Feed Hose Mender Nut Plastic (Grey) (2-Pack)

View Details
Pentair Kreepy Krauly Legend / Platinum Wall Fitting - Grey Complete # 41

Pentair Kreepy Krauly Legend / Platinum Wall Fitting - Grey Complete

View Details
Pentair Kreepy Krauly Legend / Platinum Wall Fitting Complete # 41

Pentair Kreepy Krauly Legend / Platinum Wall Fitting Complete

View Details
Pentair Kreepy Krauly Legend / Platinum Pressure Relief Valve - Grey # 41

Pentair Kreepy Krauly Legend / Platinum Pressure Relief Valve - Grey

View Details
Pentair Kreepy Krauly Legend / Platinum Pressure Relief Valve - White # 41

Pentair Kreepy Krauly Legend / Platinum Pressure Relief Valve - White

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum / Racer / Racer LS Debris Screen - Wall Fitting # 42

Pentair Kreepy Krauly Legend / Legend II / Platinum / Racer / Racer LS Debris Screen - Wall Fitting

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum / Racer / Racer LS Quick Disconnect Adapter - Grey # 43

Pentair Kreepy Krauly Legend / Legend II / Platinum / Racer / Racer LS Quick Disconnect Adapter - Grey

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Quick Disconnect Adapter # 43

Pentair Kreepy Krauly Legend / Legend II / Platinum Quick Disconnect Adapter

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum / Racer / Racer LS Wheel - Plastic Washer # 44

Pentair Kreepy Krauly Legend / Legend II / Platinum / Racer / Racer LS Wheel - Plastic Washer

View Details
Pentair Kreepy Krauly Legend / Platinum Gears - for Back-Up Valve # 45

Pentair Kreepy Krauly Legend / Platinum Gears - for Back-Up Valve

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Screw for EA40 and EC110 # 47

Pentair Kreepy Krauly Legend / Legend II / Platinum Screw for EA40 and EC110

View Details
Pentair Kreepy Krauly Platinum Axle Bolt # 48

Pentair Kreepy Krauly Platinum Axle Bolt

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Snap Fit Vac Tube Posts # 49

Pentair Kreepy Krauly Legend / Legend II / Platinum Snap Fit Vac Tube Posts

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Snap Fit Vac Tube Posts - Grey # 49

Pentair Kreepy Krauly Legend / Legend II / Platinum Snap Fit Vac Tube Posts - Grey

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Nut & Bolt - Feed Mast To Vac Tube # 50

Pentair Kreepy Krauly Legend / Legend II / Platinum Nut & Bolt - Feed Mast To Vac Tube

View Details
Pentair Kreepy Krauly Legend / Platinum Venturi Jets - Grey # 51

Pentair Kreepy Krauly Legend / Platinum Venturi Jets - Grey

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Screw - Top and Bottom Cover # 51 + 52

Pentair Kreepy Krauly Legend / Legend II / Platinum Screw - Top and Bottom Cover

View Details
Pentair Kreepy Krauly Platinum Front Bumper - White # 53

Pentair Kreepy Krauly Platinum Front Bumper - White

View Details
Pentair Kreepy Krauly Platinum Front Bumper - Grey # 53

Pentair Kreepy Krauly Platinum Front Bumper - Grey

View Details
Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Scrubber # 54

Pentair Kreepy Krauly Legend / Legend II / Platinum Sweep Hose - Scrubber

View Details
Pentair Kreepy Krauly Legend / Platinum Pressure Stick w/o Gauge # n/a

Pentair Kreepy Krauly Legend / Platinum Pressure Stick w/o Gauge

View Details
Pentair Kreepy Krauly Legend / Platinum Hose Kit # n/a

Pentair Kreepy Krauly Legend / Platinum Hose Kit

View Details
Pentair Kreepy Krauly Platinum / Legend Complete Hose Kit - Grey # n/a

Pentair Kreepy Krauly Platinum / Legend Complete Hose Kit - Grey

View Details
