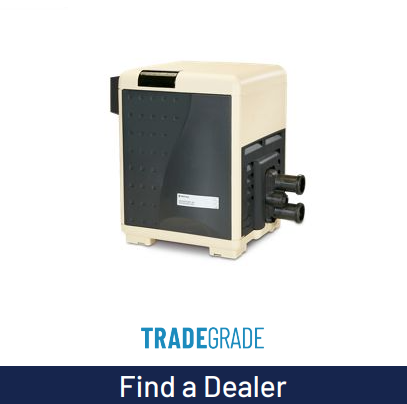

Pentair MasterTemp 300,000 BTU LP Heater – 460735

High-performance 300 k BTU propane pool heater with digital control and compact design. SKU 460735.

Features

• 300,000 BTU propane heater for fast heat delivery

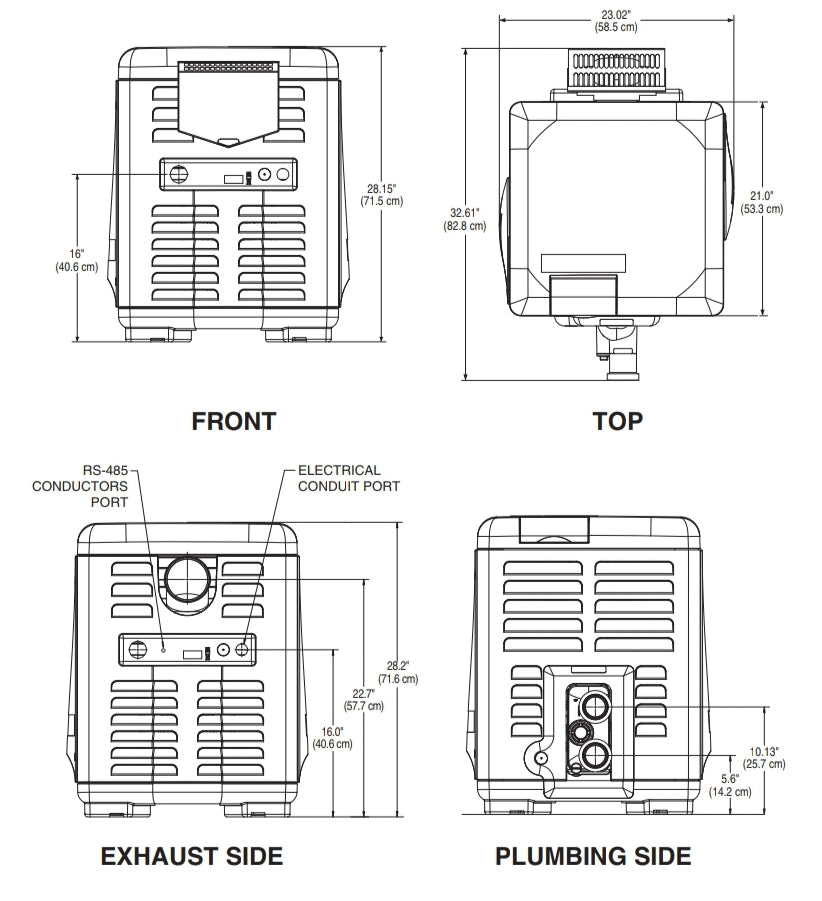

• Compact 21″ × 21″ × 28″ dimensions for tight equipment pads
• Low-NOx certified operation for cleaner emissions
• Digital display and diagnostics with rotating header
• 84% efficient copper heat exchanger; upgradable to cupro-nickel
• Quick-change orifice enables fuel conversion with ease

Description

The Pentair MasterTemp 300,000 BTU LP Heater (460735) brings high performance and smart design into a compact propane heater. Engineered for efficient, consistent heating, it includes digital controls, modular serviceable parts, and a flexible plumbing header position. Whether in new installs or replacements, it offers strong thermal output while keeping its footprint minimal.

Pro Tip

Follow gas piping sizing guidelines from Pentair’s manual—use ¾" for runs under ~25 feet, upsizing for longer distances. In areas with harsh or saline water, upgrade to the cupro-nickel exchanger. Use a Smart Bypass Valve Kit to minimize runtime when less heating is needed.

Related Parts

• MasterTemp Tube Sheet Coil Assembly Kit
• Pentair Smart Bypass Valve Kit
• MasterTemp Replacement Control Board / PCB

Installation Tips

Shut off gas and power before servicing. Install on a noncombustible pad with clearance per manual (see Pentair manual). Use a proper gas regulator and purge lines. After installation, verify combustion quality, gas pressure, and safety shut-offs. Always cross-check local codes and manufacturer specs.
