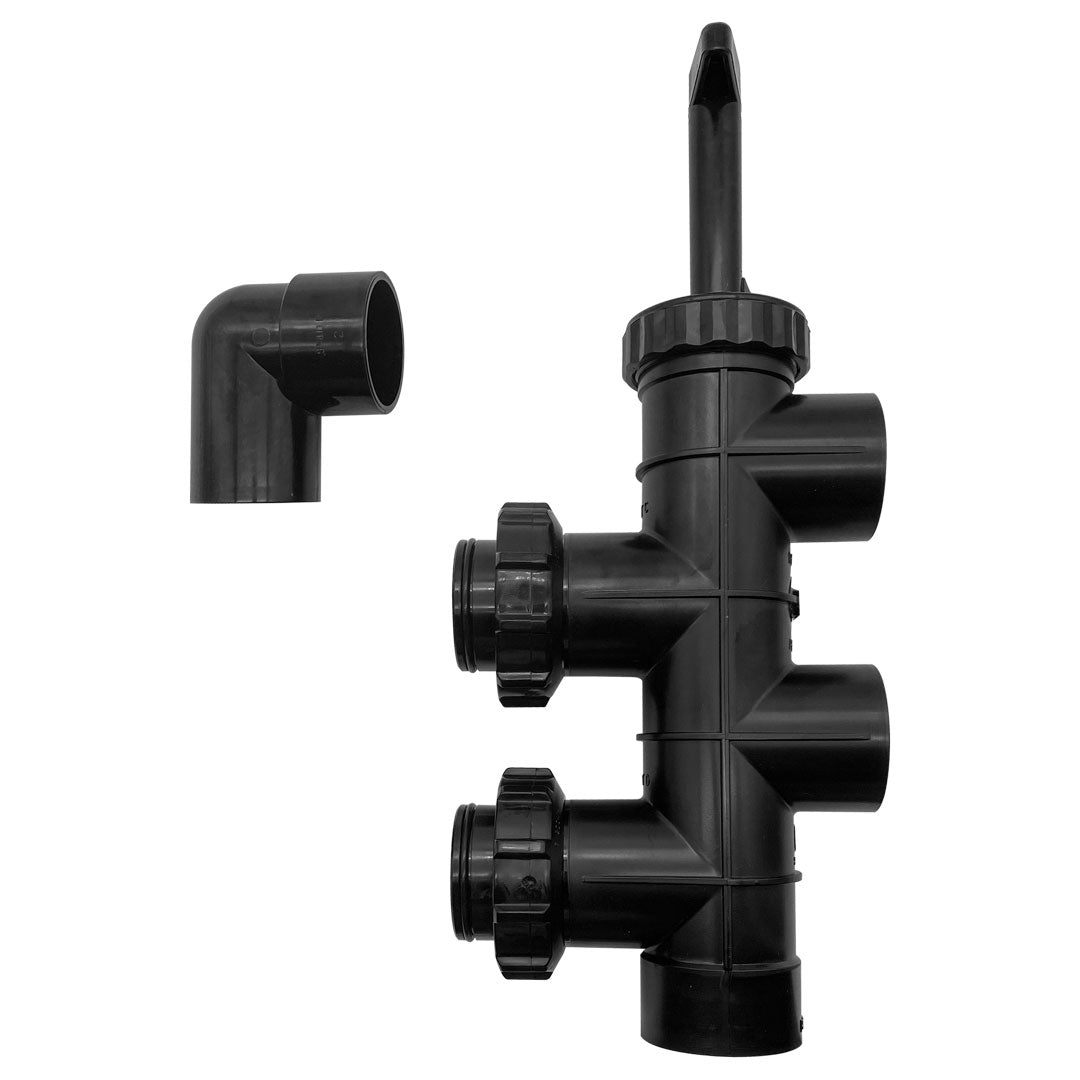

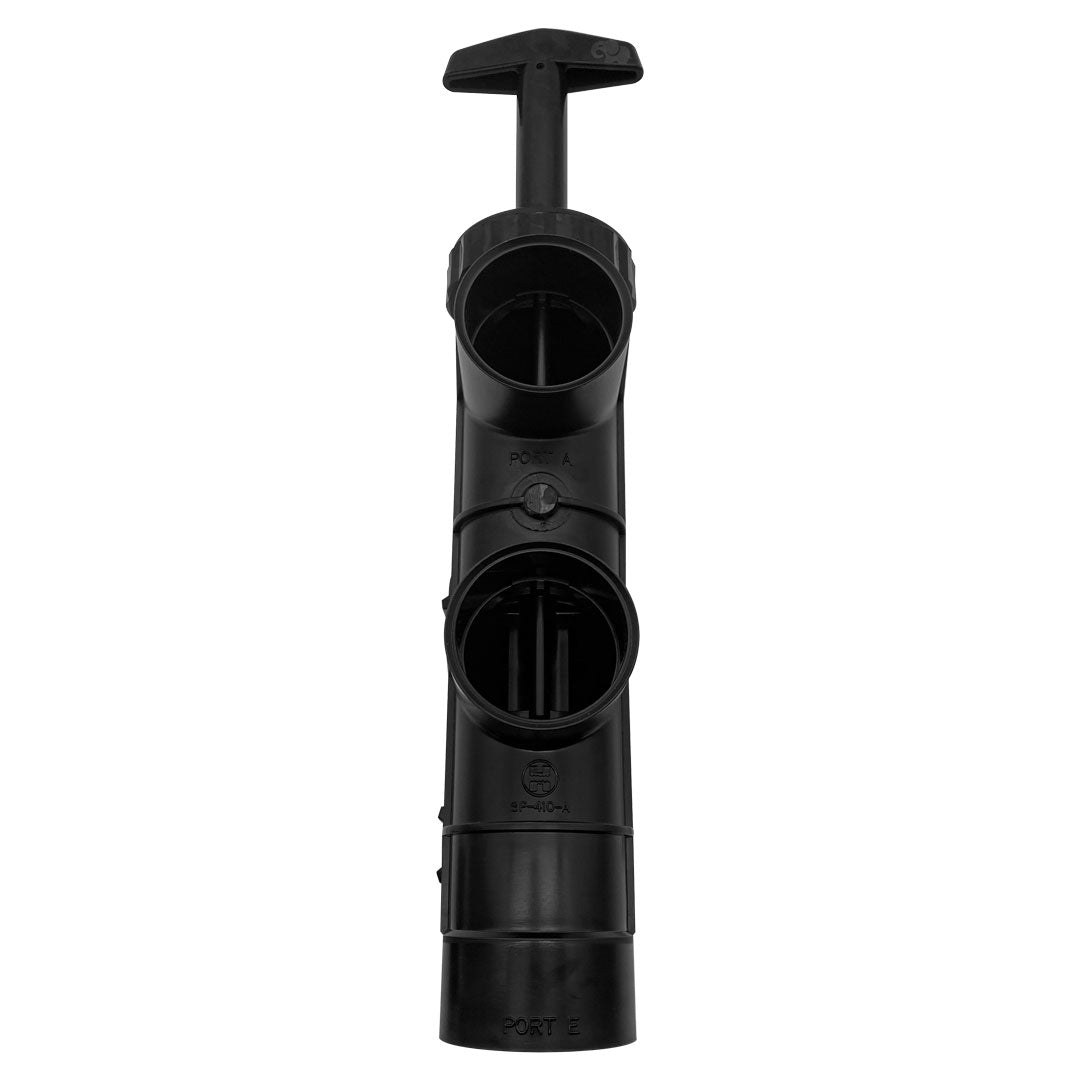

Hayward Slide Valve 2″ Socket (Backwash Valve for D.E. Filters) – SP0410X502S

Hayward Slide Valve 2″ Socket – SP0410X502S

2″ socket-weld push/pull backwash valve for Hayward DE filters. Durable body, full-flow design. SKU SP0410X502S.

Features

• 2″ socket-weld connection ports designed for Hayward Micro-Clear/Pro-Grid DE filters
• Push/pull slide action with two positions: Filter and Backwash
• Full-flow internal design minimises pressure drop
• Thermoplastic (PermaGlass XL®) construction for corrosion resistance
• Direct replacement for older valve bodies; slip/socket ready

Description

The Hayward Slide Valve Assembly 2″ Socket (SP0410X502S) is a robust, high-flow backwash valve designed for side-mount DE filtration systems. Its 2″ socket-weld port design ensures secure plumbing connections, reducing the risk of leaks or fitting failure. The valve’s full-flow passage enables efficient filtering and backwashing with minimal head loss. The thermoplastic housing is built to withstand harsh pool chemicals and varied climates, making it a long-lasting component for your system.

Pro Tip

Remove the internal piston assembly before gluing the socket connections to avoid adhesive seizing the piston in place. After installing, verify the “Filter” and “Backwash” positions operate smoothly and the waste line is correctly oriented. Replace worn O-rings while you’re inside to avoid future leaks.

Related Parts

• Hayward Handle & Piston Assembly – SPX0410BA
• Hayward Piston O-Ring – SPX0410Z2

Installation Tips

Turn off the pump and relieve system pressure before removing the old valve. Align the new valve body so port C and D match tank coupling orientation (per manufacturer instructions). Solvent-cement the 2″ socket connections (bottom waste port and inlet/outlet). Allow full cure before re-installing the piston assembly. Confirm smooth push/pull handle movement and correct flow direction in Filter/Backwash positions.
