Hayward Slide Valve 2″ Socket (Pro Series Sand Filters) | SP0410X602S

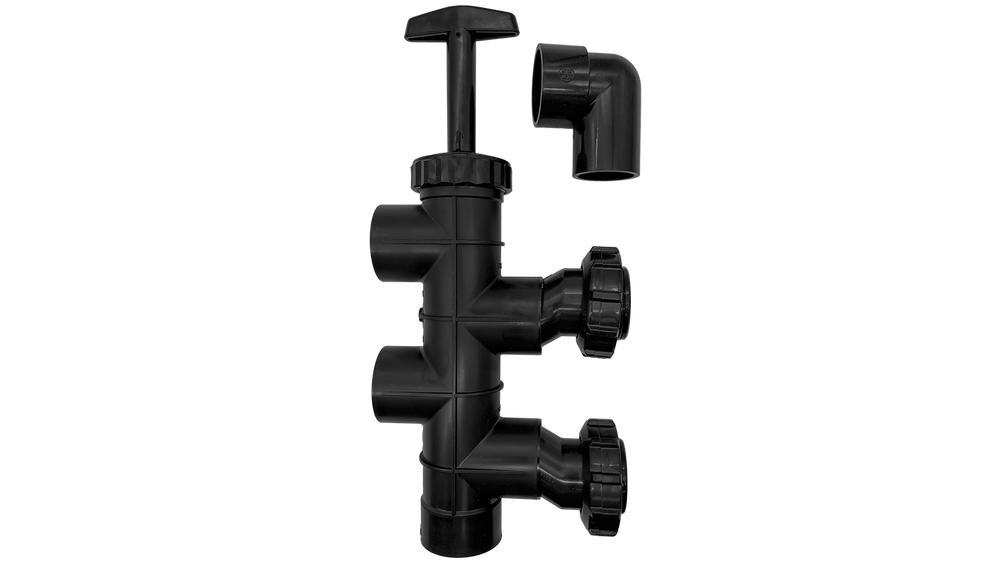

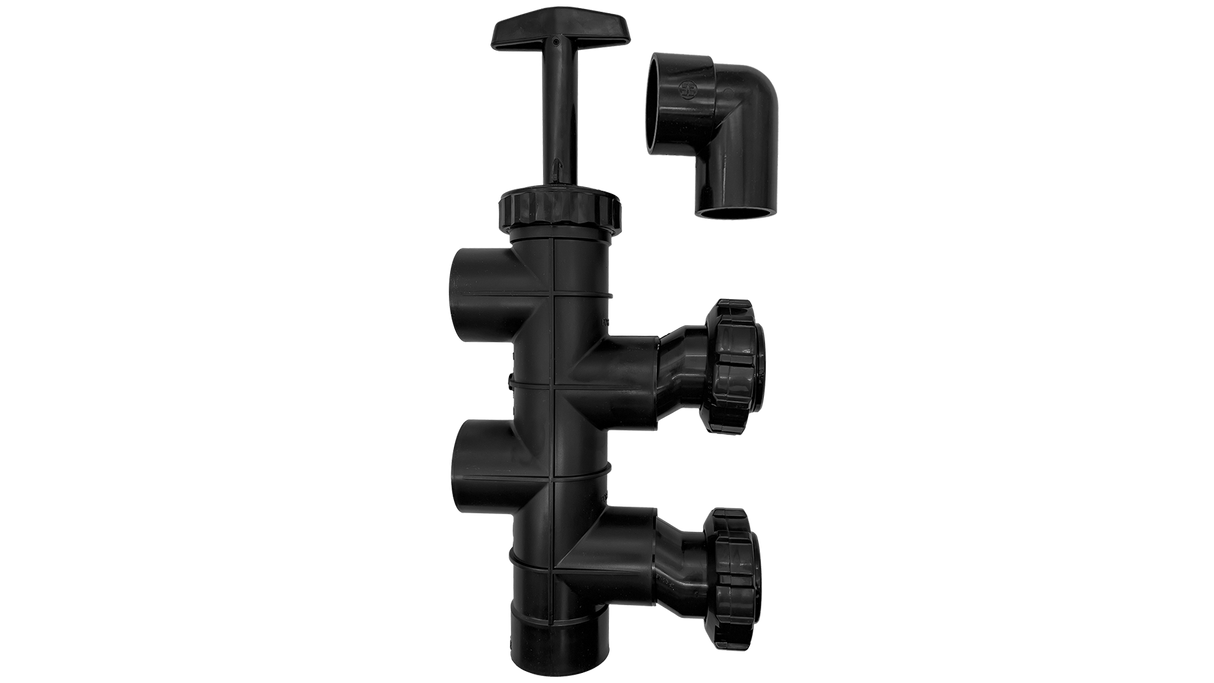

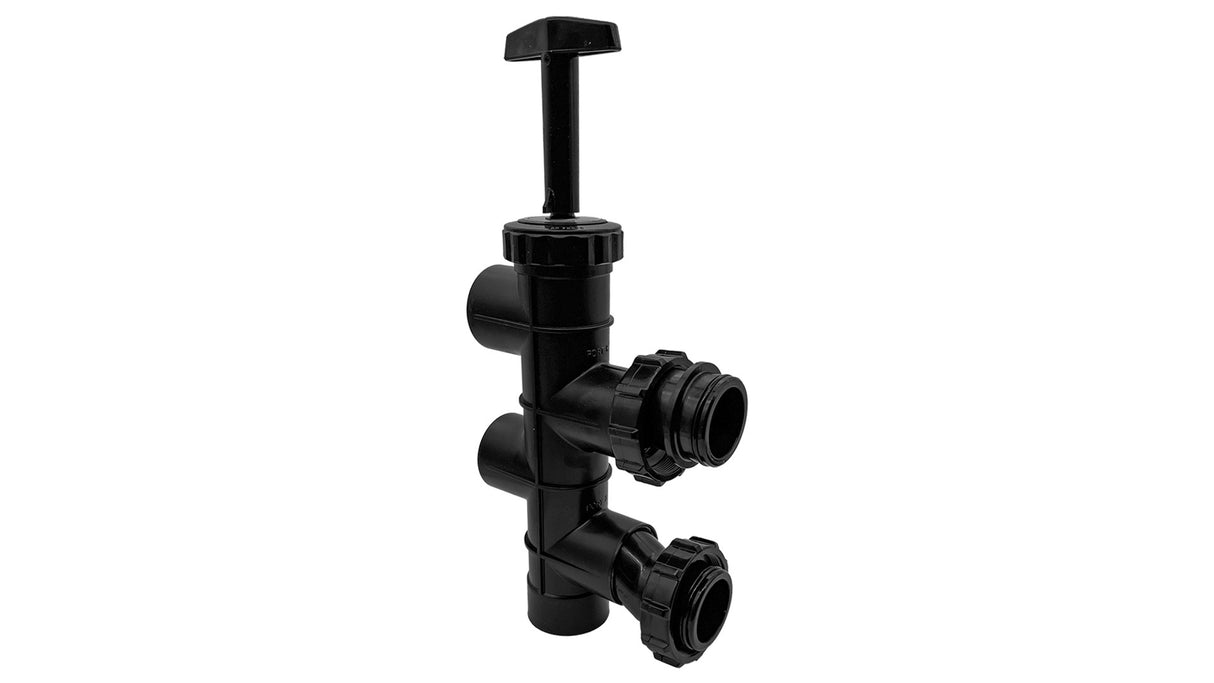

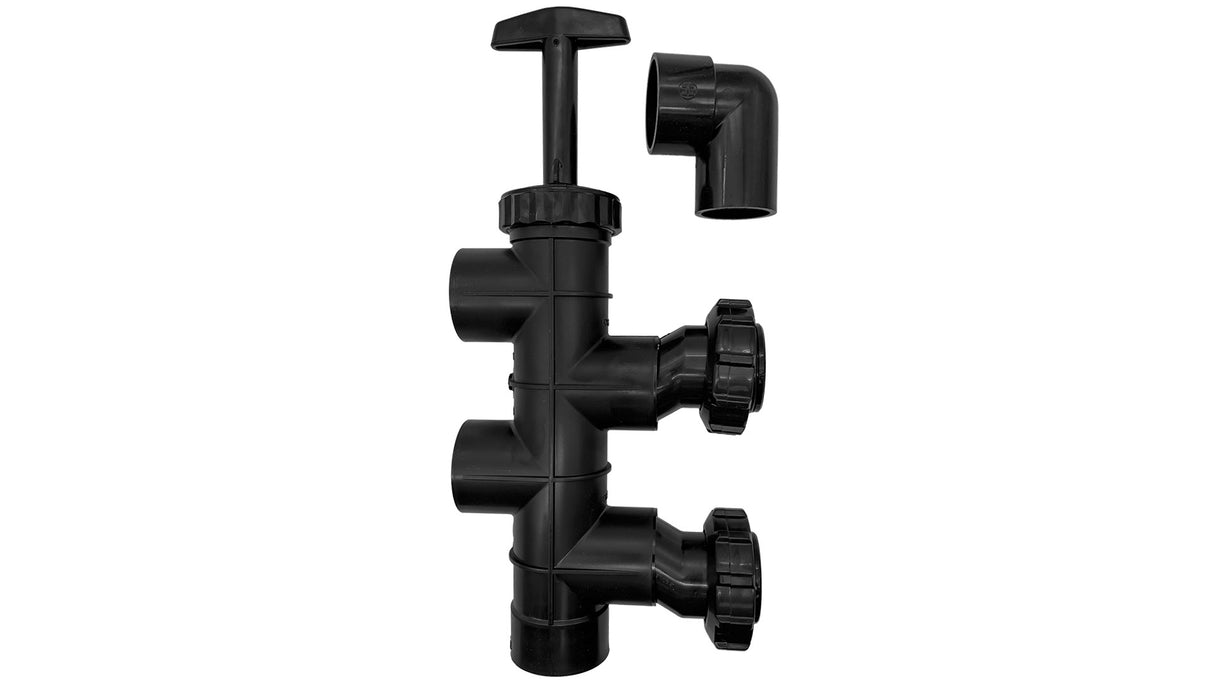

Hayward Slide Valve 2″ Socket – SP0410X602S

2″ socket slide‐valve for Hayward Pro Series side-mount sand filters. Push/pull design, PermaGlass XL body. SKU SP0410X602S.

Features

• 2″ socket‐weld connection ports for side-mount sand filters
• Push/Pull slide valve design for Filter and Backwash positions
• PermaGlass XL™ corrosion‐resistant body for long life
• Designed as a direct replacement for Hayward Pro Series 2″ side‐mount tanks
• Serviceable internals—piston, O-rings, and seals are replaceable

Description

The Hayward Slide Valve 2″ Socket – SP0410X602S delivers a durable, high-quality solution for pool side-mount sand filters. With its 2″ socket-weld ports, the unit installs securely into existing plumbing, while the push/pull slide mechanism simplifies operation between filtering and backwashing. Built from PermaGlass XL™, this valve resists chemical and UV damage, offering long-term reliability. Its internals are designed for serviceability—so you can refresh wear areas like O-rings and pistons without replacing the entire valve.

Pro Tip

Before gluing in the socket connections, remove the internal piston assembly to avoid adhesive residue locking it in place. Lubricate all O-rings with a pool-safe silicone grease before reassembly to ensure smooth operation.

Related Parts

• Hayward Piston Assembly – SPX0410BA
• Hayward O-Ring Kit – SPX0410Z1

Installation Tips

Turn off the pump and relieve system pressure before loosening valve ports. Match the valve orientation to the tank’s plumbing (see mark alignments on valve body). Use only PVC solvent rated for pool use in clean, dry sockets. After curing, reconnect the piping, restore water, and test both the filter and backwash operation. Ensure the handle motion is smooth and sealed before use.
