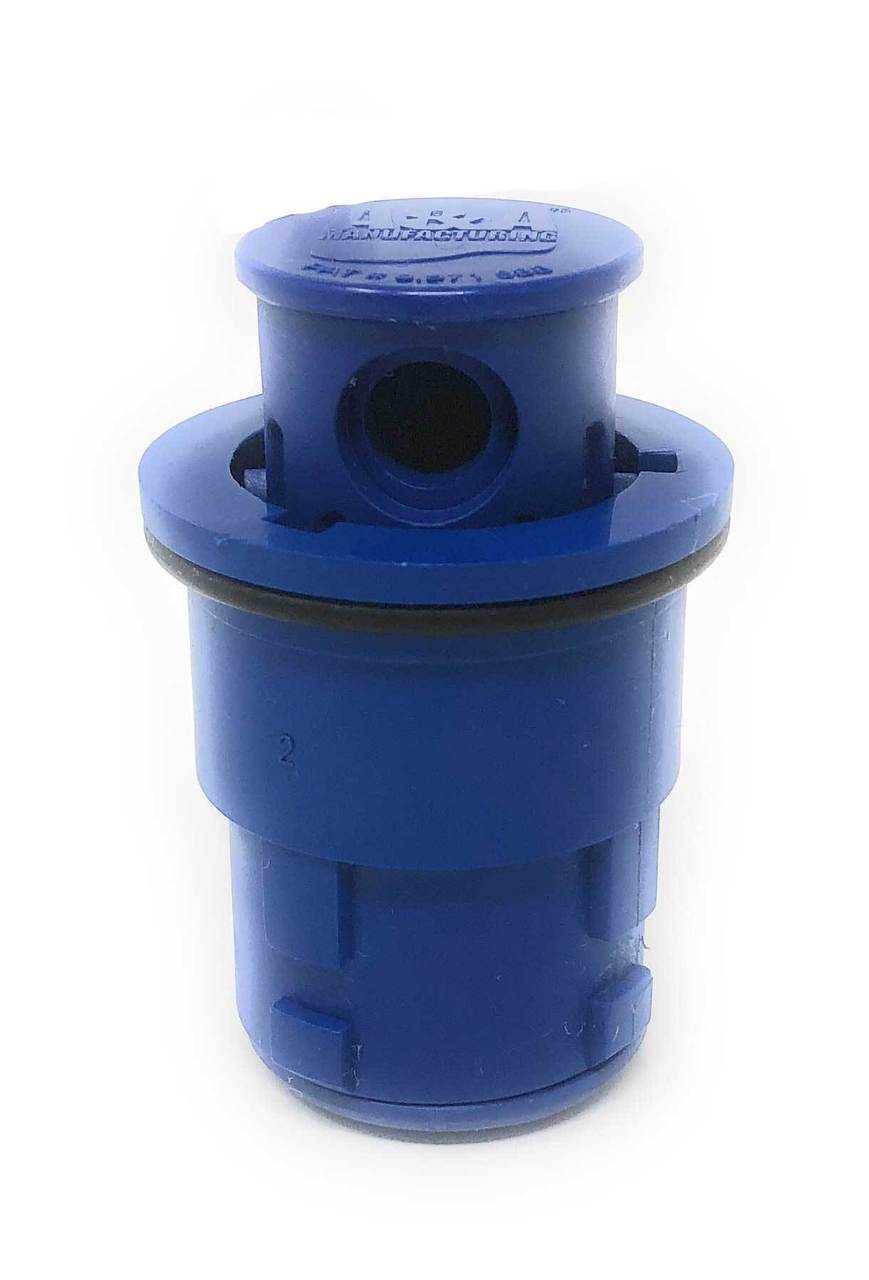

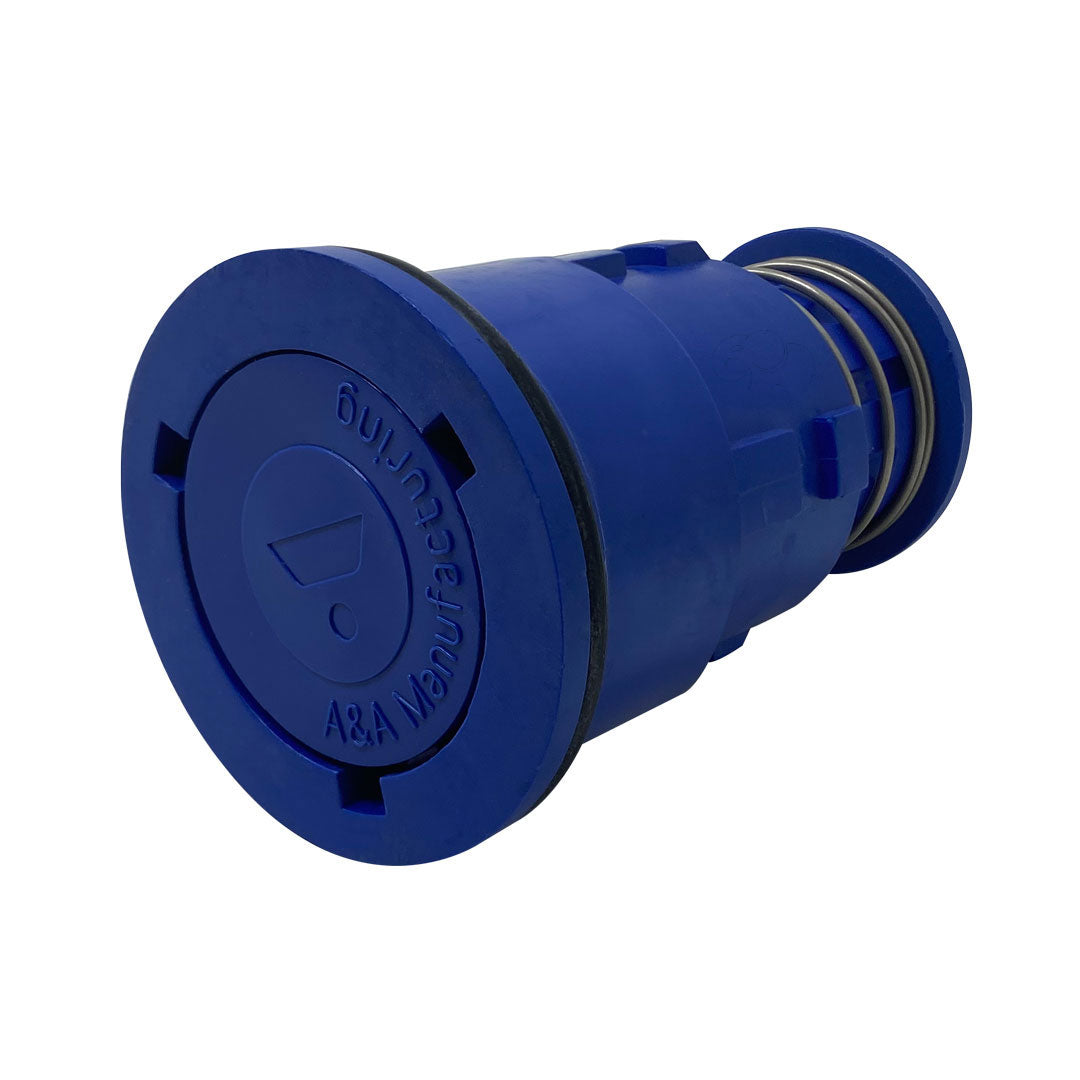

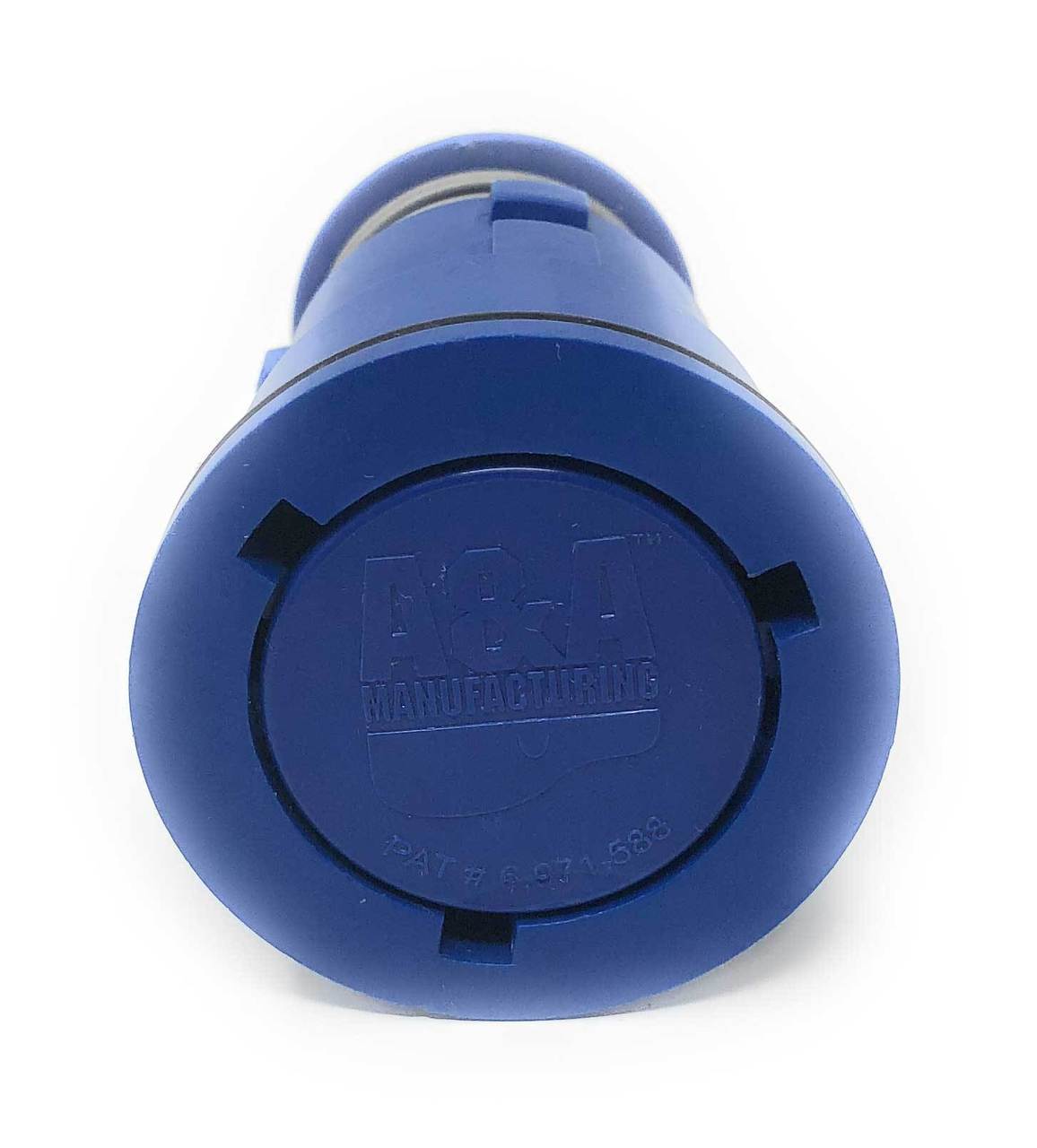

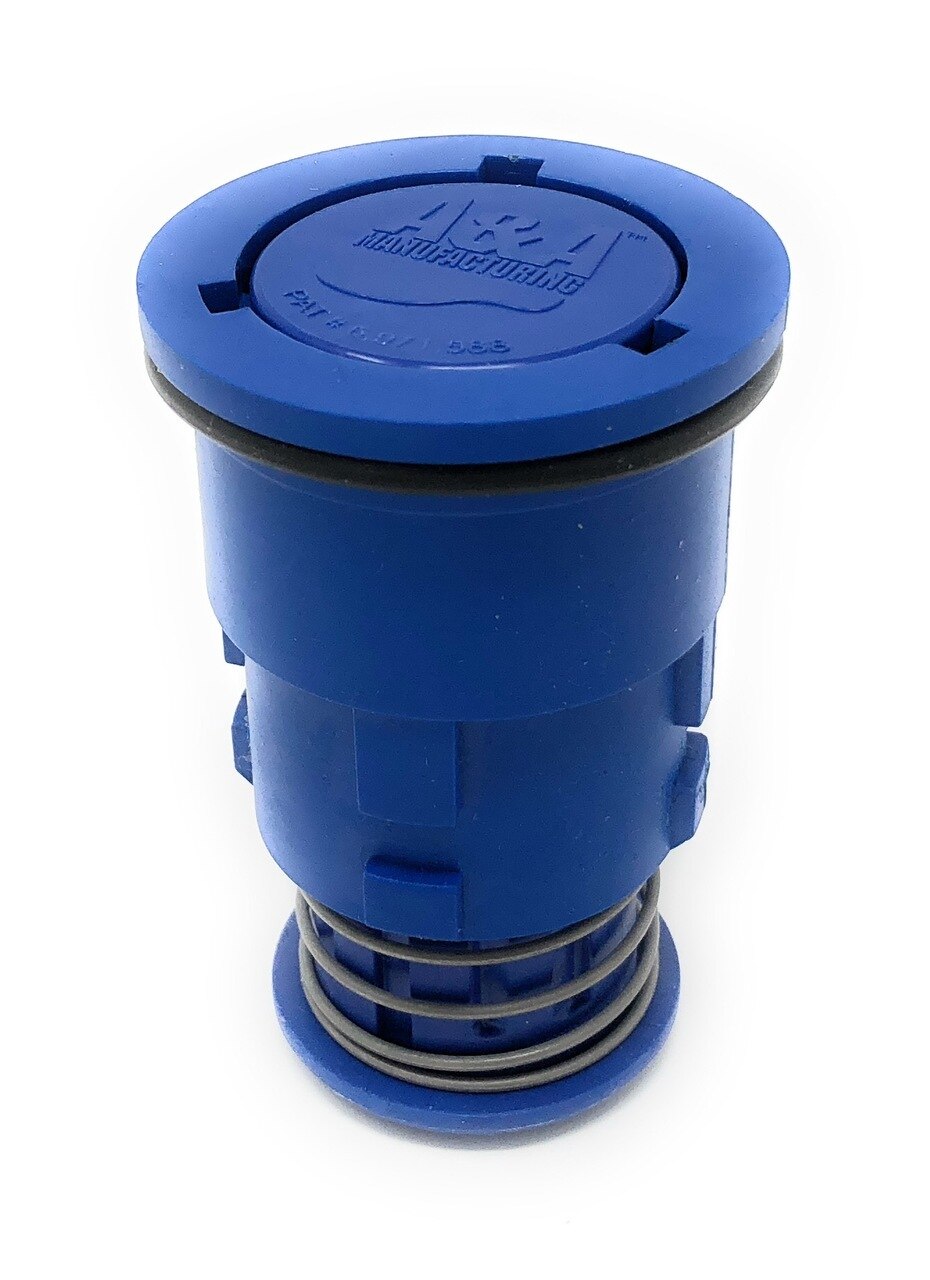

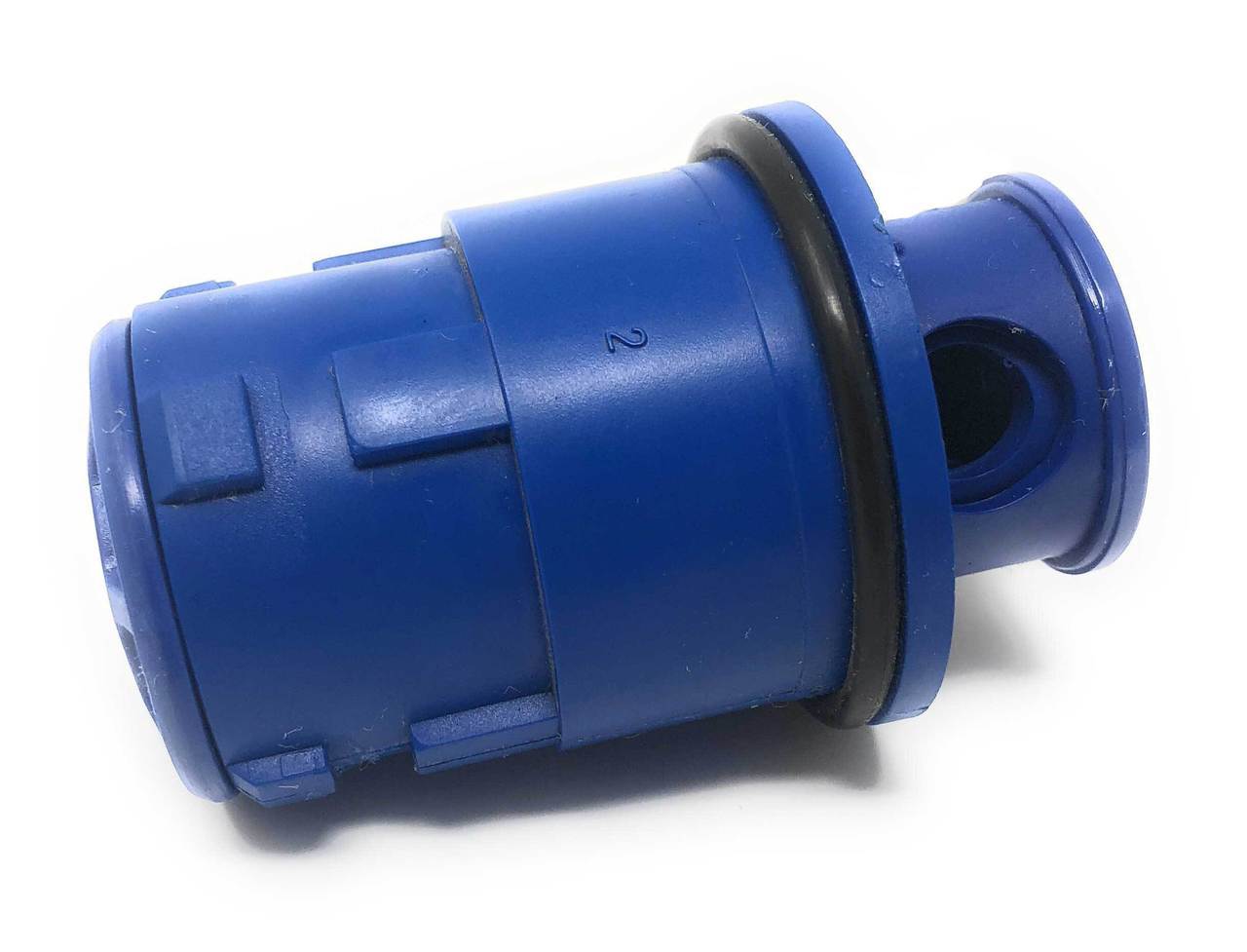

A&A Gamma Series 2 Adjustable Flow Cleaning Head - Dark Blue
The A&A Gamma Series 2 is an upgraded version of the original A&A Style 2. Introduced mid-2012, the Gamma 2 utilizes a bigger locking tab to guarantee a seamless fit into your existing Style 2 Collars. Easily diagnose or install these cleaning heads with the A&A Style 2 Tool. A&A has also made some improvements to the spring which allows the head to pop up fully when the pump is running at lower RPM's; a big plus for anyone who has recently switched over to a Variable Speed pump!

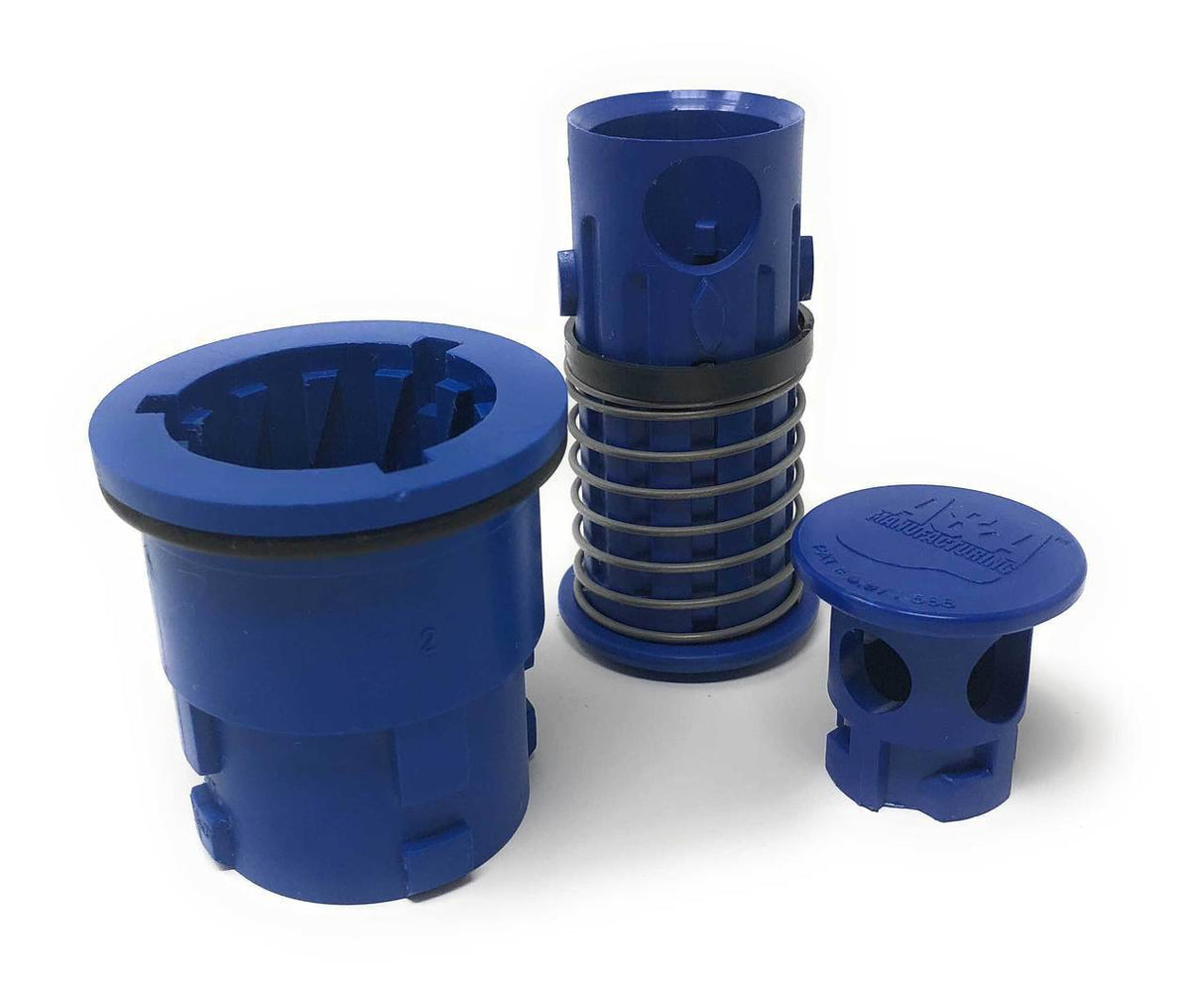

Another new feature on the Gamma Series 2 Standard is the four-in-one Adjustable Nozzle which eliminates the need to choose between High Flow and Low Flow. Be sure to check out our instructional video above!
The flow rates are as follows:
- 1/4" Orifice rated at 6 GPM
- 3/8" Orifice rated at 12 GPM (This is the same size as the original "Low Flow")
- 7/16" Orifice rated at 18 GPM (This is the same size as the original "High Flow")
- 9/16" Orifice rated at 30 GPM
A&A has also released a Venturi version of the Gamma Series 2 which uses pinholes on the top of the head to draw in extra water and add a cleaning boost for those hard-to-reach areas. The Venturi option does not feature the Adjustable Nozzle however, they are suitable for any application in the pool. Click here to view the A&A Gamma 2 Venturi in Dark Blue.
Poolinfloor Troubleshooting Tip:
If the cleaning head keeps dislodging itself from the floor fitting, try 1 wrap of electrical tape around the locking tabs on the pop up to help it grip the collar better.
Click the VIDEOS tab ABOVE for assistance in identifying your A&A cleaning heads!
We have a wonderful video going over the A&A Style 2 and Updated Gamma 2 found HERE
Check out our A&A Manufacturing Playlist on YouTube HERE
