Gamma Series 4 Complete Pop-Up Head (Light Gray) - Pentair In-Floor(A&A)
Old Part# 567701
A&A Manufacturing is now Pentair In-Floor Cleaning & Circulation!

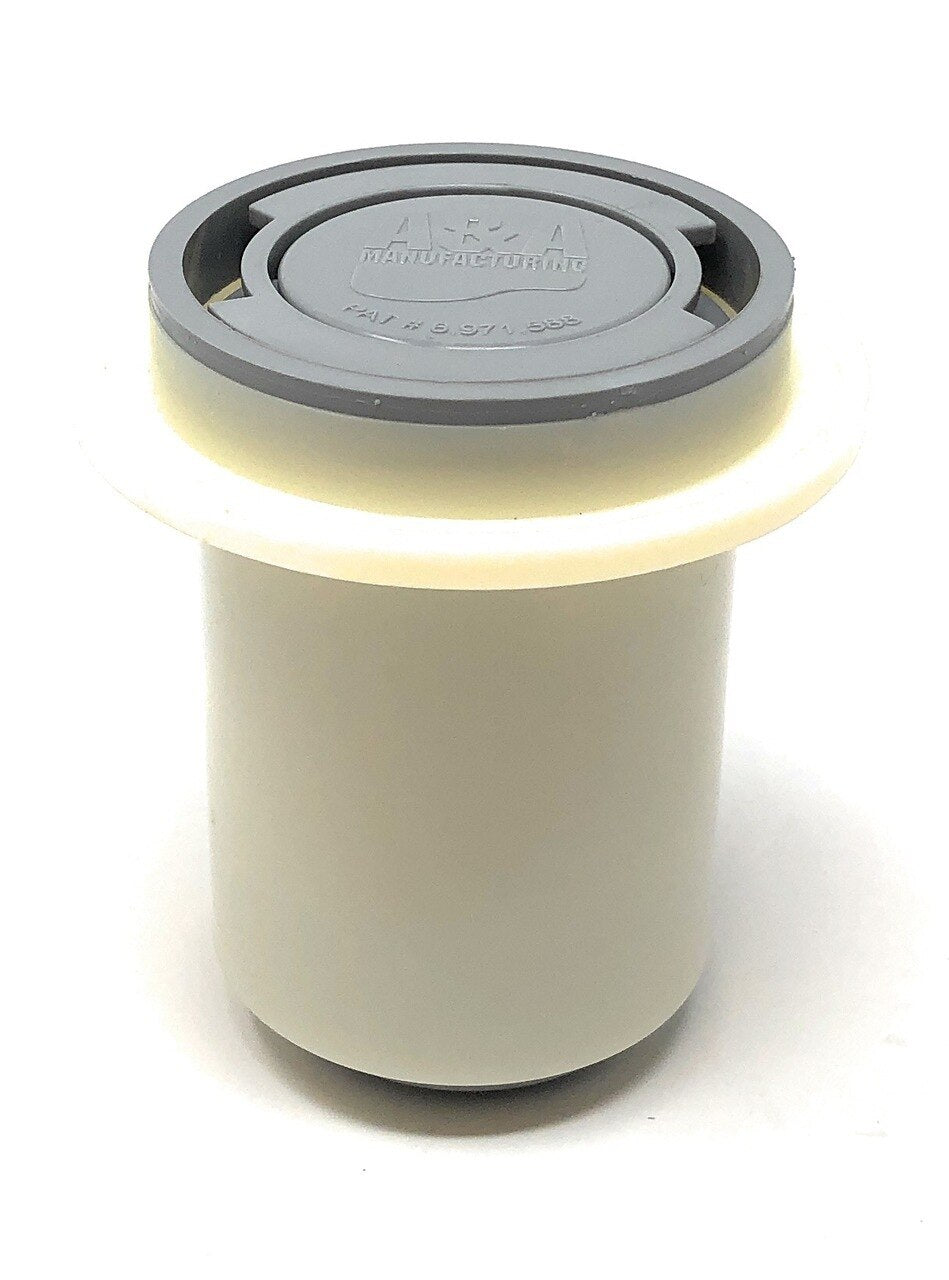

This unit is meant for new construction and remodel purposes. The complete cleaning head includes:

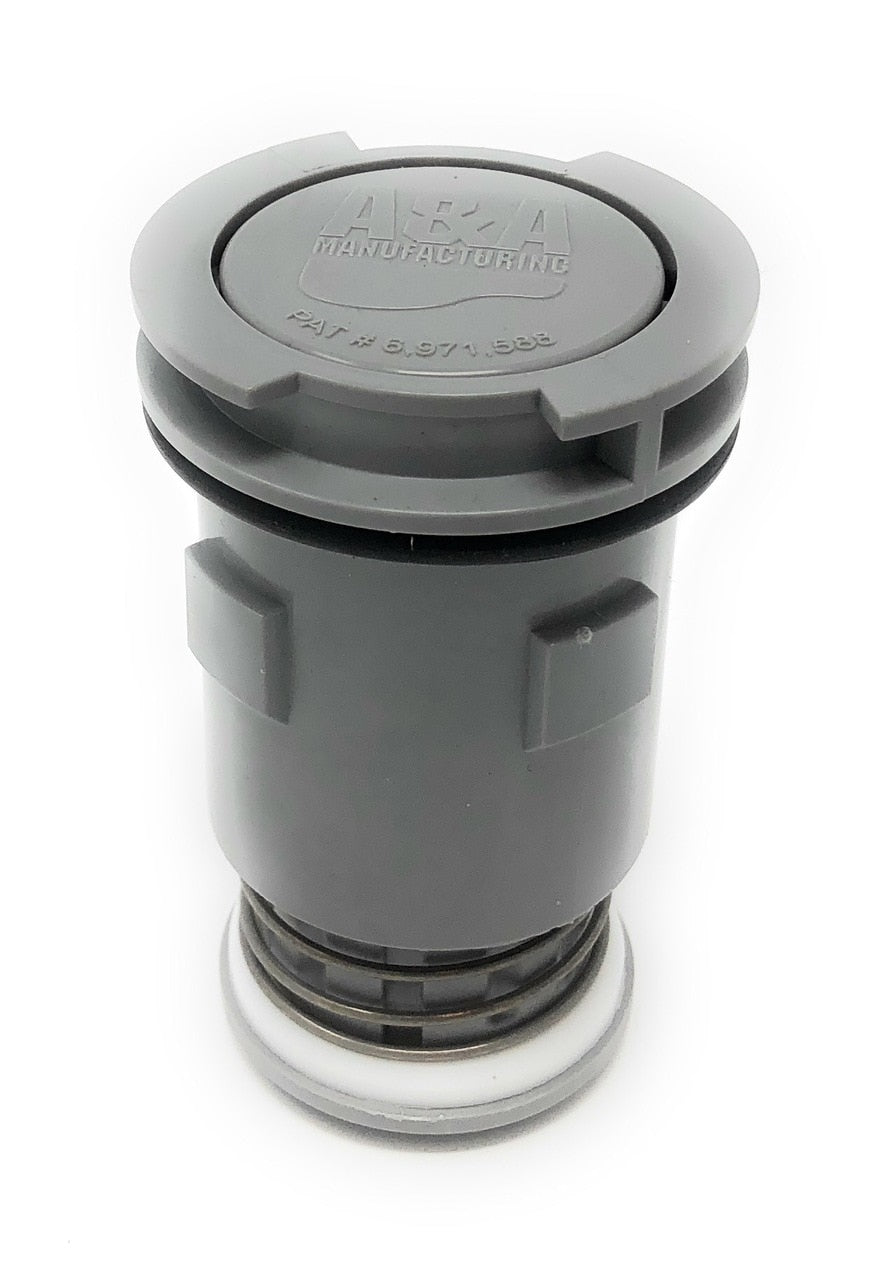

- Gamma 4 Adjustable Flow Pop-Up Head in Light Gray

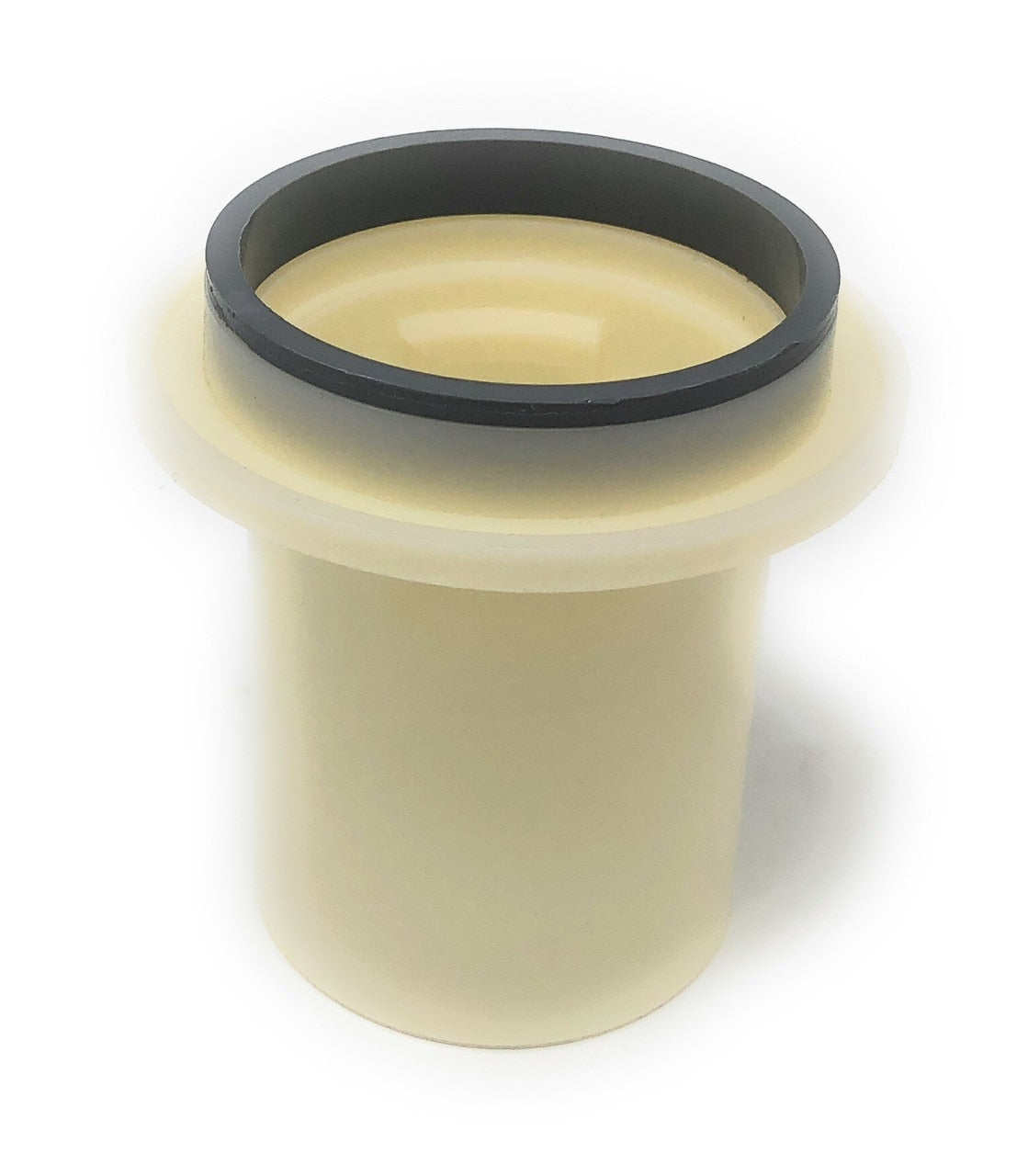

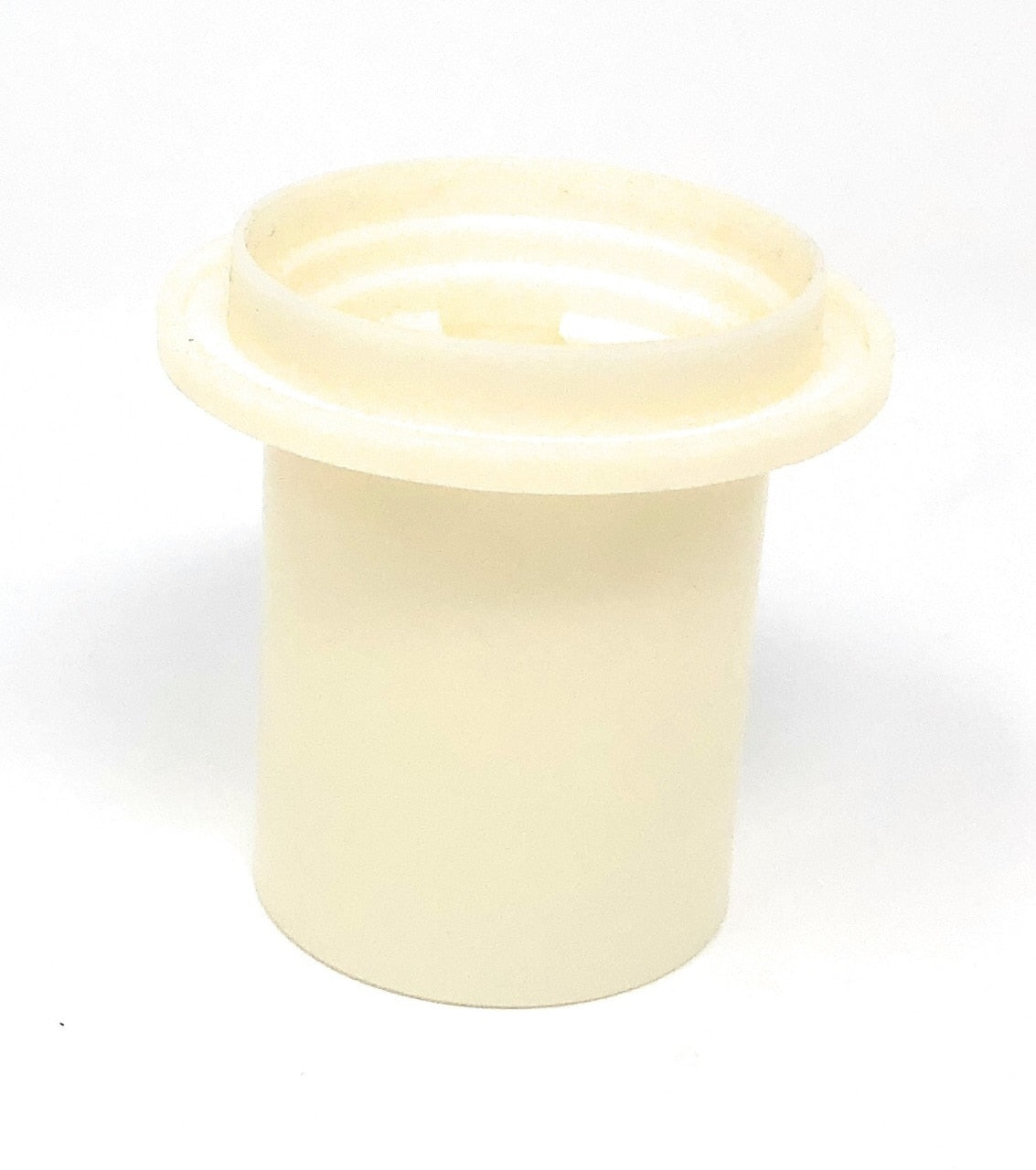

- Gamma 4 Collar

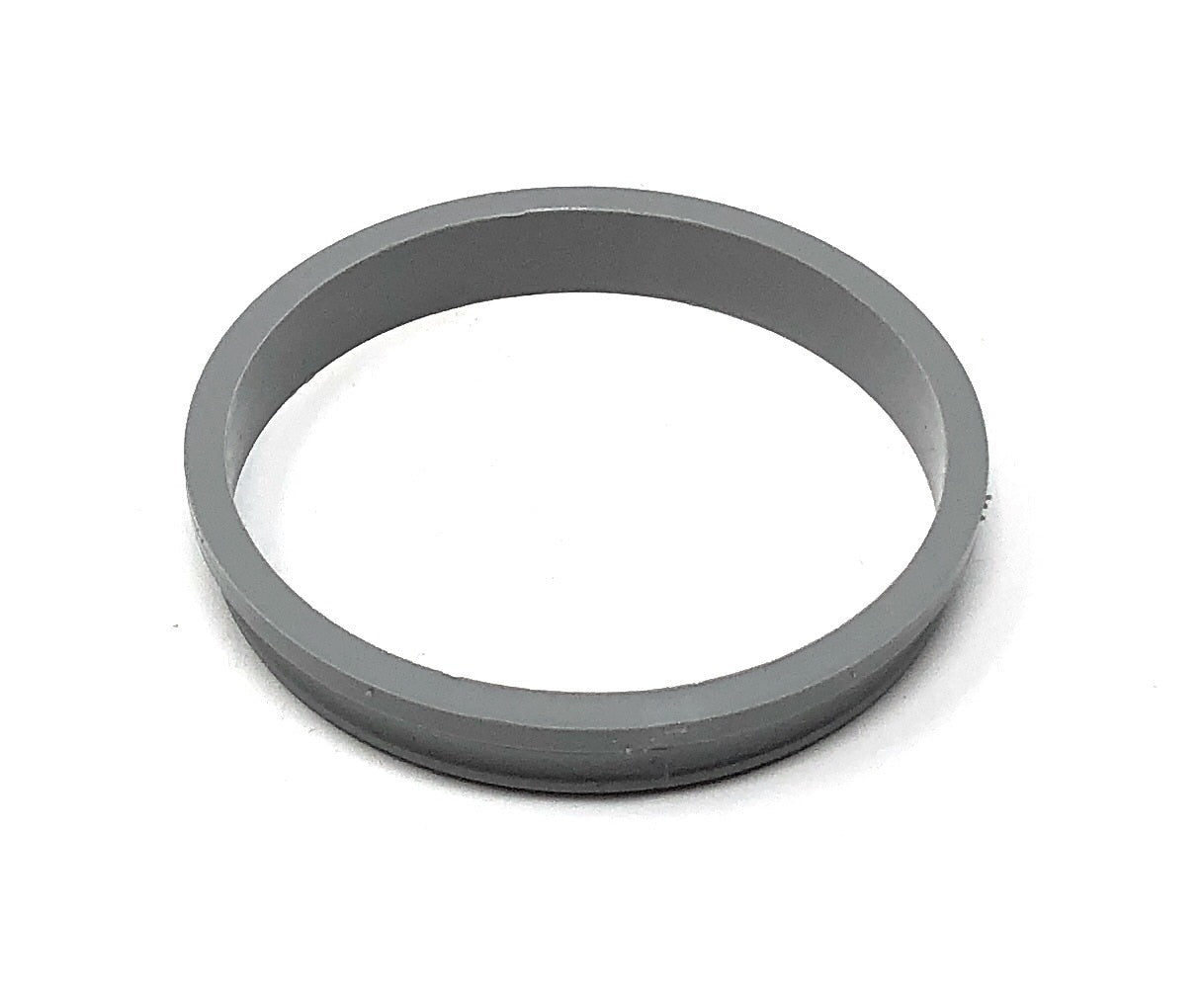

- Matching Color Ring

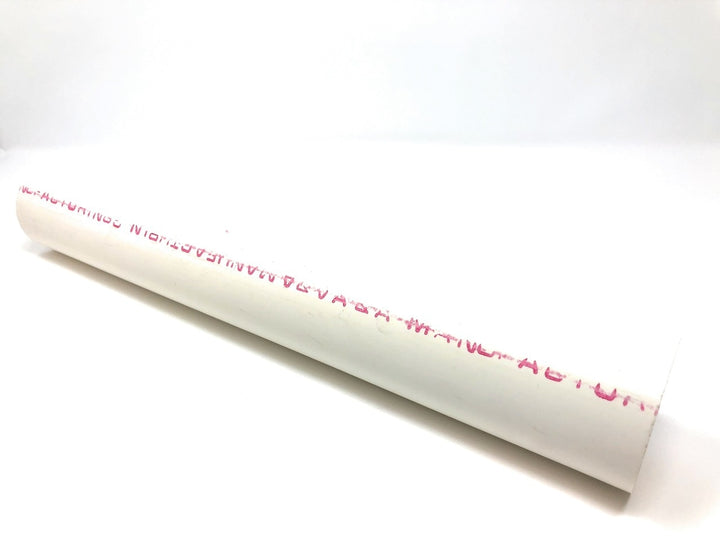

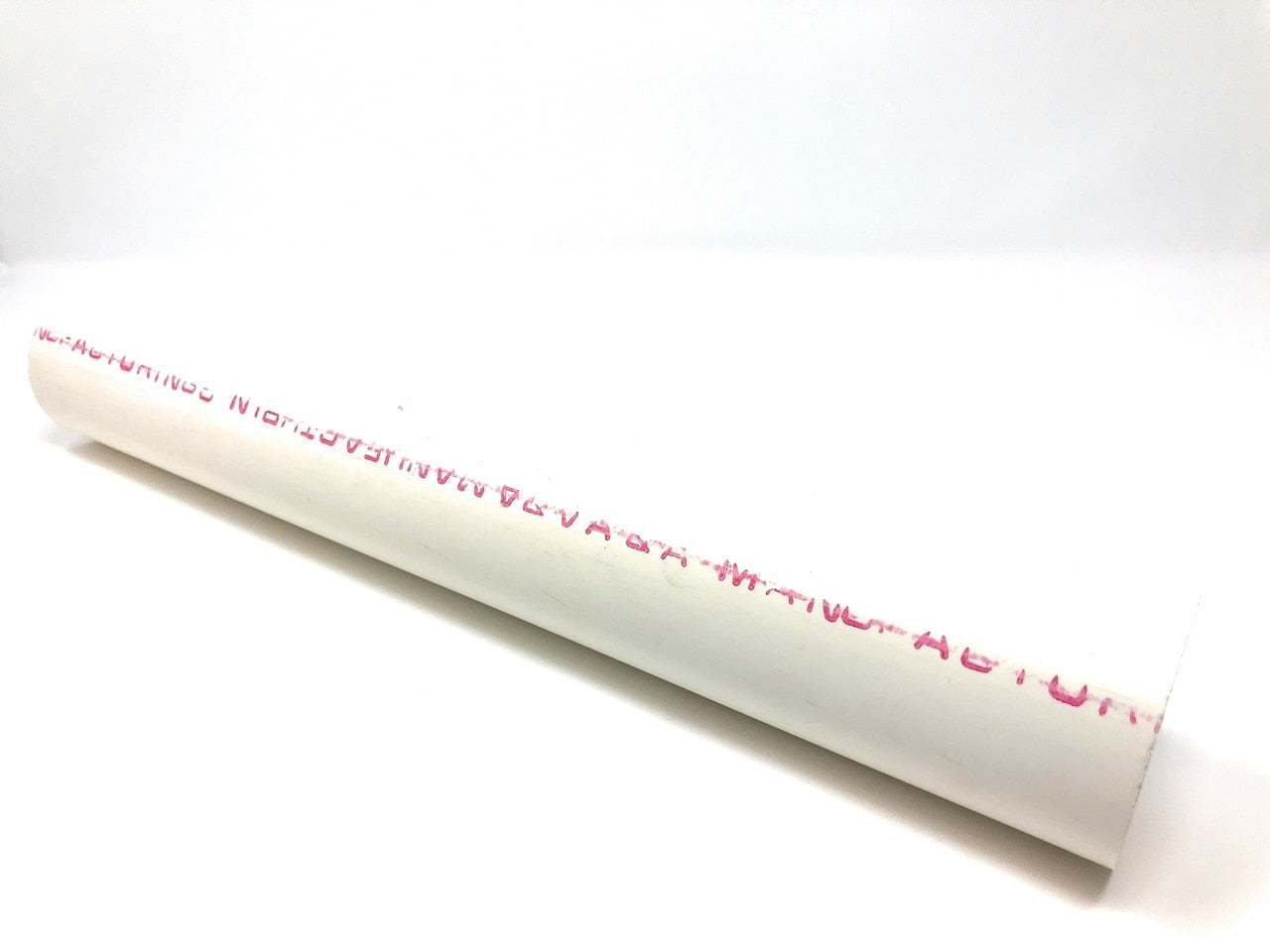

- 2" Pre-Reamed Riser Pipe
The Gamma Series 4 is an upgraded version of the Gamma Series 3. Introduced mid-2012, the Gamma 4 utilizes a bigger locking tab to help increase locking strength. Easily diagnose or install these cleaning heads with one of the Gamma 4 Installation tools. We offer the tools in a Plastic and also a Metal version. When dealing with older heads that may be stuck in their fittings, we always recommend the Metal Tool. Pentair In-Floor(A&A) has also made some improvements to the spring which allows the head to pop up fully when the pump is running at lower RPM's; a big plus for anyone who has recently switched over to a Variable Speed pump!
Another new feature on the Gamma Series 4 is the four-in-one Adjustable Nozzle which eliminates the need to choose between High Flow and Low Flow. Be sure to check out our instructional video above!
The flow rates are as follows:
- 1/4" Orifice rated at 6 GPM
- 3/8" Orifice rated at 12 GPM (This is the same size as the original "Low Flow")
- 7/16" Orifice rated at 18 GPM (This is the same size as the original "High Flow")
- 9/16" Orifice rated at 30 GPM
Pentair In-Floor(A&A) has also released a Venturi version of the Gamma Series 4 which uses pinholes on the top of the head to draw in extra water and add a cleaning boost for those hard-to-reach areas. The Venturi option does not feature the Adjustable Nozzle however, they are suitable for any application in the pool. Click here to view the Gamma Series 4 Venturi Cleaning Head in Light Gray.
ePoolSupply Troubleshooting Tip:
If the cleaning head keeps dislodging itself from the floor fitting, try 1 wrap of electrical tape around the locking tabs on the pop up to help it grip the collar better.
Click the VIDEOS tab ABOVE for assistance in identifying your Pentair In-Floor(A&A) cleaning heads!
We have a wonderful video going over the Gamma 4 and Gamma 4 Venturi found HERE
Check out our Pentair In-Floor(A&A) Playlist on YouTube HERE
