Gamma Series 4 Complete Pop-Up Head (Tan) - Pentair In-Floor(A&A)
Old SKU - 565491
A&A Manufacturing is now Pentair In-Floor Cleaning & Circulation!

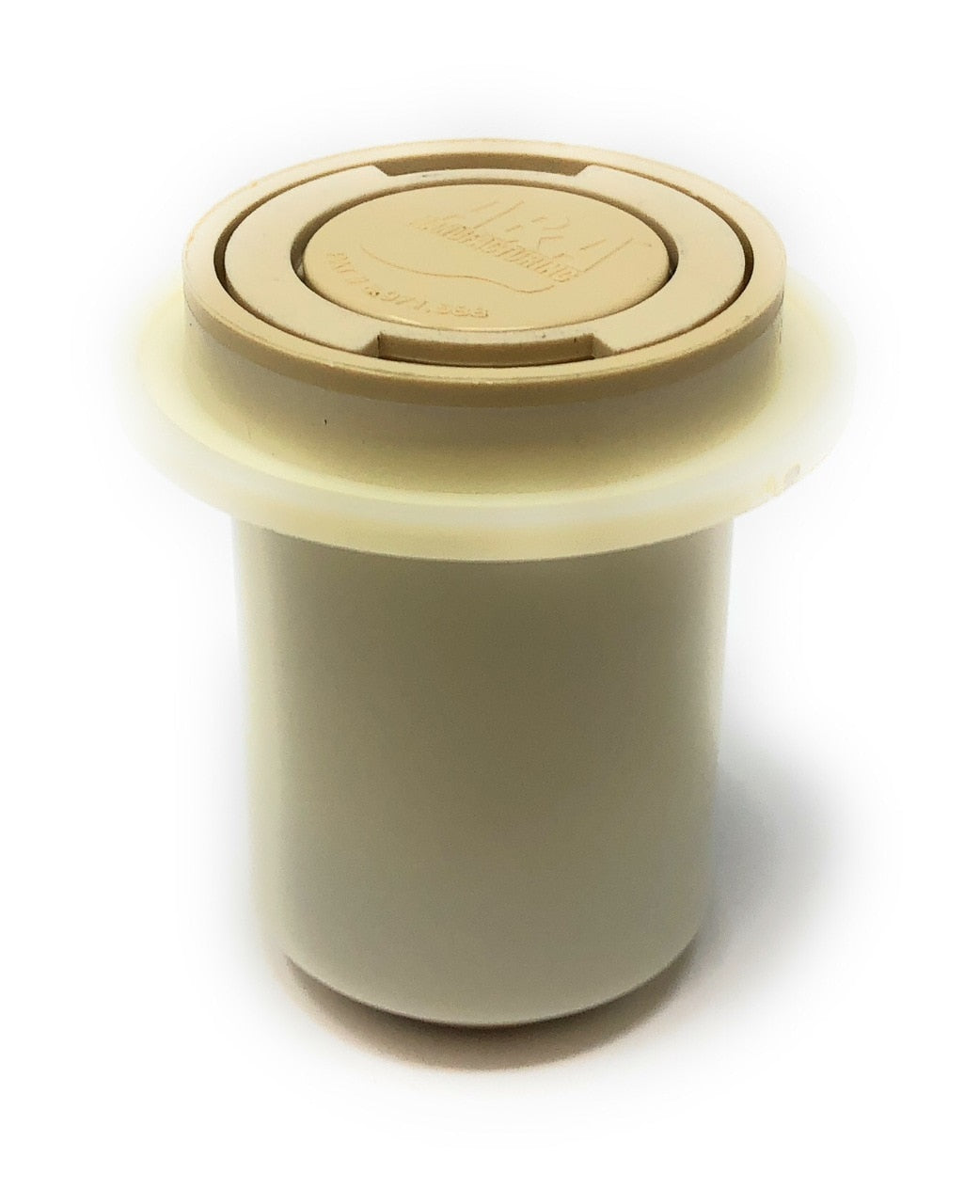

This unit is meant for new construction and remodeling purposes. The complete cleaning head includes:

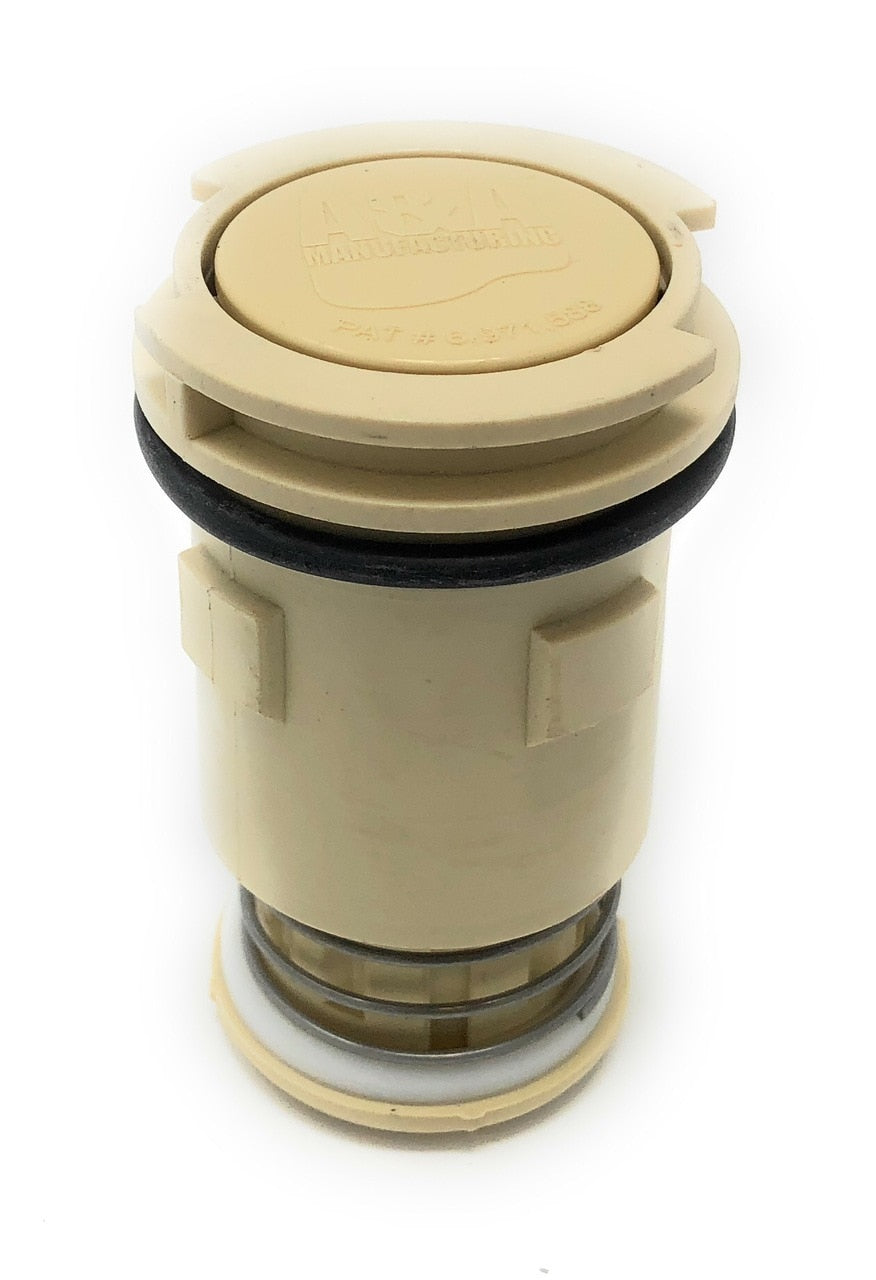

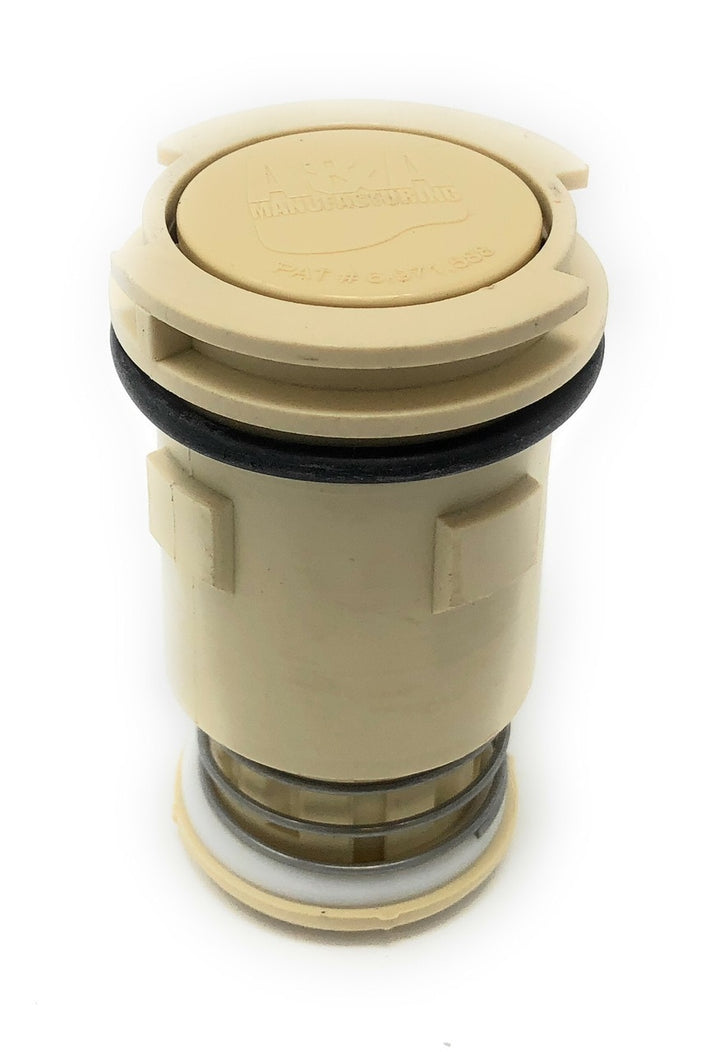

- Gamma 4 Adjustable Flow Pop-Up Head in Tan

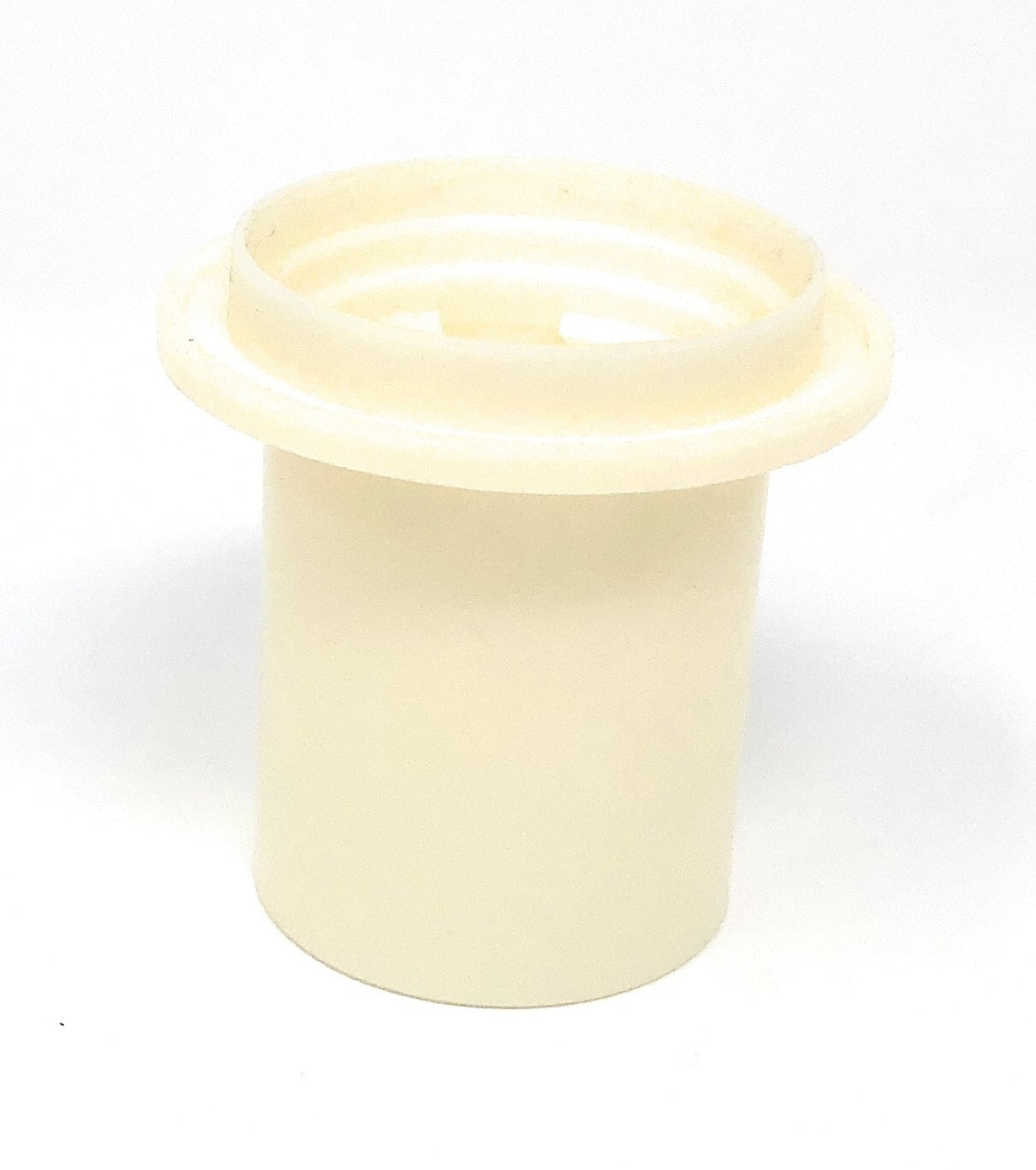

- Gamma 4 Collar

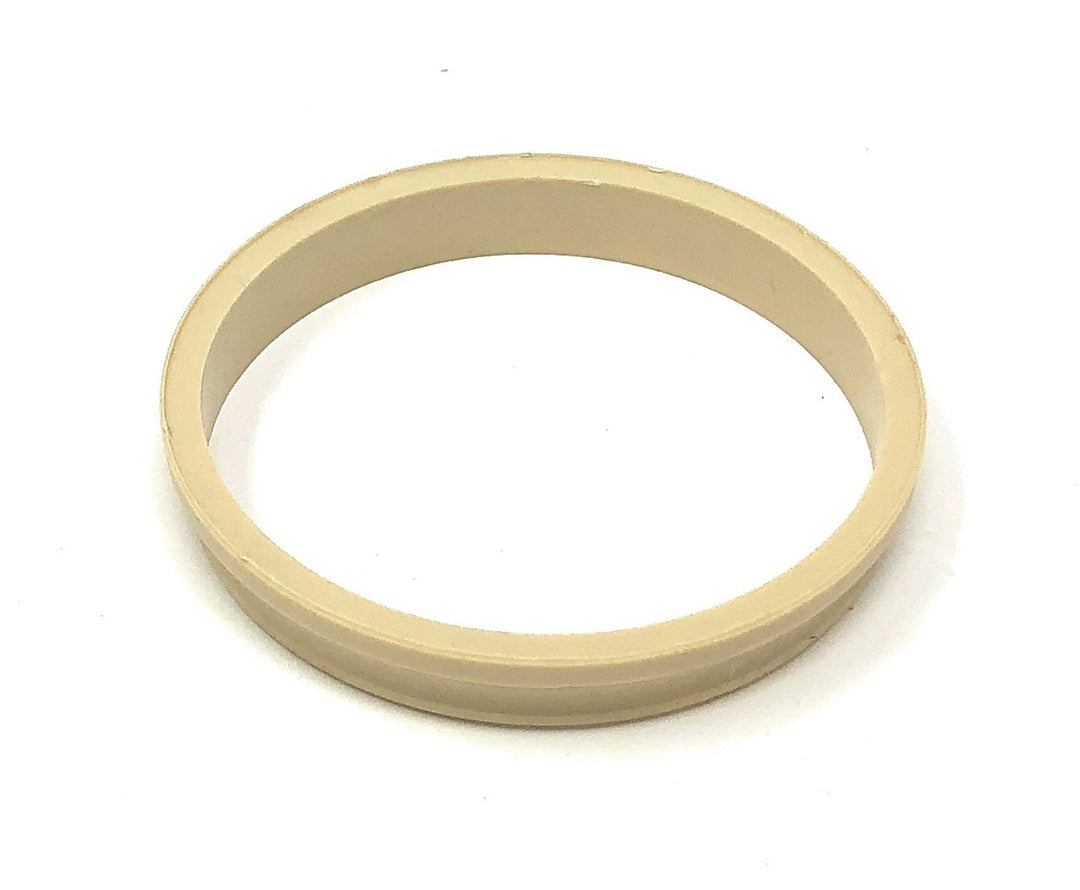

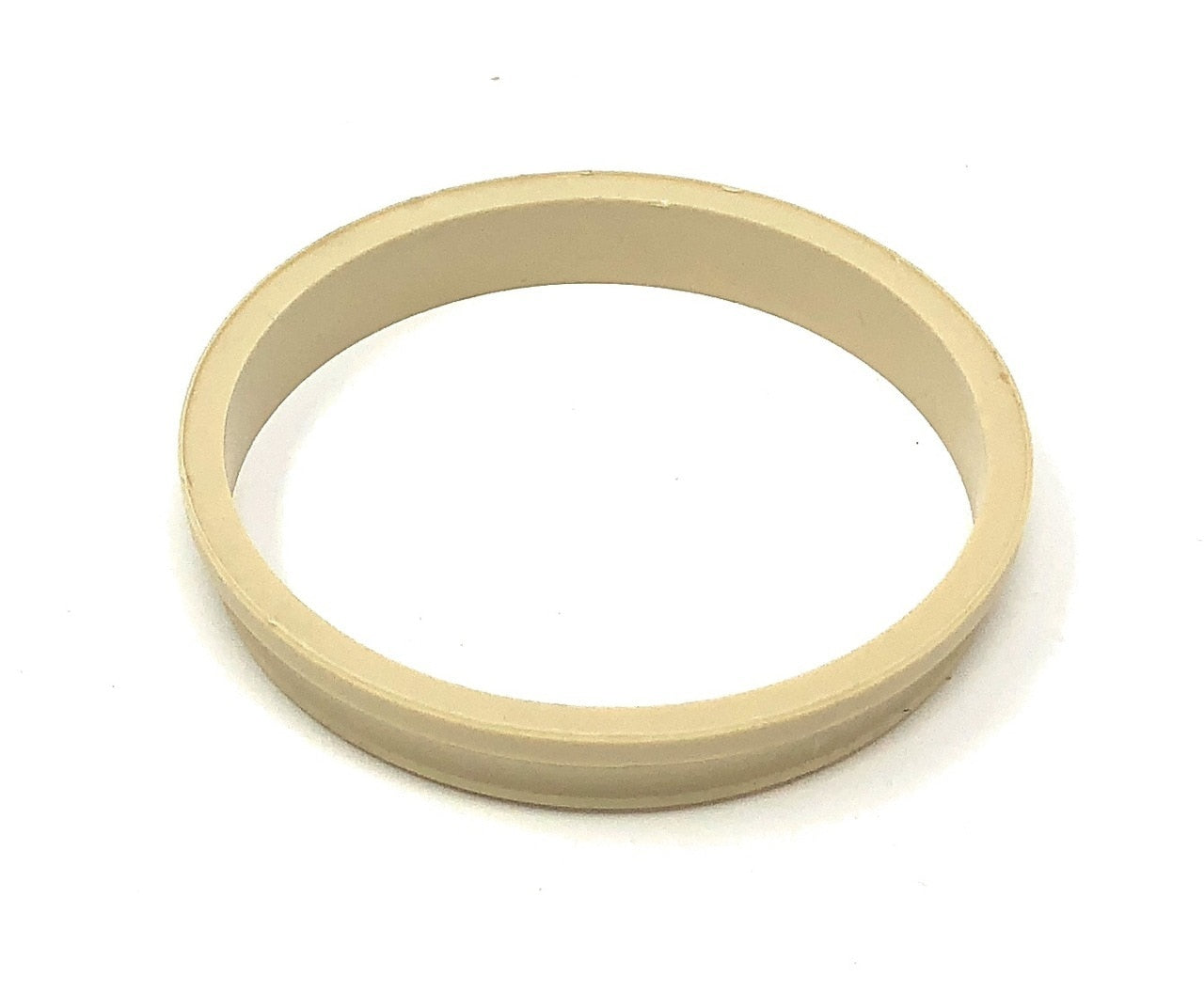

- Matching Color Ring

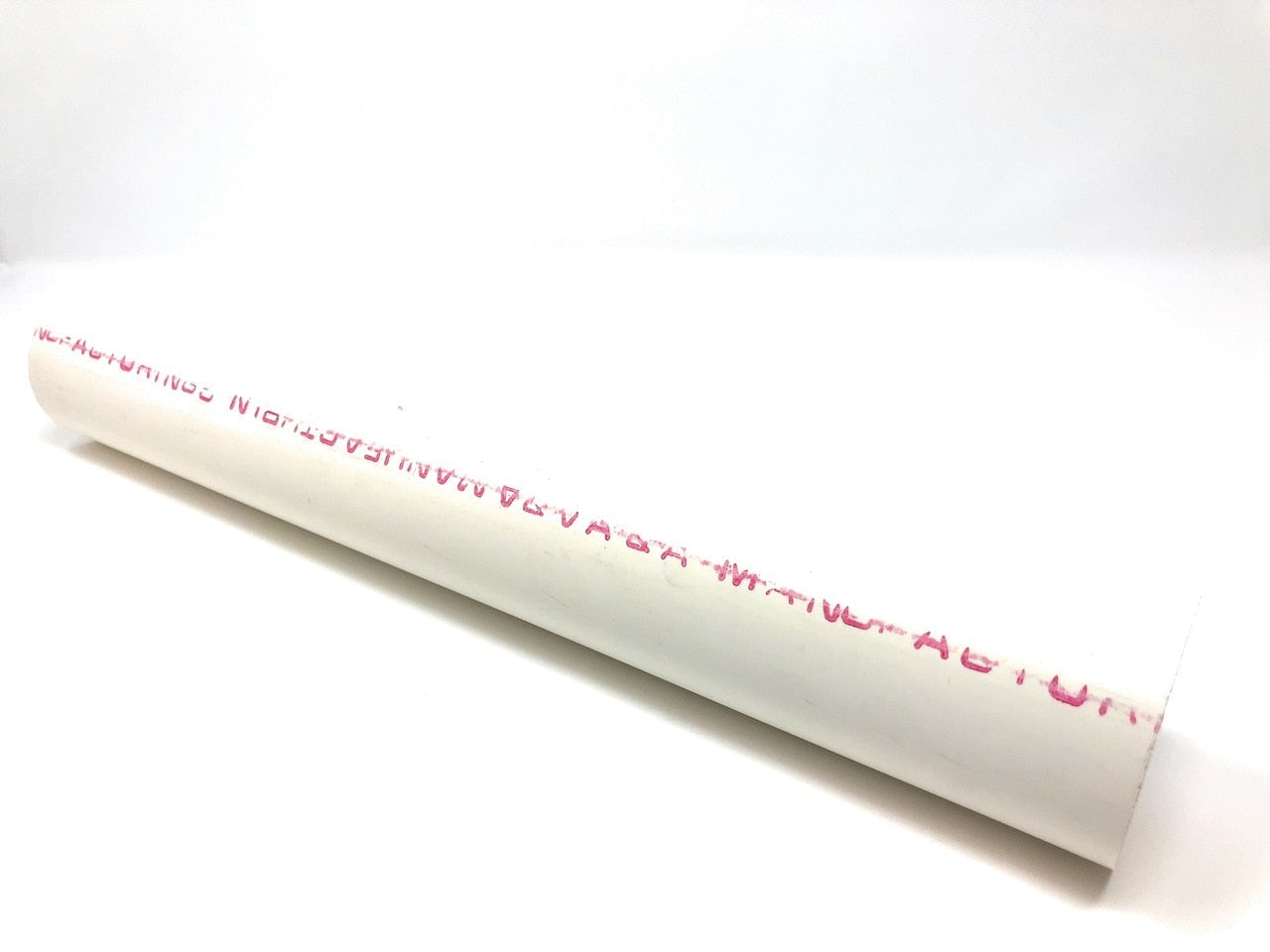

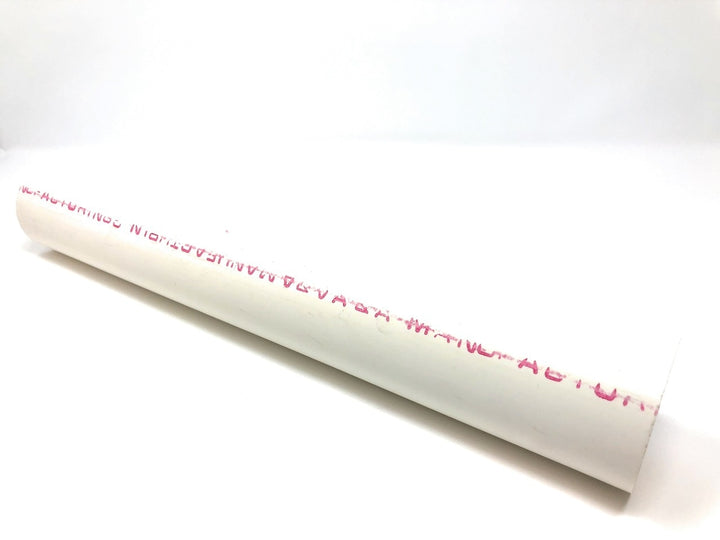

- 2" Pre-Reamed Riser Pipe
The Gamma Series 4 is an upgraded version of the Gamma Series 3. Introduced in mid-2012, the Gamma 4 utilizes a bigger locking tab to help increase locking strength. Easily diagnose or install these cleaning heads with one of the Gamma 4 Installation tools. We offer the tools in a Plastic and also a Metal version. When dealing with older heads that may be stuck in their fittings, we always recommend the Metal Tool. Pentair In-Floor(A&A) has also made some improvements to the spring which allows the head to pop up fully when the pump is running at lower RPMs; a big plus for anyone who has recently switched over to a Variable Speed pump!
Another new feature on the Gamma Series 4 is the four-in-one Adjustable Nozzle which eliminates the need to choose between High Flow and Low Flow. Be sure to check out our instructional video above!
The flow rates are as follows:
- 1/4" Orifice rated at 6 GPM
- 3/8" Orifice rated at 12 GPM (This is the same size as the original "Low Flow")
- 7/16" Orifice rated at 18 GPM (This is the same size as the original "High Flow")
- 9/16" Orifice rated at 30 GPM
Pentair In-Floor(A&A) has also released a Venturi version of the Gamma Series 4 which uses pinholes on the top of the head to draw in extra water and add a cleaning boost for those hard-to-reach areas. The Venturi option does not feature the Adjustable Nozzle however, they are suitable for any application in the pool. Click here to view the Gamma Series 4 Venturi Cleaning Head in Tan.
ePoolSupply Troubleshooting Tip:
If the cleaning head keeps dislodging itself from the floor fitting, try 1 wrap of electrical tape around the locking tabs on the pop-up to help it grip the collar better.
Click the VIDEOS tab ABOVE for assistance in identifying your Pentair In-Floor(A&A) cleaning heads!
We have a wonderful video going over the Gamma 4 and Gamma 4 Venturi found HERE
Check out our Pentair In-Floor(A&A) Playlist on YouTube HERE
