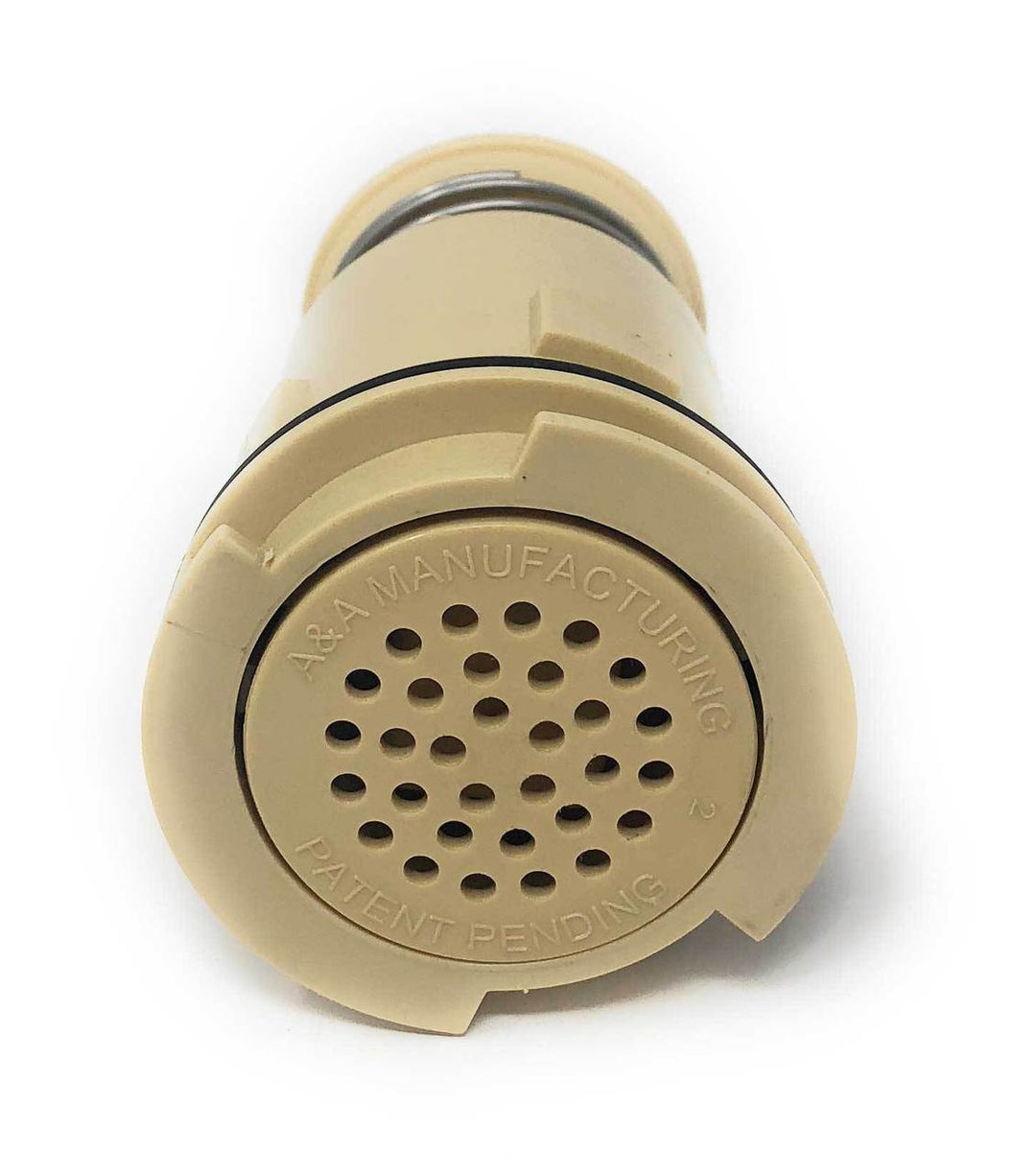

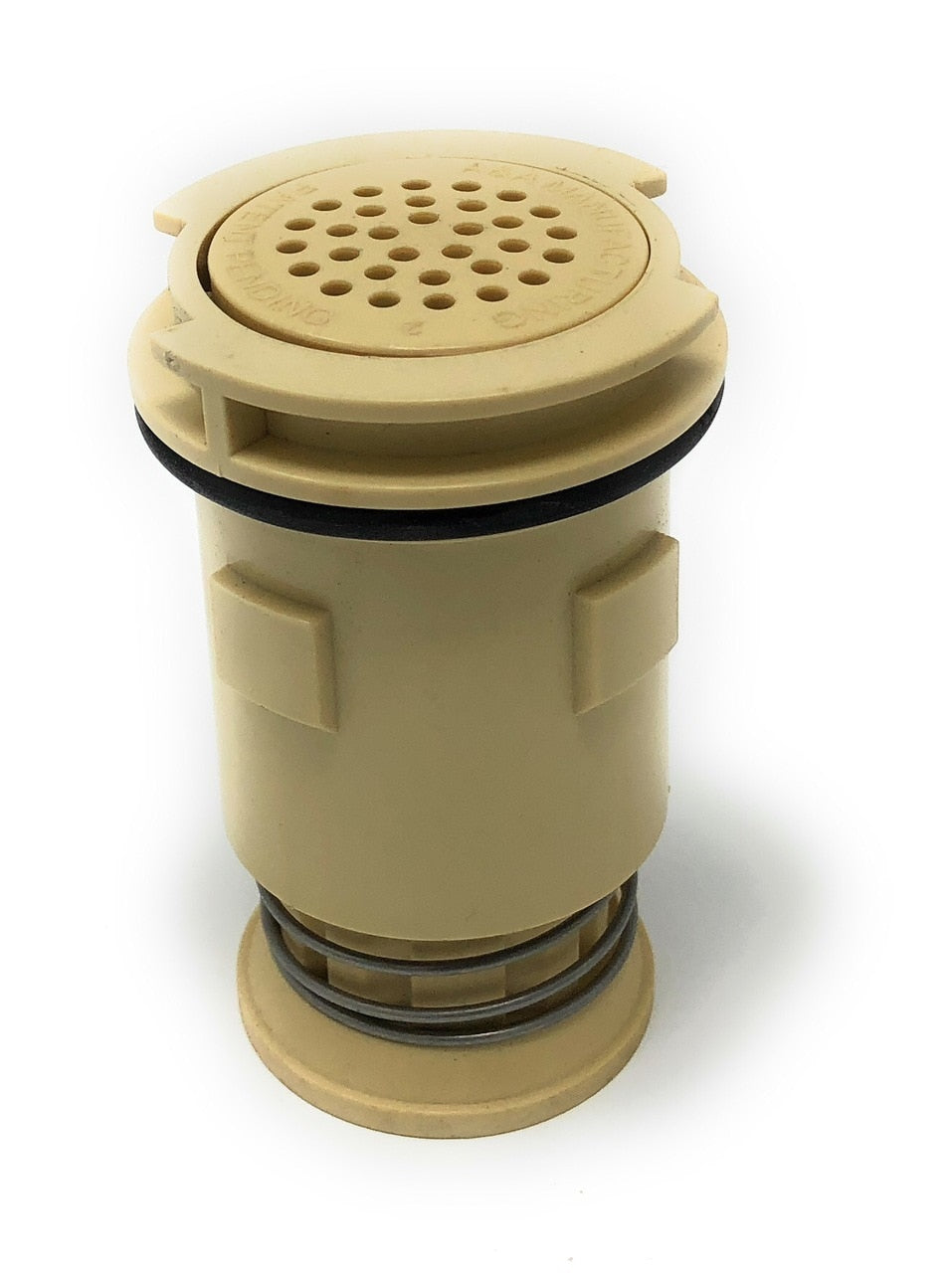

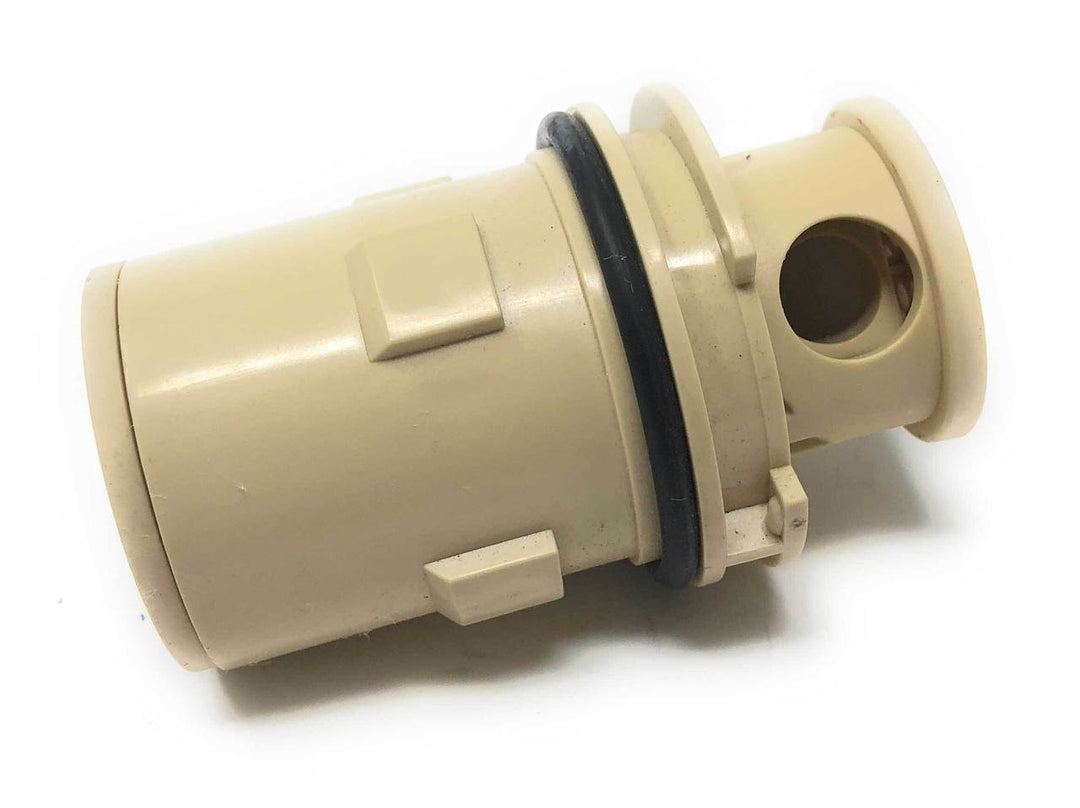

Gamma Series 4 Venturi Pop-Up Head (Tan) - Pentair In-Floor(A&A)

Old SKU - 565562

A&A Manufacturing is now Pentair In-Floor Cleaning & Circulation!

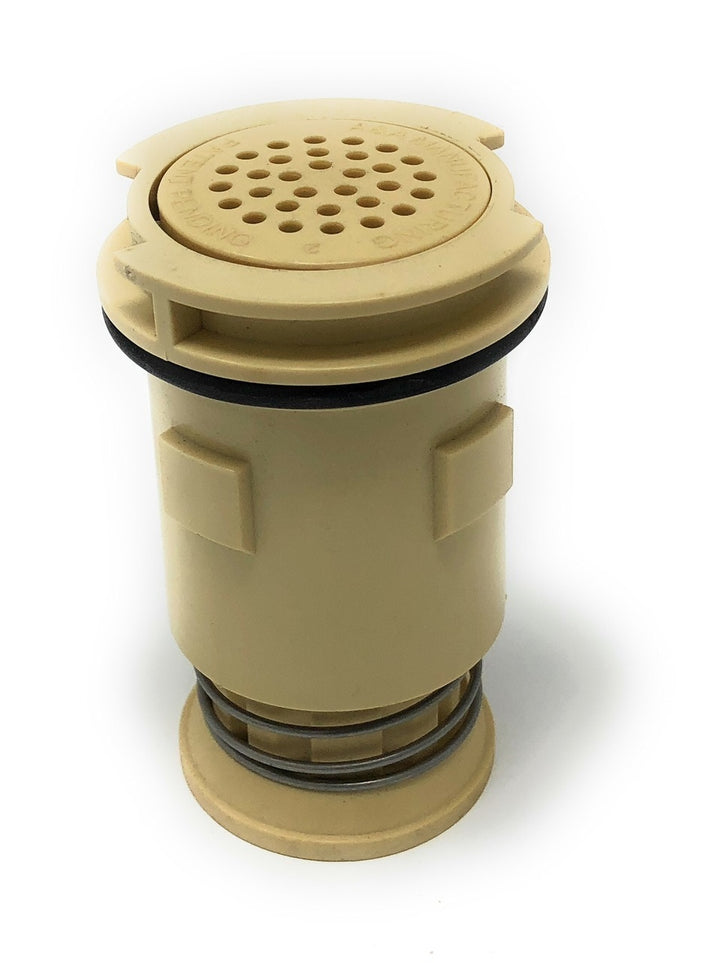

The A&A Gamma Series 4 Venturi is an upgraded version of the original  Gamma 4. Introduced in mid-2012, the Gamma 4 utilizes a bigger locking tab to guarantee a seamless fit into your existing Gamma 4 Collars. Easily diagnose or install these cleaning heads with either the Plastic Gamma 4 Tool or the Metal Gamma 4 Tool. When dealing with older heads that may be stuck in their fittings, we always recommend the Metal Tool. Pentair In-Floor(A&A) has also made some improvements to the spring which allows the head to pop up fully when the pump is running at lower RPMs; a big plus for anyone who has recently switched over to a Variable Speed pump!

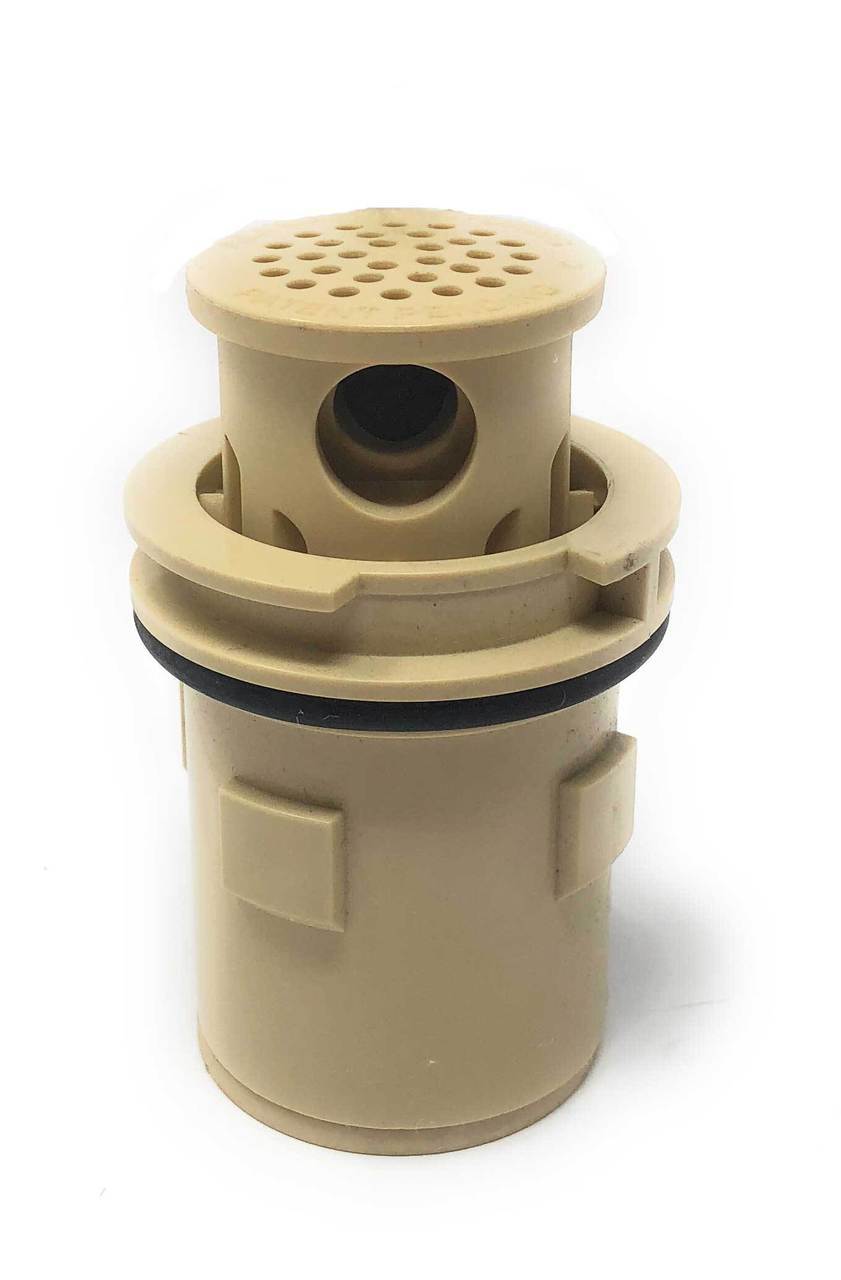

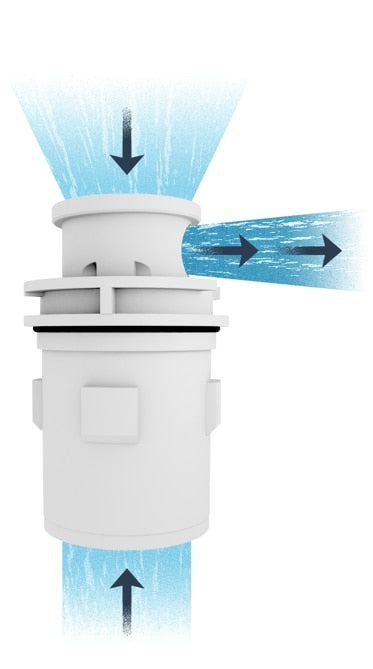

The Gamma Series 4 Venturi uses pinholes on the top of the head to draw in extra water and add a cleaning boost for those hard-to-reach areas. Gamma 4 Venturi Cleaning Heads combine a 3/8" nozzle on the inside with a 7/16" outer nozzle to create a unique laminar path giving the cleaning head its patented cleaning boost. The Venturi option DOES NOT feature the Adjustable Nozzle like the Gamma Series 4 Standard, however, they are suitable for any application in the pool. Click here to view the Gamma 4 Standard in Tan.

To view all colors and accessories for the Gamma Series 4 Venturi Pop-Up Head click HERE

ePoolSuply Troubleshooting Tip:

If the cleaning head keeps dislodging itself from the floor fitting, try 1 wrap of electrical tape around the locking tabs on the pop-up to help it grip the collar better.

Check out the Venturi Power in action HERE

All our Pentair In-Floor(A&A) Instructional Videos can be found on our YouTube Channel HERE
