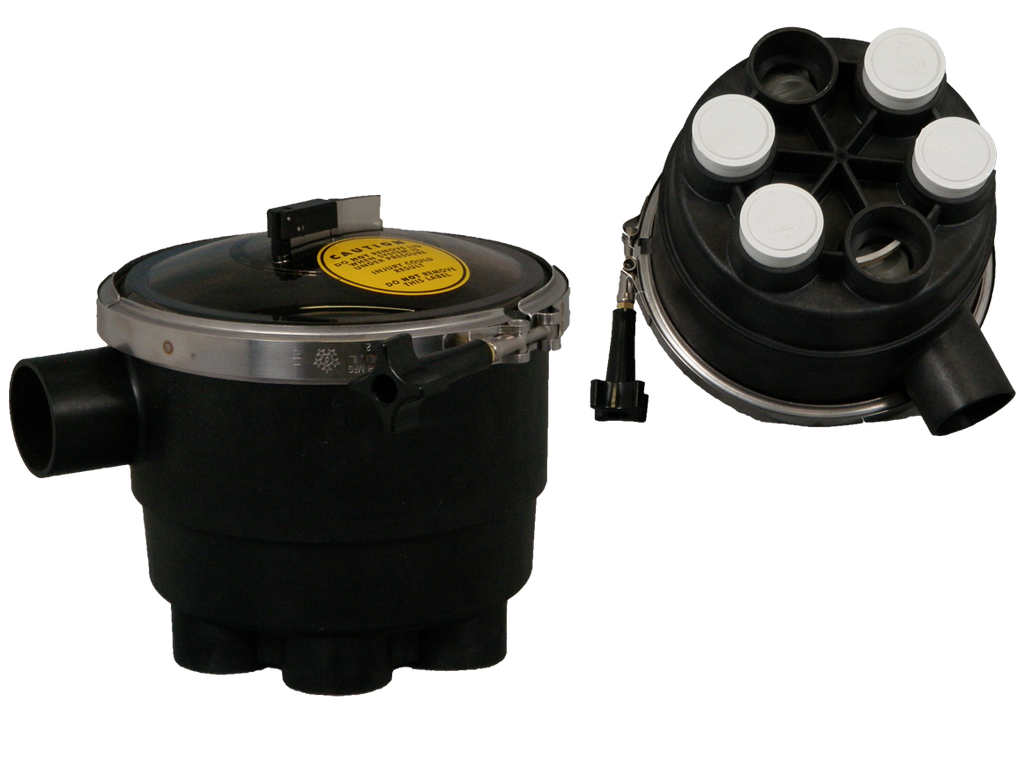

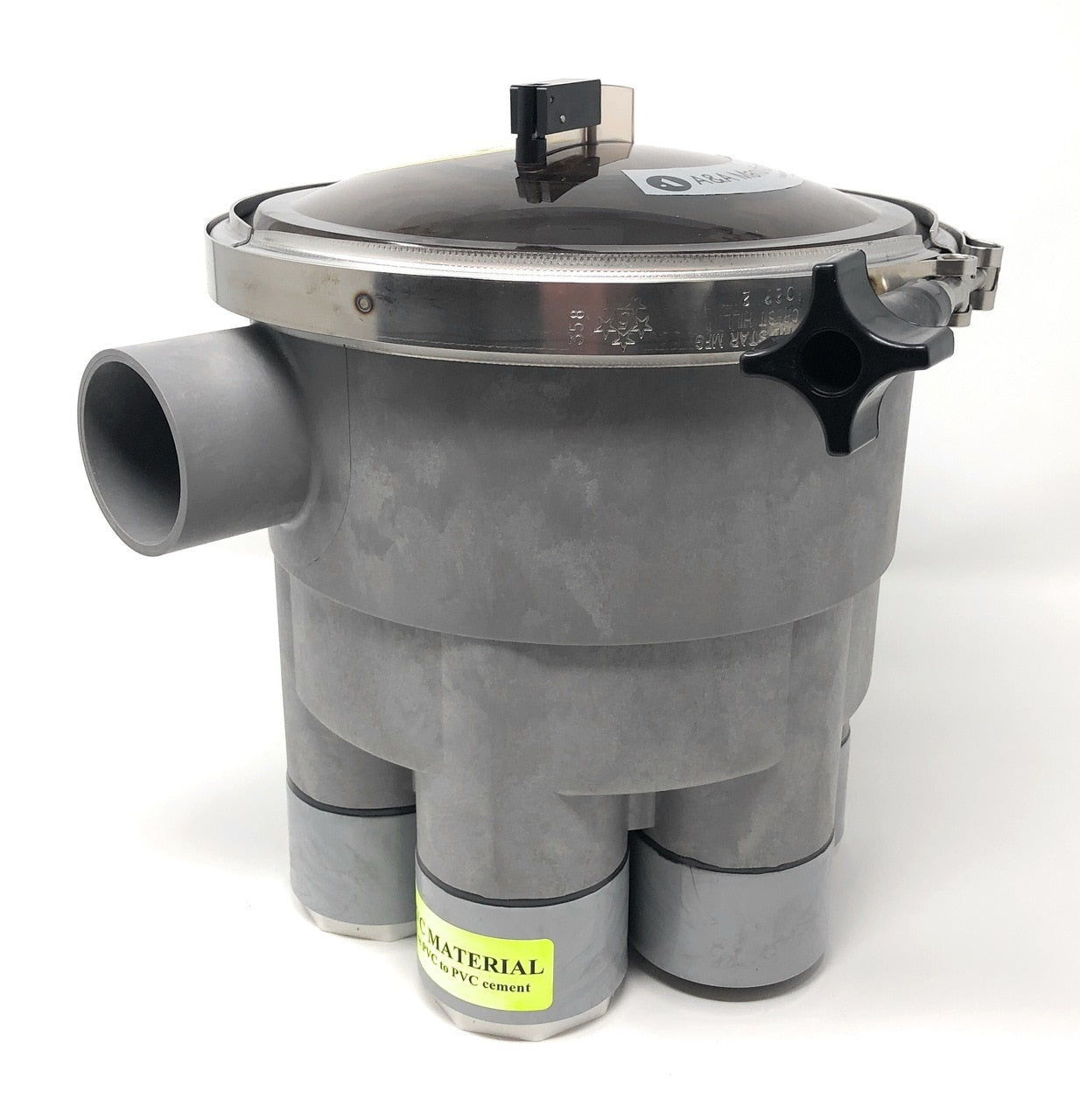

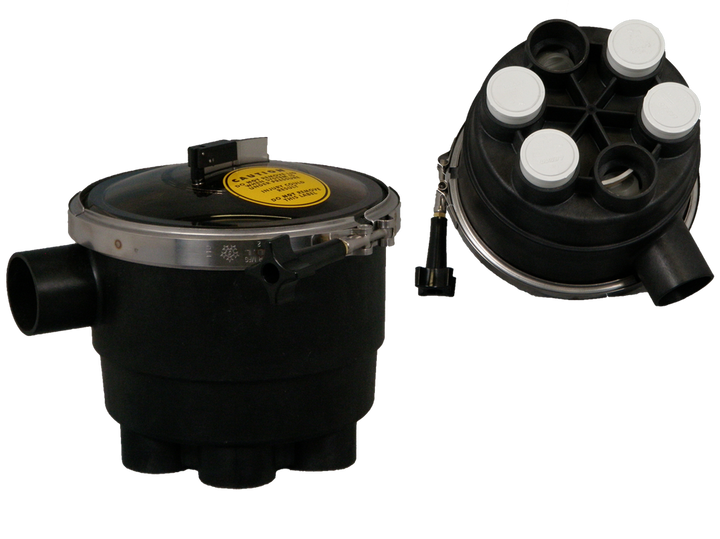

QuikFresh 1.5" 2-Port Low Profile Water Valve - Pentair In-Floor(A&A)
The QuikFresh Valve is constructed to provide optimal cleaning with ease-of-maintenance. The valve features a handy see-through Lid Assembly to diagnose issues which also includes the Speed Control mechanism and QuikStop Assembly. The cleaning valve directs high-pressured water to one of the two zones at a time and exits through the pop-up heads designated to that zone. The cleaning system also aids in boosting circulation with heating systems, allowing your entire pool to be heated rather than just the top section.

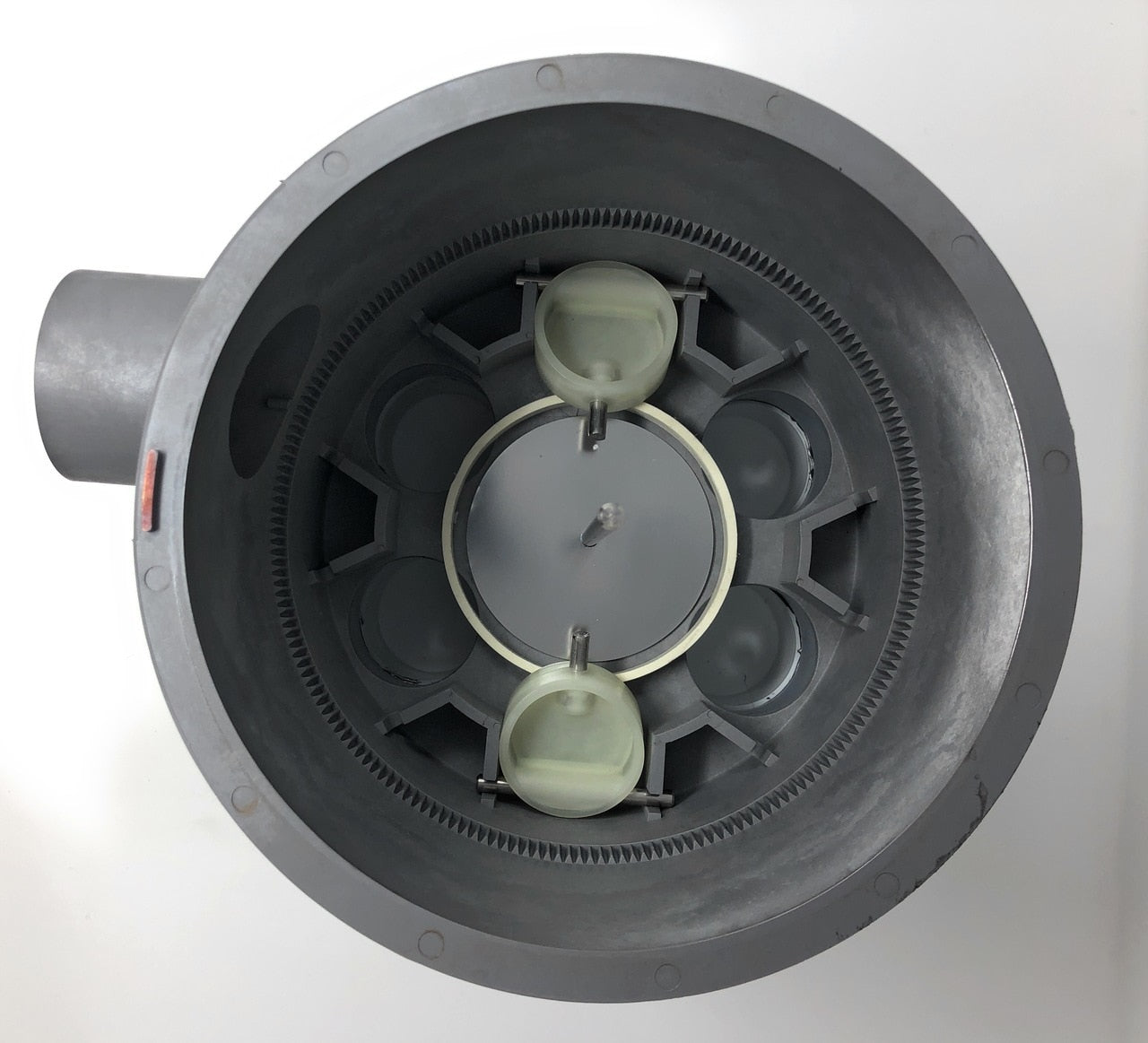

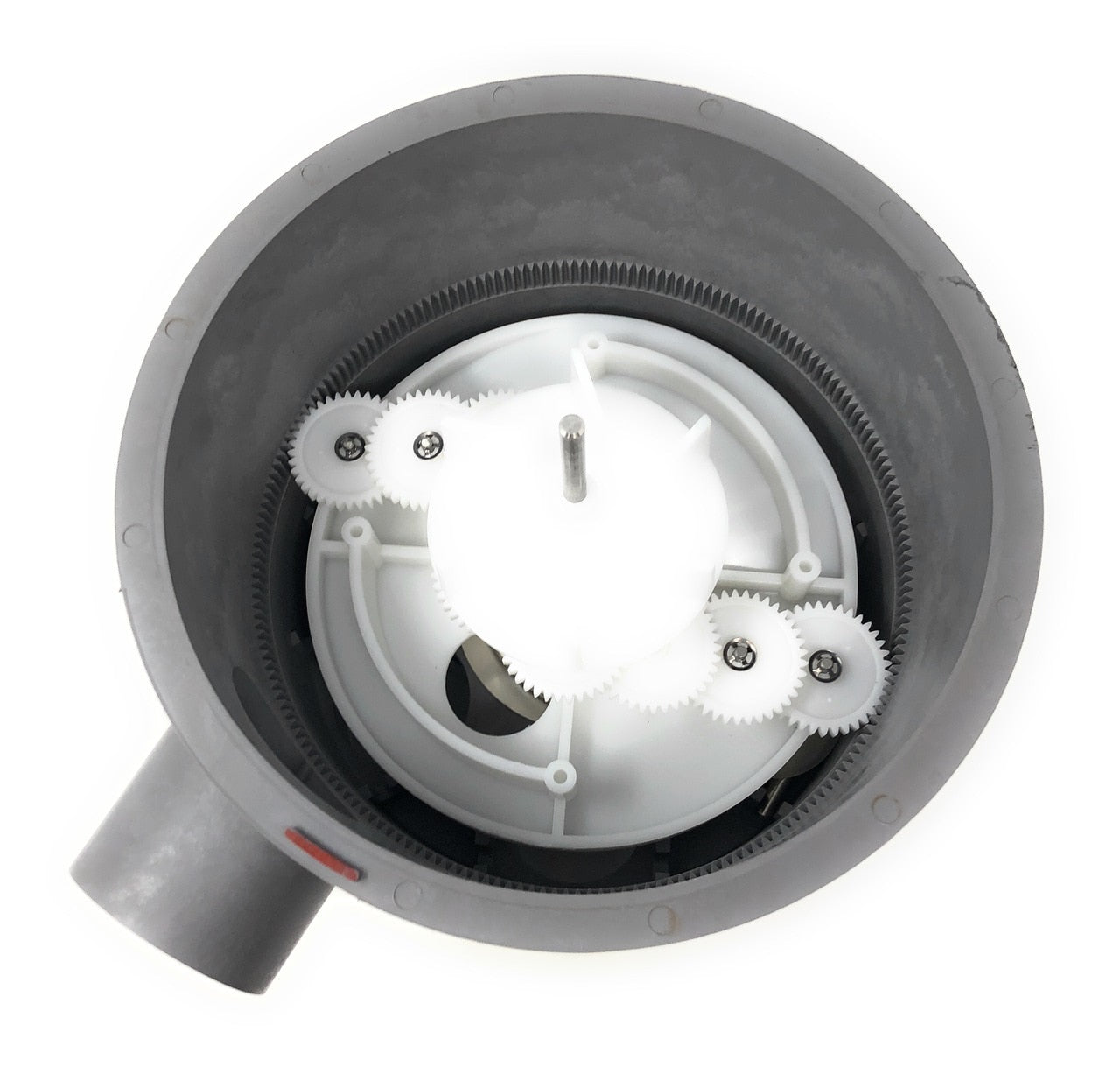

As water enters the cleaning valve, the top impeller spins the gear assembly around the housing. As the gears turn, the Lower Cam lifts one of the two 1.5" T-Valves to allow water to escape through one of the ports and out through the cleaning heads. The pop-up cleaning heads spray dirt and debris to the main drain and skimmer to be trapped and filtered out before returning to the pool. As the gears rotate and lift each T-Valve a new zone of pop ups is activated, providing a thorough sweep of the pool.

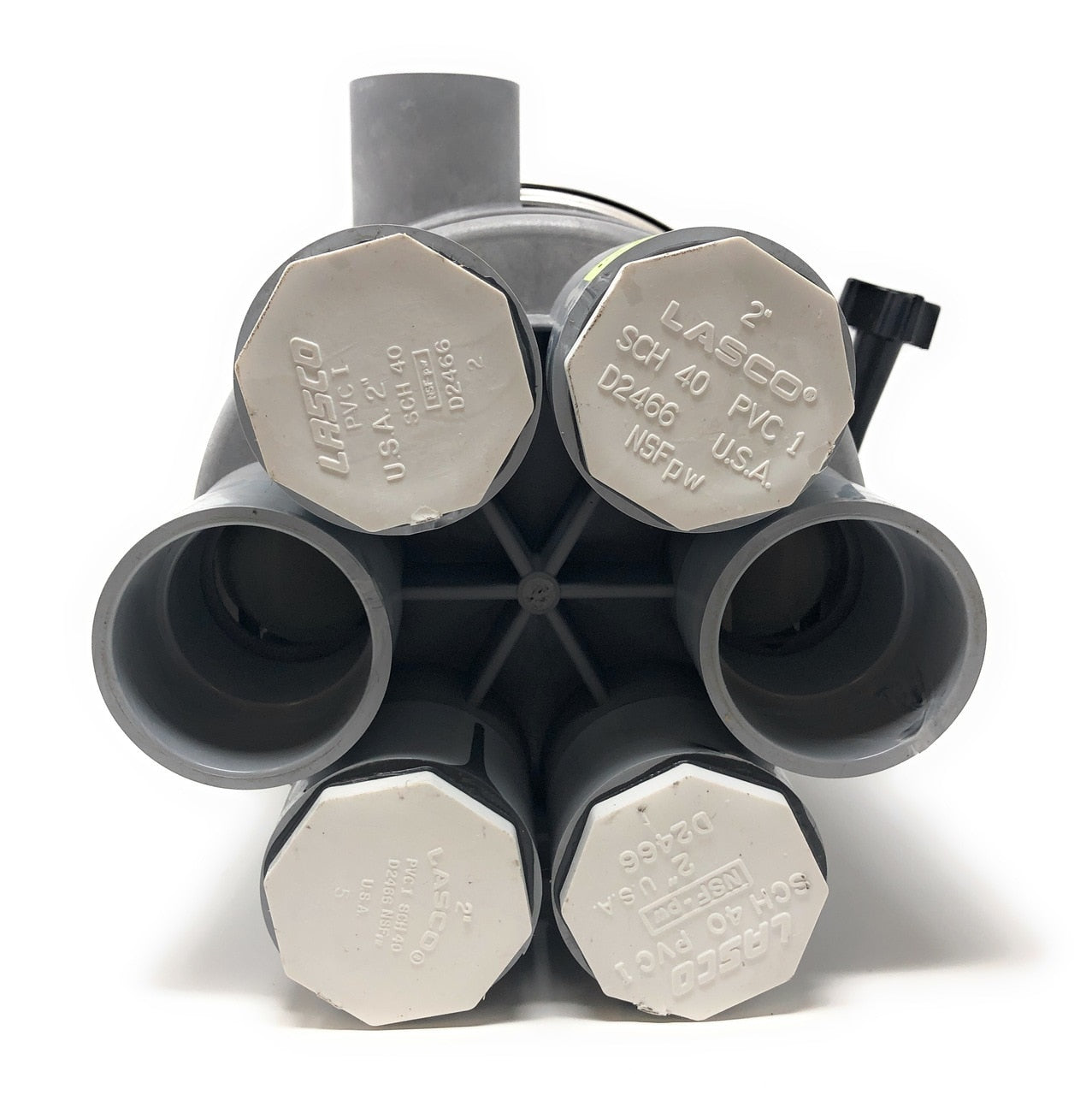

- Low Profile 2-Port T-Valve Housing
- Low Profile Lid Assembly
- Low Profile Band Clamp
- Low Profile 2-Port T-Valve Gear Kit
- 2 Push-In Style 1.5" T-Valve Flaps
THIS UNIT COMES WITH A WHITE SPACER RING INSTALLED UNDERNEATH THE T-VALVES. THIS RING IS DESIGNED TO KEEP THE FLAPS UP WHILE INSTALLING THE VALVE TO PREVENT THEM FROM GETTING GLUED SHUT. THIS RING MUST BE REMOVED AFTER INSTALLATION FOR THE CLEANING VALVE TO OPERATE CORRECTLY. THIS VALVE IS ONLY COMPATIBLE WITH 1.5" PLUMBING APPLICATIONS. IT INCLUDES THE PROPER FITTINGS FOR PVC TO PVC CONNECTION.
