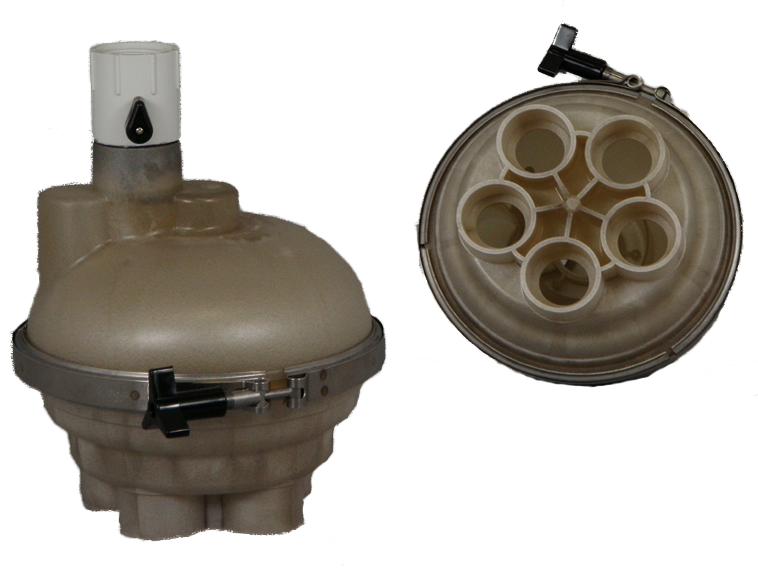

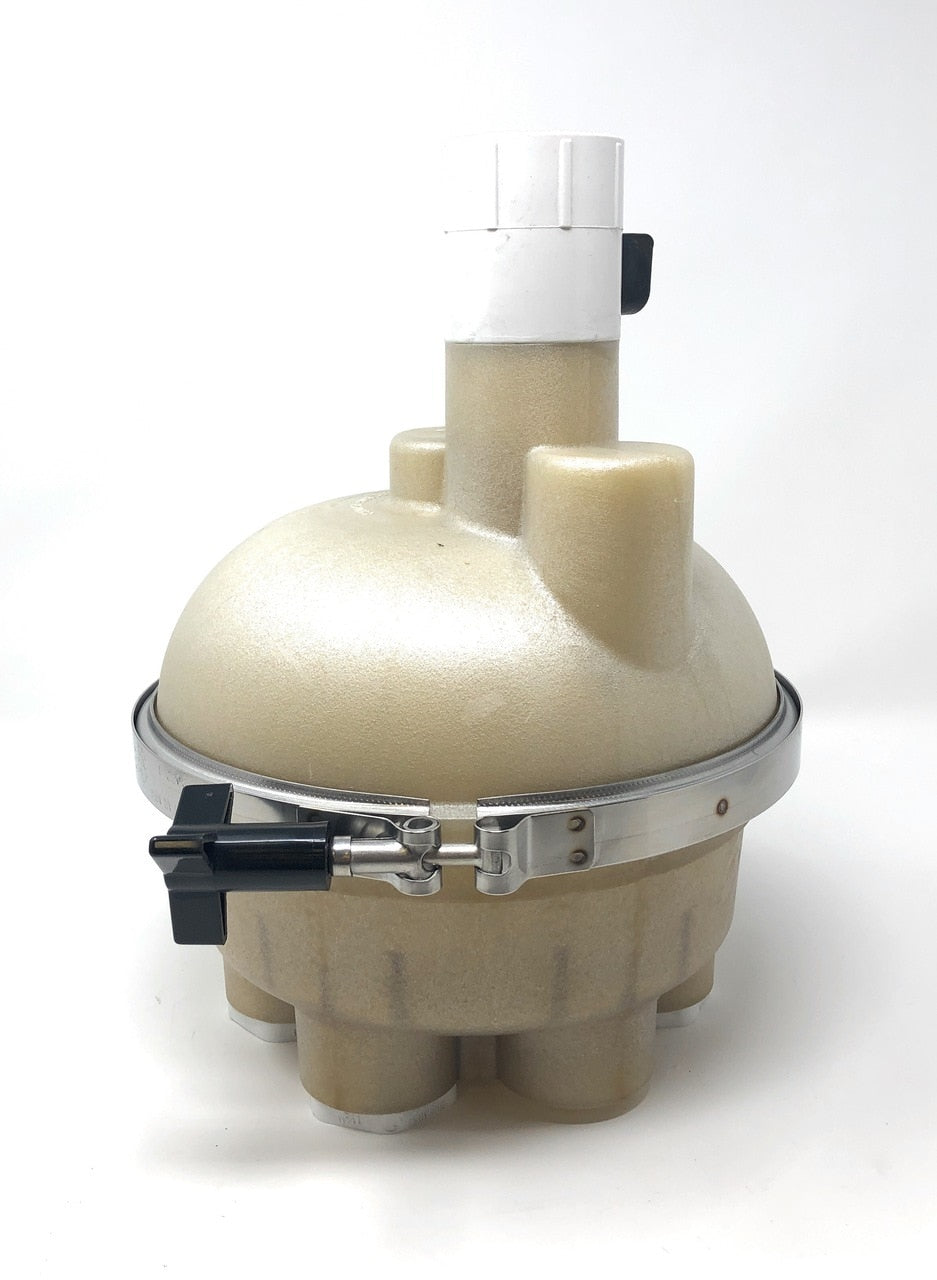

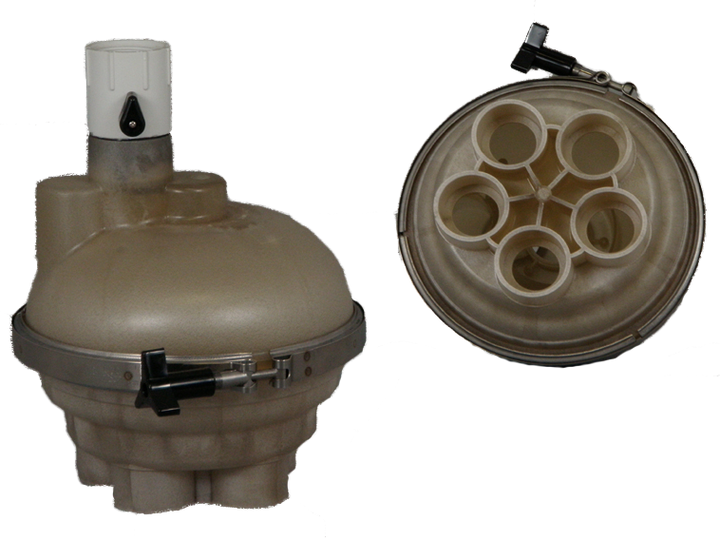

A&A Top Feed Complete 1.5" 5 Port Actuator T-Valve w/ QuikStop
The A&A Top Feed Valve is constructed to provide optimal cleaning with ease-of-maintenance. The Top Feed Valve features a durable Upper Housing which also includes the Speed Control mechanism and QuikStop Assembly. The cleaning valve directs high-pressured water to one of the five zones at a time and exits through the pop up heads designated to that zone. The cleaning system also aids in boosting circulation with heating systems, allowing your entire pool to be heated rather than just the top section.
As water enters the cleaning valve, the top impeller spins the gear assembly around the housing. As the gears turn, the Lower Cam lifts one of the five 1.5" T-Valves to allow water to escape through one of the ports and out through the cleaning heads. The pop up cleaning heads spray dirt and debris to the main drain and skimmer to be trapped and filtered out before returning to the pool. As the gears rotate and lift each T-Valve a new zone of pop ups is activated, providing a thorough sweep of the pool.

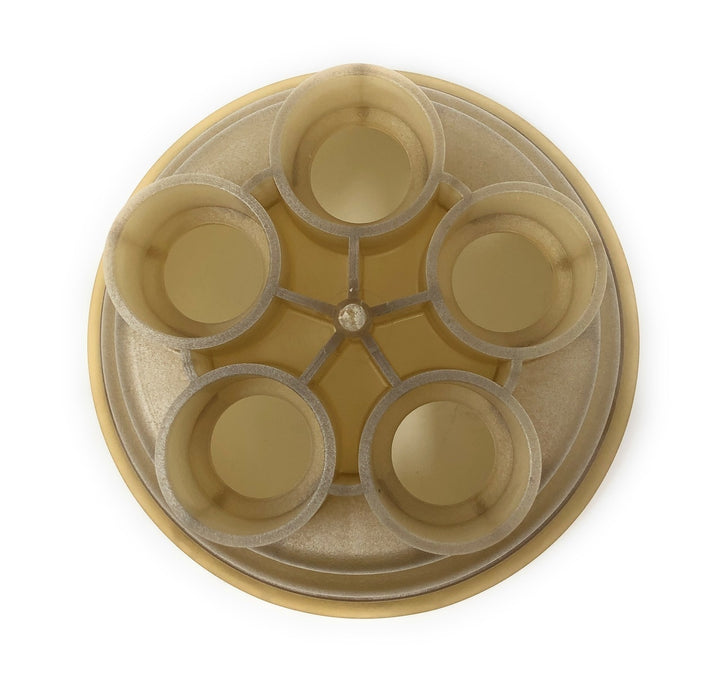

- Top Feed 5-Port Lower Housing
- Top Feed Upper Housing w/ QuikStop
- Top Feed Band Clamp
- Top Feed 5-Port T-Valve Gear Kit
- 5 Push-In Style 1.5" T-Valve Flaps
THIS UNIT COMES WITH A WHITE SPACER RING INSTALLED UNDERNEATH THE T-VALVES. THIS RING IS DESIGNED TO KEEP THE FLAPS UP WHILE INSTALLING THE VALVE TO PREVENT THEM FROM GETTING GLUED SHUT. THIS RING MUST BE REMOVED AFTER INSTALLATION FOR THE CLEANING VALVE TO OPERATE CORRECTLY. THIS VALVE IS ONLY COMPATIBLE WITH 1.5" PLUMBING APPLICATIONS. IT INCLUDES THE PROPER FITTINGS FOR PVC TO PVC CONNECTION.
A video providing details on this product. Watch, Like & Subscribe!
