ARG Inline Chlorinator for Variable Speed Pumps | Tablet Feeder | CIV00

ARG Inline Chlorinator for Variable Speed Pumps | CIV00

ARG inline chlorinator for variable speed pump systems. Automatically feeds chlorine tablets into the return line so you are not hand-dosing every day.

Features

• Inline chlorinator designed for pool and spa systems using a variable speed pump
• Flow-through body helps maintain tablet erosion even at reduced pump speeds
• Adjustable control dial to fine-tune chlorine output through the season
• Installs directly in the return plumbing for automatic tablet chlorination
• Rugged construction intended for outdoor equipment pad environments
• Best practice is installation after filter and heater, with a check valve ahead of the feeder

Description

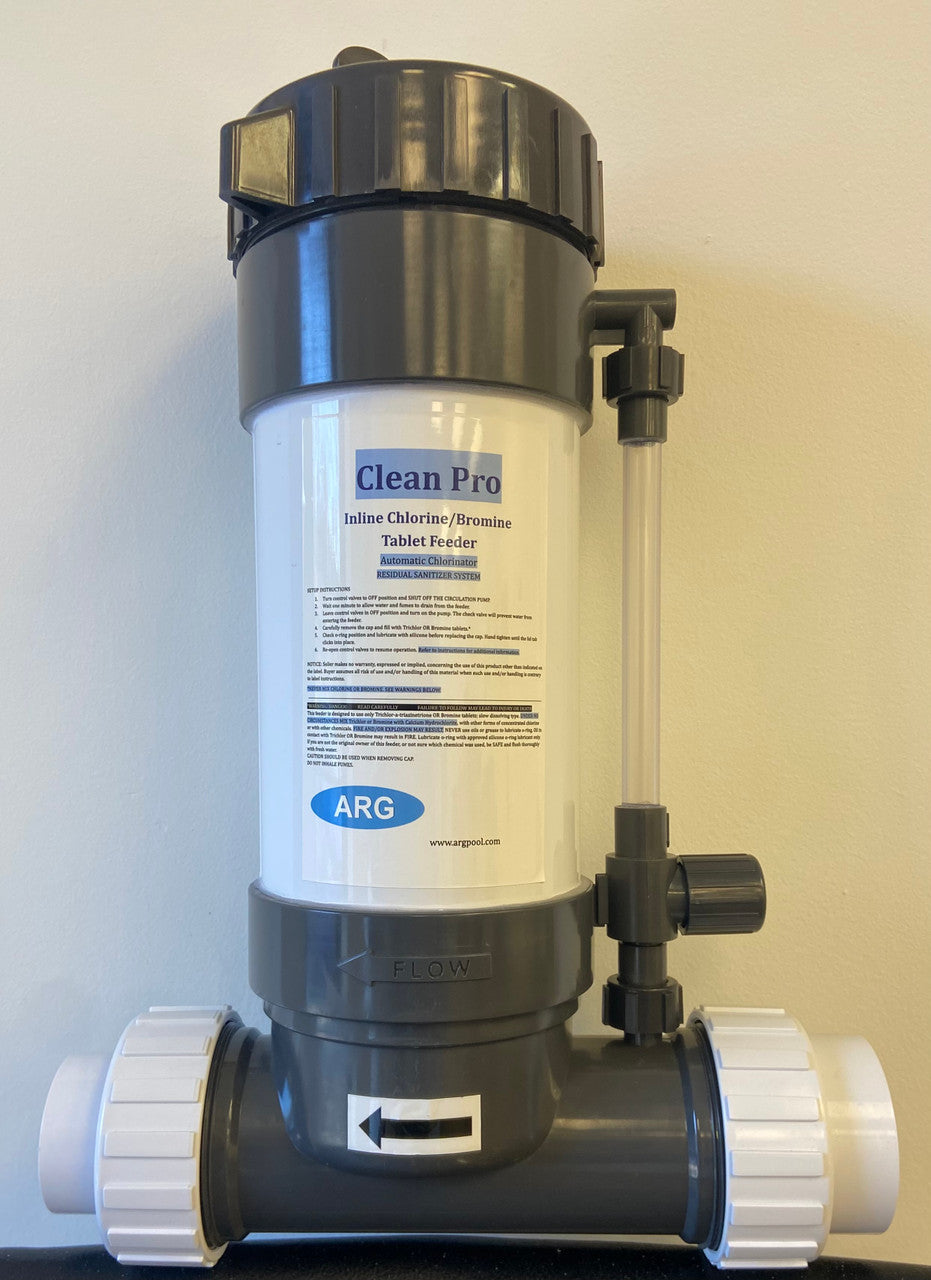

The ARG CIV00 Inline Chlorinator is meant to take the daily guesswork out of tablet chlorination on variable speed pump systems. As pump speeds and run times change, so does water flow through the system. This inline feeder uses that flow to erode chlorine tablets and feed sanitizer consistently into the return line, reducing the need to manually add chlorine after every pump cycle.

Mounted in the plumbing on the return side of the pad, the chlorinator accepts standard tablets and uses an adjustable control dial to regulate how much chlorinated water is fed back into the pool. That lets you dial in the right setting for shoulder season, peak summer or light off-season use, instead of constantly chasing chlorine levels with loose tablets or liquid additions.

Pro Tip

Always pipe an inline chlorinator after the heater, not before it, and use a check valve between them. This helps prevent highly chlorinated water from backing up into the heater core when the system is off. Isolating the feeder with valves on each side also makes it easier to service or winterize without draining the entire system.

Related Parts

• ARG 2" Socket Ball Valve | BV002
• E-Z Clor 3" Tablets 25 lb Pail | EZC-50-3524


Technical Specifications

Installation Tips

Turn off the pump and relieve pressure before cutting into plumbing. Mount the chlorinator on the return line after the filter and heater, following the flow direction arrows on the body. Use appropriate PVC primer and cement and allow proper cure time before restarting the system. Install isolation valves on both sides of the feeder so it can be serviced independently, and a check valve between the heater and chlorinator to limit backflow of chlorinated water when the pump is off.
