SPECK BADUStream II Dual-Jet 4 THP SwimJet System | SS484-2400M-1SW

SPECK BADUStream II Dual-Jet 4 THP SwimJet System

Dual-jet swim-current system with a 4 THP 208–230V pump, up to 400 GPM, square anti-entrapment covers and Wi-Fi GFCI control.

Features

• Complete two-jet counter-current swimming system for swim-in-place exercise and recreation.

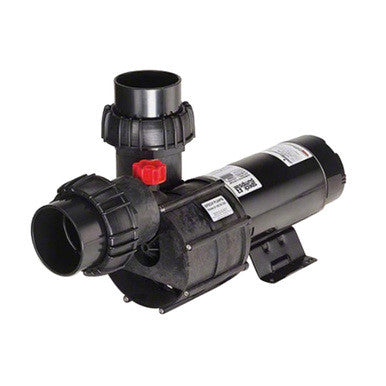

• Includes one SPECK 21-80/33GS 4 THP self-priming SwimJet pump with a published system rating of up to 400 GPM.
• Adjustable jet nozzles let swimmers change water volume and aim the current for a more balanced swimming position.
• Air regulators introduce adjustable bubbles into the water stream.
• Flush-mounted housings use low-profile 8-1/4-inch square anti-entrapment covers.
• Wi-Fi control box includes GFCI protection and supports BADUConnect app operation.
• LED on/off control installs in a standard 1-1/2-inch return fitting and includes a 50-foot cable.
• Compatible with professionally designed concrete, gunite, fiberglass, vinyl-liner and steel-wall pool installations.

Description

The SPECK BADUStream II turns a properly designed pool into a dedicated swim-in-place training area. Two flush-mounted jet housings produce a wide, adjustable current powered by the included 21-80/33GS 4 THP pump. The system is rated for up to 400 GPM at 14 PSI, giving recreational and fitness swimmers a consistent current without requiring a full-length lap pool.

Each nozzle can be aimed and adjusted to improve body position in the current. Integrated air regulators add bubbles and change the feel of the water stream. The square anti-entrapment covers maintain a clean, low-profile appearance with no projecting jet assembly inside the swimming area.

The included Wi-Fi control box provides GFCI protection and works with the BADUConnect app for remote on/off control and scheduling. This is a dedicated SwimJet system and must not be connected to the pool filtration circuit.

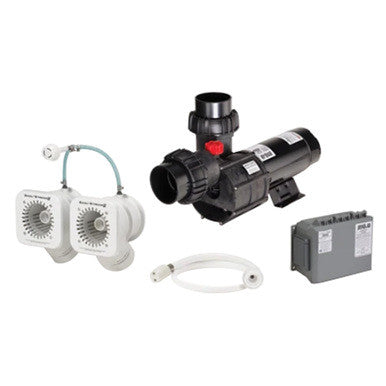

Package Includes

• Two BADUStream II flush-mounted jet housings.
• Square anti-entrapment covers.
• Two adjustable water-flow nozzles and air regulation components.
• SPECK 21-80/33GS 4 THP self-priming SwimJet pump.
• Wi-Fi control box with integrated GFCI protection.
• LED on/off control with 50-foot cable.
• Nozzle adjustment tools.

Not Included

• Field-supplied 4-inch or 6-inch plumbing, valves and fittings.
• Electrical conduit, wiring, disconnects and installation labor.
• Pulsating massage hose, swim mirror and winter cover kit.
• Pool wall construction or retrofit work.

Installation and Safety

• Installation must be completed by a qualified pool professional and licensed electrician in accordance with current codes.
• Use a dedicated suction and return circuit with at least 4-inch plumbing. Use 6-inch pipe when the pump is more than 30 feet from the jet housings.
• Provide a dedicated 208–230V, single-phase electrical supply and manufacturer-specified 40-amp protection.
• Do not connect the SwimJet plumbing to the pool filtration system.
• Mount the housings only in a vertical pool wall and never in a seating area or backrest.
• Never operate the system with a loose, damaged or missing anti-entrapment cover.
• Test the control-box GFCI before each use and follow all grounding and bonding requirements.

Pro Tip

During commissioning, aim both nozzles slightly inward and upward so the streams meet approximately four feet in front of the wall. This creates a more centered current and reduces side-to-side drift.
