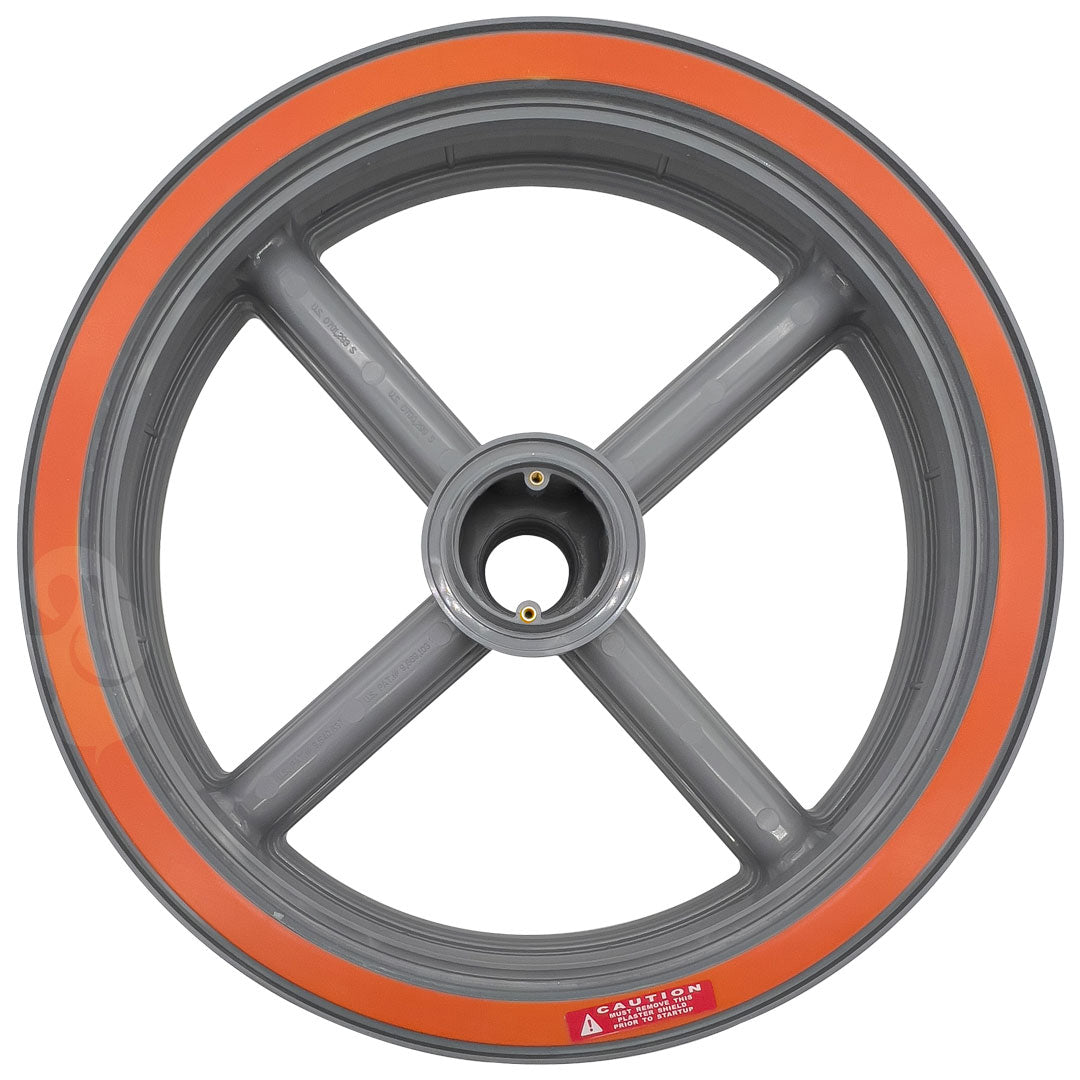

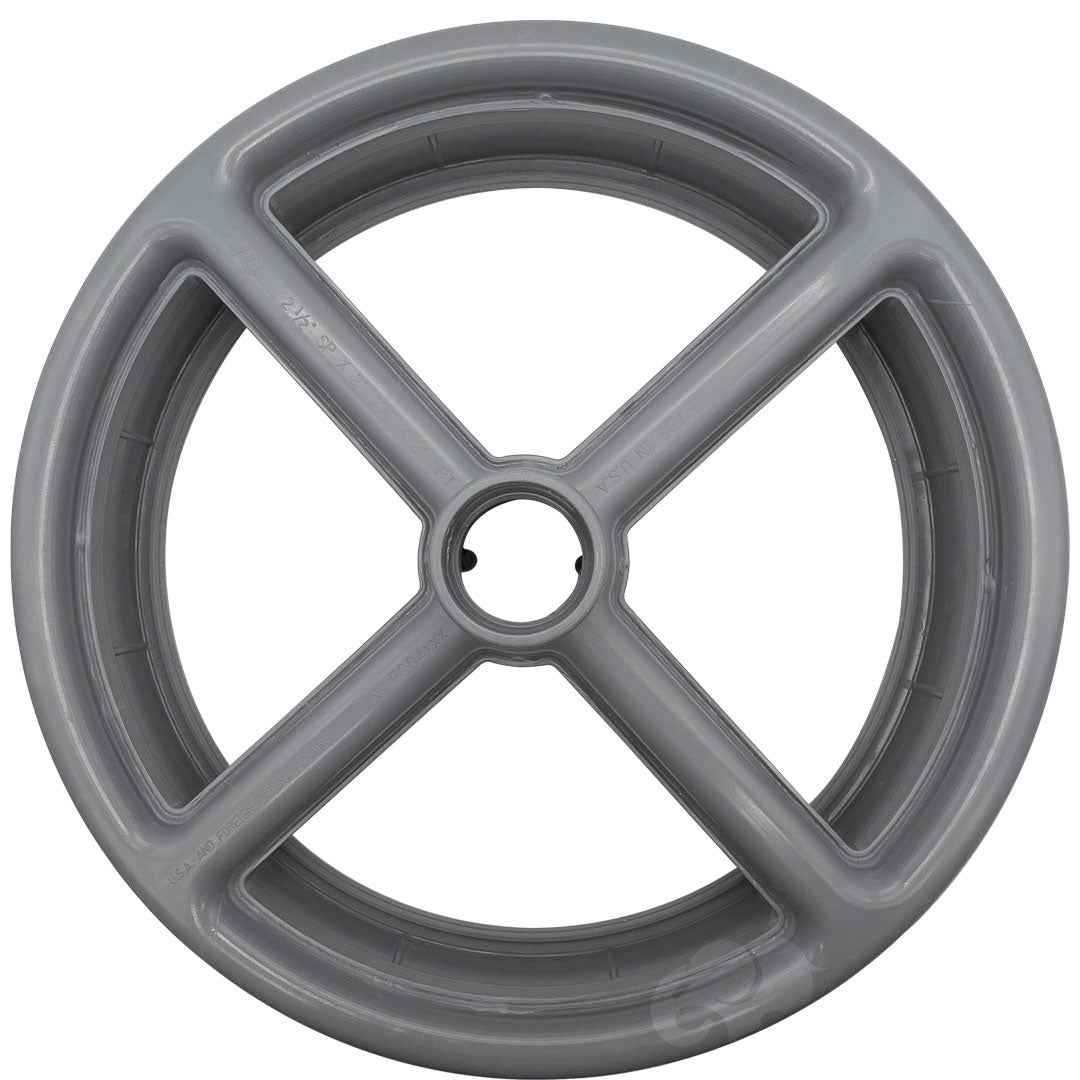

Blue Square Gray Eclipse Main Drain | 501003GR

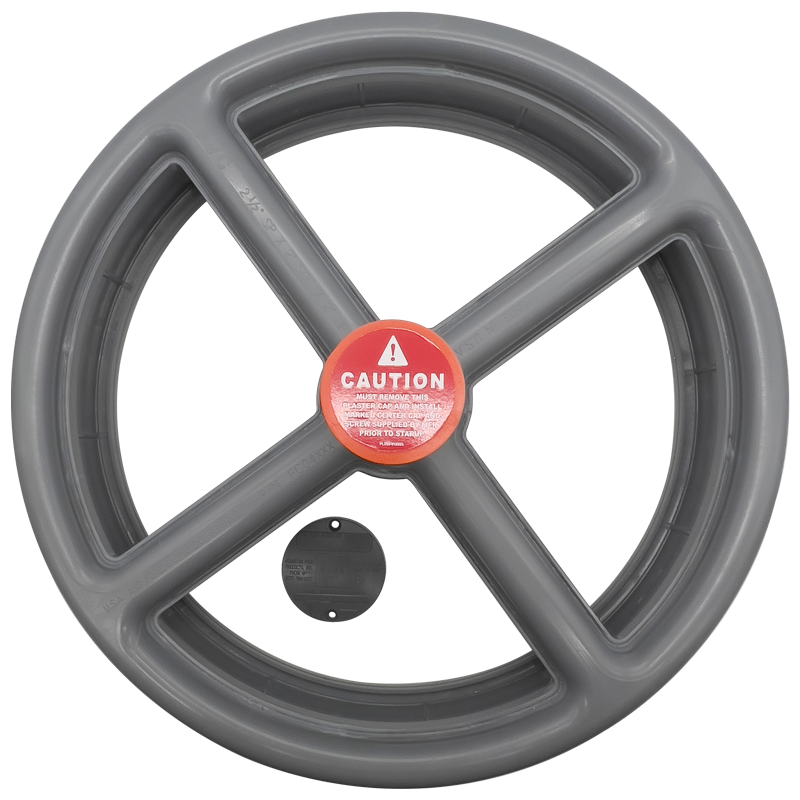

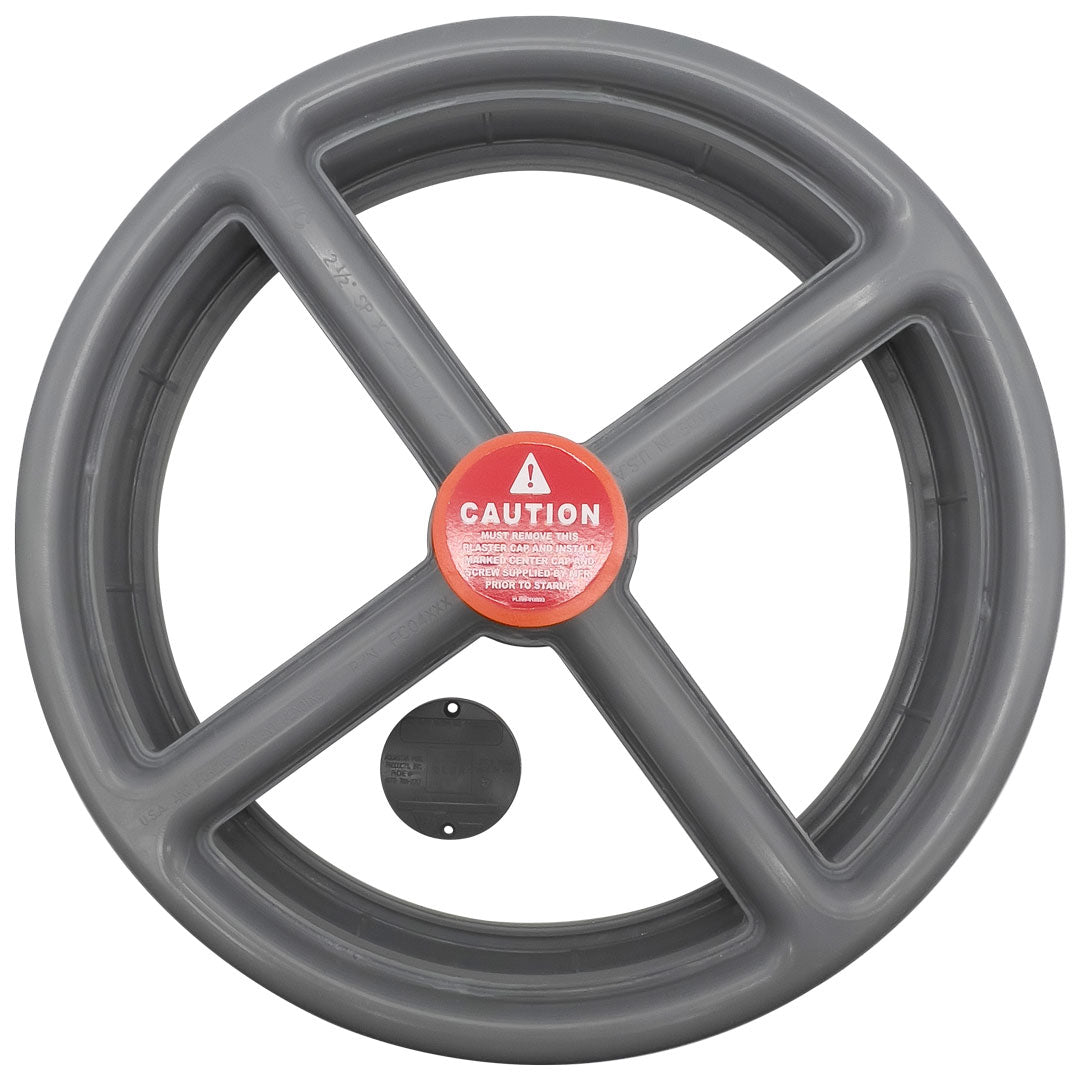

The manufacturer catalog identifies this gray Eclipse main drain under model 501003. It is distinct from the later HydroFusion drain. Match Eclipse model 501003; HydroFusion and Full Circle drain configurations have different part numbers. The manufacturer installation instructions distinguish disposable construction plaster shields/caps from the marked operating center logo cap and its screws. The Eclipse 501003 instructions list a floor-mounted outlet rating of 157 GPM at 1.0 fps with a minimum 2-inch pipe size. Wall mounting is listed as N/A. Have the installer verify the actual marked unit and complete system; a different drain model’s rating must not be used. The manufacturer instructions call for inspecting the marked center cap before use and replacing it at least every five years, or sooner if damaged or insecure. The instructions also call for replacing the cover and screws within five years. Do not use the pool with damaged, missing or unsecured suction-outlet components.Product FAQs
Which drain family is identified?
Is this a plaster cap?
Which flow rating is published for Eclipse 501003?
When should the operating cap be replaced?
Delivery and Shipping
Delivery and Shipping
- FREE SHIPPING IN THE USA
- WORLDWIDE SHIPPING AVAILABLE
- 30 DAY RETURNS
Resources & PDF Downloads
Eclipse Drain Model 501003 Manufacturer Instructions
Blue Square 2024 Product Catalog - Eclipse Drain, Page 9
Description
Description
Blue Square | 501003GR
Gray Eclipse Main Drain
The manufacturer catalog identifies this gray Eclipse main drain under model 501003. It is distinct from the later HydroFusion drain.
Check fit before ordering
Match the actual Eclipse 501003 drain, finish and manufacturer-marked components. A pool professional must verify the complete installed suction-outlet configuration and manufacturer requirements.
See Specifications, Resources & PDF Downloads and Product FAQs for identifiers, support and purchasing details.
