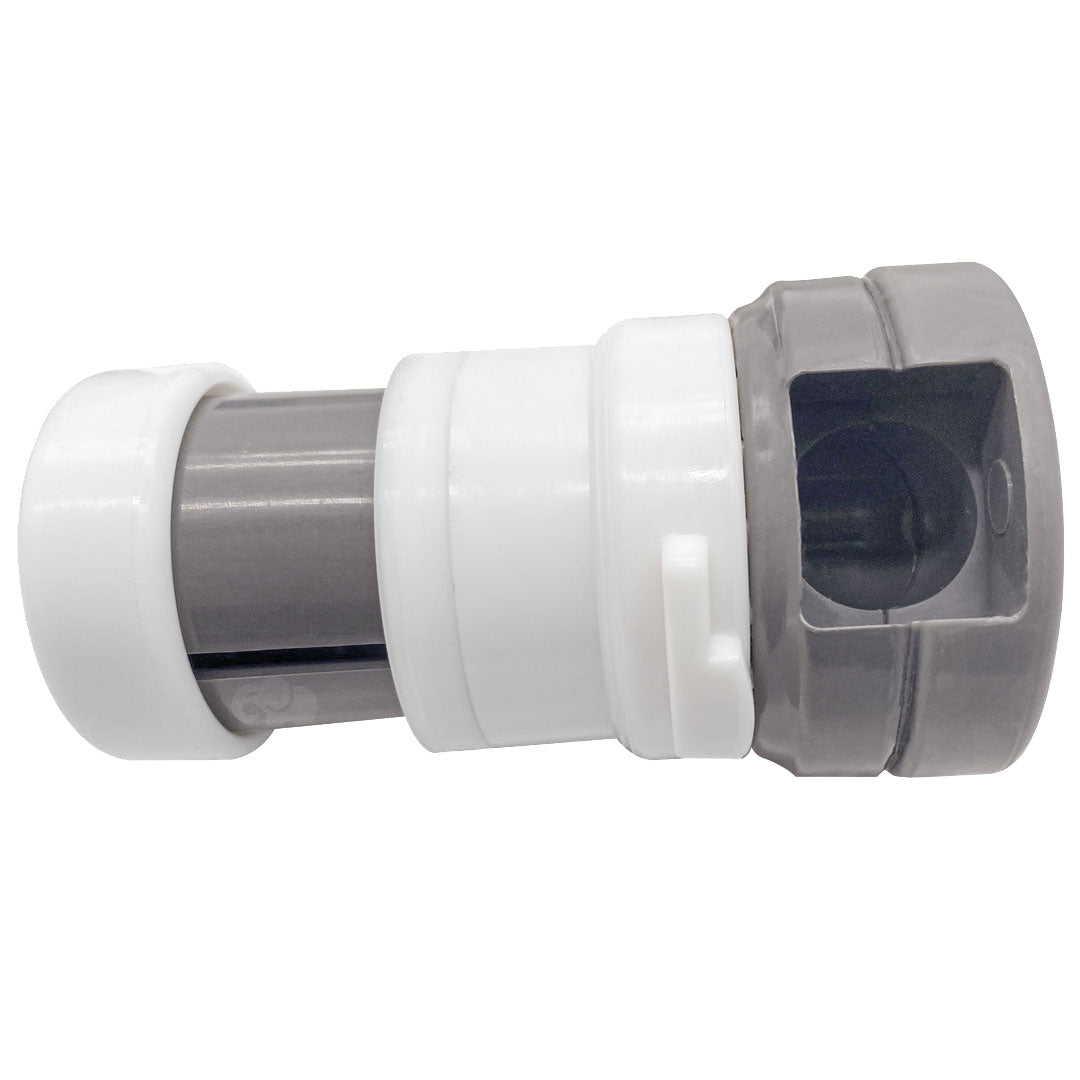

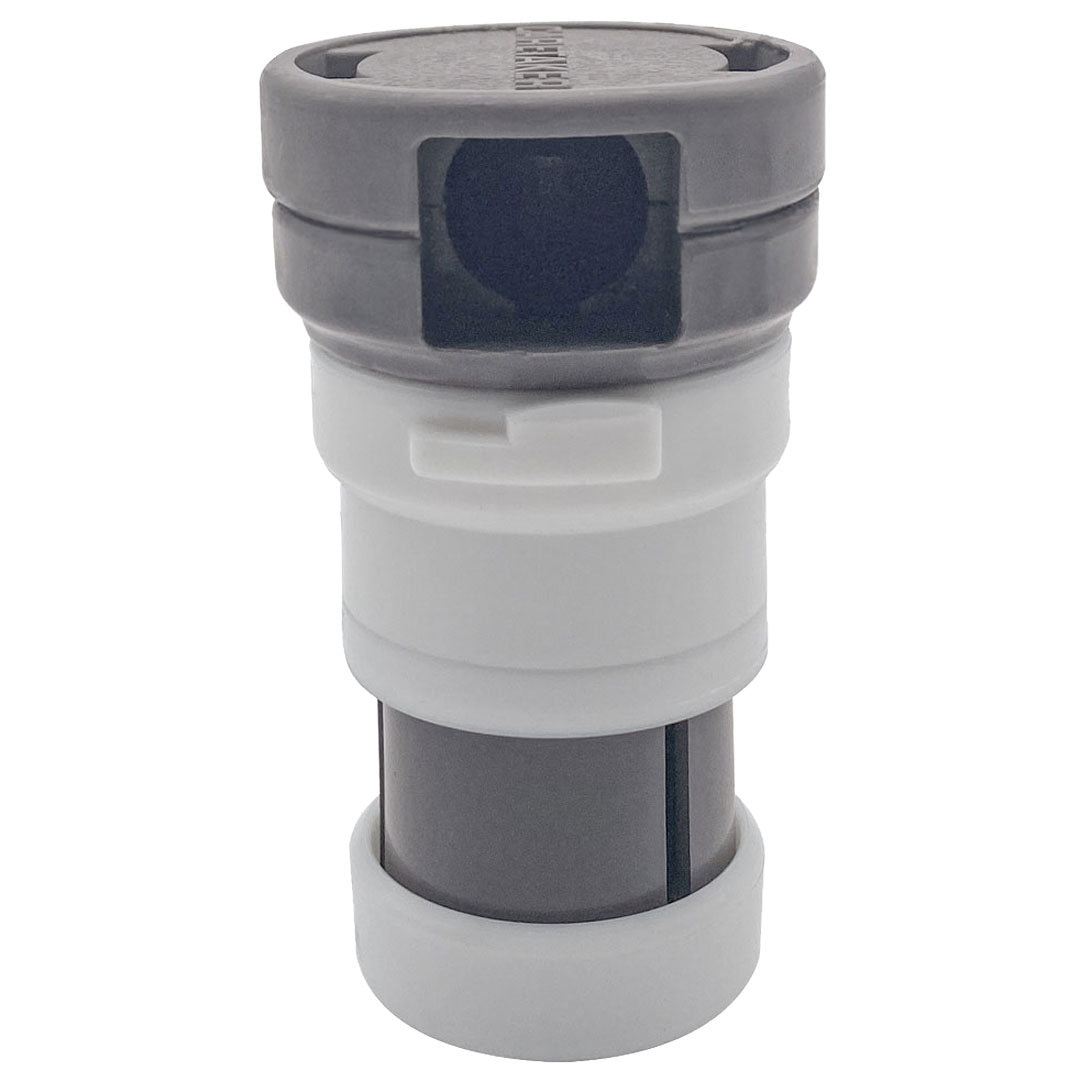

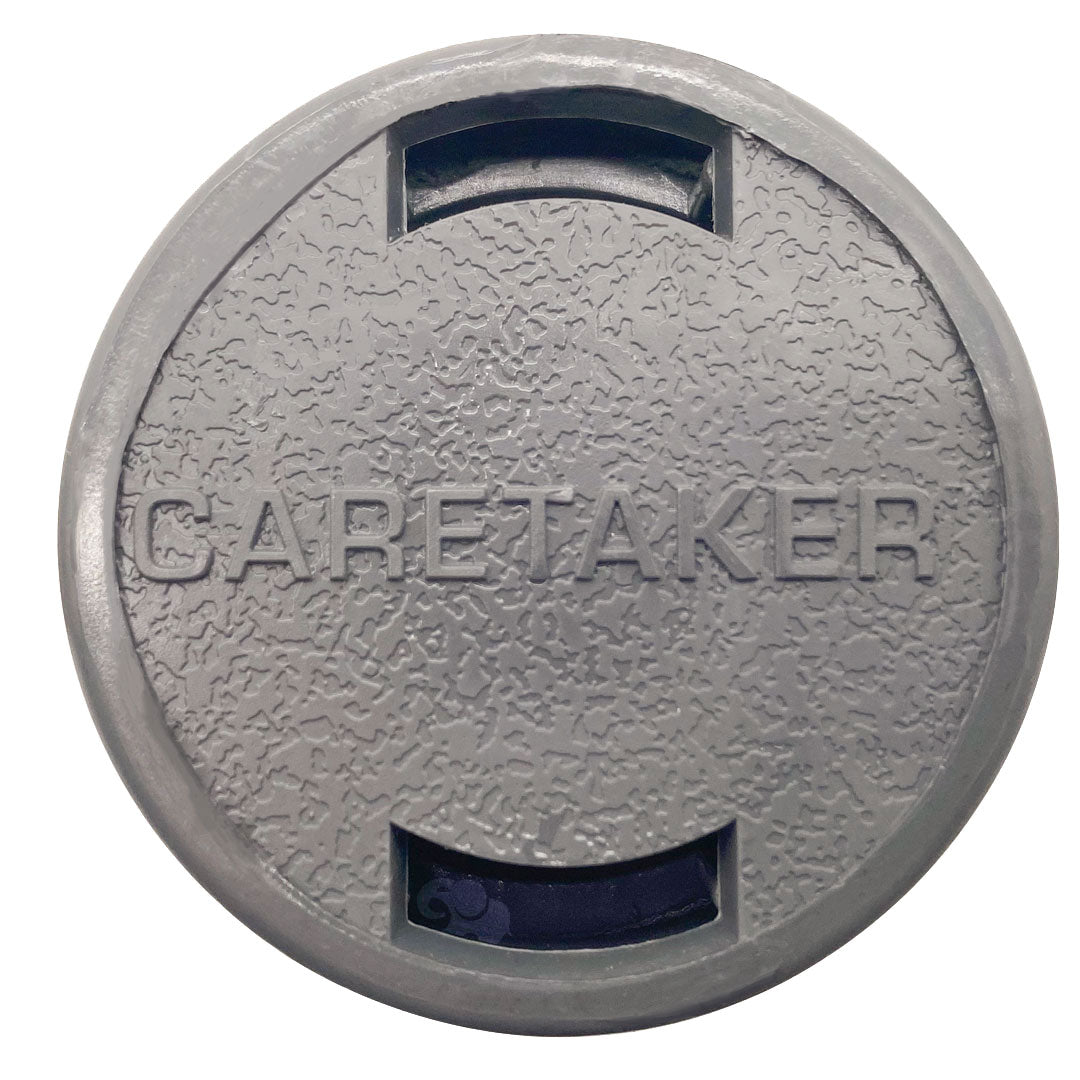

Caretaker 99 Bayonet Pop-Up Head (Light Gray) | 3-9-507

One Light Gray bayonet replacement cleaning head. The collar, nozzle insert and removal tool are sold separately.

This head uses a bayonet connection. Older threaded Caretaker heads have a different attachment and must be identified before selecting a replacement. Confirm the existing fitting style as well as the part number.

Use the size specified by the pool cleaning plan or the correctly sized insert being replaced. Color does not determine nozzle size. These standard inserts are separate purchases; a high-flow head uses a different configuration.

• Mini | 1-9-458
• Step & Bench | 1-9-459
• Flow Adjust | 1-9-455
• Standard | 1-9-461
• Flow Plus | 1-9-456

Turn off the pump and prevent an automatic restart before removing the head. The head must be fully down. Engage the proper head tool, release the bayonet head counterclockwise and lift it out. Reinstall clockwise. Do not force a damaged head or collar.

The HammerTech Solutions All Metal Caretaker Tool | HTS-Caretaker is an optional head-service tool. It is sold separately. Use the head-and-collar guide for the complete procedure; collar installation is a separate operation.

Debris in the head, nozzle or collar and a problem with flow to the cleaning zone can affect operation. Use the Caretaker Owner's Manual troubleshooting section before assuming the head needs replacement. If several heads are affected, inspect the system rather than replacing every head. Work beyond routine owner maintenance requires a qualified pool professional.

The Resources & PDF Downloads section contains the ePoolSupply head-and-collar guide, the Caretaker Owner's Manual (TL-1301 Rev-C) and the Jandy in-floor overview. The owner's manual covers operation and troubleshooting; the overview describes the wider system. Use valve-specific instructions for the valve actually installed on your pool.
