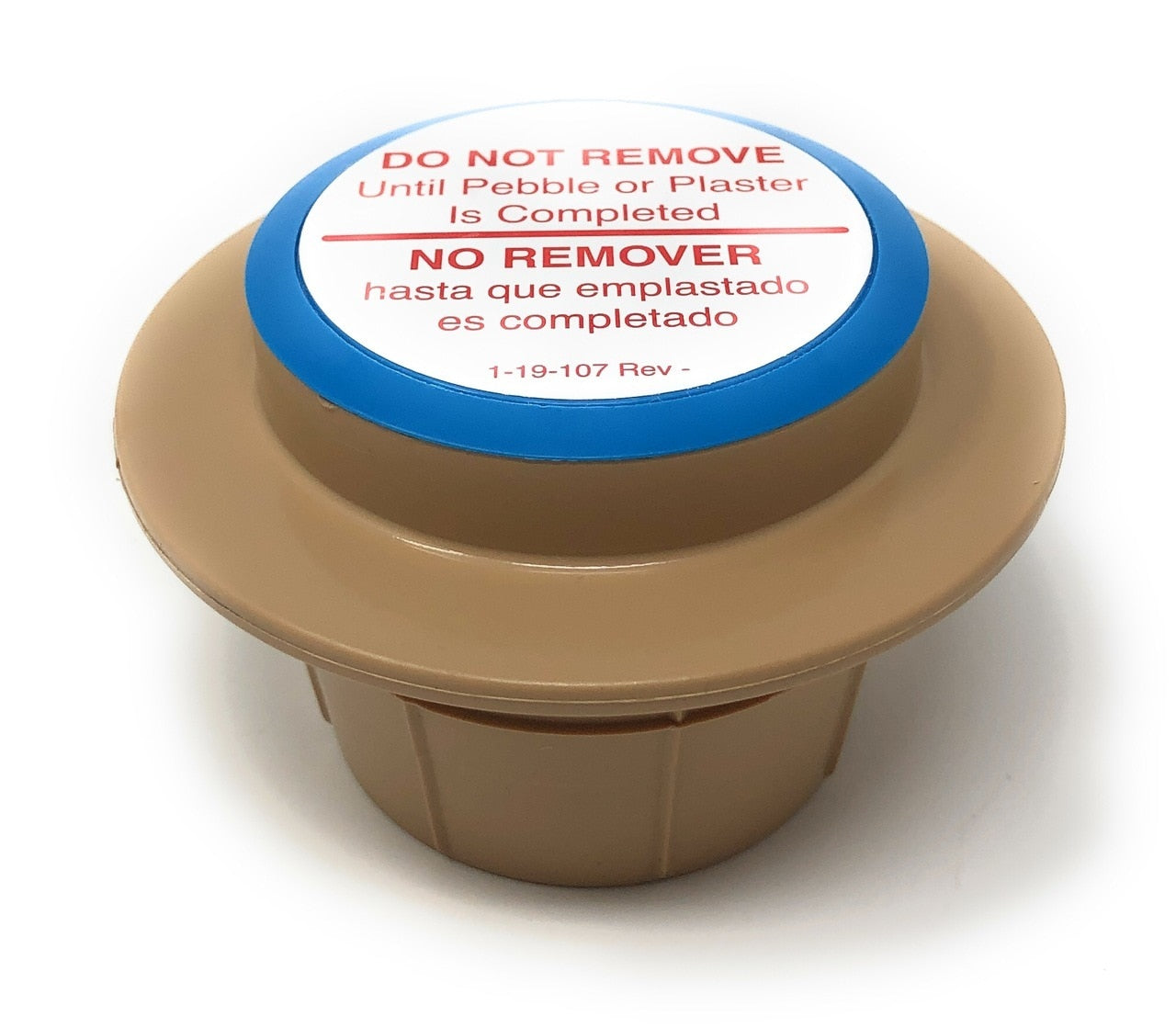

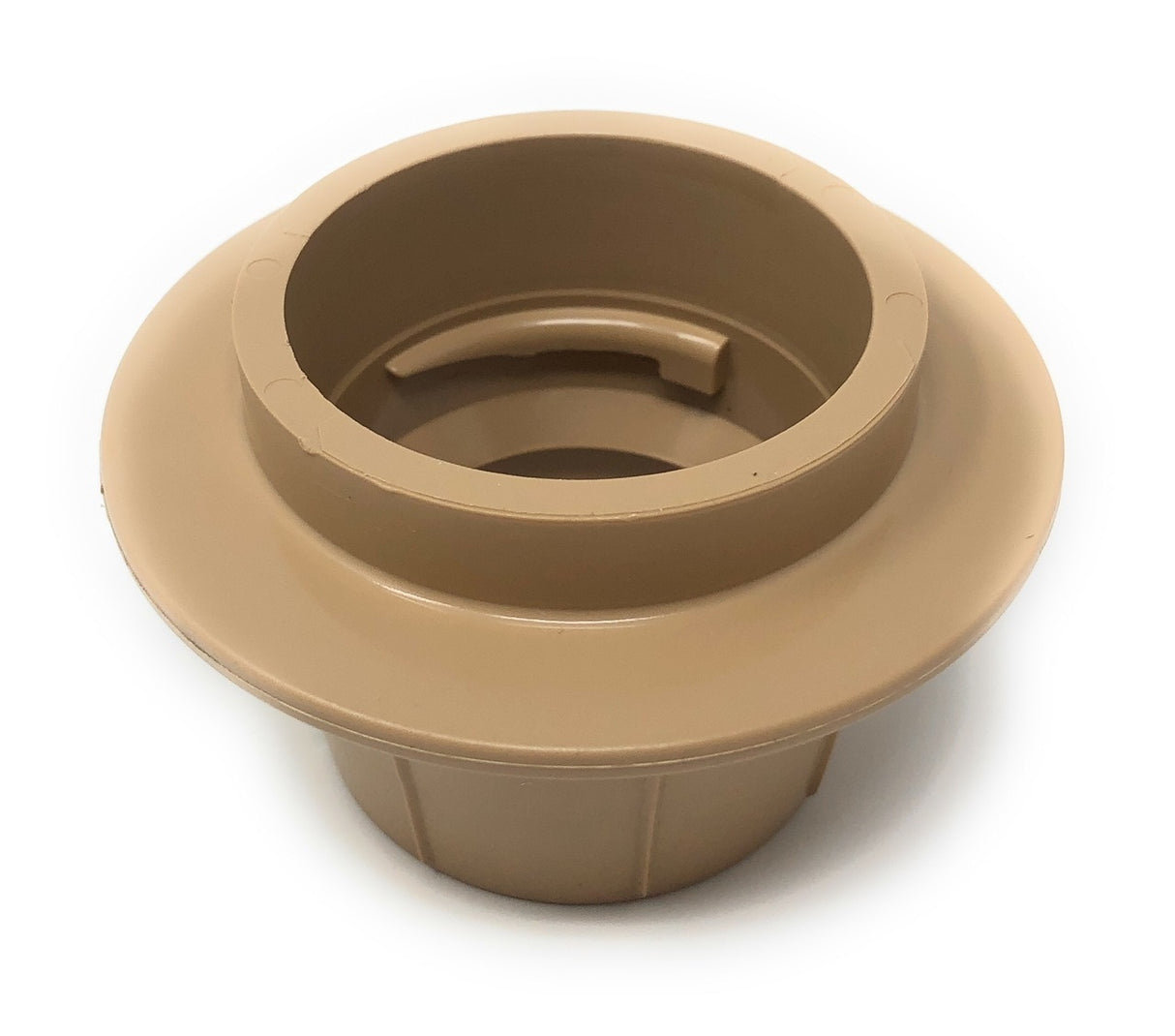

Caretaker 99 In-Floor Cleaning Head Collar 2.5" (Tan)

Caretaker 99 In-Floor Cleaning Head Collar 2.5" (Tan)

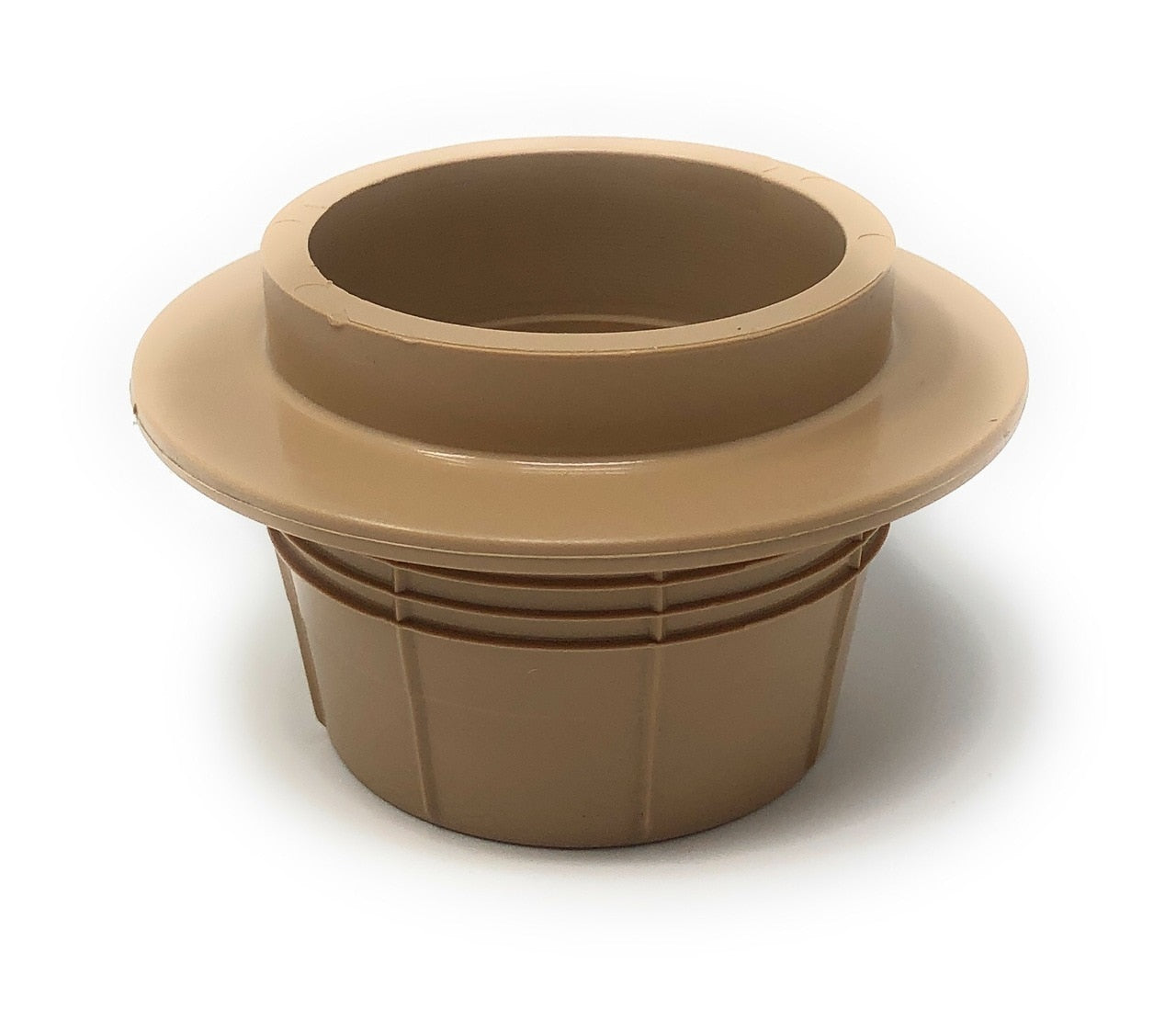

The Caretaker 2.5" Collars are more popular for pools using the Caretaker UltraFlex 1 & 2 Electronic Infloor Cleaning System. These collars plumb into 2.5" schedule 40 PVC on the inside of the pipe. There is no pipe reaming required to install the 2.5" Collars. They feature a tapered lower section allowing for a 10-12 degree tilt to guarantee a perfect fit flush with the pool floor.

INSTALLATION

• CUT THE 2.5" PVC PIPE FLUSH WITH THE CEMENT AND REMOVE "PIPE BURRS" PRIOR TO GLUING.
• USE ONLY PVC:ABS GLUE WHEN INSTALLING THE COLLARS.
• PLUMBING PRIMER IS ONLY REQUIRED ON THE PVC PIPE, DO NOT PRIMER THE COLLARS.
