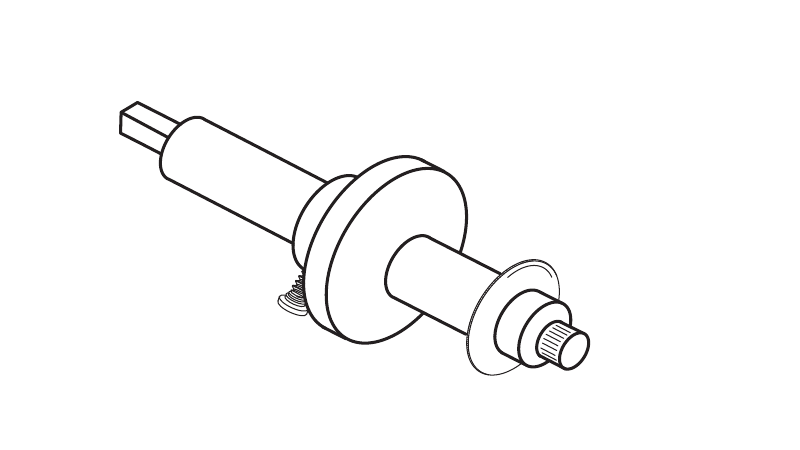

Caretaker Inside Pipe Cutter — Complete with 1½-Inch Blade | 5-17-4

5-17-4: Complete inside pipe cutter with listed 1½-inch blade.

One catalog-listed inside pipe cutter complete with a 1½-inch blade. A drill/drive unit, return fitting and pool plumbing are separate.

For the matched internal pipe-cutting application in Jandy/Caretaker installation work. The current TC3 installation sheet specifically identifies 5-17-4 for its illustrated 1½-inch return-line preparation. Match the required blade and tool interface before use.

The separately listed 1½-inch replacement blade is 1-17-2; the 2-inch replacement blade 1-17-3 is a different catalog size. Verify mounting before any blade substitution.

In the illustrated TC3 installation, after the 1½-inch return line is plumbed and pressure-tested, cut it flush with the wall and use this cutter to set the pipe 5/8 inch behind the shell surface. That setback is specific to the TC3 installation, not a tool body dimension or a universal cutting depth. Use a qualified installer and follow TL-1317 D in full.

Jandy’s separate In-Floor limited warranty distinguishes one-year manufacturing-defect coverage from 90-day coverage for purchased replacement parts, subject to the exact product category, certified-design, qualified-installation, first-purchaser/original-site and other conditions. Cleaning-head lifetime provisions do not automatically cover tools, blades, pilots or adapters. See the full statement for eligibility, the 50 United States/Canada scope, shipping and labor exclusions, and property-transfer/remodeling limits.

The 2026 manufacturer tool table and union reference, page 126, identify the ordering codes. The manufacturer installation reference provides the applicable system guidance. Blade/pilot mounting, drill setup and unsupported interchangeability must be verified for the specific tool. See the Jandy In-Floor limited warranty for its conditions.
