Caretaker Pipe Reamer and Cutter Combo — Complete | 4-17-2

4-17-2: Complete reamer/cutter; manufacturer reference for 2-inch Schedule 40 collar stub-ups.

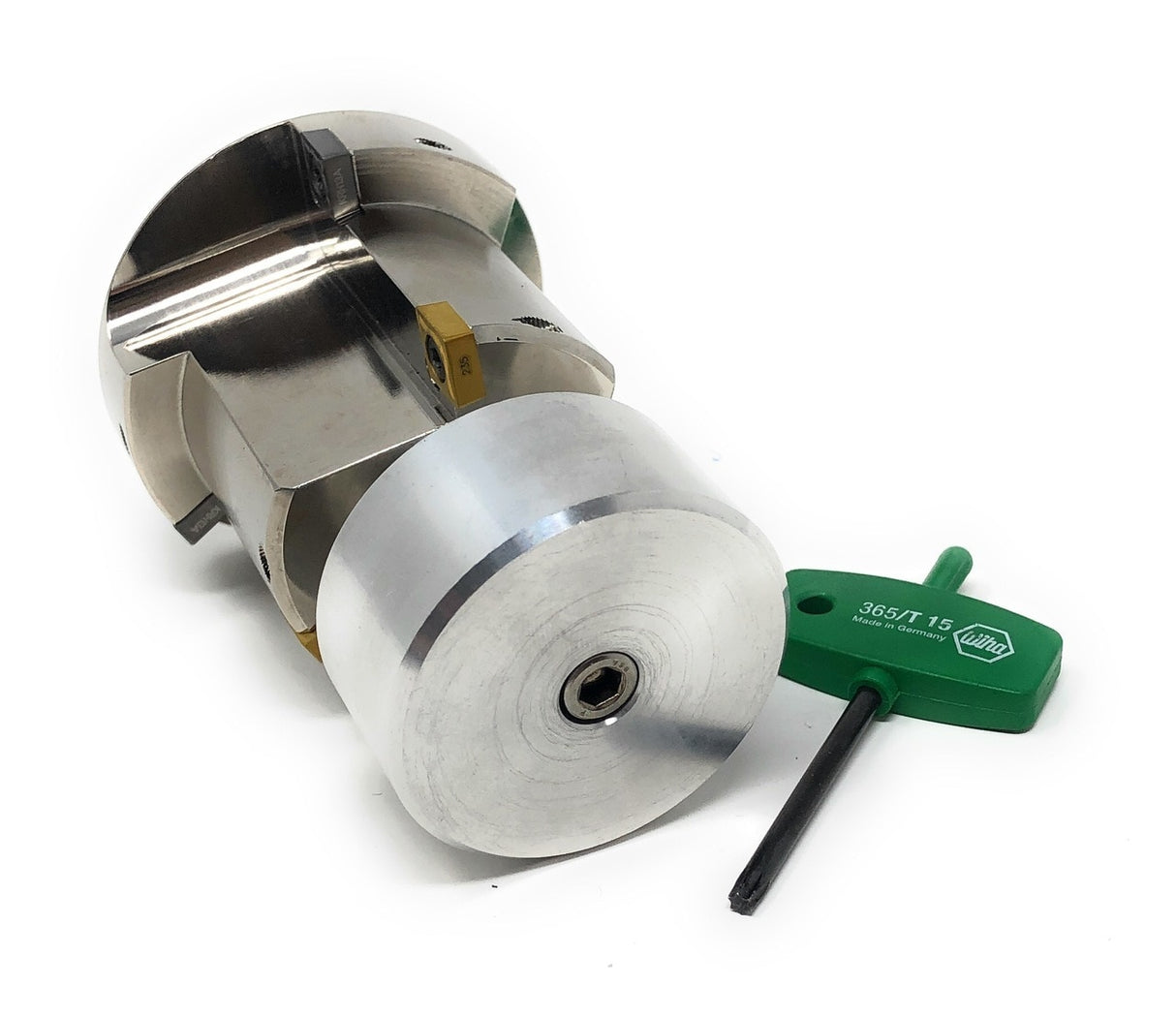

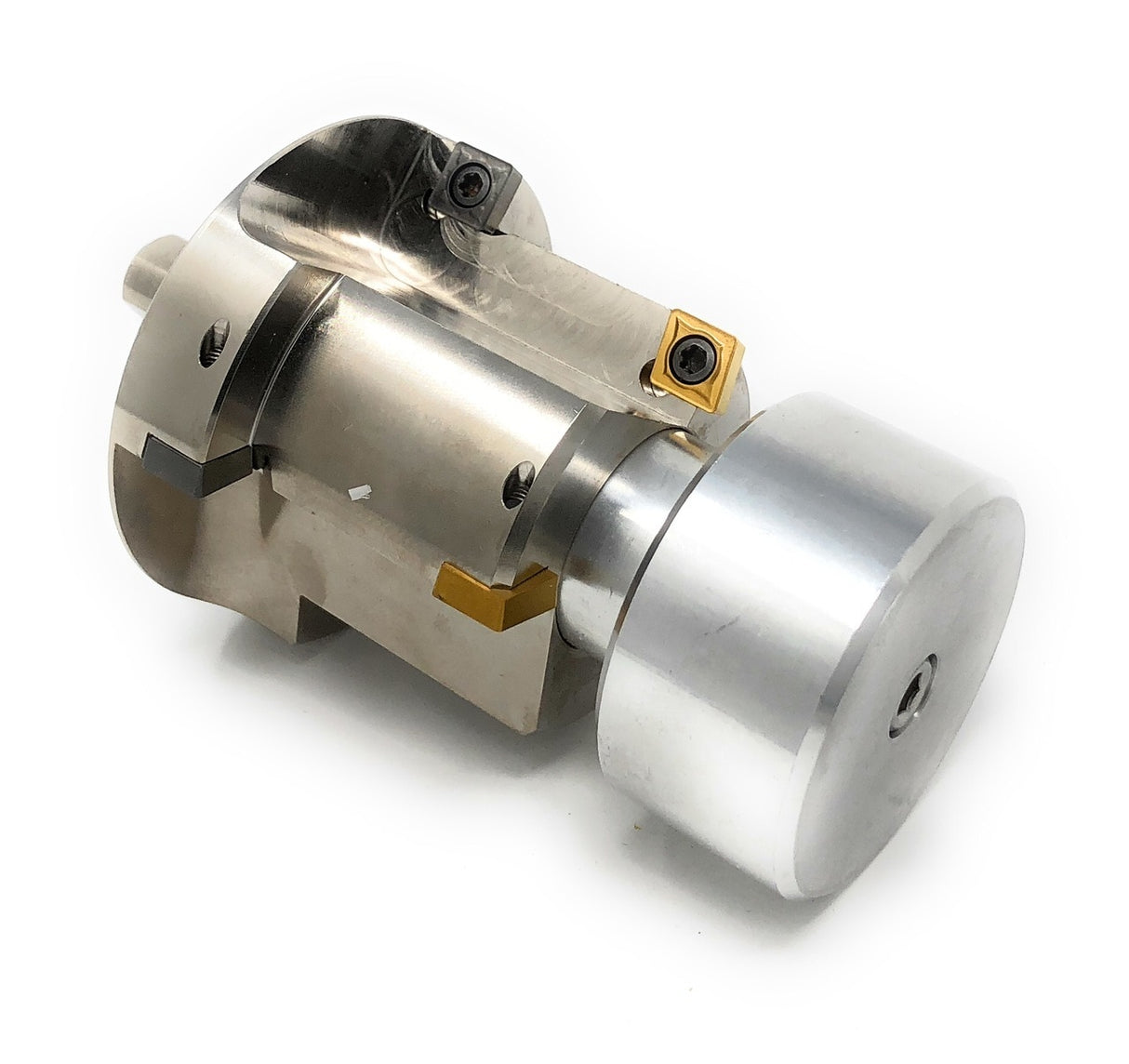

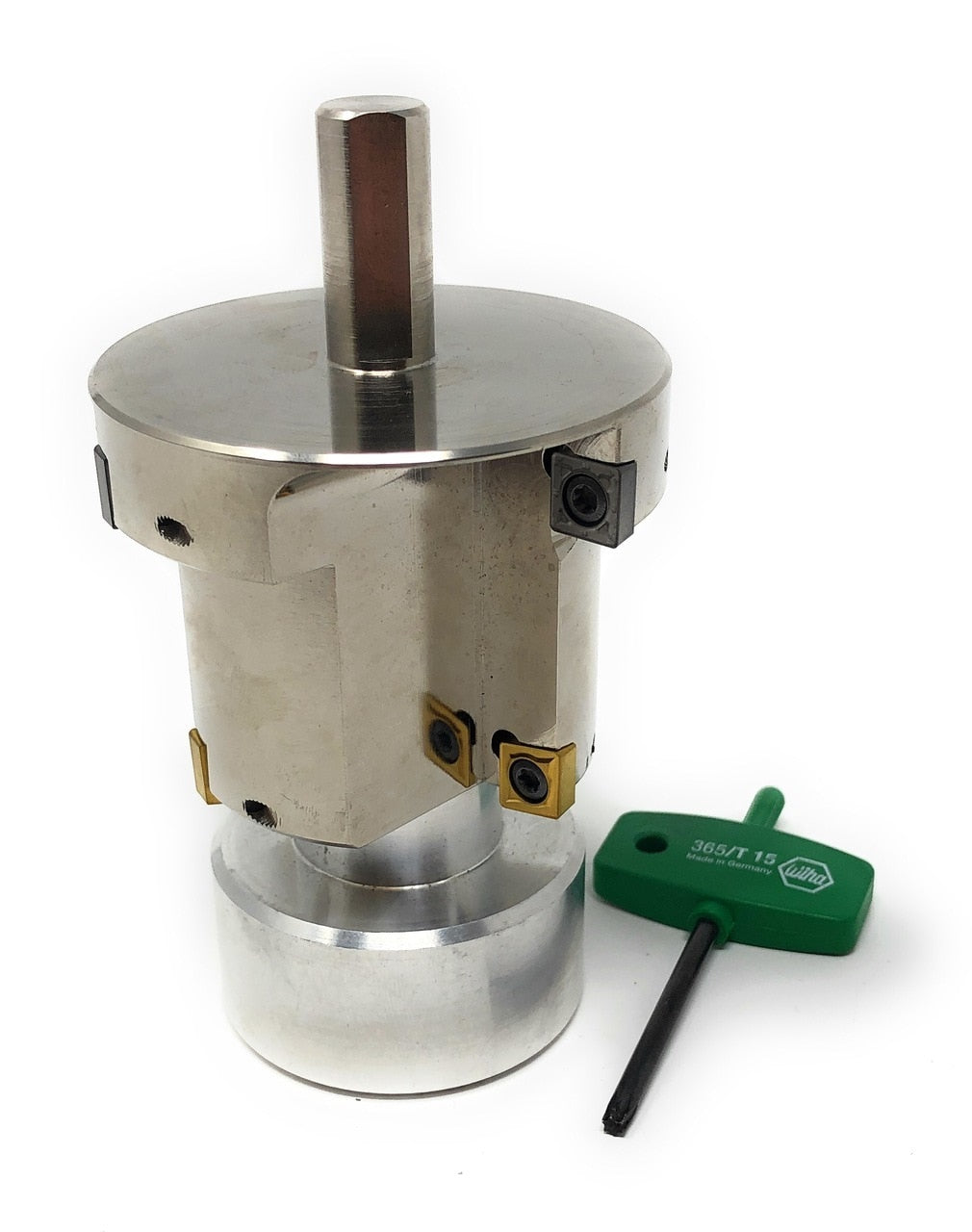

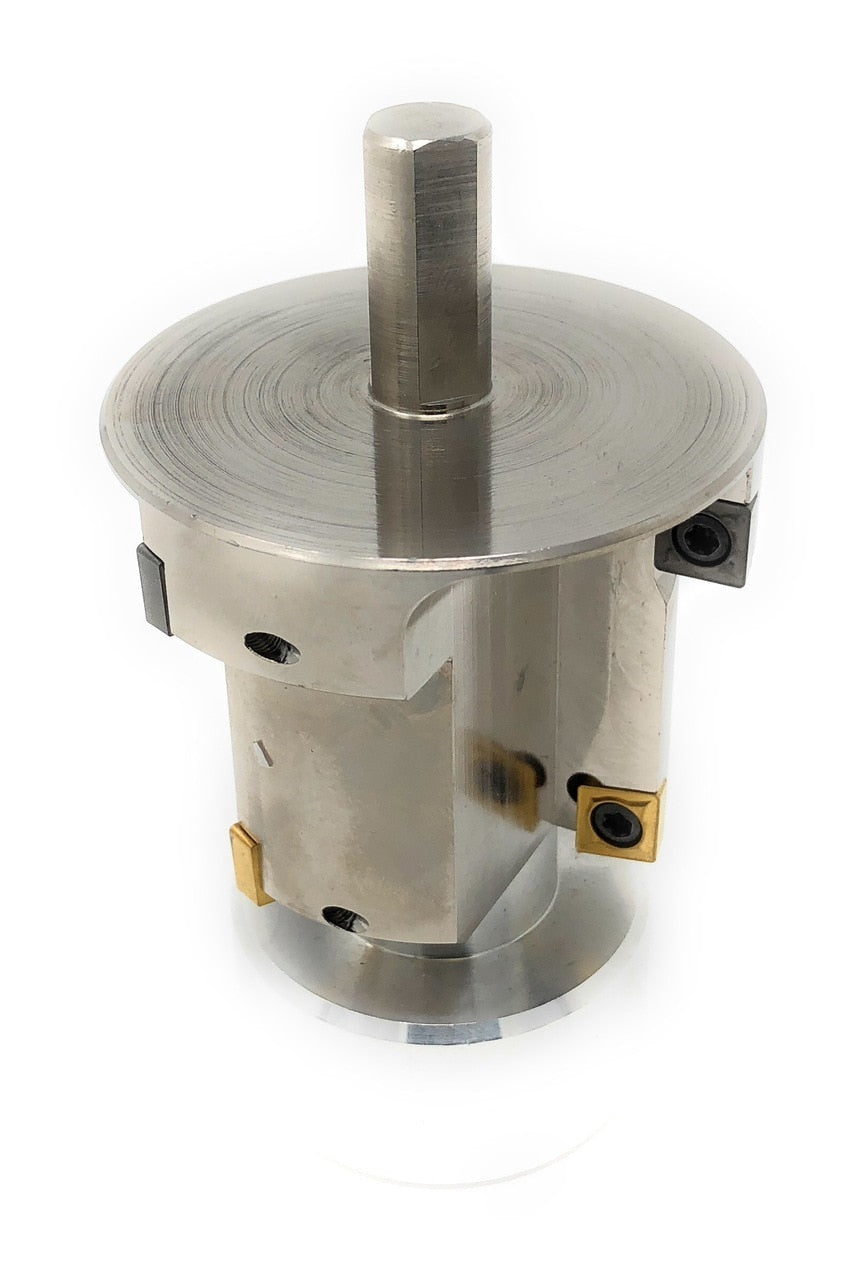

The catalog-listed complete pipe reamer/cutter tool. A drill/drive unit is separate; spare blade/pilot quantities are not itemized in the ordering row.

The manufacturer installation manuals specify 4-17-2 when 2-inch Schedule 40 stub-up pipe must be reamed for a 2-inch collar. Two-inch Class 200 pipe and the specified 2½-inch Schedule 40 collar configuration do not require that same reaming step. Match the actual pipe and collar before preparation.

The deep-cut tool 3-17-20, replacement pilot 1-17-22 and retrofit bayonet collar pilot 4-17-16 are separate ordering codes. Verify the original tool and component interfaces rather than assuming all configurations share every spare.

Stop and isolate the pool system before service. Use a qualified pool professional and the specific tool/assembly instructions. Verify the installed fitting and tool setup before cutting or removing components; no universal torque, drill-speed or cutting-depth setting applies.

Jandy’s separate In-Floor limited warranty distinguishes one-year manufacturing-defect coverage from 90-day coverage for purchased replacement parts, subject to the exact product category, certified-design, qualified-installation, first-purchaser/original-site and other conditions. Cleaning-head lifetime provisions do not automatically cover tools, blades, pilots or adapters. See the full statement for eligibility, the 50 United States/Canada scope, shipping and labor exclusions, and property-transfer/remodeling limits.

The 2026 manufacturer tool table and union reference, page 126, identify the ordering codes. The manufacturer installation reference provides the applicable system guidance. Blade/pilot mounting, drill setup and unsupported interchangeability must be verified for the specific tool. See the Jandy In-Floor limited warranty for its conditions.
