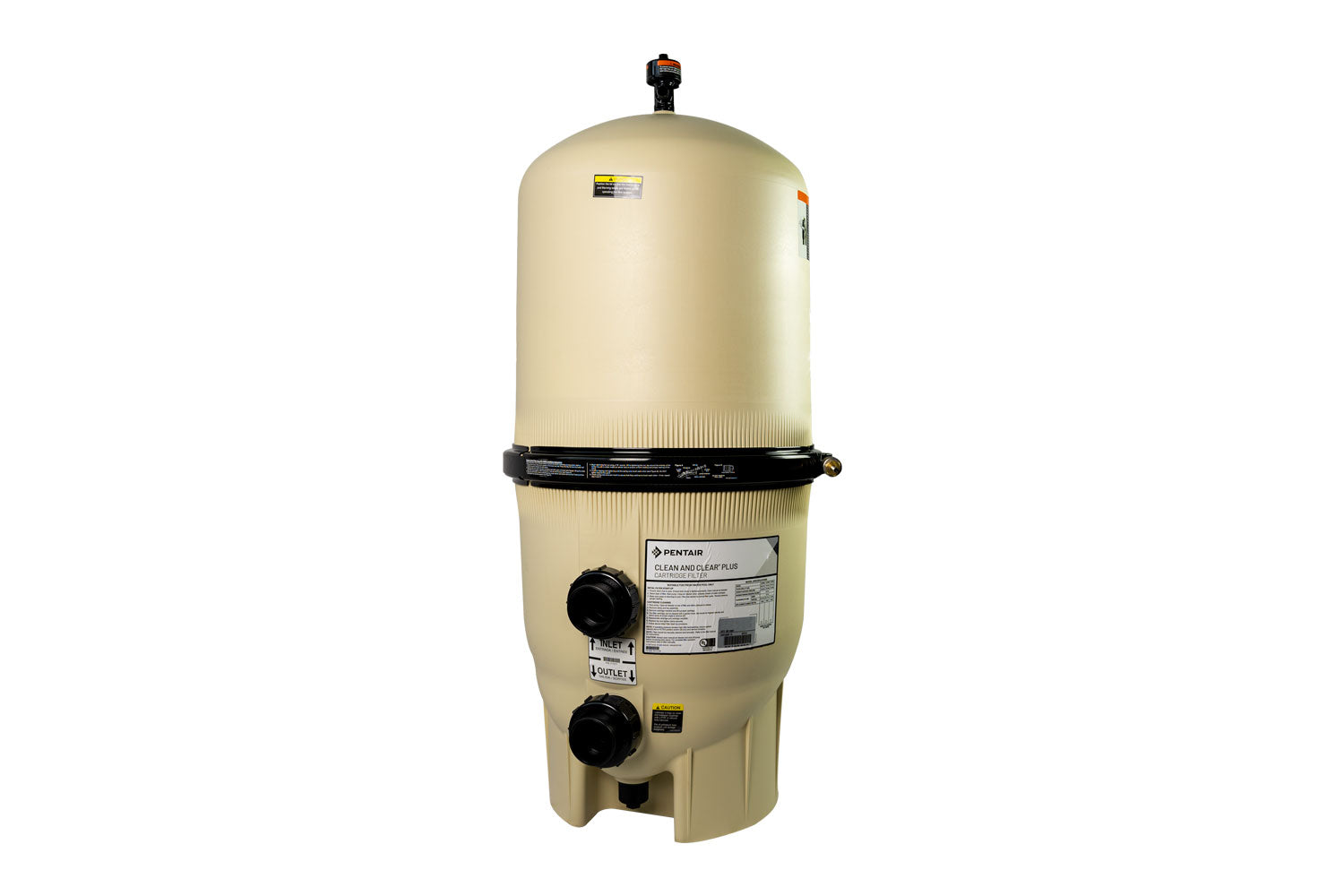

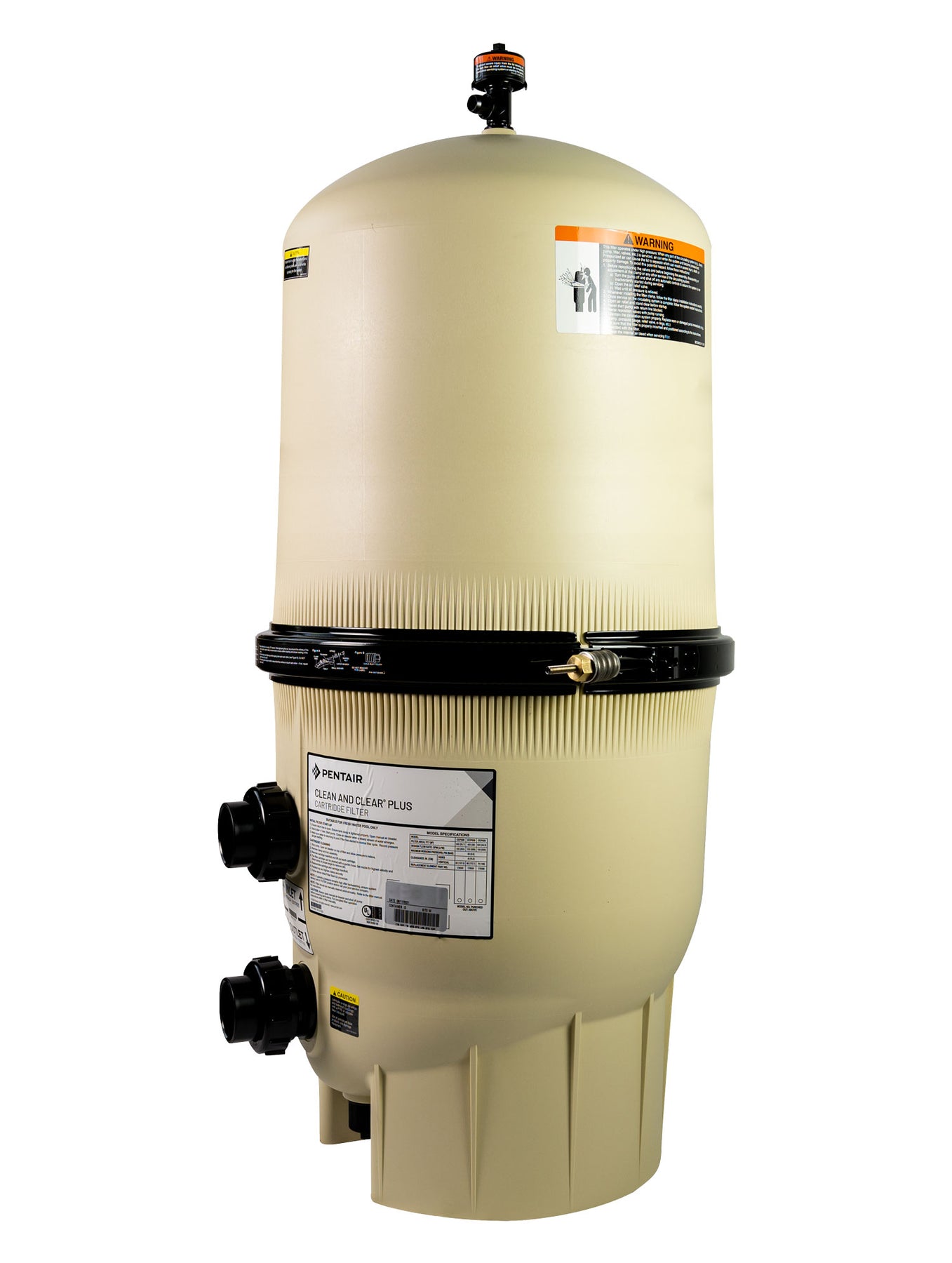

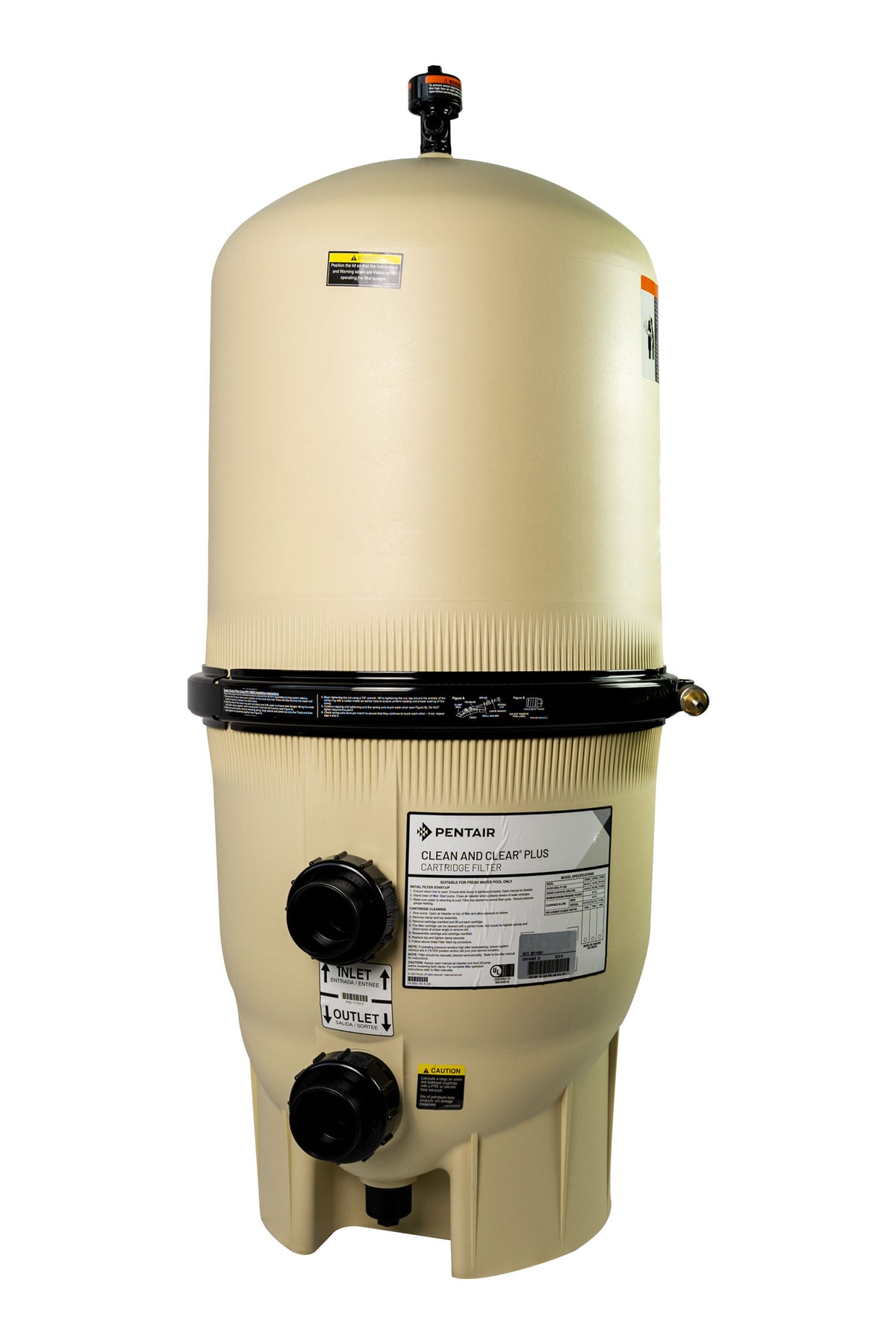

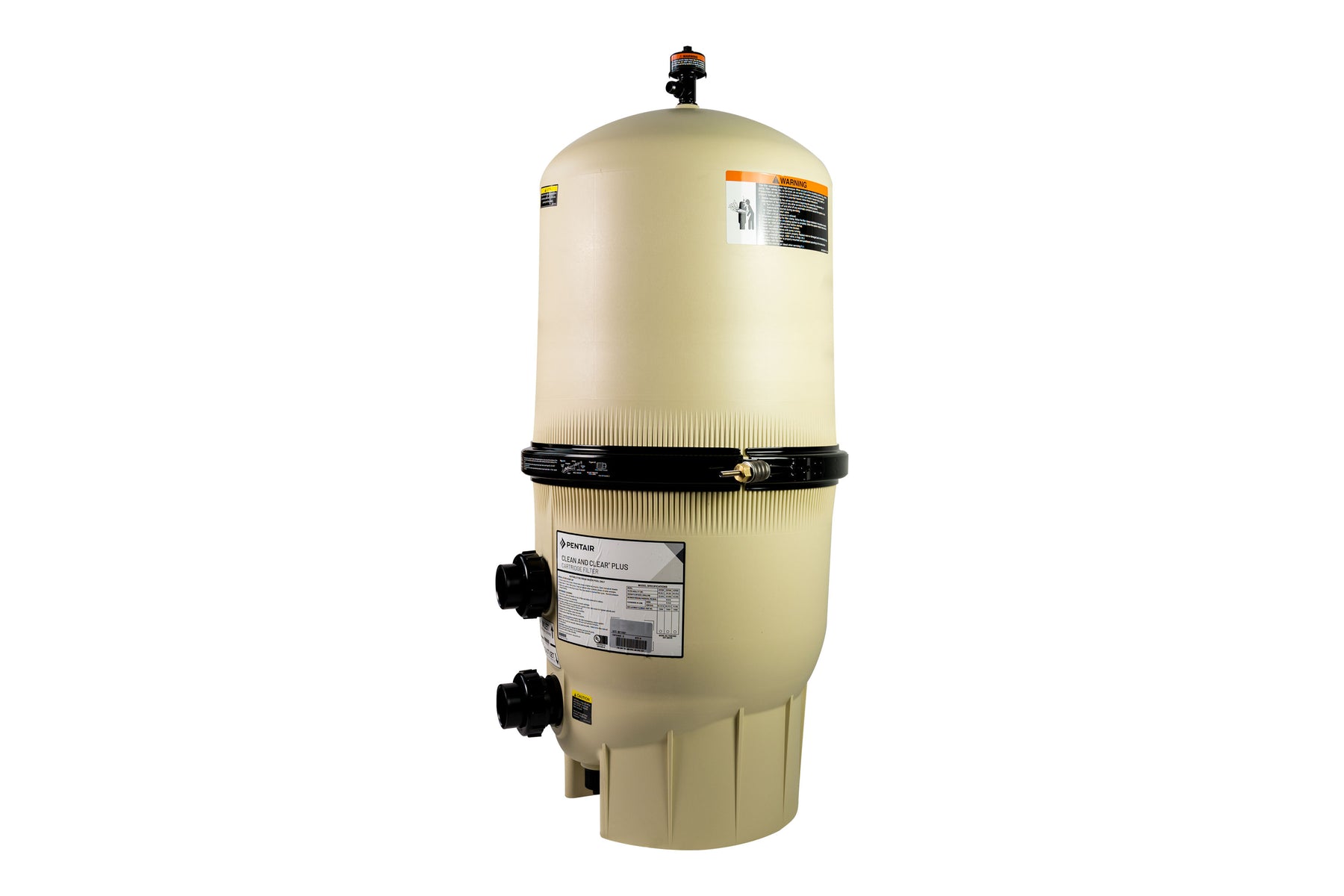

Pentair Clean & Clear Plus Cartridge Filter 520 | EC-160332

Pentair Clean & Clear Plus Cartridge Filter 520 | EC-160332

High-capacity 520 sq ft cartridge pool filter by Pentair (SKU EC-160332) with 2″ plumbing, four-cartridge coreless design, and no backwash required.

Features

• 520 sq ft effective filtration area for exceptional dirt-holding capacity.
• Rated for up to ~150 GPM flow — ideal for larger residential pool systems.
• Injection-molded, fiberglass-reinforced polypropylene tank provides long-term durability.
• Four coreless cartridge elements allow removal and rinse—no backwashing needed.
• 2″ plumbing ports plus 100% drain clean-out port support high-flow installations and easy winterizing.

Description

The Pentair Clean & Clear Plus Cartridge Filter 520 (SKU EC-160332) is built for high-demand residential pool systems where clarity, flow, and durability matter. With 520 sq ft of cartridge media and a flow capability up to 150 GPM, this filter supports large water volumes while reducing service intervals. The robust one-piece tank withstands pool chemicals and outdoor exposure, while the four coreless cartridges enable efficient rinse-only maintenance. With high-flow plumbing and full-drain access, it represents a performance-driven, low-maintenance filtration solution for serious pools.

Pro Tip

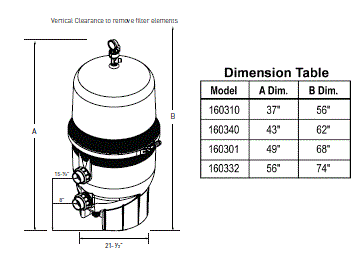

Ensure your pump flow remains under the ~150 GPM rating to protect media life and water clarity. Leave adequate vertical clearance above the filter lid for cartridge removal. When system pressure rises ~10 psi over clean start, hose off cartridges. Replace cartridges every 3-5 years, depending on conditions.

Related Parts

• Pentair Clean & Clear Plus Cartridge Filter 420 sq ft | EC-160301
• Pentair Clean & Clear Plus Cartridge Filter 320 sq ft | EC-160340
• Pentair Genuine Replacement CNC Plus 520 Cartridge - 4 Pack | 179136
• Pentair Tension Control Clamp For FNS Plus & Clean & Clear Plus Filter Tanks | 190003
• Pentair Almond Bottom Tank Assembly for Clean & Clear Plus & Quad DE Filters | 178578
• Pentair Clean & Clear Plus 520 Tank Lid Assembly | 178582
• Pentair High Flow Manual Air Relief Valve | 98209800

Installation Tips

High-level safety/compatibility notes only: Always turn off the pump and relieve system pressure before servicing or installing. Ensure the base is level and sized for the tank plus water and media load. Confirm plumbing connections match the 2″ ports or adapt accordingly. Lubricate and inspect the O-ring and clamp ring before starting. Do not exceed 50 psi maximum pressure and 104 °F (40 °C) water temperature per manufacturer guidelines.
