Hayward 3" PVC TRUE BALL VLV THD EPDM || TC1300TE

Hayward 3" PVC TRUE BALL VLV THD EPDM || TC1300TE

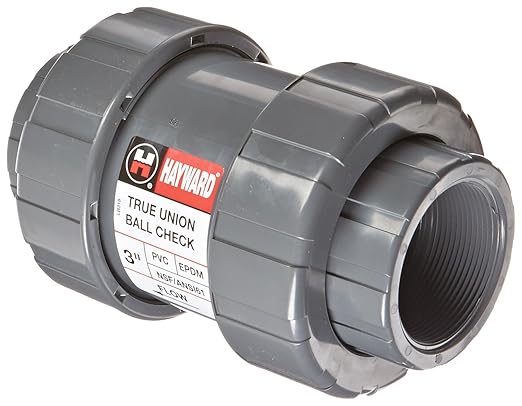

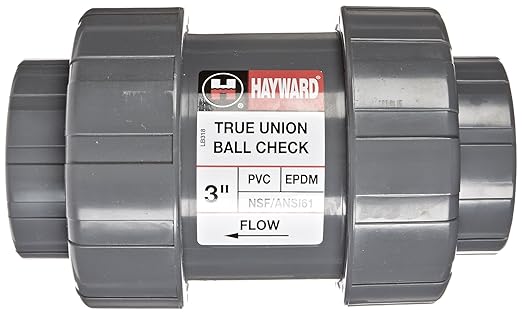

Hayward 3" PVC True Union Ball Check Valve THD with EPDM Seals – TC1300TE

Ensure efficient and reliable backflow prevention with the Hayward 3" True Union PVC Ball Check Valve – engineered for top-tier performance and built to last. Now available at ePoolSupply.com.

Product Highlights:

• SKU: TC1300TE

• UPC: 610377166607

• Size: 3” NPT Threaded Ends

• Seal Material: EPDM for superior chemical resistance

• Material: Industrial-grade PVC body for corrosion and UV resistance

• Pressure Rating: Up to 150 PSI

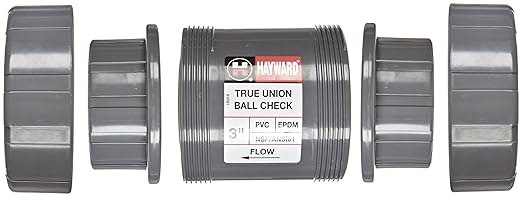

• Design: True union ends for easy maintenance and quick replacement

• Flow Direction: Vertical or horizontal installation with consistent sealing performance

• Complies With: ASTM and NSF standards for water system applications

About the Product:

Hayward's TC Series Ball Check Valves have been a trusted solution in fluid handling applications since their launch. Designed with precision-molded thermoplastic construction, the 3" threaded model (TC1300TE) is ideal for high-flow systems such as commercial pools, water treatment plants, and industrial fluid systems. The EPDM seat material offers excellent resistance to chlorine, bromine, and a wide range of chemicals commonly found in pool and spa environments.

Installation Tips:

• Always install in the flow direction indicated on the valve body.

• Use a quality thread sealant designed for PVC when connecting to avoid leaks.

• For service access, ensure the true union fittings are accessible post-installation.

• Hand tighten only – overtightening can damage threads or crack the housing.

• For optimal performance, install the valve in a vertical orientation with upward flow; horizontal use is acceptable but may affect cracking pressure slightly.

Electrical Information:

• This is a non-electrical/mechanical valve – no wiring, power source, or actuators required.

• Designed to work passively based on fluid pressure, perfect for gravity and pressure-fed systems.

Why Buy from ePoolSupply.com?

• Authorized Hayward dealer with guaranteed genuine parts

• Expert support team available for product and installation help

• Fast shipping and top-rated customer service

Optimize your system's flow and safeguard it from backflow damage with the Hayward 3” TC1300TE True Union Ball Check Valve – available now at ePoolSupply.com.
