Hayward Suction Cleaner Cone Gear Bushing | AXV306

Hayward  |  SKU: AXV306  |  Barcode: 0610377212885
Sale price $1695 USD Regular price $2395

Ships to

Select your store

Pickup inventory reflects the selected variant.

Product FAQs
Is AXV306 a gear or a bushing?

It is the cone gear bushing, a separate replacement reference from the cone gear.

Can I use it for every older Pool Vac?

No. The manufacturer lists AXV306 for older Pool Vac and Pool Vac Plus liner configurations, while their concrete configurations use AXV069. Match your diagram.

Is this the spindle-gear bushing?

No. The spindle-gear bushing is AXV066A, a separate component.

Compatibility
  • Hayward AquaBug — IS579 Rev.B configuration
  • Hayward Diver Dave — IS579 Rev.B configuration
  • Hayward Wanda the Whale — IS579 Rev.B configuration
  • Hayward AquaCritter — IS579 Rev.B and European catalog configurations
  • Hayward Pool Vac Ultra Pro — European catalog configuration
  • Hayward Navigator Pro — European catalog configuration
  • Hayward Pool Vac V-Flex — European catalog configuration
  • Hayward Navigator V-Flex — European catalog configuration
  • Hayward Magic Clean — European catalog configuration
  • Hayward Penguin — European catalog configuration
  • Hayward Whaly — European catalog configuration
  • Hayward Pool Vac Plus — European liner configuration
  • Hayward Pool Vac — European liner configuration
  • Hayward Pool Vac Ultra — European concrete and liner configurations
  • Hayward Navigator — European concrete and liner configurations

Match the exact assembly, part number and revision before ordering. The older manufacturer table distinguishes AXV306 for Pool Vac Plus liner and Pool Vac liner from AXV069 for their concrete configurations. AXV306 is also listed for Pool Vac Ultra and Navigator concrete/liner configurations.

Delivery and Shipping

  • FREE SHIPPING IN THE USA
  • WORLDWIDE SHIPPING AVAILABLE
  • 30 DAY RETURNS

Description

Hayward | AXV306

Suction Cleaner Cone Gear Bushing

The Hayward AXV306 is the Suction Cleaner Cone Gear Bushing. It is listed for Hayward AquaBug — IS579 Rev.B configuration and 14 additional applications.

Before you order

Check the exact bushing code and cleaner configuration. AXV306 is the cone-gear bushing; AXV066A is the separate spindle-gear bushing. The older Pool Vac and Pool Vac Plus concrete tables specify AXV069 instead.

Check the exact part and model

Compare part number AXV306 with the diagram for your installed equipment. Match the model, finish, quantity and revision; a similar appearance or shared brand name does not establish interchangeability.

See Compatibility, Specifications, Resources & PDF Downloads and Product FAQs for product details and support references.

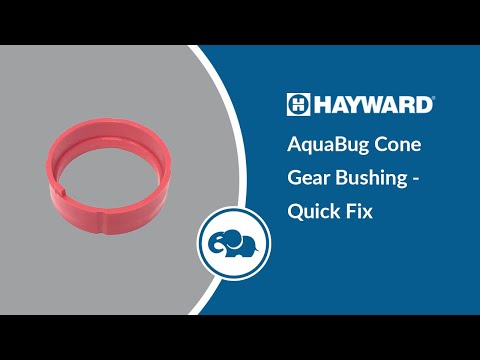

Existing product videos

Specifications

  • SKU
    AXV306
  • Product Type
    Pool Cleaner Replacement Part
