Hayward Suction Cleaner Intermediate Gear | AXV301
No. The clear manufacturer Pro-model diagram and IS579 parts list identify AXV301 as the intermediate gear and AXV070 separately as the cone gear. The primary tables identify Pool Vac Ultra Pro, Navigator Pro, Pool Vac V-Flex and Navigator V-Flex configurations. Match the exact regional model and diagram revision. The manufacturer lists the gear and intermediate-gear shaft AXV309 separately. This listing is for the AXV301 gear component, not a complete gear-and-shaft kit.Product FAQs
Is AXV301 the cone gear?
Which Pool Vac and Navigator configurations are documented?
Does the intermediate gear include its shaft?
Match the exact assembly, part number and revision before ordering. Intermediate gear service component for the specifically documented suction-cleaner configurations. Hayward separately identifies cone gear AXV070 and intermediate-gear shaft AXV309; this listing is not a complete drive kit.Compatibility
Delivery and Shipping
Delivery and Shipping
- FREE SHIPPING IN THE USA
- WORLDWIDE SHIPPING AVAILABLE
- 30 DAY RETURNS
Description
Description
Hayward | AXV301

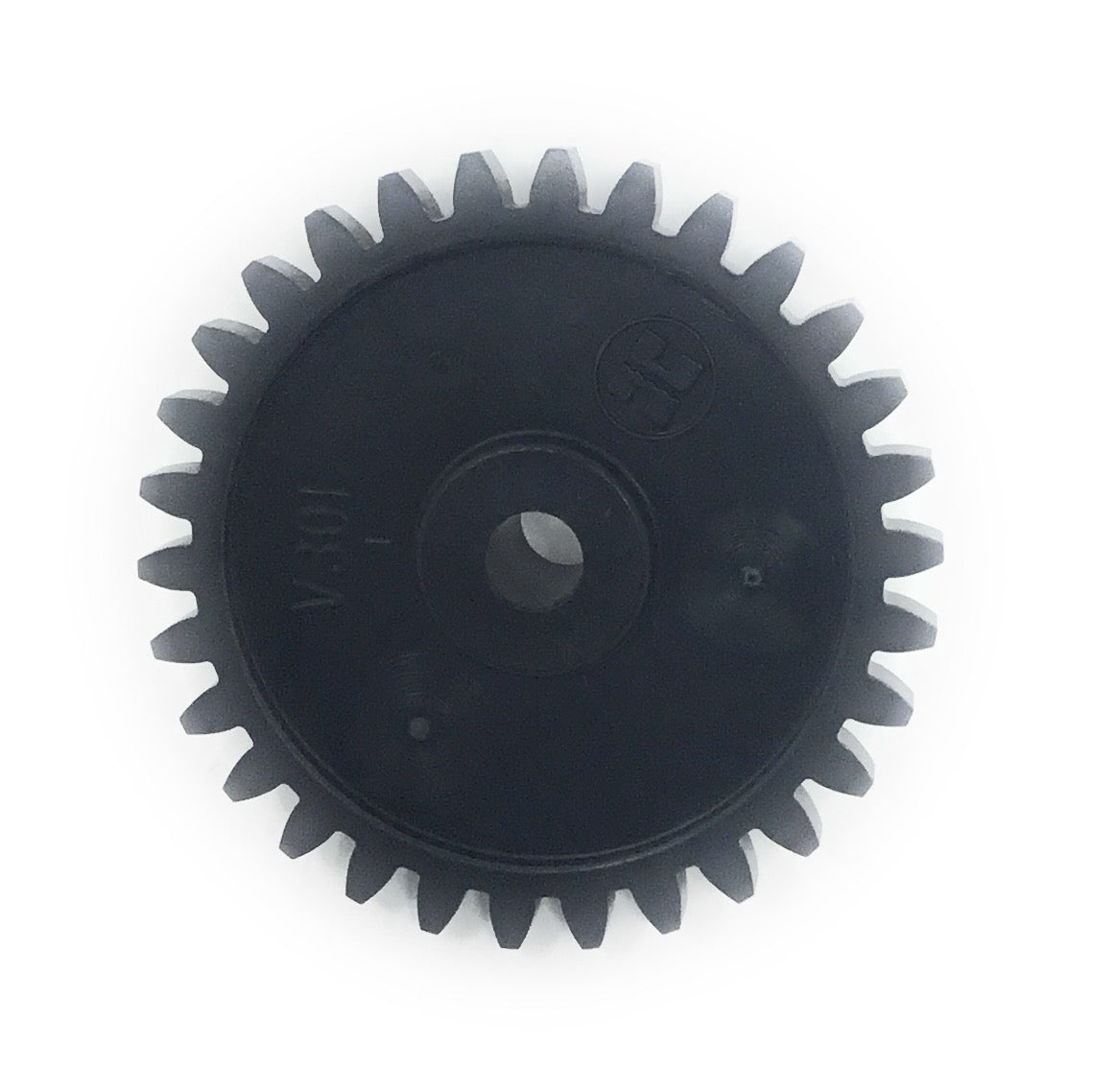

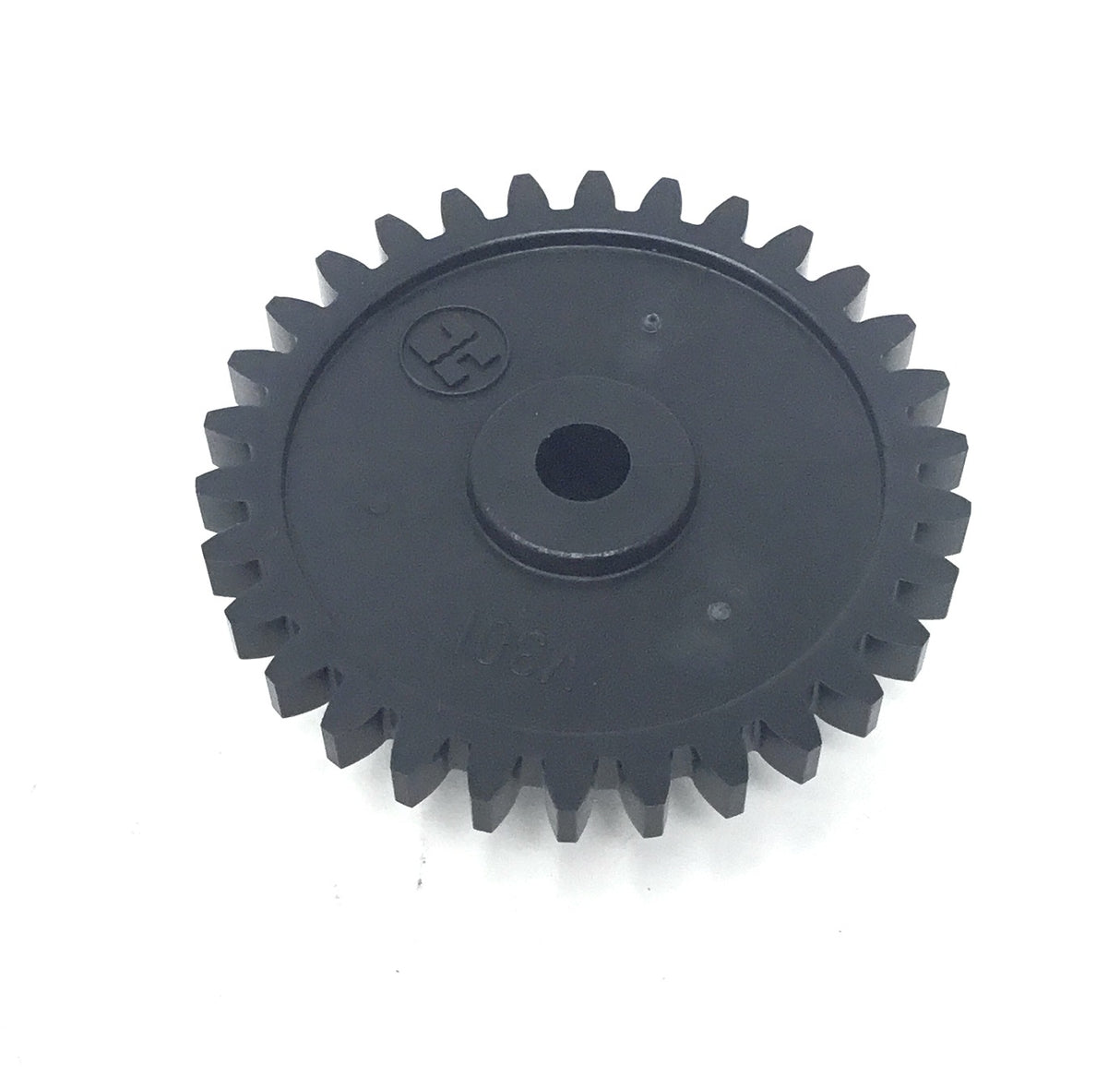

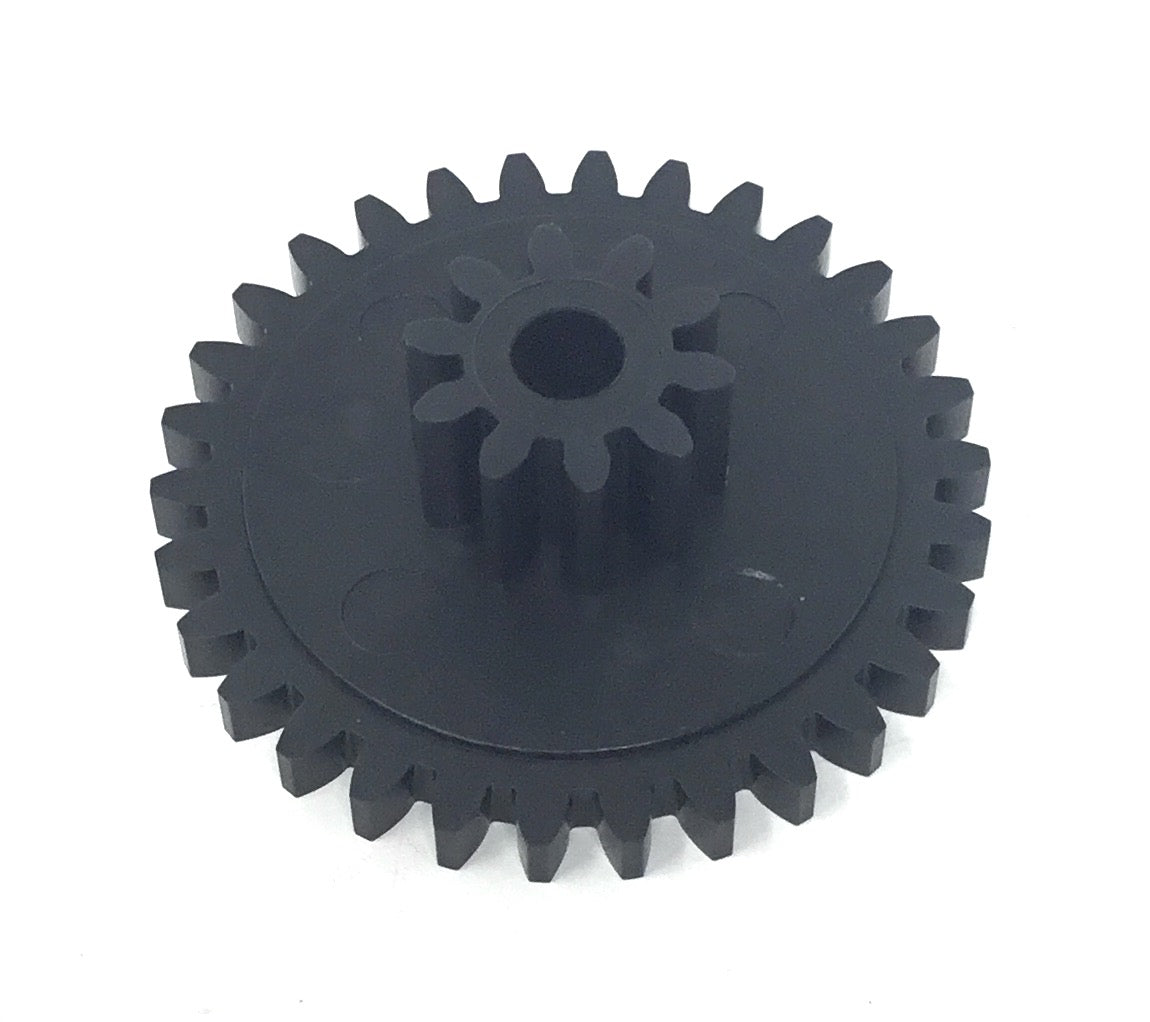

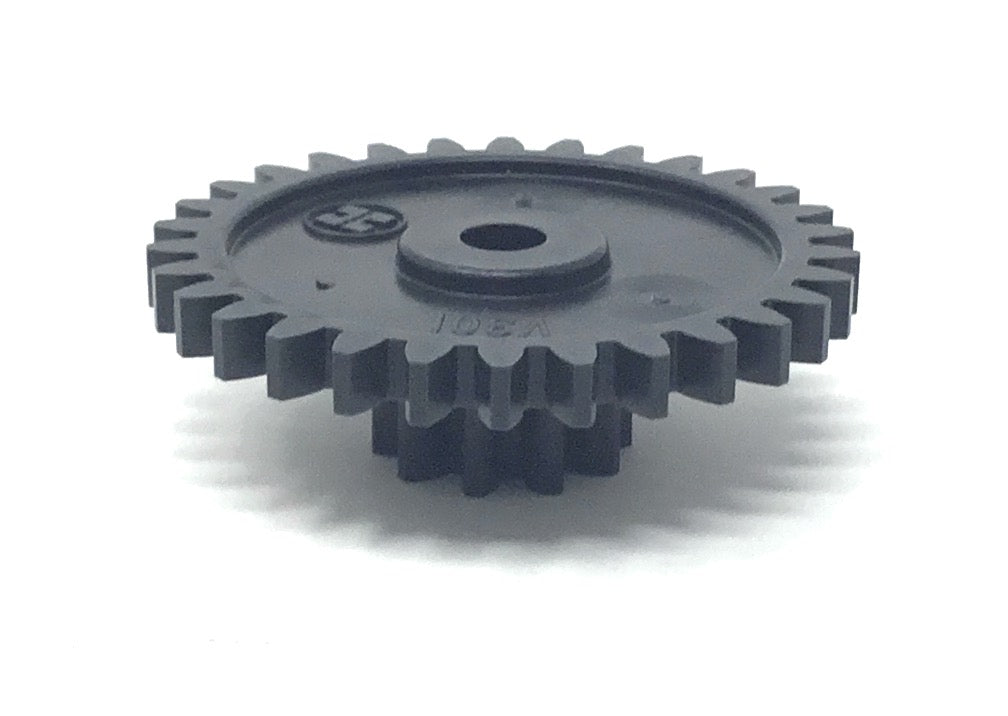

Suction Cleaner Intermediate Gear
The Hayward AXV301 is the Suction Cleaner Intermediate Gear. It is listed for Hayward AquaBug — IS579 Rev.B configuration and 10 additional applications.
Before you order
Match AXV301 to the intermediate-gear callout in your exact model's diagram. Check the regional configuration and associated shaft; a similar gear or shared cleaner-family name does not establish fit.
Check the exact part and model
Compare part number AXV301 with the diagram for your installed equipment. Match the model, finish, quantity and revision; a similar appearance or shared brand name does not establish interchangeability.
See Compatibility, Specifications, Resources & PDF Downloads and Product FAQs for product details and support references.
